Miniaturized Two-Photon Microscope (Mini2P)


  • Designed for Calcium Imaging in Freely Moving Specimens
  • Interchangeable Objectives for Application-Specific Customization
  • Two MEMS Laser Scanning Options

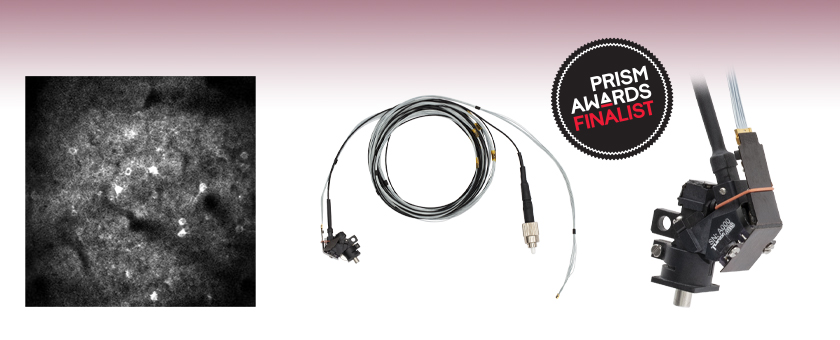

Mini2P with Hollow-Core Photonic Crystal Fiber and Miniature Coax Cable Bundle





Mini2P
Miniature Two-Photon Microscope

Spontaneous Neuronal Activity in a Mouse
Somatosensory Cortex Expressing GCaMP6
Related Items


Please Wait
This video shows the spontaneous signal of a mouse somatosensory
cortex expressing GCaMP6 and was taken with the Thorlabs’ Mini2P Microscope.
(Sample preparation courtesy of Mario Fernandez de la Puebla. Imaging performed at Dr. Weijian Zong’s lab at Kavli Institute for Systems Neuroscience, Norway.)

**Large-Scale Two-Photon Calcium Imaging in Freely Moving Mice.

Zong, W., Obenhaus, H. A., Skytøen, E. R., Eneqvist, H., de Jong, N. L., ... & Moser, E. I.


Application Article Button

Features

  • Stable Two-Photon Imaging without Impediment to Specimen Behavior*
  • Fast Multiplane Imaging with a Microtunable Lens (<0.4 ms Response Time)
  • Simultaneous Measurement of Hundreds of Neurons is Possible
  • On-Board Detection with a High-Sensitivity Silicon Photomultiplier (SiPM)
  • Two MEMS Scanner Configurations:
    • Fast Scanning: 0.17 mm2 FOV, 40 Hz (256 x 256 Pixels)
    • Large FOV: 0.25 mm2 FOV, 15 Hz (256 x 256 Pixels)
  • Multiple Interchangeable Objectives Available Separately (Contact Imaging Sales for More Details)

Thorlabs' Miniature Two-Photon Imaging System (Mini2P) is a fast, high-resolution miniscope designed for in vivo two-photon imaging of non-stationary specimens. This Mini2P is based on the original design referenced in the paper by Zong. W., et al.** The lightweight, head-mounted design allows for stable calcium imaging without impediment to the sample. Interchangeable objectives facilitate use with cranial windows, prisms, and GRIN lenses for imaging tissue at different depths and orientations. The Mini2P allows for hundreds of neurons to be monitored in a single FOV, while visualization of up to a thousand cells is achievable through multiplane imaging controlled through the built-in microtunable lens.

A near-infrared, 920 nm femtosecond pulsed laser provides ideal excitation for two-photon imaging of GFP. Fiber coupling with a hollow-core photonic crystal fiber creates a stable system without complicated alignment procedures. Laser scanning is performed by a 2D microelectromechanical system (MEMS) device that is available for either fast scanning or large FOV applications. Signal detection is achieved with an on-board, dual-color silicon photomultiplier (SiPM) detector, eliminating the need for a fiber collection bundle that could impede movement. Laser scanning, signal detection, and z-scanning are all integrated into a flexible circuit controlled by a single miniaturized coax cable bundle and dedicated control box.

*The Mini2P microscope is under development and all specifications are subject to change.

Sam Tesfai
Sam Tesfai
General Manager,
Thorlabs Imaging Systems

Feedback?
Questions?
Need a Quote?

Contact Me

Click to Enlarge
The Mini2P's compact design allows for stable
two-photon imaging with minimal impediment
to the specimen.
Mini2P Controller Box
Click to Enlarge
The Mini2P microscope is controlled via a fully integrated electronics control box.
GRIN Lens for Multiphoton Imaging App Note
Specificationsa
Scanner Large FOV Fast Scanning
Imaging Speed 15 Hz (256 x 256 Pixels) 40 Hz (256 x 256 Pixels)
Detector Silicon Photomultiplier (SiPM)
Objective Threading M5 x 0.5
Laser
Center Wavelength 920 nm
Pulse Width 125 fs
  • This item is still in development and specifications are subject to change.
Objective Optionsa
Magnification 3X 3X 7X
Collection NA 0.50 0.45 0.70
Working Distance 0.582 mm (Air) 0 - 0.7 mm (Air/Water)
1.5 - 2 mm (Glass)
0.24 mm (Water)
0.17 mm (Glass)
Use Case GRIN Lens Prism Window
Focus Rangeb 240 µm 240 µm ~40 µm
  • This item is still in development and specifications are subject to change.
  • Specification with the Given Objective

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please
use our Contact Form or call (703) 651-1700.
