Features

• Ø1" Optic Mounts Kit
• Imperial and Metric Options
• Drawer Dimensions (L x W x H): 10.89" x 5.50" x 3.15" (276.5 mm x 139.7 mm x 79.9 mm)
• Cabinet Dimensions (L x W x H): 17.13" x 11.11" x 11.08" (435.0 mm x 282.3 mm x 281.3 mm)
• Easy-to-Read Labels List Contents for Each Drawer
• Savings Over Individual Component Products

This kit contains our most popular kinematic, fixed, translational, and rotational mounting components for Ø1" optics. Refer to the Contents tab above for detailed information about the components included with the imperial and metric versions of each kit. We also offer the ESK17(/M) Ø1/2" Optic Mounts Kit, ESK19(/M) Ø2" Optic Mounts Kit, and ESK23(/M) Specialty Optic Mounts Kit. Complement these kits with our ESK01(/M) Bases and Post Holders and ESK16(/M) Posts and Accessories Essentials Kits.

Mounting Options
The kit can be stored on a tabletop for easy, convenient access or placed on an RK4101 or RK4102 rack shelf, both of which can be installed in our RK3884 standard 19" rack. The image to the right shows an ESK18 kit as well as another custom-labeled 16-drawer cabinet installed in a 19" rack. The cabinet used in each Essential Series Kit features slots in the rear of the case (see image to far right) for wall mounting and features indentations on the top and four feet on the bottom for stable stacking.

Please Note: This kit weighs approximately 26 lbs (12 kg); ensure that the wall and wall mounts can support this weight prior to mounting.

Kit Components

The ESK18 includes the listed components and an ST9 9-Drawer Cabinet.

Kinematic Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity
KM100 Kinematic Mirror Mount for Ø1" Optics		8
MH25 Mirror Holder for Ø1" Optics 2.5 - 6.1 mm Thick		4

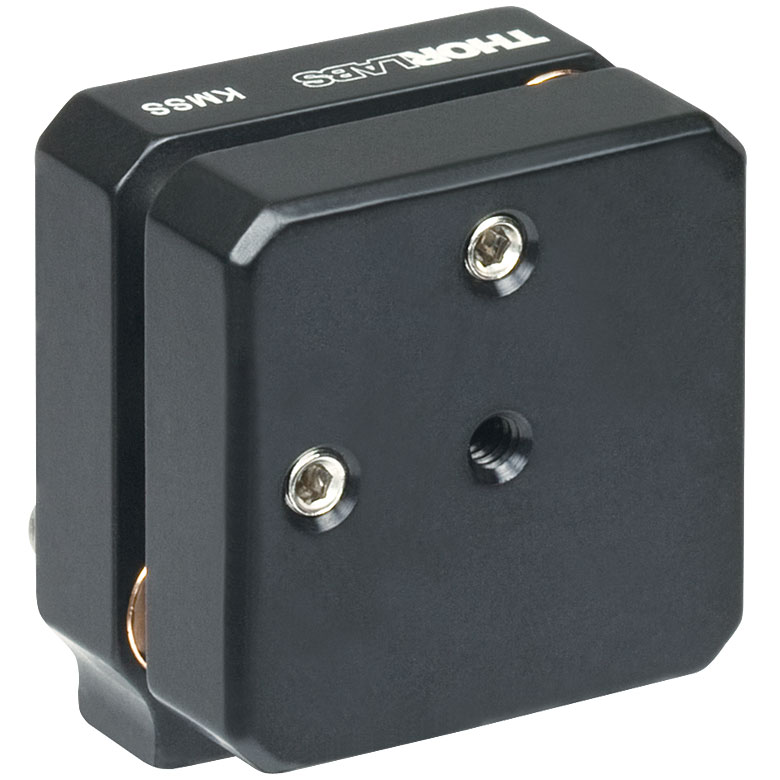

KMSS (KMSS/M) Compact Kinematic Mirror Mount, Hex Adjuster, 8-32 (M4) Taps for Post Mounting		4
KM1CE Ø1" Clear-Edge Kinematic Mirror Mount, 2 Adjusters		4

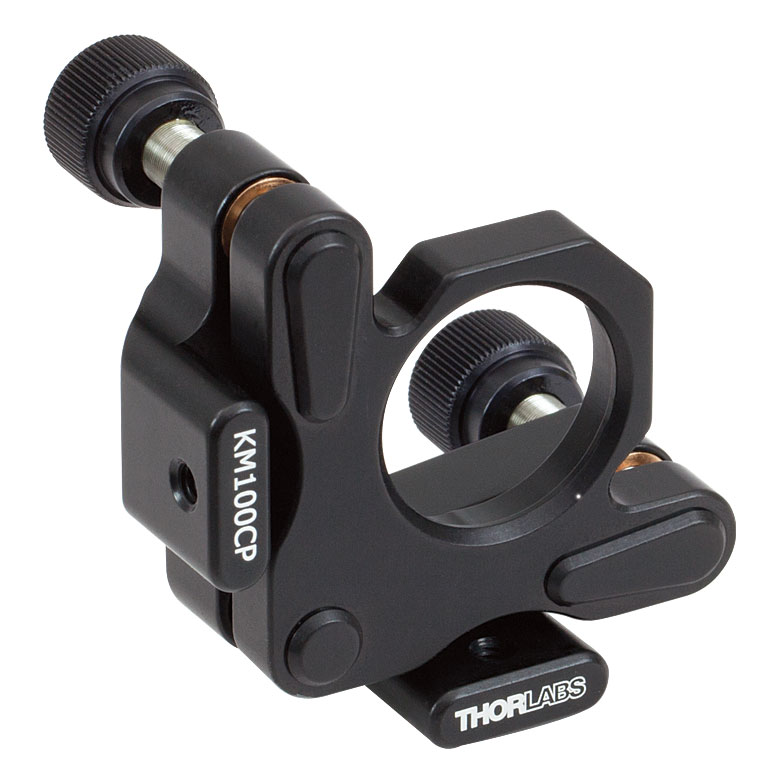

KM100CP (KM100CP/M) Kinematic Mirror Mount for Ø1" Optics with Post-Centered Front Plate, 8-32 (M4) Taps		4
KM100D Right-Handed Kinematic Mount for Ø1" D-Shaped Mirrors		4
KS1 Ø1" Precision Kinematic Mirror Mount, 3 Adjusters		4

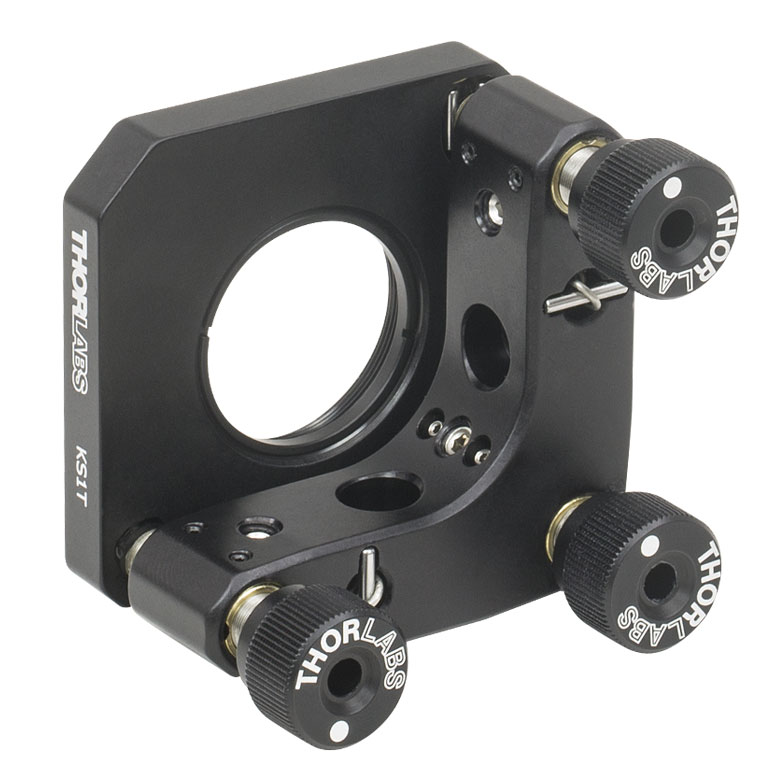

KS1T SM1-Threaded Precision Kinematic Mirror Mount for Ø1" Optics, 3 Adjusters		4

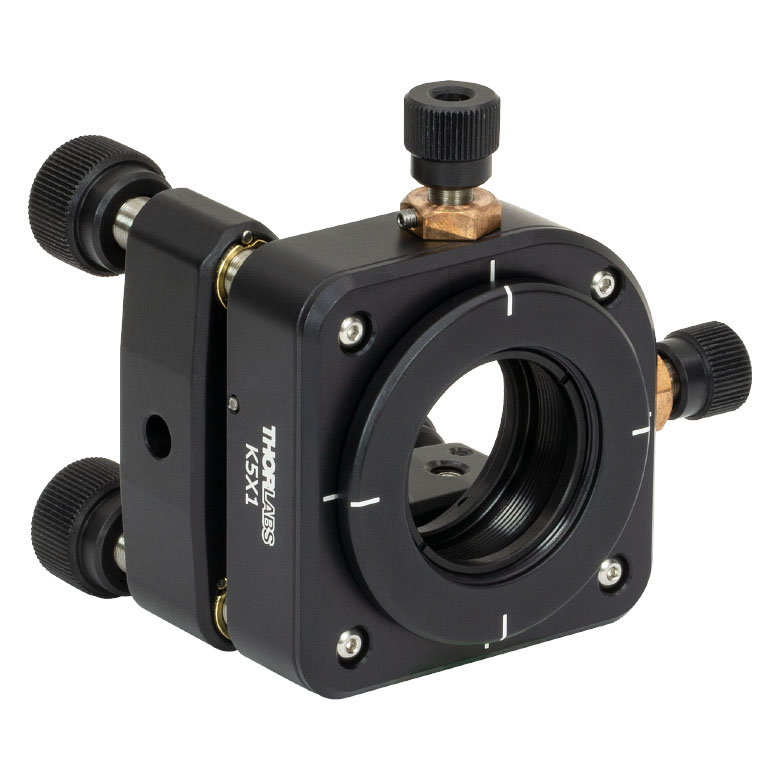

K5X1 5-Axis Locking Kinematic Mount for Ø1" Optics		2
K6XS 6-Axis Locking Kinematic Optic Mount		1

Fixed Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity

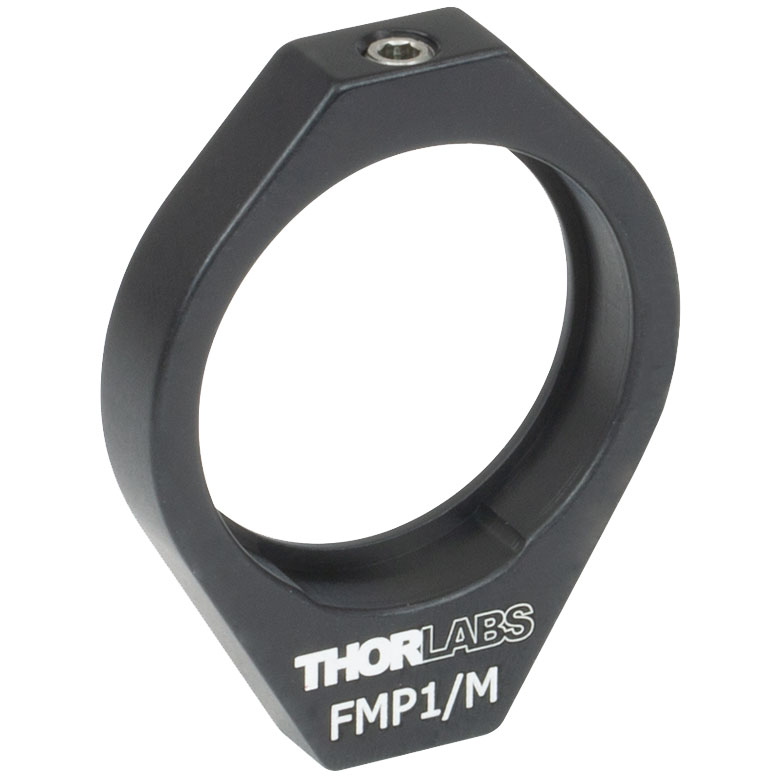

FMP1 (FMP1/M) Fixed Ø1" Mirror Mount, 8-32 (M4) Tap		5
LMR1 (LMR1/M) Lens Mount with Retaining Ring for Ø1" Optics, 8-32 (M4) Tap		5
NX1N (NX1N/M) 16-Position Indexing Mount for Ø1" Optics, 8-32 Taps		3

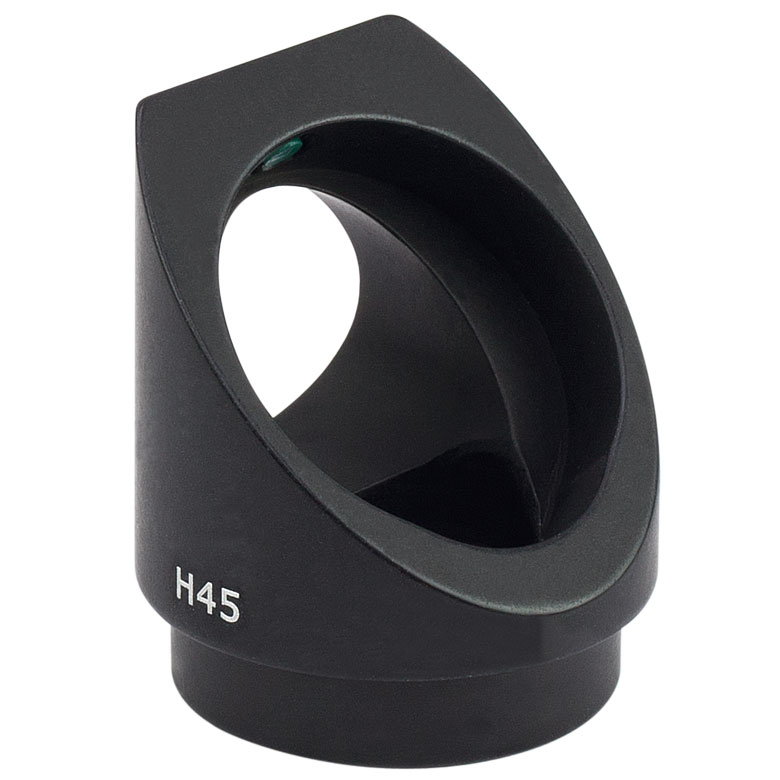

H45 45° Mirror Mount for Ø1" Optics		2

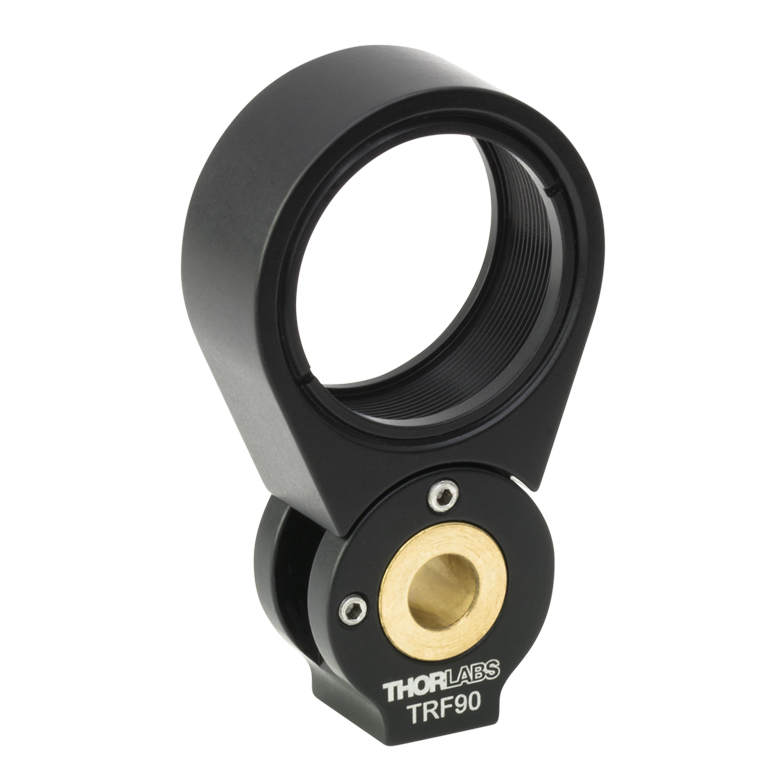

TRF90 (TRF90/M) 90° Flip Mount for Ø1" Filters and Optics, 8-32 (M4) Tap		3
DMM1 (DMM1/M) Fixed Mount for Ø1" D-Shaped Mirrors		5

Rotation and Translation Mounts
Item # and Description	Photo (Click to Enlarge)	Quantity
RSP1 (RSP1/M) Rotation Mount for Ø1" (25.4 mm) Optics, 8-32 (M4) Tap		2
PRM1 (PRM1/M) High-Precision Rotation Mount for Ø1" (25.4 mm) Optics		2
LM1-A Rotating Inner Carriage for Ø1" Optics, One SM1RR Retaining Ring		3
LM1-B (LM1-B/M) Rotation Mounting Ring for LM1-A Ø1" Optic Carriage, 8-32 (M4) Tap		3

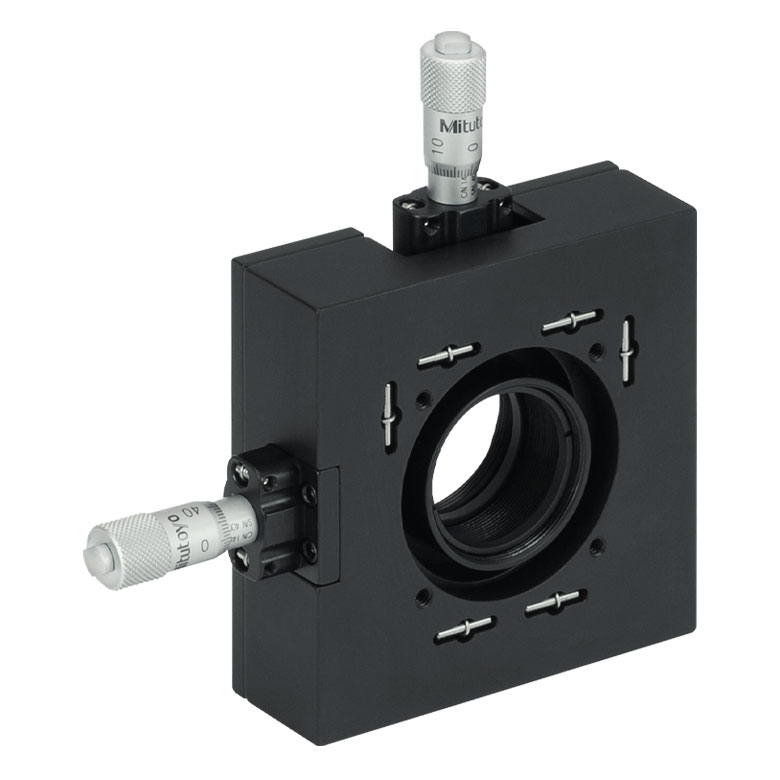

ST1XY-S (ST1XY-S/M) XY Translator with Micrometer Drives		1

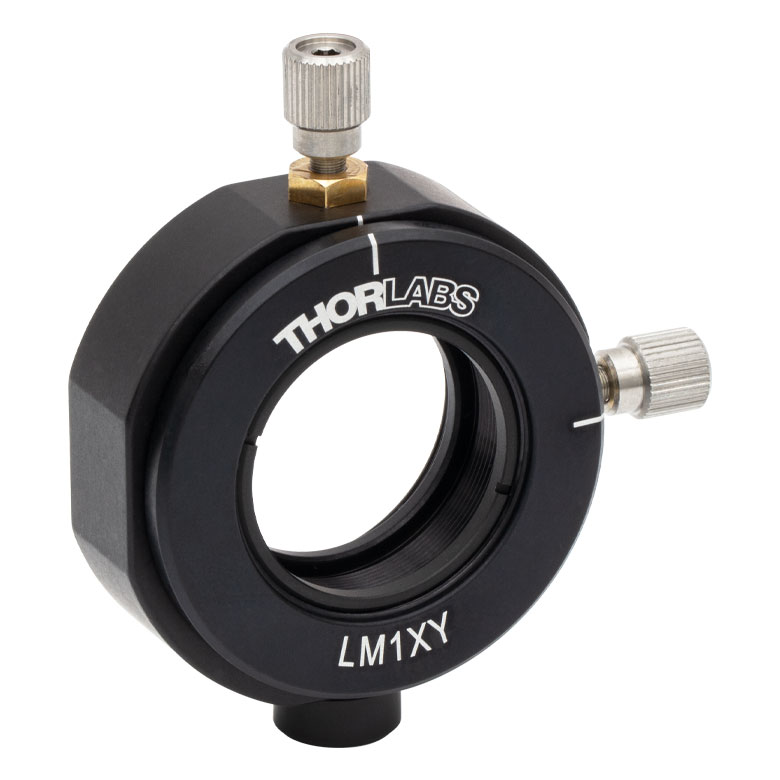

LM1XY (LM1XY/M) Translating Lens Mount for Ø1" Optics, 1 Retaining Ring Included		2

Accessories
Item # and Description	Photo (Click to Enlarge)	Quantity

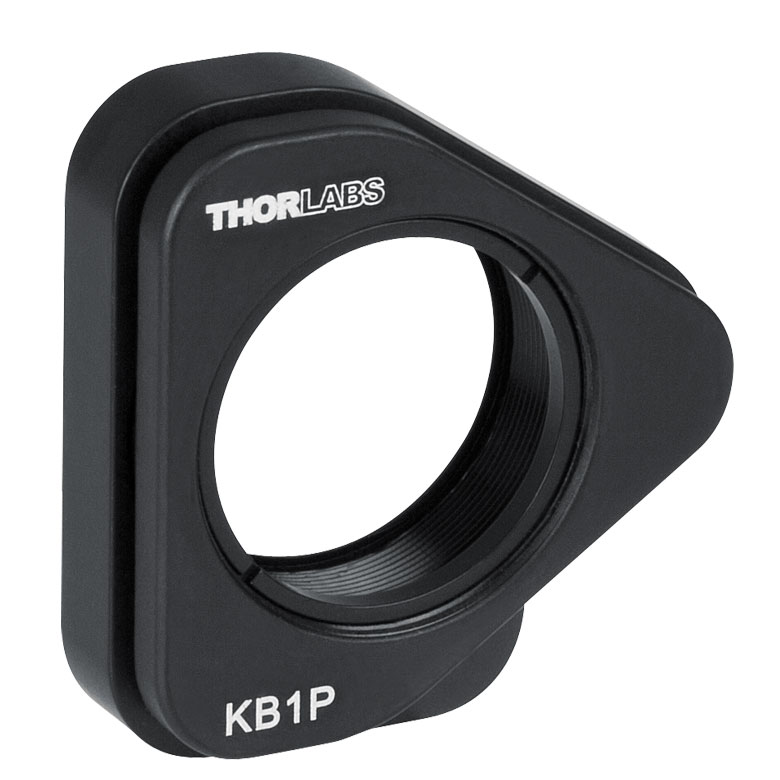

KB1P (KB1P/M) Magnetic Quick-Release Carriage Set, 8-32 (M4) Tap		3
SS8N013 8-32 Stainless Steel Nylon-Tipped Setscrew, 1/8" Long, Pack of 10		1
