Fluorescent Microscope Slides and Alignment Disks


  • 25.4 mm x 76.2 mm Fluorescent Slides and Ø1" Fluorescent Disks
  • Available in Five Colors: Blue, Green, Yellow, Orange, and Red
  • Made of Cast Acrylic Substrate
  • Provides a Uniform Fluorescent Field Across the Surface Area

FSK5

Set of All Five Colored Slides

ADF1

Blue Alignment Disk with Target

ADF5

Red Alignment Disk with Target

ADF7

Green Alignment Disk with Hole in Disk Center

FSK3

Yellow Slide

FSK4

Orange Slide

Related Items


Please Wait

Click to Enlarge
The FSK6 Red Fluorescent Slide Mounted Using the MP100-RCH2 Rigid Stand Slide Holder

Features

  • Assess and Align Fluorescence Imaging Systems
  • Five Different Fluorescence Spectra Similar to a Variety of Fluorophores (See the Fluorescence Graphs Tab)
  • 25.4 mm x 76.2 mm, 1.7 mm Thick Fluorescent Slides
  • Ø1", 1.7 mm Thick Fluorescent Disks with Engraved Target or Hole in Disk Center

Thorlabs offers a selection of Fluorescent Microscope Slides and Alignment Disks for use with widefield, confocal, or multiphoton fluorescence imaging systems. Manufactured from a cast acrylic substrate, they are each available in five different colors: blue, green, yellow, orange, and red. Each color has a fluorescence spectrum similar to a variety of fluorophores; see the Fluorescence Graphs tab for more details. These slides and disks provide a continuous fluorescent field so that field of view, illumination consistency, and sample alignment may be assessed and adjusted prior to using a sample containing a fluorophore.

The fluorescent microscope slides are compatible with our sample holders that fit 26 mm x 76 mm, 1.7 ± 0.5 mm thick slides. Each slide is available individually, in packs of five, or in a slide set that includes one slide of each color. The fluorescent alignment disks can be mounted using our Ø1" fixed optic mountslens tubes, or 30 mm cage plates. Each disk is available individually or in packs of five.

For custom sizes and shapes up to 1' x 2', please contact Tech Support.

This data is typical; performance may vary from lot to lot.


Click to Enlarge
Raw Data

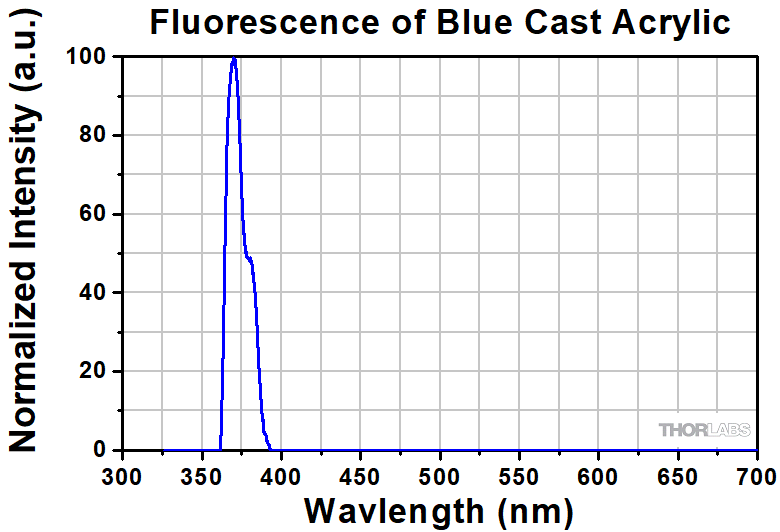

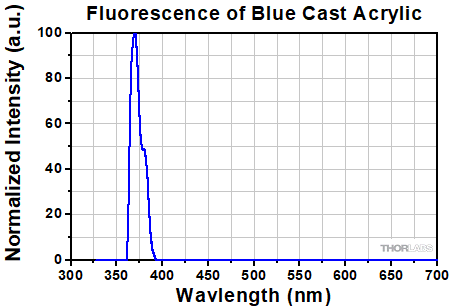

Measured fluorescence spectrum of the FSK1 blue fluorescent slide when illuminated with the M365FP1 365 nm Fiber-Coupled LED. The ADF1 and ADF6 blue fluorescent disks share the same fluorescence spectrum as the FSK1 blue fluorescent slide.

Click to Enlarge
Raw Data

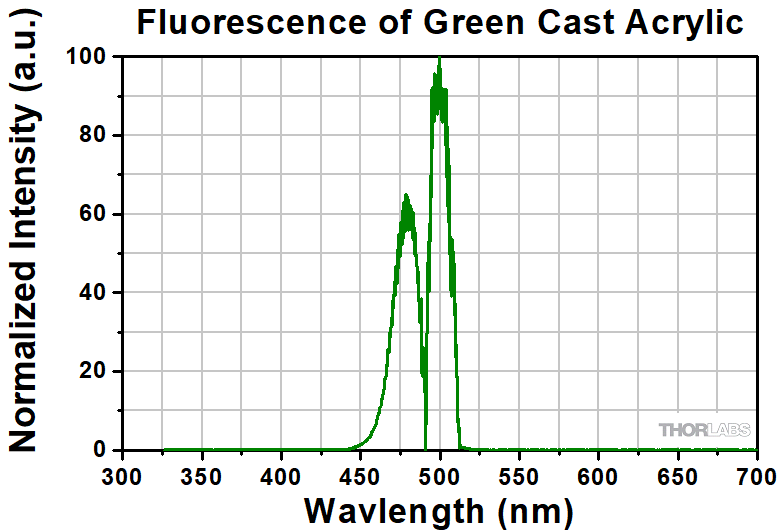

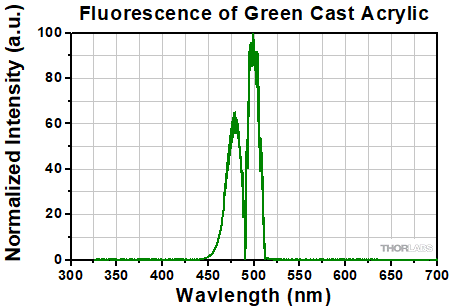

Measured fluorescence spectrum of the FSK2 green fluorescent slide when illuminated with the M470F3 470 nm Fiber-Coupled LED. The ADF2 and ADF7 green fluorescent disks share the same fluorescence spectrum as the FSK2 green fluorescent slide.

Click to Enlarge
Raw Data

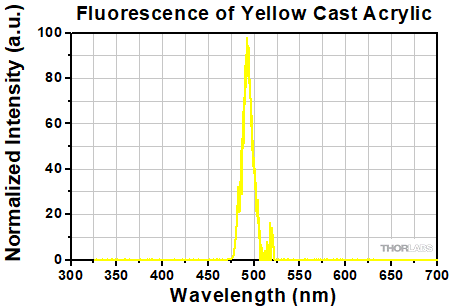

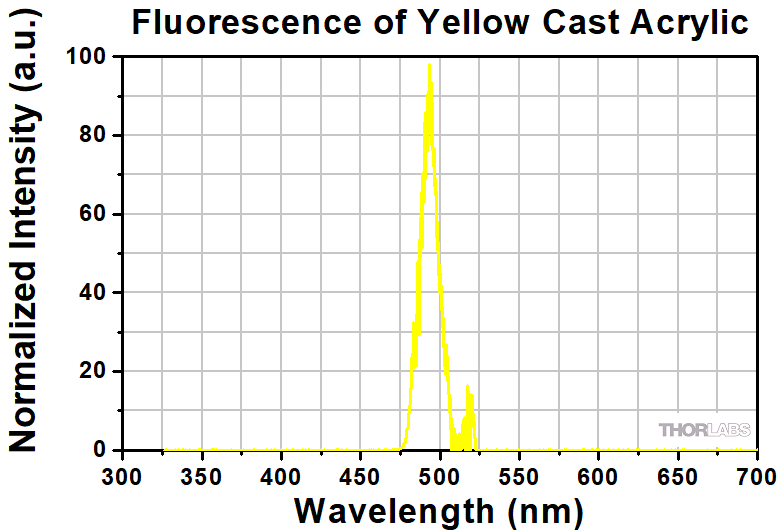

Measured fluorescence spectrum of the FSK3 yellow fluorescent slide when illuminated with the M365FP1 365 nm Fiber-Coupled LED. The ADF3 and ADF8 yellow fluorescent disks share the same fluorescence spectrum as the FSK3 yellow fluorescent slide.

Click to Enlarge
Raw Data

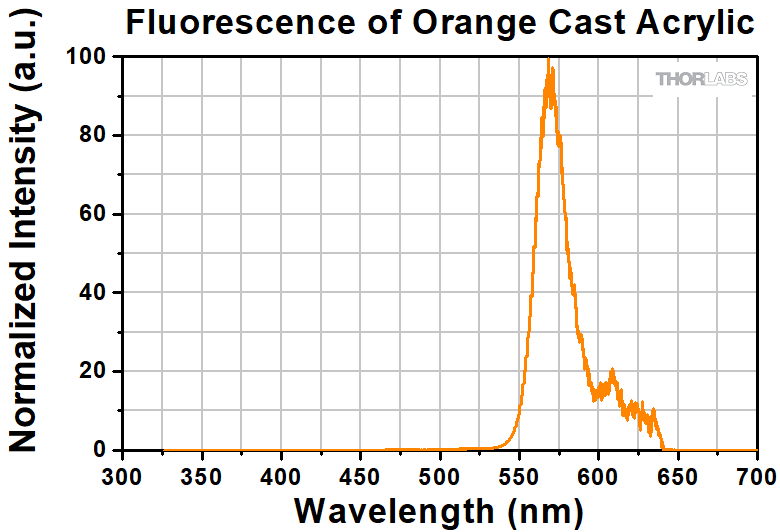

Measured fluorescence spectrum of the FSK4 orange fluorescent slide when illuminated with the M565F3 565 nm Fiber-Coupled LED. The ADF4 and ADF9 orange fluorescent disks share the same fluorescence spectrum as the FSK4 orange fluorescent slide.

Click to Enlarge
Raw Data

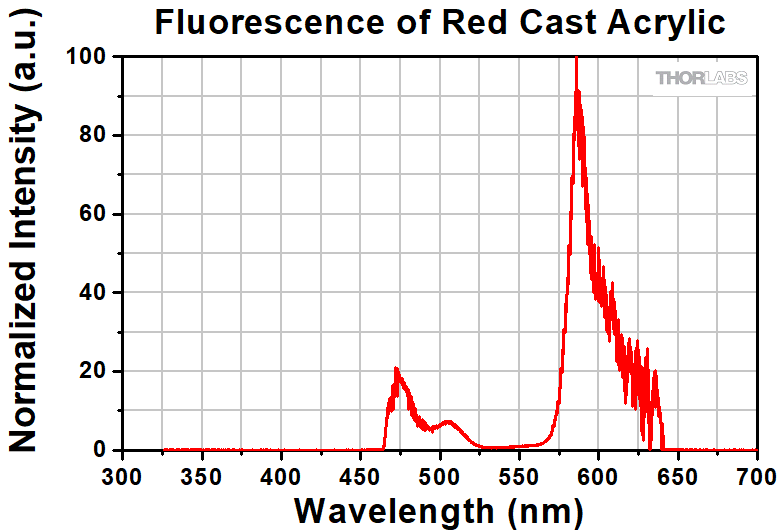

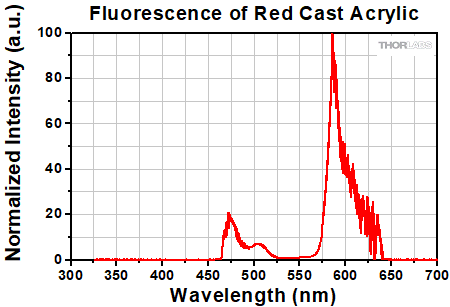

Measured fluorescence spectrum of the FSK6 red fluorescent slide when illuminated with the M565F3 565 nm Fiber-Coupled LED. The ADF5 and ADF10 red fluorescent disks share the same fluorescence spectrum as the FSK6 red fluorescent slide.

This data is typical; performance may vary from lot to lot.


Click to Enlarge

Raw Data
Comparison of transmission measurements of the FSK1 (blue), FSK2 (green), FSK3 (yellow), FSK4 (orange), and FSK6 (red) fluorescent slides from 300 nm to 700 nm. The ADF1/ADF6 (blue), ADF2/ADF7 (green), ADF3/ADF8 (yellow), ADF4/ADF9 (orange), and ADF5/ADF10 (red) fluorescent disks share the same transmission as the fluorescent slide with the identical color.

Click to Enlarge
Transmission measurements of two FSK1 blue fluorescent slides. The ADF1 and ADF6 blue fluorescent disks share the same transmission as the FSK1 blue fluorescent slide.

Click to Enlarge

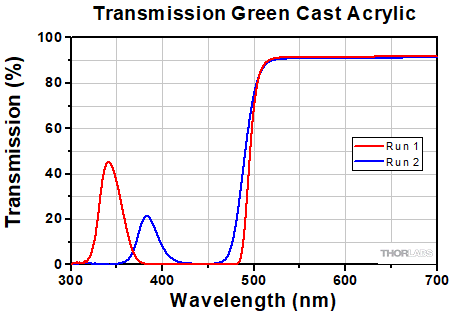

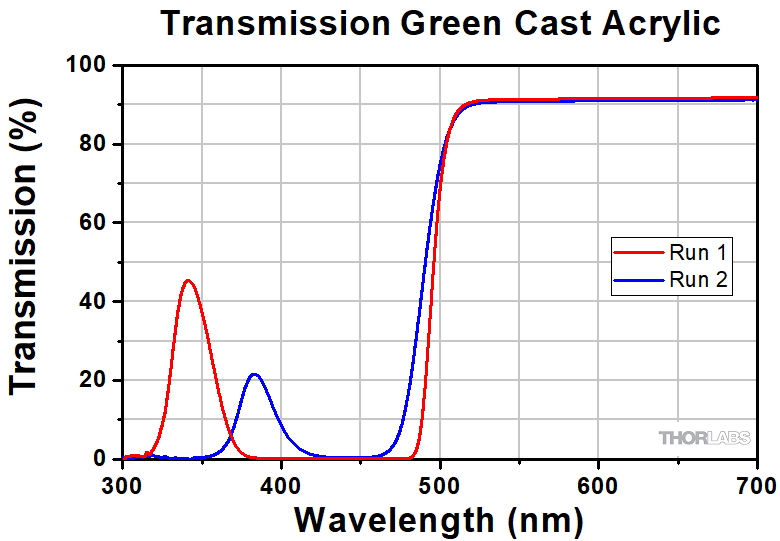

Transmission measurements of two FSK2 green fluorescent slides. The ADF2 and ADF7 green fluorescent disks share the same transmission as the FSK2 green fluorescent slide.

Click to Enlarge
Transmission measurements of two FSK3 yellow fluorescent slides. The ADF3 and ADF8 yellow fluorescent disks share the same transmission as the FSK3 yellow fluorescent slide.

Click to Enlarge

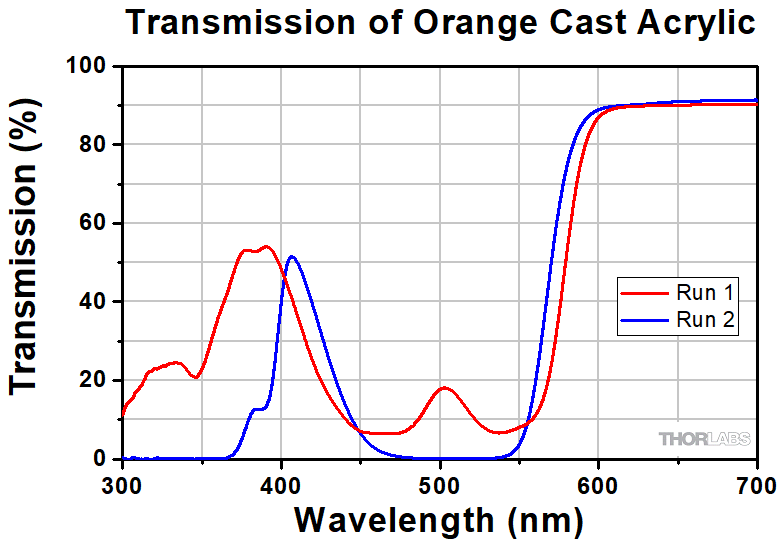

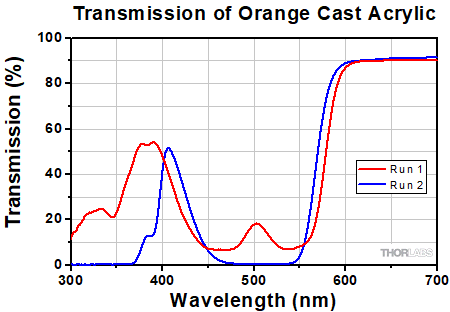

Transmission measurements of two FSK4 orange fluorescent slides. The ADF4 and ADF9 orange fluorescent disks share the same transmission as the FSK4 orange fluorescent slide.

Click to Enlarge

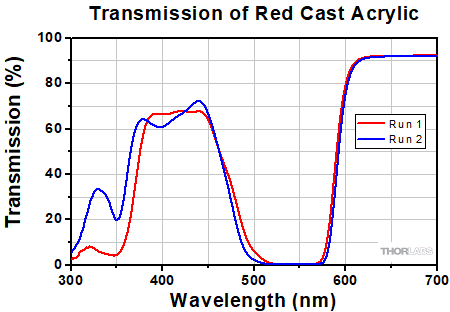

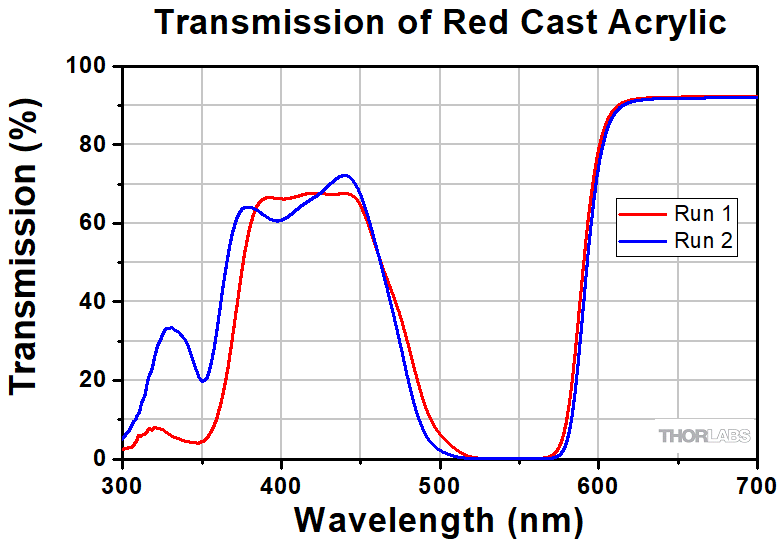

Transmission measurements of two FSK6 red fluorescent slides. The ADF5 and ADF10 red fluorescent disks share the same transmission as the FSK6 red fluorescent slide.

Posted Comments:
Nikola Krstajic  (posted 2019-07-12 09:39:00.04)
I work in near-infrared and fluorescence targets geared for ICG exc/emission (785nm exc) would really help me and all colleagues working in this are. I am 100% sure you would sell many. It is also not clear if your fluorescence targets work on 625nm excitation as your spectra show wavelengths below exc and this is really unusual (antistokes is an exception in fluorescence). Thanks a lot!
YLohia  (posted 2019-07-23 09:46:29.0)
Hello, thank you for your feedback. I have posted your request on our internal engineering forum for further consideration as a future product.
petur.hermannsson  (posted 2019-01-21 10:33:44.437)
Do you have numbers on the batch-to-batch consistency/uniformity of these slides, as well as the rate of photobleaching?
YLohia  (posted 2019-01-28 11:03:57.0)
Hello, thank you for contacting Thorlabs. We have actually just updated our web presentation to include some information on the consistency between two runs, and this information can be found in the "Transmission Graphs" tab. That being said, unfortunately, we do not have information on the photobleaching at the moment.

Fluorescent Microscope Slides


Click to Enlarge

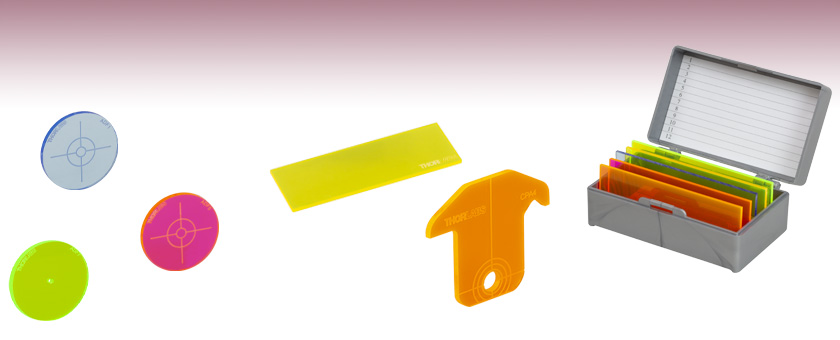

The FSK5 Slide Set and slides sold in packs of five come in a box for safe storage.
  • Fluorescent Slides Available in Five Colors: Blue, Green, Yellow, Orange, and Red
    • Each Slide Sold Individually or in Packs of Five
    • FSK5 Slide Set Includes All Five Colored Slides
  • 25.4 mm x 76.2 mm and 1.7 mm Thick
  • Compatible with Our Sample Holders for 26 mm x 76 mm, 1.7 ± 0.5 mm Thick Slides
  • Engraved Storage Box Included with FSK5 Slide Set and Packs of Five

Our Fluorescent Microscope Slides are designed to be used to assess and align sample placement and illumination levels in fluorescence imaging systems. Each slide is 25.4 mm x 76.2 mm and is cut from cast acrylic material with a thickness of 1.7 ± 0.5 mm. A plastic storage box is included with the FSK5 Slide Set and the packs of five slides to keep them clean and dust-free. The box is engraved with the Thorlabs logo and item # on the top, as shown in the image to the right. For custom sizes up to 1' x 2', please contact Tech Support.

These slides are compatible with our sample holders that fit 26 mm x 76 mm slides ≥1.7 mm thick. Please note that our C4SH01 Four-Position Microscope Slide Holder is not compatible with these slides.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
FSK1 Support Documentation
FSK1Fluorescent Microscope Slide, Blue, 1.7 mm Thick
$5.15
Today
FSK1-P5 Support Documentation
FSK1-P5Fluorescent Microscope Slide, Blue, 1.7 mm Thick, 5 Pack
$18.54
Today
FSK2 Support Documentation
FSK2Fluorescent Microscope Slide, Green, 1.7 mm Thick
$5.15
Today
FSK2-P5 Support Documentation
FSK2-P5Fluorescent Microscope Slide, Green, 1.7 mm Thick, 5 Pack
$18.54
Today
FSK3 Support Documentation
FSK3Fluorescent Microscope Slide, Yellow, 1.7 mm Thick
$5.15
Today
FSK3-P5 Support Documentation
FSK3-P5Fluorescent Microscope Slide, Yellow, 1.7 mm Thick, 5 Pack
$18.54
Today
FSK4 Support Documentation
FSK4Fluorescent Microscope Slide, Orange, 1.7 mm Thick
$5.15
Today
FSK4-P5 Support Documentation
FSK4-P5Fluorescent Microscope Slide, Orange, 1.7 mm Thick, 5 Pack
$18.54
Today
FSK6 Support Documentation
FSK6Fluorescent Microscope Slide, Red, 1.7 mm Thick
$5.15
Today
FSK6-P5 Support Documentation
FSK6-P5Fluorescent Microscope Slide, Red, 1.7 mm Thick, 5 Pack
$18.54
Today
FSK5 Support Documentation
FSK5Fluorescent Microscope Slides, Set of 5 Colors
$19.10
Today

Fluorescent Alignment Disks with Target Guides


Click to Enlarge
The ADF5 Red Fluorescent Disk Mounted in an LMR1 Mount
  • Fluorescent Disks Available in Five Colors: Blue, Green, Yellow, Orange, and Red
    • Each Disk Sold Individually or in Packs of Five
  • Ø1" and 1.7 mm Thick
  • Engraved with Target Guide Lines, and Ø3.4 mm and Ø9.4 mm Concentric Circles
  • Compatible with Our Ø1" Fixed Optic MountsLens Tubes, or 30 mm Cage Plates

Our Fluorescent Alignment Disks with Target Guides are designed to aid in the alignment of fluorescence imaging systems. Each disk is 1" in diameter and is cut from cast acrylic material with a thickness of 1.7 ± 0.5 mm. A target with two concentric circles is engraved on every disk. For custom sizes up to 1' x 2', please contact Tech Support.

These disks can be mounted with our Ø1" fixed optic mountslens tubes, or 30 mm cage plates, as shown in the image to the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ADF1 Support Documentation
ADF1Fluorescent Alignment Disk, Blue
$8.24
Today
ADF1-P5 Support Documentation
ADF1-P5Fluorescent Alignment Disk, Blue, 5 Pack
$30.90
Today
ADF2 Support Documentation
ADF2Fluorescent Alignment Disk, Green
$8.24
Today
ADF2-P5 Support Documentation
ADF2-P5Fluorescent Alignment Disk, Green, 5 Pack
$30.90
Today
ADF3 Support Documentation
ADF3Fluorescent Alignment Disk, Yellow
$8.24
Today
ADF3-P5 Support Documentation
ADF3-P5Fluorescent Alignment Disk, Yellow, 5 Pack
$30.90
Today
ADF4 Support Documentation
ADF4Fluorescent Alignment Disk, Orange
$8.24
Today
ADF4-P5 Support Documentation
ADF4-P5Fluorescent Alignment Disk, Orange, 5 Pack
$30.90
Today
ADF5 Support Documentation
ADF5Fluorescent Alignment Disk, Red
$8.24
Today
ADF5-P5 Support Documentation
ADF5-P5Fluorescent Alignment Disk, Red, 5 Pack
$30.90
Today

Fluorescent Alignment Disks with Holes


Click to Enlarge

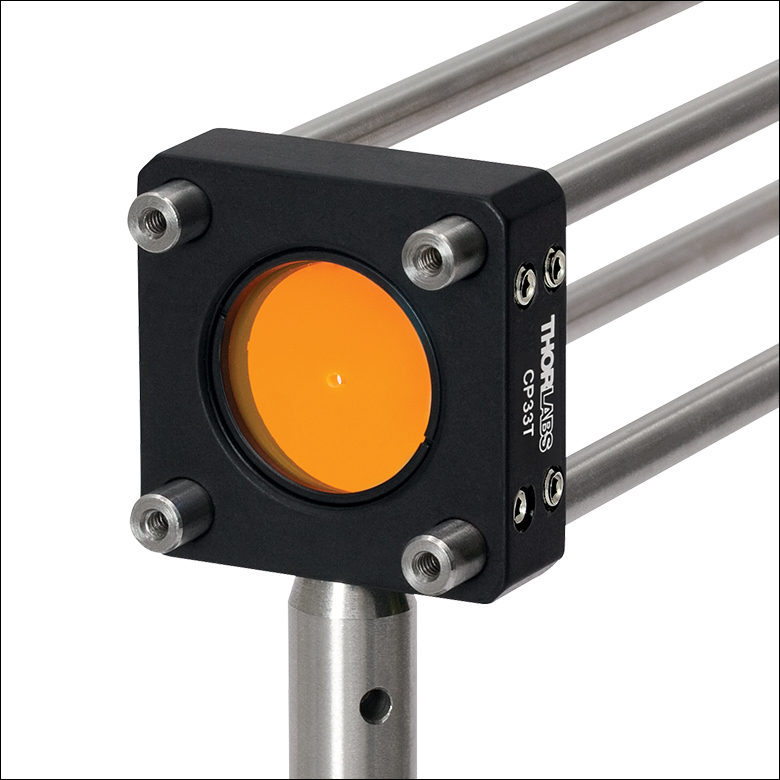

The ADF9 Orange Fluorescent Disk Mounted in a CP02 Cage Plate
  • Fluorescent Disks Available in Five Colors: Blue, Green, Yellow, Orange, and Red
    • Each Disk Sold Individually or in Packs of Five
  • Ø1" and 1.7 mm Thick
  • Ø1.5 ± 0.15 mm Holes in Disk Centers for Alignment
  • Compatible with Our Ø1" Fixed Optic MountsLens Tubes, or 30 mm Cage Plates

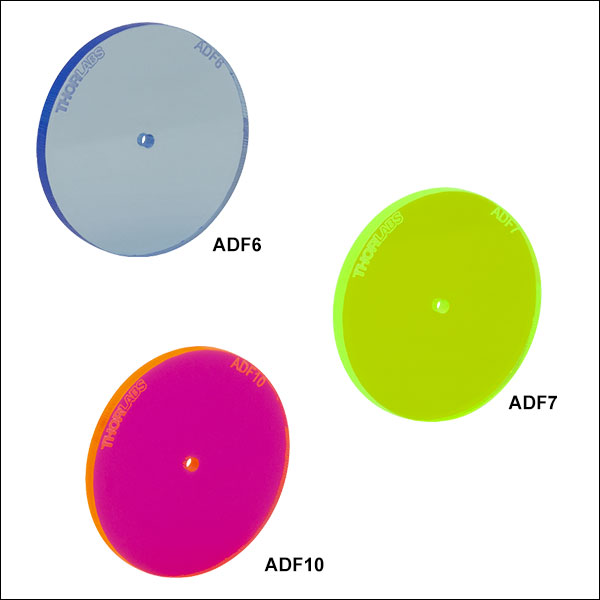

Our Fluorescent Alignment Disks with Holes are designed to aid in the alignment of fluorescence imaging systems. Each disk is 1" in diameter and is cut from cast acrylic material with a thickness of 1.7 ± 0.5 mm. A Ø1.5 mm hole is cut into the center of every disk. For custom sizes up to 1' x 2', please contact Tech Support.

These disks can be mounted with our Ø1" fixed optic mountslens tubes, or 30 mm cage plates as shown in the image to the right.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
ADF6 Support Documentation
ADF6Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Blue
$8.24
Today
ADF6-P5 Support Documentation
ADF6-P5Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Blue, 5 Pack
$30.90
Today
ADF7 Support Documentation
ADF7Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Green
$8.24
Today
ADF7-P5 Support Documentation
ADF7-P5Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Green, 5 Pack
$30.90
Today
ADF8 Support Documentation
ADF8Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Yellow
$8.24
Today
ADF8-P5 Support Documentation
ADF8-P5Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Yellow, 5 Pack
$30.90
Today
ADF9 Support Documentation
ADF9Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Orange
$8.24
Today
ADF9-P5 Support Documentation
ADF9-P5Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Orange, 5 Pack
$30.90
Today
ADF10 Support Documentation
ADF10Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Red
$8.24
Today
ADF10-P5 Support Documentation
ADF10-P5Customer Inspired! Fluorescent Alignment Disk, Ø1.5 mm Hole, Red, 5 Pack
$30.90
Today
