Brewster Windows

Uncoated UV Fused Silica Brewster Windows
Parallelism: ≤5 arcsec
Zero Reflection Loss for P-Polarized Light

BW0801

BW1602

BW0601

BW2502

Please Wait

Overview
Graphs
Brewster Windows
Feedback
BS Selection Guide

Click to Enlarge

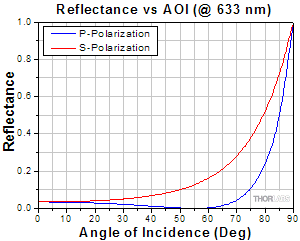

This graph shows the calculated reflectance of uncoated UV fused silica for polarized light at various angles of incidence. The reflectance for p-polarized light goes to zero at Brewster's angle.

Features

Ideal for Laser Cavities
UV Fused Silica Substrate
Available Minor Diameters: 6 mm, 8 mm, 13 mm, 16 mm, 20 mm, and 25 mm
P-Polarized Light is Transmitted without Reflection Losses
Brewster Window Mounts Available

Brewster Windows are uncoated substrates that can be used in series as polarizers, or to clean up a partially polarized beam. When positioned at Brewster's Angle, the p-polarized component of the light enters and exits the window without reflection losses, while the s-polarized component is partially reflected. The graph to the right shows reflectance for both s- and p-polarization through UV fused silica at 633 nm. The 20-10 scratch-dig surface quality and λ/10 transmitted wavefront error of our Brewster windows make them an ideal choice for laser cavities.

These Brewster windows are manufactured from UV fused silica, which exhibits virtually no laser-induced fluorescence (as measured at 193 nm), making it an ideal choice for applications from the UV to the near IR; please see the Graphs tab for a transmission plot of UV fused silica. Since the index of refraction of UV fused silica varies with wavelength, Brewster's angle is wavelength dependent; the Graphs tab also contains details on this dependence.

We offer mounting options for 8 mm, 13 mm, 16 mm, 20 mm, and 25 mm minor diameter Brewster windows. These mounts are engineered with a 55° 32’ mounting angle (Brewster’s Angle at 633 nm) with an exit port for the reflected S-polarized light so that the mount may be used in either direction.

We also offer a Brewster Window View Port for use in vacuum systems and Empty Glass Cells with Brewster Windows for spectroscopy applications. In addition to Brewster windows, Thorlabs also offers High Precision Windows, Narrowband Laser Windows, and a complete line of polarization optics.

UV Fused Silica Transmission, Index of Refraction, and Brewster's Angle

Click to Enlarge
This graph shows the calculated reflectance of uncoated UV fused silica for polarized light as a function of angle of incidence. The reflectance for p-polarized light goes to zero at Brewster's angle.

Click to Enlarge
This graph shows the transmission of a 1 mm thick UV fused silica sample, including surface reflections, with the incident light normal to the surface.

$UVFS Index of Refraction$
Click to Enlarge
This graph shows the calculated index of refraction of UV fused silica as a function of wavelength from 200 nm to 2.2 μm.

Click to Enlarge
This graph shows the calculated value of Brewster's angle as a function of wavelength when light is passing from air to UV fused silica.

The index of refraction for UV fused silica is wavelength dependent, as shown in the graph above, and expressed by the following formula:

$Index of Refraction for Fused Silica wavelength dependency$ .

Please note that that the wavelength needs to be in microns when using the formula above. Brewster's angle is given by

Brewster's Angle Equation .

Here, θ_B is Brewster's angle, n_i is the index of refraction of the incident medium (1.0003 for air), and n_t is the index of refraction of the transmitting medium (1.45701 for fused silica at 633 nm). Hence, Brewster's angle also displays a wavelength dependence, as shown in the plot above.

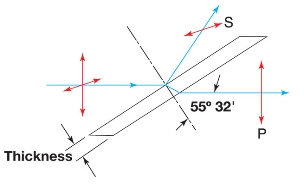

The image above shows the reflection of s-polarized light and transmission of p-polarized light through a Brewster window. Some s-polarized light will be transmitted through the window.

Brewster Windows

Brewster windows are typically used as polarizers within laser cavities. When positioned at Brewster's angle (55° 32' at 633 nm), the p-polarized portion of the light will pass through the window with no losses, while a fraction of the s-polarized portion will be reflected off the Brewster window. When used in a laser cavity, the Brewster window essentially acts as a polarizer.

Brewster's angle is given by

θ_B is Brewster's angle.
n_i is the index of refraction of the incident medium, which is 1.0003 for air.
n_t is the index of refraction of the transmitting medium, which is 1.45701 for fused silica at 633 nm

It should be noted that the index of refraction is wavelength dependent. For fused silica, the index of refraction can be expressed as

$Index of Refraction for Fused Silica wavelength dependency$ .

Please note that that the wavelength needs to be in microns when using the formula above.

Posted Comments:

m lieb (posted 2023-11-30 13:51:35.523)

Hi, am I assuming correctly that only one of the "edges" of the window has a bevel whereas the other one is "pointy"?. I would like to transmit as close as possible to the edge

cdolbashian (posted 2023-12-15 09:15:31.0)

Thank you for reaching out to us with this inquiry. The obtuse angles of this element have no bevel, while the acute angles have a small bevel. I have contacted you directly with a drawing which will, hopefully, be helpful for clarity.

prathmesh ghag (posted 2022-04-22 16:04:17.86)

For BW 2502 the transmission wavefront error is λ/10. Kindly let me know the transmission wavefront error specification offered for this product.

jdelia (posted 2022-05-16 04:08:47.0)

Thank you for contacting Thorlabs. Like you mentioned, we specify the transmitted wavefront error as <λ/10. I have contacted you directly to clarify your inquiry further

Ramon.alvarez (posted 2018-05-14 20:58:04.127)

What is the roughness of you elliptical Brewster windows?

YLohia (posted 2018-05-15 10:10:42.0)

Hello, thank you for contacting Thorlabs. While we do not have an official specification for the surface roughness for these units, it is typically on the order of < 5 Å.

dt_m0hammed_temimi (posted 2016-08-21 11:19:12.747)

please I need a brewster window with amount using with intracavity Nd:YAG laser

jlipa (posted 2013-10-25 14:36:32.427)

I need some Brewster windows like BW1602, but made from IR grade fused silica. Can you supply them?

tcohen (posted 2013-10-29 13:11:00.0)

Response from Tim at Thorlabs: Yes, we can quote this. We will contact you to discuss your requirements.

jack (posted 2009-05-26 15:21:13.0)

Response from Jack at Techsupport: If you look at the surface at 0 deg. then youll see a circular surface, at any other angle the surface will appear to be elliptical. The models are fine but the front view in drawing needs to be corrected. Optic department has been informed.

csandberg (posted 2009-05-26 05:24:03.0)

The solid model for these brewster windows seem to be wrong. The flat surfaces of the window should be elliptical when viewed perpendicular, and circular when viewed from the brewster angle. PS. Also see Lars Sandtroms comment on BW0601 earlier. It goes for all windows in this section.

lsandstrom (posted 2009-05-26 02:34:45.0)

BW0601 seems to be associated with the wrong SolidWorks model. The front surface of the model is circular in the Solid model while elliptical on the real device.

Laurie (posted 2009-05-01 13:36:20.0)

Response from Laurie at Thorlabs to egualda: Thank you for your interest in our Brewster Windows. At this time, we do not carry a standard mount for these optics. However, I have emailed a member of our mechanics unit to see if he has any ideas that we can share with you or any previous prototypes that may work.

egualda (posted 2009-04-30 11:16:20.0)

Do you have any spetial holder for the following item: BW0801 Brewster Window, 8mm diameter 1 mm thickness?

Beamsplitter Selection Guide

Thorlabs' portfolio contains many different kinds of beamsplitters, which can split beams by intensity or by polarization. We offer plate and cube beamsplitters, though other form factors exist, including pellicle and birefringent crystal. For an overview of the different types and a comparison of their features and applications, please see our overview. Many of our beamsplitters come in premounted or unmounted variants. Below is a complete listing of our beamsplitter offerings. To explore the available types, wavelength ranges, splitting/extinction ratios, transmission, and available sizes for each beamsplitter category, click More [+] in the appropriate row below.

Plate Beamsplitters

Non-Polarizing Plate Beamsplitters

Polarizing Plate Beamsplitters

45° AOI Unless Otherwise Noted
30 arcmin Wedge on Round Optics Only
Designed for use with P-polarized light.

Cube Beamsplitters

Non-Polarizing Cube Beamsplitters

Polarizing Cube and Polyhedron Beamsplitters

Pellicle Beamsplitters

Non-Polarizing Pellicle Beamsplitters

Crystal Beamsplitters

Polarizing Crystal Beamsplitters

Mounted in a protective box, unthreaded ring, or cylinder.
Available unmounted or mounted in a protective box or unthreaded cylinder.

Other

Other Beamsplitters

UV Fused Silica Brewster Windows, Uncoated

Zoom

Item #	BW0601	BW0801	BW0802	BW1302^a	BW1602	BW2002	BW2502
Minor Diameter	6.0 mm	8.0 mm	8.0 mm	13.0 mm	16.0 mm	20.0 mm	25.0 mm
Minor Diameter Tolerance	+0.00 / -0.10 mm
Thickness	1.0 mm		2.0 mm
Thickness Tolerance	±0.1 mm				±0.2 mm	±0.1 mm
Brewster Angle	55° 32' @ 633 nm
Clear Aperture	>90% of Minor Axis
Parallelism	≤5 arcsec
Transmitted Wavefront Error^b	<λ/10
Surface Quality	20-10 Scratch-Dig
Wavelength Range	185 nm - 2.1 μm (Uncoated)
Substrate	UV Fused Silica^c
Transmission Data

We also offer this window integrated into a viewport for use in vacuum systems (Item # GC05BP).
Measured at 633 nm.
Click link for detailed specifications on the substrate.

Brewster Window Mounts

Zoom

BW25M with SM1P1 Adapter mounted in a KS1RS

Click to Enlarge

View Imperial Product List

Item #	Qty	Description
BW2502	1	UVFS Brewster Window, 25.0 mm Minor Diameter, 2.0 mm Thick
BW25M	1	Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic
KS1RS	1	Kinematic Rotation Mount for Ø1" Optics
TR4	1	Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 4"

View Metric Product List

Item #	Qty	Description
BW2502	1	UVFS Brewster Window, 25.0 mm Minor Diameter, 2.0 mm Thick
BW25M	1	Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic
KS1RS	1	Kinematic Rotation Mount for Ø1" Optics
TR100/M	1	Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 100 mm

BW2502 Brewster Window in BW25M Mount with a KS1RS Kinematic Rotation Mount

These Brewster Window Optic Mounts are designed with steel flexure retention plates for holding the optics in place. The mounts feature a separate mounting surface for compatibility with Ø1/2" or Ø1" smooth bore mounts or internally SM1-threaded components. The exit port for the reflected S-polarized light allows the mount to be used in either direction. For more information, please see our full presentation here.

Brewster Window Mount Item #	Mounting Surface^a	Compatible Brewster Window
Brewster Window Mount Item #	Mounting Surface^a	Minor Diameter	Thickness	Brewster Window Item #
BW08M1	Ø1/2" Smooth Bore	8 mm	1 mm	BW0801
BW08M2	Ø1/2" Smooth Bore	8 mm	2 mm	BW0802
BW13M	Ø1" Smooth Bore	13 mm	2 mm	BW1302
BW16M		16 mm	2 mm	BW1602
BW20M		20 mm	2 mm	BW2002
BW25M	External SM1	25 mm	2 mm	BW2502

The mounting surface is the surface for attaching a Brewster window mount to a kinematic mount or other optomechanical device.
