Adapters for Zeiss Axioskop and Examiner Microscopes


  • Lamphouse, Trinocular, Eyepiece, and Condenser Port Adapters
  • Integrate Thorlabs' Mechanical Components with Zeiss Axioskop and Examiner Microscopes

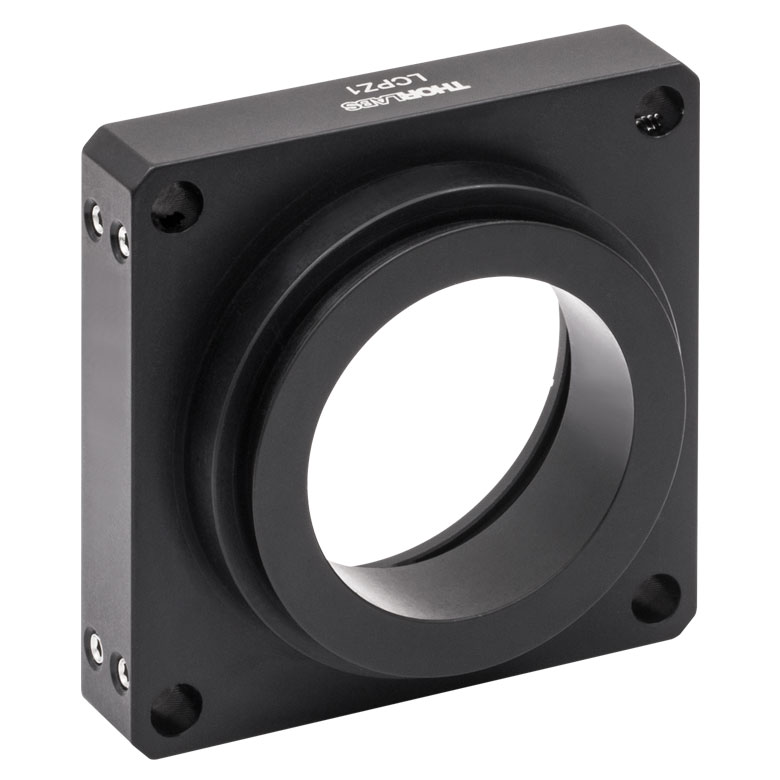

LCPZ1

Condenser Port Adapter

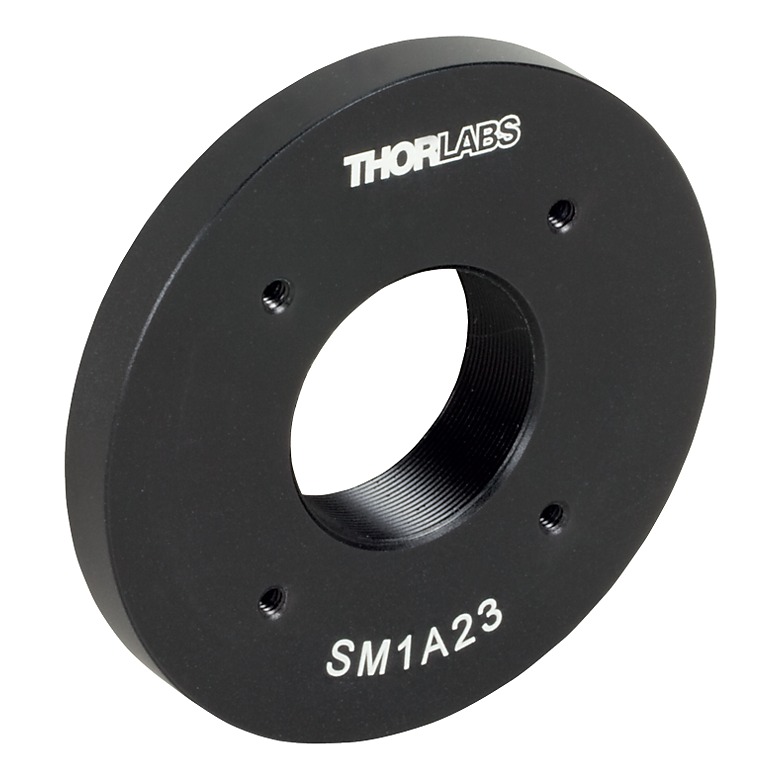

SM1A23

Lamphouse Port Adapter

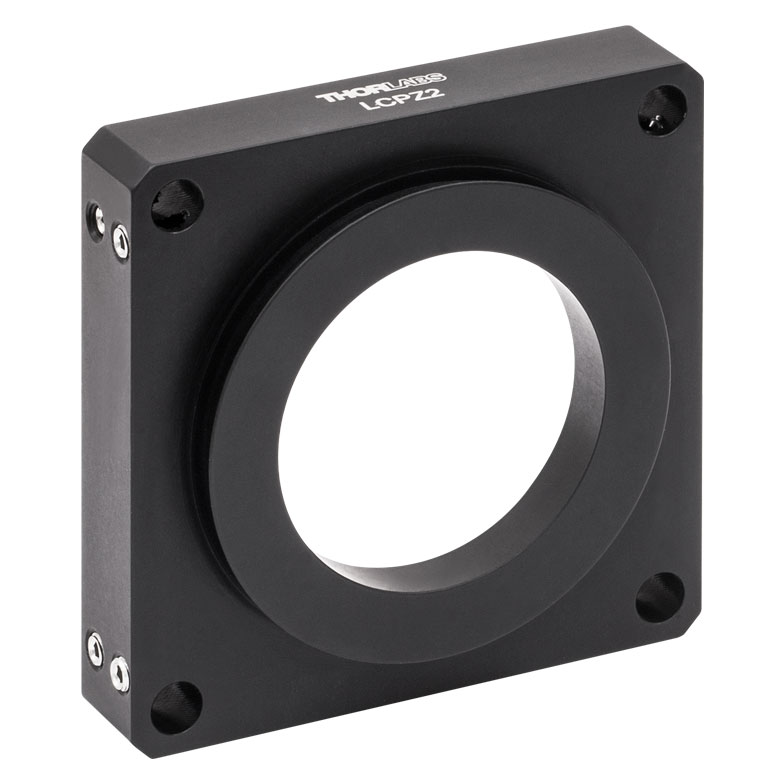

LCPZ2

Trinocular Port Adapter

LCPZ1 and LCPZ2 Adapters Attached to Zeiss Axio Observer Microscope

Related Items


Please Wait

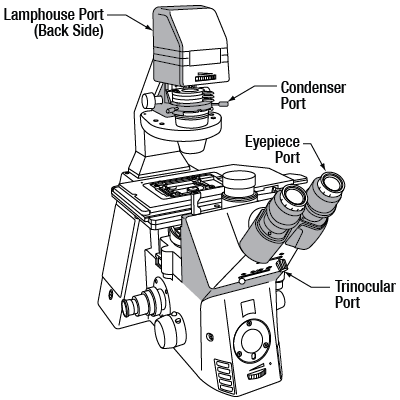

Click on Each Port to View Available Adapters

Zeiss Axioskop and Examiner Ports

Zeiss Axio Observer Microscope

Trinoc PortCondenser PortLamphouse portZeiss Eyepiece PortsTrinocular PortCondenser PortLamphouse PortZeiss Eyepiece Ports

Features

  • Extends Versatility of Thorlabs' Construction Systems to Zeiss Axioskop and Examiner Microscopes
  • Provides Compatibility with SM1 Lens Tubes, SM2 Lens Tubes, and 30 mm and 60 mm Cage Systems
  • Designed for Lamphouse, Trinocular, Eyepiece, and Condenser Ports
  • Contact Tech Support about Custom Adapters, Including for Other Microscopes

Lamphouse Port Adapters
These adapters provide compatibility between Zeiss Axioskop and Examiner microscope lamphouse ports and our SM1 (Ø1") lens tubes, 30 mm cage assemblies, or SM2 (Ø2") lens tubes.

Trinocular Adapters
The LCPZ2 adapter is designed for the trinocular port of a Zeiss Axioskop microscope, providing a secure connection for custom widefield viewing and image detection setups.

The SM2Z1 adapter replaces the lens element on an eyepiece of the trinoculars, allowing custom image detection or viewing setups to be attached to the microscope.

Condenser Adapter
The LCPZ1 adapter connects to the condenser holder of a Zeiss Axioskop microscope, allowing the attachment of DIY setups that condition incoming light for trans-illumination.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Thorlabs Dovetail Referencea
Type Shape Outer Dimension Angle
95 mm Linear 95 mm 45°
D1N Circular Ø2.018" 60°
D2Nb Circular Ø1.50" 90°
D2NBb Circular Ø1.50" 90°
D3N Circular Ø45 mm 70°
D5N Circular Ø1.58" 90°
D6N Circular Ø1.90" 90°
D7N Circular Ø2.05" 90°
D1T Circular Ø1.50" 60°
D3T Circular Ø1.65" 90°
D1Y Circular Ø107 mm 60°
D2Y Circular Ø2.32" 50°
D3Y Circular Ø1.75" 90°
D4Y Circular Ø56 mm 60°
D5Y Circular Ø46 mm 60°
D6Y Circular Ø41.9 mm 45°
D1Z Circular Ø54 mm 60°
D2Z Circular Ø57 mm 60°
D3Z Circular Ø54 mm 45°
  • These dovetail designations are specific to Thorlabs products and are not used by other microscope manufacturers.
  • D2N and D2NB dovetails have the same outer diameter and angle, as defined by the drawings below. The D2N designation does not specify a height. The D2NB designation specifies a dovetail height of 0.40" (10.2 mm).
Mating Circular Dovetails
Click to Enlarge

This photo shows the male D1N dovetail on the trinoculars next to the female D1N dovetail on the epi-illumination arm.
Mating Linear Dovetails
Click to Enlarge

This photo shows the male 95 mm dovetail on the microscope body and the female 95 mm dovetail on the CSA1002 Fixed Arm.

Introduction to Microscope Dovetails

Dovetails are used for mechanical mating and optical port alignment of microscope components. Components are connected by inserting one dovetail into another, then tightening one or more locking setscrews on the female dovetail. Dovetails come in two shapes: linear and circular. Linear dovetails allow the mating components to slide before being locked down, providing flexible positioning options while limiting unneeded degrees of freedom. Circular dovetails align optical ports on different components, maintaining a single optical axis with minimal user intervention.

Thorlabs manufactures many components which use dovetails to mate with our own components or those of other manufacturers. To make it easier to identify dovetail compatibility, we have developed a set of dovetail designations. The naming convention of these designations is used only by Thorlabs and not other microscope manufacturers. The table to the right lists all the dovetails Thorlabs makes, along with their key dimensions.

In the case of Thorlabs’ Cerna® microscopes, different dovetail types are used on different sections of the microscope to ensure that only compatible components can be mated. For example, our WFA2002 Epi-Illuminator Module has a male D1N dovetail that mates with the female D1N dovetail on the microscope body's epi-illumination arm, while the CSS2001 XY Microscopy Stage has a female D1Y dovetail that mates with the male D1Y dovetail on the CSA1051 Mounting Arm.

To learn which dovetail type(s) are on a particular component, consult its mechanical drawing, available by clicking on the red Docs icon (Docs Icon) below. For adapters with a female dovetail, the drawing also indicates the size of the hex key needed for the locking setscrew(s). It is important to note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

For customers interested in machining their own dovetails, the table to the right gives the outer diameter and angle (as defined by the drawings below) of each Thorlabs dovetail designation. However, the dovetail's height must be determined by the user, and for circular dovetails, the user must also determine the inner diameter and bore diameter. These quantities can vary for dovetails of the same type. One can use the intended mating part to verify compatibility.

In order to reduce wear and simplify connections, dovetails are often machined with chamfers, recesses, and other mechanical features. Some examples of these variations are shown by the drawings below.

Male Microscope Dovetails
Click to Enlarge

Two examples of how circular male dovetails can be manufactured.
Female Microscope Dovetails
Click to Enlarge

Two examples of how circular female dovetails can be manufactured.

Posted Comments:
david naranjo  (posted 2021-12-31 10:16:46.007)
hello I need to replace a SM1A23 with spmething equivalent for the old Zeiss bayonet (I believe is 44 mm)
cdolbashian  (posted 2022-01-14 02:27:49.0)
Thank you for reaching out to us with your inquiry David. After reviewing the various options we carry for Zeiss adapters on our product page, I have concluded that we do not carry and adapter for a 44mm bayonet. For other Zeiss adapters, please feel free to look at our offerings here: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=8739&pn=SM1A23
Back to Top

Lamphouse Port Adapters for Zeiss Axioskop and Examiner Microscopes

These adapters allow a collimated trans-illumination source to be attached to the lamphouse port of a Zeiss Axioskop or Examiner microscope. For instance, the LED4A4 and SM2A16 are directly compatible with Thorlabs' Solis® LEDs. Each adapter uses a male D3Z dovetail to connect to the port. They are offered with either black or silver anodization to match the surface finish of various devices, such as our 4-Wavelength LED Source. See the table below for adapter compatibility with Thorlabs’ SM thread and cage system standards.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Item # SM1A23 SM2A10 LED4A4 SM2A16
(Click to Enlarge)
Microscope Connection Male D3Z Dovetaila
SM Threading
Internal SM1 (1.035"-40) Internal SM2 (2.035"-40) External SM2 (2.035"-40) External SM2 (2.035"-40)
Cage Compatibility 30 mm Cage
(4-40 Through Tap, 4 Places)
- - -
Microscope Compatibility Zeiss Axioskop and Examiner
Anodization Black Black Silver Black
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1A23 Support Documentation
SM1A23Zeiss Axioskop and Examiner Microscope Lamphouse Port Adapter, Internal SM1 Threads, 30 mm Cage Compatibility
$109.88
3 weeks
SM2A10 Support Documentation
SM2A10Zeiss Axioskop and Examiner Microscope Lamphouse Port Adapter, Internal SM2 Threads
$109.88
3 weeks
LED4A4 Support Documentation
LED4A4Zeiss Axioskop and Examiner Microscope Lamphouse Port Adapter, External SM2 Threads, Silver Anodized
$75.14
3 weeks
SM2A16 Support Documentation
SM2A16Zeiss Axioskop and Examiner Microscope Lamphouse Port Adapter, External SM2 Threads, Black Anodized
$109.88
Today
Back to Top

Trinocular Port Adapter for Zeiss Axioskop Microscopes

Item # LCPZ2
(Click to Enlarge)
LCPZ2 Zeiss Adapter
Microscope Connection Male D2Z Dovetaila
SM Threading Internal SM2 (2.035"-40)
Cage Compatibility 60 mm Cage (Ø6 mm Bore, 4 Places)
Microscope
Compatibility
Zeiss Axioskop
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
SM2Z2 Adapter Attached to Zeiss Axio Observer Trinocular Port
Click to Enlarge

SM2Z1 Adapter Attached to Exposed Trinocular Port

The LCPZ2 Trinocular Port Adapter allows custom widefield viewing setups to be attached to a Zeiss Axioskop microscope. This adapter utilizes a male D2Z dovetail adapter to connect to the trinocular port of the microscope; see the Microscope Dovetails tab for details. This adapter can only be attached by first removing the microscope's trinoculars (see image to the right).

This adapter features internal SM2 threading for Ø2" lens tubes; one SM2RR retaining ring is included to secure a Ø2" flat optic up to 0.3" (7.6 mm) thick against the internal lip of the adapter. The adapter lip limits the clear aperture to Ø1.58". Through holes with side-located locking 8-32 setscrews (5/64" [2 mm] hex) can be used to attach Ø6 mm cage rods for 60 mm cage systems.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCPZ2 Support Documentation
LCPZ2Zeiss Axioskop Microscope Trinocular Adapter, Internal SM2 Threads, 60 mm Cage Compatibility
$192.17
Today
Back to Top

Eyepiece Port Adapter for Zeiss Axioskop and Examiner Microscopes

Item # SM2Z1
(Click to Enlarge)
SM2Z1 Zeiss Eyepiece Adapter
Microscope Connection Ø1.18" Eyepiece Tube
SM Threading
Internal SM1 (1.035"-40)
External SM2 (2.035"-40)
Cage Compatibility 30 mm Cage
(4-40 Through Tap, 4 Places)
Microscope Compatibility Zeiss Axioskop and Examiner
SM2N2 Adapter Attached to Trinocular Eyepieces
Click to Enlarge

Two SM2Z1 adapters replace the lens elements of the trinocular eyepieces.

The SM2Z1 Eyepiece Port Adapter allows custom-built optical detection systems to attach to the eyepieces on the trinoculars of a Zeiss Axioskop or Examiner Microscope. This adapter replaces the lens element on the eyepiece that sets the image plane focus at the the back of the eyes (see image to the right). Because of the drop-in nature of the adapter, take care the attached system does not overbalance the 40 g eyepiece adapter when it is inside the trinoculars.

This adapter features 1.33" (33.7 mm) of internal SM1 threading for Ø1" lens tubes or optics, external SM2 threading for Ø2" lens tubes, and 4-40 tapped through holes on 30 mm centers for compatibility with a 30 mm cage system. The adapter includes two 0.08” thick SM1RR retaining rings to secure an optic inside the adapter.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2Z1 Support Documentation
SM2Z1Zeiss Axioskop and Examiner Microscope Eyepiece Adapter, Internal SM1 and External SM2 Threads, 30 mm Cage Compatibility
$90.24
Today
Back to Top

Condenser Port Adapter for Zeiss Axioskop Microscopes

Item # LCPZ1
(Click to Enlarge)
SM2Z1 Zeiss Condenser Adapter
Microscope Connection Male D1Z Dovetaila
SM Threading Internal SM2 (2.035"-40)
Cage Compatibility 60 mm Cage (Ø6 mm Bore, 4 Places)
Microscope Compatibility Zeiss Axioskop
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
SM2Z1 Adapter attached to Zeiss Axio Condenser
Click to Enlarge

SM2Z1 Adapter Attached to Condenser Holder of Zeiss Axio Observer
LCPZ1 Adapter Backside
Click to Enlarge

One side of the LCPZ1 adapter has internal SM2 threads.

The LCPZ1 Condenser Port Adapter allows custom condenser configurations to be attached to a Zeiss Axioskop microscope. The adapter utilizes a male D1Z dovetail to connect to the condenser holder of the microscope; see the Microscope Dovetails tab for details.

This adapter features internal SM2 threads for Ø2" lens tubes, achromatic doublets, or other optics; one SM2RR retaining ring is included to secure a Ø2" flat optic up to 0.3" (7.6 mm) thick against the internal lip of the adapter, such as a filter or iris. The adapter lip limits the clear aperture to Ø1.58". Through holes with side-located locking 8-32 setscrews (5/64" [2 mm] hex) can be used to attach Ø6 mm cage rods for 60 mm cage systems.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCPZ1 Support Documentation
LCPZ1Zeiss Axioskop Microscope Condenser Adapter, Internal SM2 Threads, 60 mm Cage Compatibility
$203.82
Today
