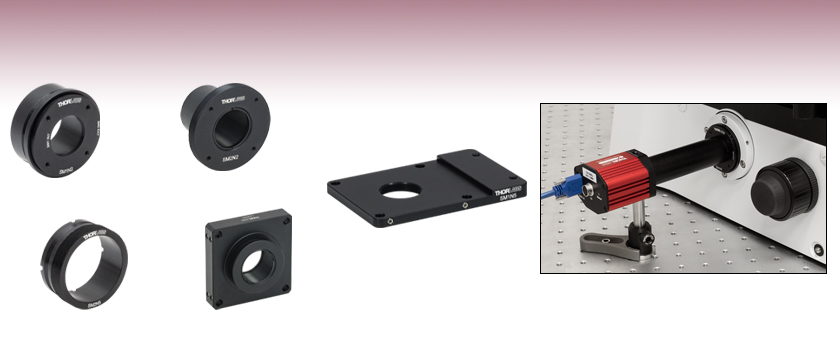

Adapters for Nikon Eclipse Ti2 Microscopes


  • Adapters for Epi-Illumination, Lamphouse, Camera, Trinocular, Eyepiece, and Condenser Ports, as well as Nosepieces
  • Modify Nikon Eclipse Ti2 Microscopes Using Thorlabs' Optomechanical Components

SM1N2

Camera Port Adapter

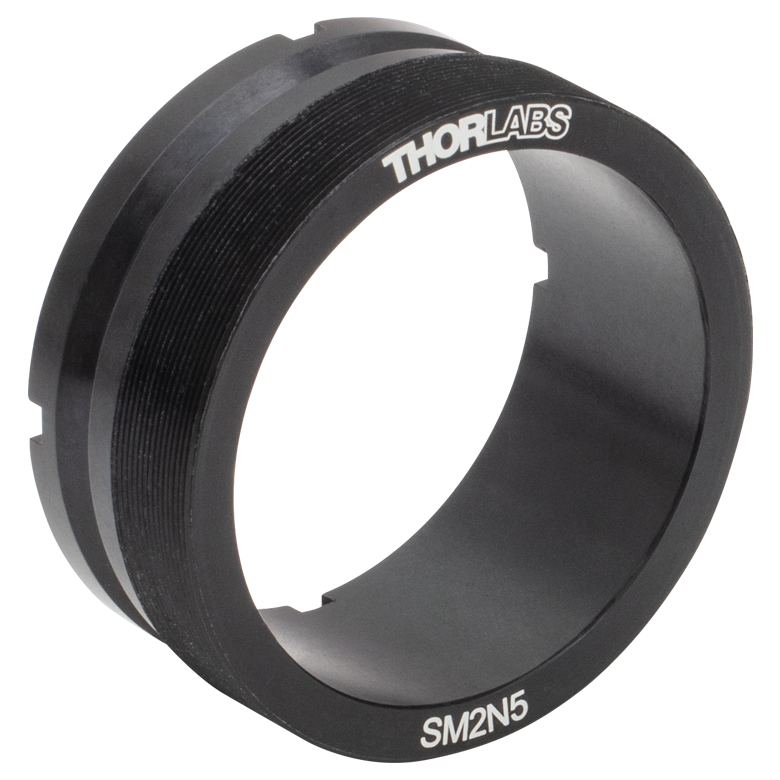

SM2N5

Epi-Illumination Module Adapter

SM2N2

Eyepiece Adapter

LCPN1

Condenser Port Adapter

Application Idea

Scientific Camera Mounted to Nikon Eclipse Ti2 Microscope Using SM1N2 Camera Port Adapter, SM1 Lens Tube, and 30 mm Cage System Components

SM1N5

Nosepiece Adapter

Related Items


Please Wait
Adapters for Industry Standard Microscopes
Cerna DIY Series
Leica DMI
Nikon Eclipse Ti (Inverted)
Nikon Eclipse Ti2 (Inverted)
Upright Nikon Eclipse
Olympus BX and IX
Zeiss Axioskop and Examiner

Features

The adapters below can be used to integrate Thorlabs' standard optomechanical components with Nikon Eclipse Ti2 microscopes.

Illumination Adapters
Thorlabs offers two adapter types to modify the epi-illumination pathway to accept SM threading or a cage system. The SM1N4, SM2N4, and SM2N5 adapters with a D9N dovetail adapt LED light sources and other collimated illumination sources to be mounted to the epi-illumination module. The SM1A30 and SM2N1 adapters modify the epi-illumination port exposed by removing the epi-illumination module.

The SM2N3 adapter allows a collimated illumination source to mount onto the lamphouse port.

Camera Port Adapters
The Nikon Eclipse Ti2 has a main camera port on the side, as well as an additional camera port near the trinocular. The SM1N2 and SM1N3 adapters are designed to allow components with SM1 threading, SM2 threading, or 30 mm cage system compatibility to be mounted to these camera ports. These adapters are ideal for inserting user-built optical assemblies into the optical path or utilizing our Scientific Cameras.

Nosepiece Adapter
The SM1N5 Adapter is designed to allow Thorlabs' SM1-threaded components to be threaded onto the various nosepieces, also known as objective turrets, that are typically found on a Nikon Eclipse Ti2 microscope, while also providing 30 mm and 60 mm cage system compatibility.

Trinocular Port Adapters
Custom widefield viewing and image detection setups can be connected to the trinocular port using an LCPN2, LCPN4, WFA4111, or SM2A59 adapter. The LCPN3 adapter can be use to connect the trinocular port to Olympus trinoculars with a D5Y dovetail. See the Microscope Dovetails tab for details about the D5Y dovetail.

Eyepiece Adapter
The SM2N2 adapter replaces the lens element on an eyepiece of the Nikon microscope's trinoculars, allowing custom image detection or viewing setups to be attached to the microscope.

Condenser Adapter
The LCPN1 and LCPN5 adapters connect to the condenser holder for the attachment of custom light conditioning modules.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Thorlabs Dovetail Referencea
Type Shape Outer Dimension Angle
95 mm Linear 95 mm 45°
D1N Circular Ø2.018" 60°
D2Nb Circular Ø1.50" 90°
D2NBb Circular Ø1.50" 90°
D3N Circular Ø45 mm 70°
D5N Circular Ø1.58" 90°
D6N Circular Ø1.90" 90°
D7N Circular Ø2.05" 90°
D8N Circular Ø40 mm 90°
D9N Circular Ø50 mm 90°
D10N Circular Ø52 mm 90°
D1T Circular Ø1.50" 60°
D3T Circular Ø1.65" 90°
D4T Circular Ø1.20" 90°
D1Y Circular Ø107 mm 60°
D2Y Circular Ø2.32" 50°
D3Y Circular Ø1.75" 90°
D4Y Circular Ø56 mm 60°
D5Y Circular Ø46 mm 60°
D6Y Circular Ø41.9 mm 45°
D1Z Circular Ø54 mm 60°
D2Z Circular Ø57 mm 60°
D3Z Circular Ø54 mm 45°
  • These dovetail designations are specific to Thorlabs products and are not used by other microscope manufacturers.
  • D2N and D2NB dovetails have the same outer diameter and angle, as defined by the drawings below. The D2N designation does not specify a height. The D2NB designation specifies a dovetail height of 0.40" (10.2 mm).
Mating Circular Dovetails
Click to Enlarge

This photo shows the male D1N dovetail on the trinoculars next to the female D1N dovetail on the epi-illumination arm.
Mating Linear Dovetails
Click to Enlarge

This photo shows the male 95 mm dovetail on the microscope body and the female 95 mm dovetail on the CSA1002 Fixed Arm.

Introduction to Microscope Dovetails

Dovetails are used for mechanical mating and optical port alignment of microscope components. Components are connected by inserting one dovetail into another, then tightening one or more locking setscrews on the female dovetail. Dovetails come in two shapes: linear and circular. Linear dovetails allow the mating components to slide before being locked down, providing flexible positioning options while limiting unneeded degrees of freedom. Circular dovetails align optical ports on different components, maintaining a single optical axis with minimal user intervention.

Thorlabs manufactures many components which use dovetails to mate with our own components or those of other manufacturers. To make it easier to identify dovetail compatibility, we have developed a set of dovetail designations. The naming convention of these designations is used only by Thorlabs and not other microscope manufacturers. The table to the right lists all the dovetails Thorlabs makes, along with their key dimensions.

In the case of Thorlabs’ Cerna® microscopes, different dovetail types are used on different sections of the microscope to ensure that only compatible components can be mated. For example, our WFA2002 Epi-Illuminator Module has a male D1N dovetail that mates with the female D1N dovetail on the microscope body's epi-illumination arm, while the CSS2001 XY Microscopy Stage has a female D1Y dovetail that mates with the male D1Y dovetail on the CSA1051 Mounting Arm.

To learn which dovetail type(s) are on a particular component, consult its mechanical drawing, available by clicking on the red Docs icon (Docs Icon) below. For adapters with a female dovetail, the drawing also indicates the size of the hex key needed for the locking setscrew(s). It is important to note that mechanical compatibility does not ensure optical compatibility. Information on optical compatibility is available from Thorlabs' web presentations.

For customers interested in machining their own dovetails, the table to the right gives the outer diameter and angle (as defined by the drawings below) of each Thorlabs dovetail designation. However, the dovetail's height must be determined by the user, and for circular dovetails, the user must also determine the inner diameter and bore diameter. These quantities can vary for dovetails of the same type. One can use the intended mating part to verify compatibility.

In order to reduce wear and simplify connections, dovetails are often machined with chamfers, recesses, and other mechanical features. Some examples of these variations are shown by the drawings below.

Male Microscope Dovetails
Click to Enlarge

Two examples of how circular male dovetails can be manufactured.
Female Microscope Dovetails
Click to Enlarge

Two examples of how circular female dovetails can be manufactured.

Posted Comments:
user  (posted 2024-07-23 08:47:18.6)
I'm currently using a Nikon Ti2. I'm reaching out to get some recommendations on how to use the SM1A30 or SM2N1. We don't have a Nikon epi-illumination module. So the rear epi-port of the microscope is empty. The reason is partly because Nikon only offers the complete solution including epi-illumination port, fiber coupler, fiber-based 4 color LEDs, drivers. We have several lasers, and would also like to purchase some LEDs with different wavelengths. The idea is to build a simple module to couple in the external light to achieve epi-illumination. Would be nice to build such a coupler using Thorlabs parts. Thanks a lot.
jpolaris  (posted 2024-07-23 08:03:06.0)
Thank you for contacting Thorlabs. SM1A30 and SM2N1 are both directly compatible with the epi-illumination port on Nikon Eclipse Ti or Ti2 microscopes. SM1A30 is SM1 threaded, allowing it to be used with our line of SM1 lens tubes. SM2N1 is SM2 threaded, allowing it to be used with our line of SM2 lens tubes. Additionally, these two adapters have #4-40 taped holes allowing them to integrate with our line of cage system products. I have reached out to you directly to discuss your specific requirements for constructing a module for epi-illumination with our parts.
user  (posted 2023-12-05 11:43:55.867)
What is the mounting tolerances with the adaptors? How can you gaurentee that the entire sensor is in roughly the same depth of focus( within the same depth of focus). Do you have recomended tubelenses for the nikon eclipse ti2 based on the back focal length of the camera port?
cdolbashian  (posted 2023-12-11 10:50:16.0)
Thank you for reaching out to us with this inquiry, though I am not exactly sure what you are inquiring after. These port adapters simply allow the use of thorlabs imaging elements with your Nikon scope. You would need to determine if the scope has an internal tube lens generating an image at the camera port or if you need to include one externally. Once you have this information, you simply need to find the correct spacing, and select components to satisfy this spacing. I have contacted you directly with some recommendations regarding the execution of this method/approach.
Back to Top

Epi-Illumination Module Adapters for Nikon Eclipse Ti2 Microscopes

  • Connect a Collimated Illumination Source to the Epi-Illumination Module of a Nikon Eclipse Ti2 Microscope
  • Options for Compatibility with SM1, SM2, and 30 mm Cage Construction Systems

These adapters allow the user to mount a collimated illumination source, such as Throlabs' Solis® LEDs, to the epi-illumination module of a Nikon Eclipse Ti2 Microscope. Each adapter uses a D9N dovetail to connect to the module port and has four grooves to prevent rotation. See the table below for adapter compatibility with Thorlabs' SM thread and cage system standards.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

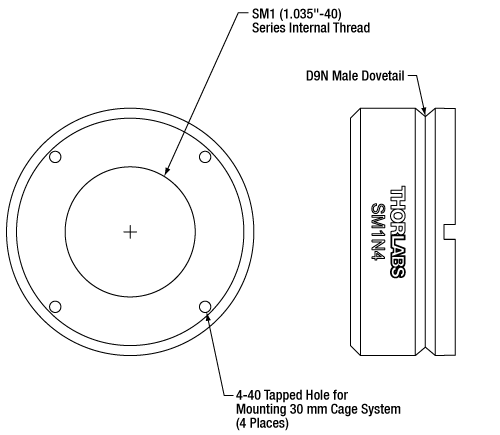

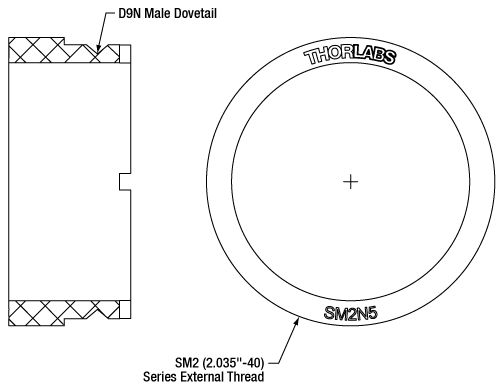

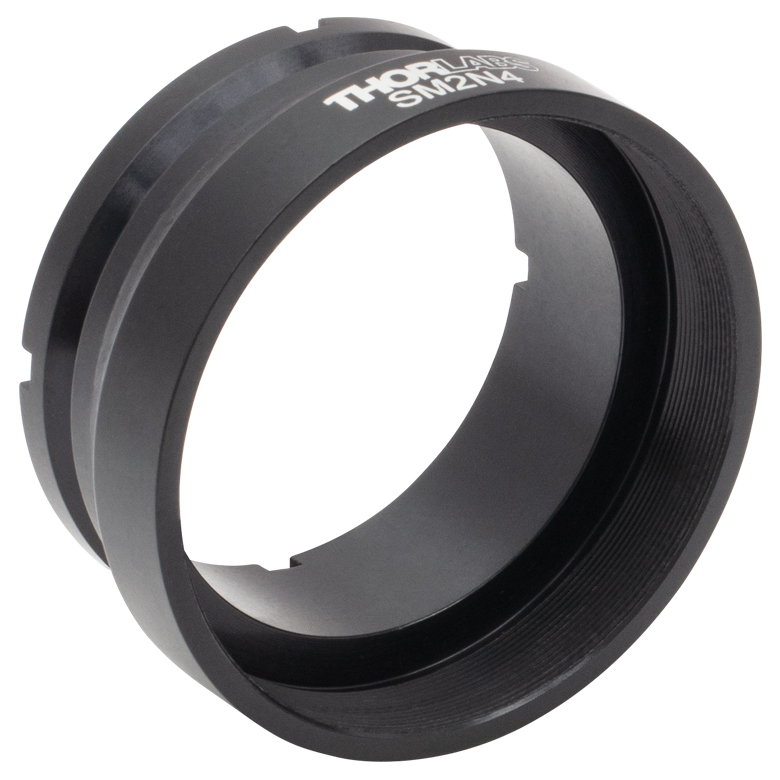

Item # SM1N4 SM2N4 SM2N5
(Click to Enlarge)
SM1N4 SM2N4 SM2N5
Dovetail Male D9N
SM Threading Internal SM1 (1.035"-40) Internal SM2 (2.035"-40) External SM2 (2.035"-40)
Cage Compatibility
30 mm Cage
(4-40 Tap, 4 Places)
- -
Microscope Compatibility Nikon Eclipse Ti2 Epi-Illumination Module
Clear Aperture - Ø1.69" (43.0 mm) Ø1.69" (43.0 mm)
Adapter Profile
(Click for Drawing)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1N4 Support Documentation
SM1N4Nikon Eclipse Ti2 Microscope Epi-Illumination Module Adapter, Internal SM1 Threads, 30 mm Cage Compatibility
$132.60
Today
SM2N4 Support Documentation
SM2N4Nikon Eclipse Ti2 Microscope Epi-Illumination Module Adapter, Internal SM2 Threads
$132.60
Today
SM2N5 Support Documentation
SM2N5Nikon Eclipse Ti2 Microscope Epi-Illumination Module Adapter, External SM2 Threads
$132.60
Today
Back to Top

Epi-Illumination Port Adapters for Nikon Eclipse Ti or Ti2 Microscopes

  • Attach Custom-Built Optical Systems after Removal of the Epi-Illumination Module of a Nikon Eclipse Ti or Nikon Eclipse Ti2 Microscope
  • Options for Compatibility with SM1, SM230 mm Cage, and 60 mm Cage Construction Systems

These adapters are designed so that custom-built systems based on Thorlabs components may be directly attached to the epi-illumination port of the Nikon Eclipse Ti or Nikon Eclipse Ti2 Microscope once the epi-illumination module is removed. They are ideal for various applications, including Raman spectroscopy, optical tweezers, fluorescence imaging, and super-resolution microscopy techniques, such as stimulated emission depletion (STED), stochastic optical reconstruction microscopy (STORM), and photo-activated localization microscopy (PALM).

SM2N1 Adapter Attached to Exposed Epi-Illumination Port
Click to Enlarge

SM2N1 Adapter Attached to Exposed Epi-Illumination Port

The SM1A30 features internal SM1 (1.035"-40) threading for Ø1" lens tubes and 4-40 tapped holes on 30 mm and 60 mm centers. The SM2N1 has internal SM2 (2.035"-40) threading for Ø2" lens tubes and 4-40 tapped holes on 60 mm centers. The 4-40 tapped holes allow cage rods to be attached for 30 mm and 60 mm cage systems.

The adapters feature four through holes on a 4.2" x 2.2" grid to attach to the exposed epi-illumination port. The adapters are secured using the four included M5 x 0.8 cap screws which accept a 4 mm balldriver or hex key. In addition, each adapter comes with either an SM1-threaded (Item # SM1CP2) or an SM2-threaded (Item # SM2CP2) cover to protect the port when not in use.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

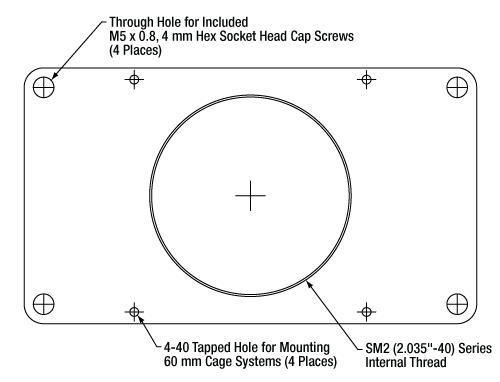

Item # SM1A30 SM2N1
(Click to Enlarge)
SM1A30 Nikon Eclipse Ti Epi-Illumination Port Adapter SM2N1 Nikon Eclipse Ti Epi-Illumination Port Adapter
Microscope Connection Counterbore for M5 Screw, 4 Places (4.2" x 2.2") Bore for M5 Screw, 4 Places (4.2" x 2.2")
SM Threading
Internal SM1 (1.035"-40) Internal SM2 (2.035"-40)
Cage Compatibility 30 mm and 60 mm Cage Systems
(4-40 Tap, 8 Places)
60 mm Cage System
(4-40 Tap, 4 Places)
Microscope Compatiblity Nikon Eclipse Ti and Ti2 Epi-Illumination Ports
Adapter Profile
(Click for Drawing)
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1A30 Support Documentation
SM1A30Nikon Eclipse Ti or Ti2 Microscope Epi-Illumination Port Adapter, Internal SM1 Threads, 30 and 60 mm Cage Compatibility
$78.46
Today
SM2N1 Support Documentation
SM2N1Customer Inspired! Nikon Eclipse Ti or Ti2 Microscope Epi-Illumination Port Adapter, Internal SM2 Threads, 60 mm Cage Compatibility
$87.35
Today
Back to Top

Lamphouse Port Adapter for Nikon Eclipse (Ti, Ti2, or Upright) Microscopes

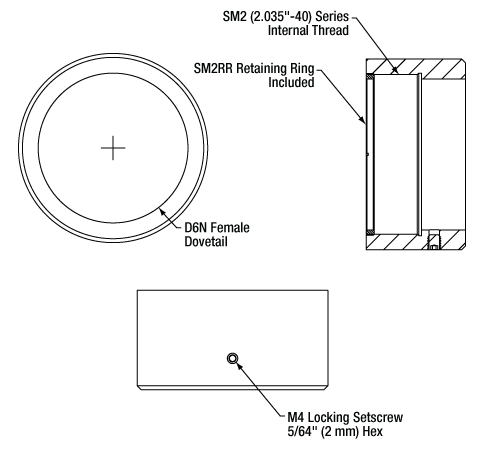

Item # SM2N3
(Click to Enlarge)
SM1A44
Dovetail
Female D6Na
SM Threading Internal SM2 (2.035"-40)
Microscope Compatibility Upright Nikon Eclipse and
Nikon Eclipse Ti and Ti2 Lamphouse Ports
Clear Aperture Ø1.90" (48.3 mm)
Adapter Profile
(Click for Drawing)
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
  • Connect a Collimated Illumination Source to the Lamphouse Port of an Upright Nikon Eclipse, Nikon Eclipse Ti,
    or Nikon Eclipse Ti2 Microscope
  • Compatible with SM2 Lens Tubes

The SM2N3 adapter is designed to allow a collimated illumination source, such as a Thorlabs' Solis® LED with an SM2T2 adapter, to be utilized for trans-illumination in an Upright Nikon Eclipse, Nikon Eclipse Ti, or Nikon Eclipse Ti2 microscope. This adapter utilizes a female D6N dovetail to connect to the lamphouse port of the microscope; the dovetail is secured by the included setscrew (5/64" [2 mm] hex). See the Microscope Dovetails tab for details.

This adapter features internal SM2 (2.035"-40) threading for Ø2" lens tubes, and includes one SM2RR retaining ring to secure an optic against the internal lip of the adapter.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2N3 Support Documentation
SM2N3Nikon Eclipse (Ti, Ti2, or Upright) Microscope Lamphouse Port Adapter, Female D6N Dovetail, Internal SM2 Threads
$98.99
Today
Back to Top

Camera Port Adapters for Nikon Eclipse Ti2 Microscopes

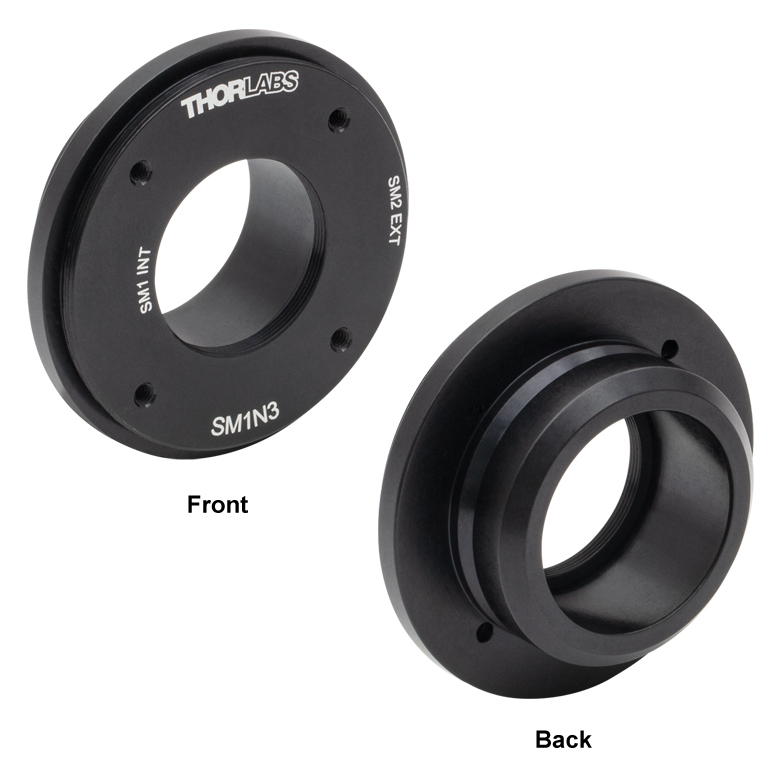

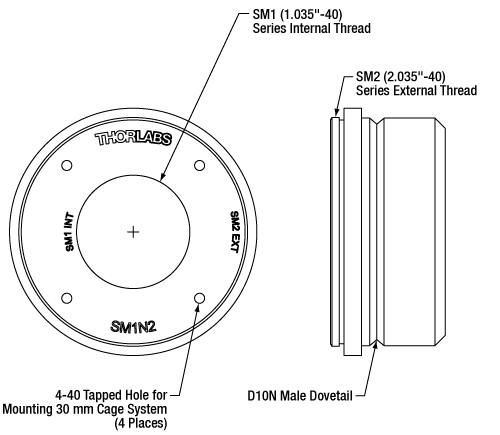

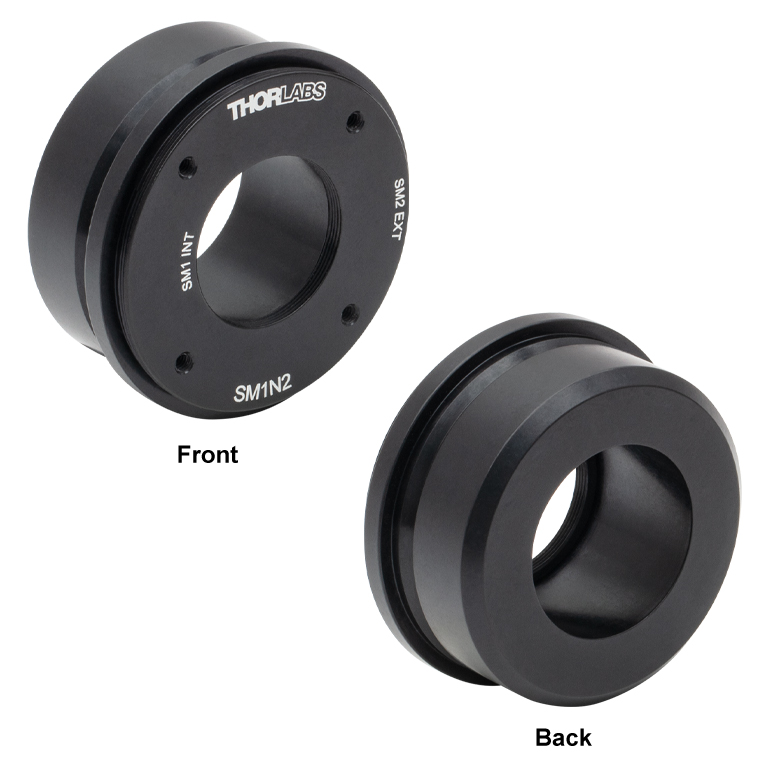

Item # SM1N2 SM1N3
(Click for Details)
SM1N2 SM1N3
Dovetail Male D10Na Male D8Na
SM Threading
Internal SM1 (1.035"-40)
External SM2 (2.035"-40)
Cage Compatibility 30 mm Cage System
(4-40 Tap, 4 Places)
Microscope Compatibility Nikon Eclipse Ti2 Camera Port
Adapter Profile
(Click for Drawing)
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.

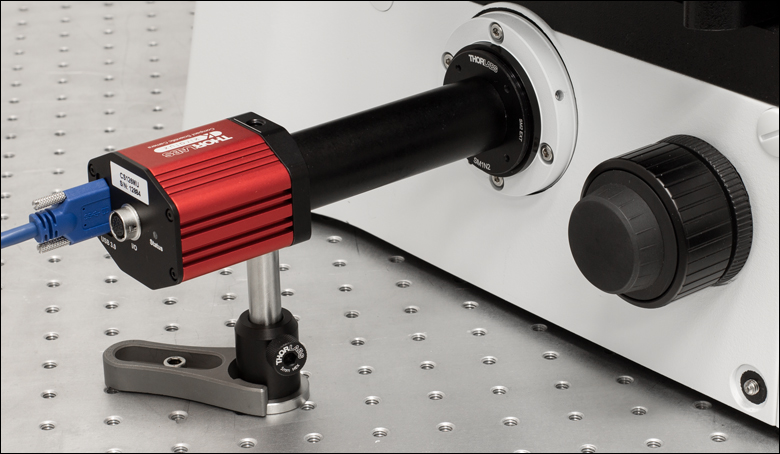

Thorlabs Camera Attached to Nikon Port via SM1N2
Click to Enlarge
View Imperial Product List
Item #QtyDescription
SM1N21Nikon Eclipse Ti2 Microscope Camera Port Adapter, Internal SM1 Threads, External SM2 Threads, 30 mm Cage Compatibility
SM1S351SM1 Lens Tube Spacer, 3.5" Long
TR21Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 2"
PH1E1Ø1/2" Pedestal Post Holder, Spring-Loaded Hex-Locking Thumbscrew, L=1.19"
CF1251Clamping Fork, 1.24" Counterbored Slot, Universal
CS895CU1Kiralux 8.9 MP Color CMOS Camera, USB 3.0 Interface
Scientific Camera Mounted to Nikon Eclipse Ti2 Microscope Using SM1N2 Adapter, SM1 Lens Tube, and 30 mm Cage System Components
  • Attach Custom-Built Optical Systems or Detectors to the Camera Port of a Nikon Eclipse Ti2 Microscope
  • Compatible with SM1, SM2, and 30 mm Cage Construction Systems

These adapters are designed so that custom-built optical systems or detectors based on Thorlabs' components may be attached to the camera ports of the Nikon Eclipse Ti2 Microscope. The SM1N2 adapter utilizes a male D10N dovetail to secure the adapter to the main camera port. The SM1N3 adapter utilizes a male D8N dovetail to secure the adapter to the secondary camera port near the trinocular. Both adapters feature internal SM1 (1.035"-40) threading for Ø1" Lens Tubes, external SM2 (2.035"-40) threading for Ø2" Lens Tubes, and 4-40 tapped holes on 30 mm centers for attaching cage system rods.

Thorlabs' Scientific CMOS Cameras have options with industry standard C-mount adapters or SM1 internal threading. Industry standard C-mount cameras can be attached directly to the internal SM1 threads of these adapters using the SM1A39 external C-Mount to external SM1 adapter, available separately. Internally SM1-threaded cameras can be easily integrated into microscope systems using an SM1 lens tube spacer or an SM1 lens tube coupler to connect to the internal SM1 threads of these adapters. Alternatively, the internal SM1 threads of the cameras can be attached to the external SM2 threads of these adapters by using an SM1A2 adapter, which has internal SM2 to external SM1 threads.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1N2 Support Documentation
SM1N2Nikon Eclipse Ti2 Microscope Camera Port Adapter, Internal SM1 Threads, External SM2 Threads, 30 mm Cage Compatibility
$86.70
Today
SM1N3 Support Documentation
SM1N3Nikon Eclipse Ti2 Microscope Alternate Camera Port Adapter, Internal SM1 Threads, External SM2 Threads, 30 mm Cage Compatibility
$76.50
Today
Back to Top

Nosepiece (Objective Turret) Adapter for Nikon Eclipse Ti2 and Cerna Microscopes

Item # SM1N5
(Click for Details)
SM1N5
Microscope Connection M5 x 0.8 Mounting Hole
(2 Places)
SM Threading Internal SM1 (1.035"-40)
Cage Compatibility
30 mm Cage System
(4-40 Tap, 4 Places)
60 mm Cage Systema
(Ø6 mm Bore, 4 Places)
Microscope Compatibility Nikon Eclipse Ti2 Nosepiece
Adapter Profile
(Click for Drawing)
  • The 60 mm cage compatibility allows a Nikon Ti2 nosepiece that has been mounted to the SM1N5 adapter to be attached via cage rods to a Cerna mounting arm for use in a Cerna microscope system.
Nikon Nosepiece Adapter
Click to Enlarge

The SM1N5 Adapter mounted on a Nikon nosepiece.
  • Allows Externally SM1-Threaded Components to be Threaded onto Nikon Eclipse Ti2 Microscope Nosepieces
  • Compatible with 30 mm and 60 mm Cage Construction Systems
  • Supports Integration of Nikon Eclipse Ti2 Nosepieces into Cerna Microscope Systems with 60 mm Cage Compatibility

The SM1N5 SM1-Threaded Nosepiece Adapter is designed to allow Thorlabs' externally SM1-threaded components to be threaded onto Nikon nosepieces, also known as objective turrets, that are commonly found in Nikon Eclipse Ti2 Microscopes. The adapter features an SM1-threaded central bore and two threaded M5 x 0.8 mounting through holes for use with the M5 captive screws that come with Nikon nosepieces. The adapter allows systems built from Thorlabs' optomechanics, such as illumination modules, to be integrated directly with a Nikon nosepiece. A set of four 4-40 tapped holes on 30 mm centers and four through holes with side-located locking setscrews (5/64" [2 mm] hex) allow for integration with 30 mm and 60 mm cage systems, respectively. These through holes can be used with our cage rods to mount the SM1N5 adapter to Cerna nosepieces and mounting arms with 60 mm cage compatibility, allowing Nikon Ti2 nosepieces to be used in a Cerna microscope system.

The input port of the Nikon nosepiece can be accessed by unscrewing the captive M5 screws on the nosepiece and removing it from the Nikon Eclipse Ti2. To attach the SM1N5 adapter, align the captive M5 screws with the threaded M5 x 0.8 mounting holes of the adapter; the raised portion of the adapter should face towards the nosepiece so the adapter lays flat, allowing access to the 4-40 tapped holes as shown in the image to the right. Once aligned, the captive M5 screws can be screwed into the adapter mounting holes and the nosepiece remounted.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM1N5 Support Documentation
SM1N5Nikon Eclipse Ti2 and Cerna Microscope Nosepiece Adapter, Internal SM1 Threads, 30 mm and 60 mm Cage Compatibility
$117.30
Today
Back to Top

Trinocular Port Adapters for Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscopes

D5Y Dovetail
Click to Enlarge

D5Y Dovetail on the LCPN3 Adapter
LCPN2 Adapter Attached to Trinocular Port
Click to Enlarge

The LCPN2 Adapter Attached to Exposed Trinocular Port
  • Supports Custom Widefield Setups by Modifying Trinocular Port on Upright Nikon Eclipse, Nikon Eclipse Ti, Nikon Eclipse Ti2, or Cerna® Microscopes
  • Options for Compatibility with SM30, SM230 mm Cage, and 60 mm Cage Construction Systems

Our trinocular port adapters modify the trinocular port on an Upright Nikon Eclipse, Nikon Eclipse Ti and Ti2, or Cerna Microscope to accept custom widefield viewing setups (Item #'s LCPN2, LCPN4, WFA4111, and SM2A59) or Olympus trinoculars (Item # LCPN3). Each adapter utilizes a male D1N dovetail to connect to the trinocular port of the microscope. The adapters can only be attached by first removing the microscope's trinoculars, as shown in the bottom image.

The LCPN2 and LCPN3 adapters feature internal SM30 (M30.5 x 0.5) threading for Ø30 mm lens tubes; two SM30RR retaining rings are included to secure an optic inside the adapter. Four through holes, each with two side-located locking setscrews (5/64" [2 mm] hex), can be used to attach Ø6 mm cage rods for 60 mm cage systems. The LCPN2 adapter is designed to be used with custom widefield viewing setups and includes additional 4-40 tapped holes on 30 mm centers on the side opposite the dovetail for 30 mm cage systems. The LCPN3 adapter features a female D5Y dovetail to allow Olympus trinoculars with a male D5Y dovetail to be used with the Nikon Eclipse.

The LCPN4 adapter is also designed to be used with custom widefield viewing setups. It features SM2 (2.035"-40) threading for SM2 lens tubes and includes one SM2RR retaining ring for securing an optic. Each adapter has four through holes with side-located locking setscrews (5/64" [2 mm] hex) that can be used to attach Ø6 mm cage rods for 60 mm cage systems.

The WFA4111 and SM2A59 adapters are designed for custom widefield viewing setups. The WFA4111 adapter features internal M38 x 0.5 threading, which is compatible with our SM38RR retaining rings to secure an optic inside the adapter. The internal threading also directly accepts our TTL200 and ITL200 tube lenses, while external SM2 (2.035"-40) threading on the top of the adapter allows it to be integrated into SM2 lens tube systems. The SM2A59 adapter features internal SM2 (2.035"-40) threading, which can directly accept our SM2-threaded infinity-corrected tube lenses for widefield imaging. Alternatively, the internal SM2 threading can be used to integrate with our SM2 lens tube systems for the construction of custom image detection modules.

The dovetail designations are specific to Thorlabs products; see the Microscope Dovetails tab for details.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Item # LCPN2 LCPN3 LCPN4 WFA4111 SM2A59
(Click to Enlarge)
LCPN2 Nikon Trinocular Adapter LCPN3 Nikon Trinocular Adapter LCPN4 Nikon Trinocular Adapter WFA4111 Trinocular Adapter SM2A59 Trinocular Adapter
Dovetail Male D1Na Male D1Na
Female D5Ya,b
Male D1Na
SM Threading Internal SM30 (M30.5 x 0.5) Internal SM2 (2.035"-40) Internal M38 x 0.5
External SM2 (2.035"-40)
Internal SM2 (2.035"-40)
Cage Compatibility 30 mm Cage System
(4-40 Tap, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
Nonec
Trinocular Compatibility - Olympusb - - -
Microscope Compatibility Upright Nikon Eclipse, Nikon Eclipse Ti and Ti2, Cerna Trinocular Ports Upright Nikon Eclipse and
Cerna Trinocular Ports
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
  • The LCPN3 adapter features an additional female D5Y dovetail to connect to Olympus trinoculars.
  • An SM2-threaded cage plate can be used to convert between SM2 lens tubes and 60 mm cage systems.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCPN2 Support Documentation
LCPN2Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Trinocular Adapter, Male D1N Dovetail, Internal SM30 Threads, 30 and 60 mm Cage Compatibility
$122.28
Today
LCPN3 Support Documentation
LCPN3Customer Inspired! Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Trinocular Port Adapter, Olympus Microscope Trinocular Adapter, Male D1N Dovetail, Female D5Y Dovetail, Internal SM30 Threads, 60 mm Cage Compatibility
$115.18
Today
LCPN4 Support Documentation
LCPN4Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Trinocular Adapter, Male D1N Dovetail, Internal SM2 Threads, 60 mm Cage Compatibility
$108.63
Today
WFA4111 Support Documentation
WFA4111Adapter with Male D1N Dovetail, External SM2 Threads, and Internal M38 x 0.5 Threads
$107.10
Today
SM2A59 Support Documentation
SM2A59Adapter with Male D1N Dovetail and Internal SM2 Threads
$70.00
Today
Back to Top

Eyepiece Port Adapter for Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscopes

Item # SM2N2
(Click to Enlarge)
SM1A44
Microscope Connection Ø1.18" Eyepiece Tube
(Alignment Slot, 5 Places)
SM Threading Internal SM1 (1.035"-40)
External SM2 (2.035"-40)
Cage Compatibility
30 mm Cage System
(4-40 Tap, 4 Places)
Microscope Compatibility Upright Nikon Eclipse,
Nikon Eclipse Ti and Ti2,
and Cerna Eyepieces
Clear Aperture Ø0.90" (22.9 mm)
Adapter Profile
(Click for Drawing)
SM2N2 Adapter Attached to Trinocular Eyepieces
Click to Enlarge

Two SM2N2 adapters attached to the trinocular eyepieces.
  • Replace Trinocular Eyepiece for DIY Construction
  • Compatible with SM1, SM2, and 30 mm Cage Construction Systems

The SM2N2 Eyepiece Adapter allows custom-built optical detection systems to attach to the eyepieces on the trinoculars of an Upright Nikon Eclipse, Nikon Eclipse Ti, Nikon Eclipse Ti2, or Cerna Microscope. This adapter replaces the lens element on the eyepiece that sets the image plane at the the back of the eyes (see image to the right). Five alignment slots ensure the adapter fits snugly inside the eyepiece without rotation; because of the drop-in nature of the adapter, take care the attached system does not overbalance the 40 g eyepiece adapter when it is inside the trinoculars.

This adapter features internal SM1 (1.035"-40) threading for Ø1" lens tubes; two SM1RR retaining rings are included to secure an optic inside the adapter. The adapter also has external SM2 (2.035"-40) threading for Ø2" lens tubes. The face with the Item # engraving has 4-40 tapped holes for 30 mm cage systems.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
SM2N2 Support Documentation
SM2N2Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Eyepiece Adapter, Internal SM1 and External SM2 Threads, 30 mm Cage Compatibility
$157.22
Today
Back to Top

Condenser Port Adapters for Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscopes

Item # LCPN1 LCPN5
(Click to Enlarge)
LCPN1 LCPN5
Dovetail Male D3Na
SM Threading Internal SM30
(M30.5 x 0.5)
Internal SM2
(2.035"-40)
Cage Compatibility
30 mm Cage System
(4-40 Tap, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
60 mm Cage System
(Ø6 mm Bore, 4 Places)
Microscope
Compatibility
Upright Nikon Eclipse, Nikon Eclipse Ti and Ti2, and Cerna Condenser Ports
Clear Aperture Ø1.10" (27.9 mm) Ø1.50" (38.1 mm)
Adapter Profile
(Click for Drawing)
  • This dovetail designation is specific to Thorlabs products; see the Microscope Dovetails tab for details.
LCPN1 adapter attached to Nikon Condenser
Click to Enlarge

LCPN1 Attached to Condenser Holder

Our Condenser Adapters utilize male D3N dovetails to connect custom condenser configurations to the condenser holder of an Upright Nikon Eclipse, Nikon Eclipse Ti and Ti2, or Cerna Microscope. See the Microscope Dovetails tab for details.

The LCPN1 adapter features internal SM30 (M30.5 x 0.5) threading for Ø30 mm lens tubes; two SM30RR retaining rings are included to secure an optic inside the adapter. The LCPN5 adapter features SM2 (2.035"-40) threading for SM2 lens tubes and includes one SM2RR retaining ring. Both adapters have four through holes with side-located locking setscrews (5/64" [2 mm] hex) that can be used to attach Ø6 mm cage rods for 60 mm cage systems. Additionally, the LCPN1 adapter features 4-40 tapped holes on 30 mm centers, located on the side opposite the dovetail, which can be used for 30 mm cage systems.

Note: Thorlabs does not guarantee compatibility with other industry-standard microscopes not explicitly mentioned on this webpage.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
LCPN1 Support Documentation
LCPN1Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Condenser Adapter, Male D3N Dovetail, Internal SM30 Threads, 30 and 60 mm Cage Compatibility
$116.46
Today
LCPN5 Support Documentation
LCPN5Nikon Eclipse (Ti, Ti2, or Upright) and Cerna Microscope Condenser Adapter, Male D3N Dovetail, Internal SM2 Threads, 60 mm Cage Compatibility
$114.24
Today
