6-Wavelength High-Power LED Sources


  • 6-Wavelength LED Sources with Stable and Repeatable Emission
  • LEDs Controlled via Easy-to-Use GUI
  • Choose from 11 LEDs for Custom Configurations
  • Breakout Box Available for Timing with External Devices

CHROLIS-C1

6-Wavelength High-Power LED Source
with Included LLG03-4H Liquid Light Guide

BBC1

Breakout Box
(Sold Separately)

The Chrolis software allows users to set the power level and define the pulse lengths, pulse timings, and internal and external trigger signals for each LED independently.

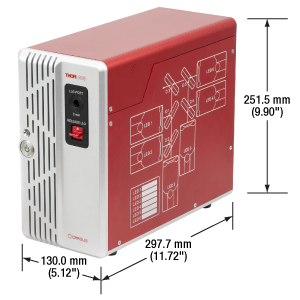

251.5 mm
(9.90")

130.0 mm
(5.12")

297.7 mm
(11.72")

Related Items


Please Wait
LED Options
Nominal
Wavelength
Color
(Click for Spectrum)
Typical Output
Powera
365 nm UV 1130 mW
385 nm UV 1250 mW
405 nmb UV 900 mW
420 nmb Violet 710 mW
475 nm Blue 630 mW
490 nm Blue 120 mW
525 nmc Green 180 mW
565 nmc Lime 350 mW
590 nm Amber 140 mW
625 nm Red 490 mW
780 nm IR 40 mW
  • Typical output power from LLG03-4H liquid light guide. Values can vary depending on the configuration.
  • Due to closely overlapping spectra, the 405 nm and 420 nm LEDs cannot be combined in the same source.
  • Due to closely overlapping spectra, the 525 nm and 565 nm LEDs cannot be combined in the same source.
Chrolis Side View
Click to Enlarge

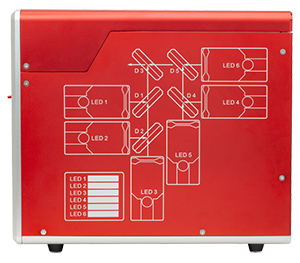

The side panel of the Chrolis light source is engraved with the LED schematic. White labels are provided to allow users to record which LEDs are installed.
Chrolis Screenshot
Click to Enlarge

Users can modulate individual LEDs using the Chrolis software. The GUI displays the user-defined pulse trains for each LED.

Features

  • Combine 6 User-Changeable, High-Power LEDs into One Liquid Light Guide
  • Eleven Wavelength Options Cover All Known Fluorophores Between 365 nm and 780 nm (See Table to the Right)
  • USB 2.0 Interface
  • Control LEDs Using Included Software with GUI (See the Software Tab for Details)
    • Individually Modulate LEDs for Pulsed Light Applications
  • Integrated Cooling System for Extending Liquid Light Guide's Lifetime
  • Typical Lifetime of LED Modules is ≥10,000 Hours (See the Specs Tab for Details)
  • Breakout Box for External Modulation and Triggering Other Devices (Sold Separately Below)
  • User-Configurable LED Sources Available Through the Tool Below

Thorlabs' Chrolis™ 6-Wavelength High-Power LED Sources are ideal for fluorescence imaging or any other application that requires up to six wavelengths of light. These user-configurable light engines efficiently combine the output of all six LEDs into a single liquid light guide (LLG); Thorlabs' LLG03-4H LLG is included. Compared to conventional non-LED sources like halogen and gas discharge lamps, these mercury-free 6-wavelength light sources offer many advantages such as higher signal-to-noise ratios (due to narrow bandwidth emission), high stability (see the Stability tab), longer life, and lower replacement costs. The Chrolis LED sources are available in two pre-set configurations; user-configured LED sources can also be ordered using the tool below.

The Chrolis light engines are designed to couple light into a Ø3 mm core liquid light guide (LLG). The typical output power for each LED from the included LLG03-4H LLG is shown in the table to the right. Each light source is equipped with an integrated cooling system that cools the tip of the LLG using thermoelectric coolers (TECs), thus extending the LLG lifetime. The optical output port for the LLG, LLG release lever, and On/Off button are located on the front of the housing for easy access.

The side panel is engraved with the LED schematic and spaces for the user to record the installed LEDs, as shown in the image above. Users can easily remove this panel by unscrewing the five setscrews with a 2 mm (5/64") hex key and access the LED and dichroic mirror modules. To remove LED modules, press the locking pin handle and turn toward "OPEN", then pull outward. Dichroic mirror modules are secured by magnets and can be removed by pulling outward on the handle. The modules are mounted on an actively cooled heat sink and the temperature of the LED modules is continuously monitored to ensure highly stable performance. Each LED module also has a removable SM1-threaded filter holder that is magnetically held in place in front of the LED. This feature provides space for Ø1" (Ø25 mm) bandpass filters up to 0.248" (6.3 mm) thick to be inserted in the Chrolis light paths and restrict the spectrum emitted by each LED. For instructions on inserting bandpass filters, please refer to the Chrolis Operation Manual available by clicking the Docs icon () below.

Every 6-wavelength LED source includes a software package with an easy-to-use GUI; see the Software tab for more details. Once the light source is connected via a USB interface, this intuitive software can detect the LED configuration and display the corresponding LED spectra. Users can set the intensity of each LED as well as modulate them for pulsed light applications. A different pulse train can be defined for each LED, with an allowable on/off time of 5 µs to 71 minutes; see the image to the right. For externally triggering the LEDs, we offer a breakout box that can be configured with the Chrolis software. LED pulse trains can be linked in the software such that a single external trigger will initiate a user-defined pulse sequence for up to six LEDs.

Pre-Set and Custom Configurations

Two pre-set Chrolis light source configurations are available from stock. The six wavelengths included in each source were selected to support common fluorescence microscopy and optogenetics applications.

Chrolis 6-wavelength LED sources with user-selected LED wavelengths can be configured using the tool below. The available LED wavelengths are listed in the LED Options table above. Due to the optical configuration, LEDs with closely overlapping spectra (specifically, 405/420 nm and 525/565 nm) cannot be combined in the same source; all other LED combinations are allowed. The appropriate dichroic mirrors and LED positions are pre-set based on the user-selected wavelengths for each source.

If you desire an LED configuration other than those available below, such as a source with fewer than six LEDs, please contact Tech Support.

LED Specifications
Nominal Wavelengtha Peak Wavelength Color
(Click for Spectrum)
Typical
Output Powerb
Bandwidth
(FWHM)
Lifetime
(Typ.)
Min Typ. Max
365 nm 360 nm 365 nm 370 nm UV 1130 mW 9 nm >1 000 h
385 nm 380 nm 385 nm 390 nm UV 1250 mW 11 nm >1 000 h
405 nmc 400 nm 405 nm 410 nm UV 900 mW 12 nm >1 000 h
420 nmc 415 nm 420 nm 425 nm Violet 710 mW 14 nm >10 000 h
475 nm 465 nm 475 nm 485 nm Blue 630 mW 23 nm >10 000 h
490 nm 480 nm 490 nm 500 nm Blue 120 mW 23 nm >1 000 h
525 nmd 510 nm 520 nm 530 nm Green 180 mW 38 nm >10 000 h
565 nmd 560 nm 565 nm 570 nm Lime 350 mW 100 nm >10 000 h
590 nm 590 nm 595 nm 605 nm Amber 140 mW 80 nm >10 000 h
625 nm 625 nm 633 nm 640 nm Red 490 mW 13 nm >10 000 h
780 nm 770 nm 780 nm 790 nm IR 40 mW 28 nm >10 000 h
  • Please use the Nominal Wavelength when requesting LEDs for custom configurations.
  • Typical output power from LLG03-4H Liquid Light Guide. Values can vary depending on Chrolis configuration.
  • Due to closely overlapping spectra, the 405 nm and 420 nm LEDs cannot be combined in the same source.
  • Due to closely overlapping spectra, the 525 nm and 565 nm LEDs cannot be combined in the same source.
Chrolis Light Source Specifications
Internal Modulation (Square Wave Only)
Typical Rise and Fall Time (10% - 90%) 2 µs
On Time of LED Pulse (Min to Max) 5 µs to 71 minutes
Off Time of LED Pulse (Min to Max) 5 µs to 71 minutes
Range of Number of Pulses 1 to 4.2 x 109 or Infinite
General
Output Coupling Ø3 mm Liquid Light Guide (LLG03-4H Included)
Compatible Bandpass Filter Size Ø1" (Ø25 mm), Up to 0.248" (6.3 mm) Thick
PC Interface Full-Speed USB 2.0 (12 Mbps)
(USB Cable Included)
Power Supply 100 V - 120 V / 200 V - 240 V
50 - 60 Hz
Operating Temperature 0 °C to 35 °Ca
Storage Temperature -40 °C to 70 °C
Dimensions 297.7 mm x 130.0 mm x 251.5 mm
(11.72" x 5.12" x 9.90")
Weight 7.7 kg (17.0 lbs)
  • The upper temperature is limited by the liquid light guide.
DSUB25 Connector for BBC1 Breakout Box Specifications
External Modulation (TTL)
Typical Rise and Fall Time (10% - 90%) 2 µs
Typical Trigger Delay 1 µs
LED Input Connectors
Input Impedance 2 kΩ (Internal Pullup to 5 V)
Max Input Voltage 5 V
Low Voltage 0 V - 0.8 V
High Voltage 2.0 V - 5.0 V
AUX Connectors
Impedance 50 Ω
Max Input Voltage 5 V
Input Low Voltage 0 V - 0.8 V
Input High Voltage  2.0 V - 5.0 V
Output Voltage TTL Level
Max Output Current 25 mA
LED Spectra Chart
This graph shows the normalized output spectra for each LED module and does not represent the relative LED power that will be output from the Chrolis.

LED Short-Term and Long-Term Power Stability

The thermal management of the Chrolis LEDs has been optimized to provide stable power output. The stability of the CHROLIS-C2 LED modules was tested over a 24 hour period with each LED in CW mode at maximum intensity. The LED output power was monitored with an S142C Integrating Sphere Photodiode Sensor connected to a PM100USB Power Meter Interface. As shown in the plots below, the LED modules maintained stable power levels throughout the time period. Over the first 5 minutes, each LED experienced a small power drop on the order of 1 to 2%, which corresponds to the period of time required for the LED to warm up to the point where it is thermally stable. After warm up, the typical variations in output power were smaller than 0.5%.

Software

Version 1.1.18 (February 4, 2020)

Software installation package for the Chrolis 6-wavelength LED source. Click the button below to access the Chrolis software page.

Software Download
Recommended System Requirements
Operating System Windows® 7 (SP1+) (32-Bit, 64-Bit)
Windows® 8.1 (32-Bit, 64-Bit)
Windows® 10 (32-Bit, 64-Bit)
Processor (CPU) 2.4 GHz or Higher
Memory (RAM) 4 GB
Graphics Card Min 1024 x 768 Pixels
Hard Disk Min 1 GB of Available Free Disk Space (32-Bit Operating System)
Min 2.3 GB of Available Free Disk Space (64-Bit Operating System)
Interface Free USB 2.0 Port, USB Cable According to the USB 2.0 Specification

Software for the Chrolis™ 6-Wavelength High-Power LED Sources

The Chrolis software allows the user to individually control each LED via an easy-to-use GUI. The Chrolis light source connects to a PC through a USB interface; see the table below for recommended system requirements. The intuitive software can detect the connected light source and the LED configuration, as shown in the image to the lower left. The Settings tab displays the position, nominal wavelength, and color of the six installed LEDs. The user also has the option to input custom names for each LED, which can be used as the LED labels in other tabs. All of the user-defined settings can be exported as an XML file and loaded back into the software for future uses to ensure consistency between experiment runs.

The LEDs can be activated in the Continuous Wave (CW) or Pulsed Mode Master Tabs, which are located on the left side in the main screen below the "Disconnect" button; see the images to the lower right and center. In both modes, the power level of each LED can be set to a certain percentage. The image to the lower right shows the Master tab in the CW mode. The master power slider will change the power of all LEDs simultaneously while keeping the ratio constant. A plot of each LED spectrum is displayed to the right of the power sliders. The temperature of every LED is monitored and shown under the spectra plot. If one LED exceeds 90 °C, all LEDs will turn off automatically. To turn on the light source, the user must toggle the individual power switch of each LED to "ON" and then toggle the master power switch to "ON".

In Pulsed mode, the user can trigger LEDs with internally or externally generated signals. The Pulsed mode Master tab allows different pulse lengths and pulse timings to be defined for each LED. As shown in the image centered below, the Master tab will display a plot of each defined pulse train for a visual comparison of the different signals. The user can set the following parameters: signal polarity, power, delay time, duty time, idle time, and number of cycles. For external pulse generation, the BBC1 breakout box (sold separately) and a user-supplied input signal generator is required. The BBC1 breakout box connects to the Chrolis light source via the included DSUB25 cable and the input signal generator connects to the BBC1 box via one of the BNC connectors marked LED 1 to LED 6.

In the Pulsed mode Master tab, the BBC1 breakout box's additional channels can also be configured. The user can set the six BNC connectors labeled AUX 1 through AUX 6 as either an input or output. These channels can be used to generate trigger signals for other devices like cameras or initiate internal pulse generation for a specific LED. The software also allows the user to create links between channels. This can be used to start LED pulses with a certain delay
after receiving a trigger pulse. For instructions on how to configure the breakout box with the Chrolis software, please see the Chrolis software manual.

Chrolis ScreenshotClick to Enlarge
The Chrolis software intuitively detects the LED configuration. In the Settings Window, the installed LED modules are listed, identifying each module's position, nominal wavelength, and color.
Chrolis ScreenshotClick to Enlarge
The power level of every LED can be set to a certain percentage. The Master tab in CW mode displays each LED's power level, spectra, and temperature.
Chrolis ScreenshotClick to Enlarge
Users can modulate individual LEDs using the Chrolis software. The Maser tab in Pulsed mode shows the unique pulse trains for each LED.
