Adaptive Optics Kits


  • Kits Include All Necessary Optics, Hardware, and Standalone Control Software
  • Up to 190 Hz Closed-Loop Operation with CMOS Wavefront Sensor

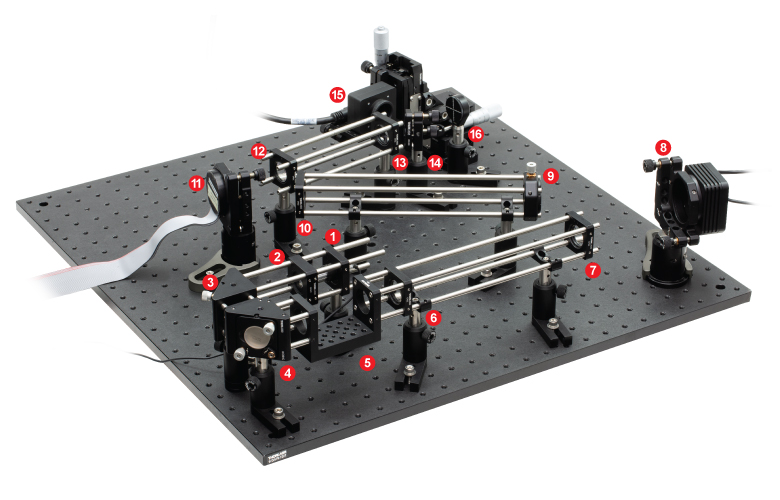

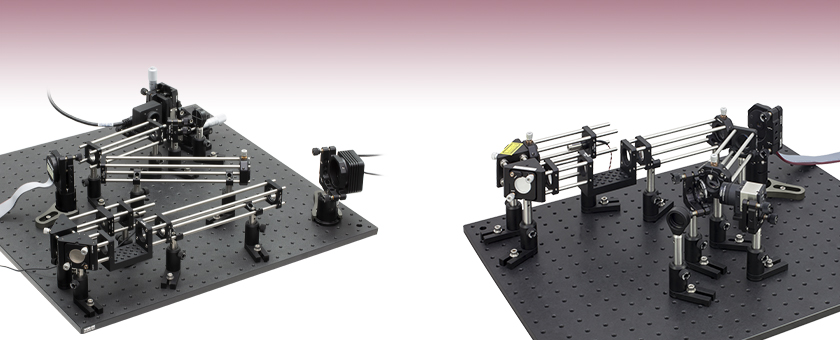

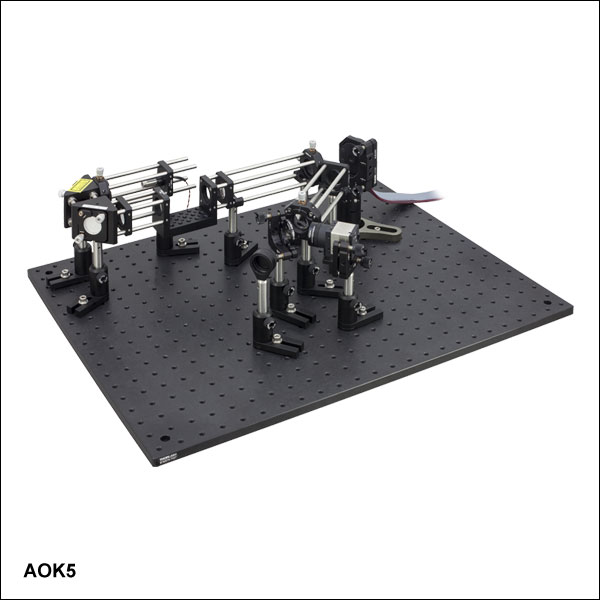

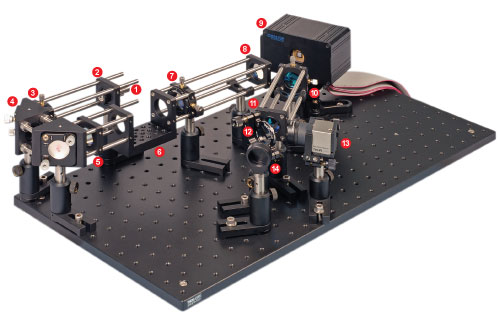

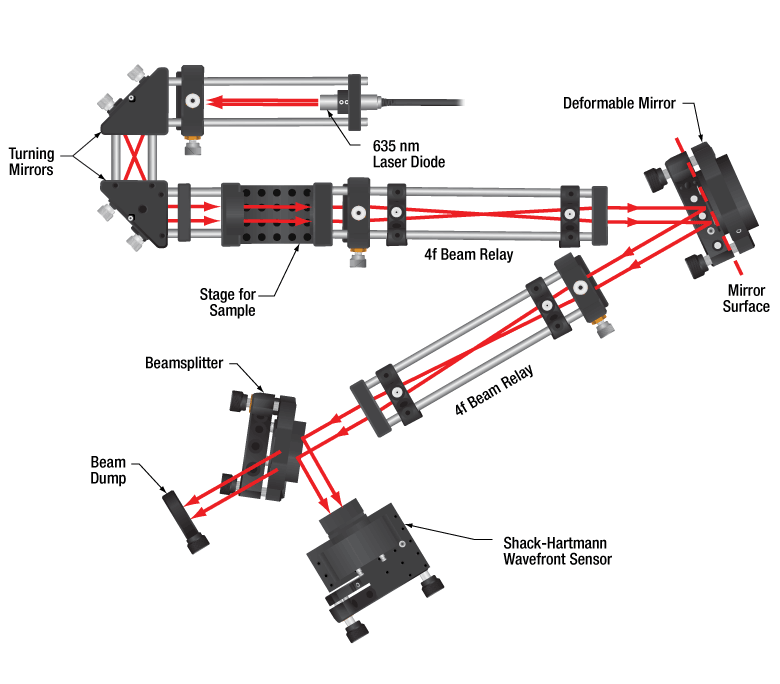

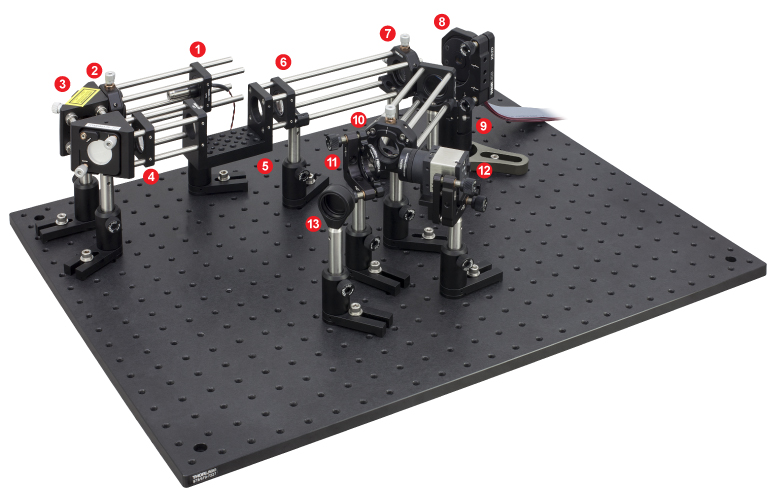

Assembled AOK5
MEMS Deformable Mirror Kit

(Breadboard Not Included)

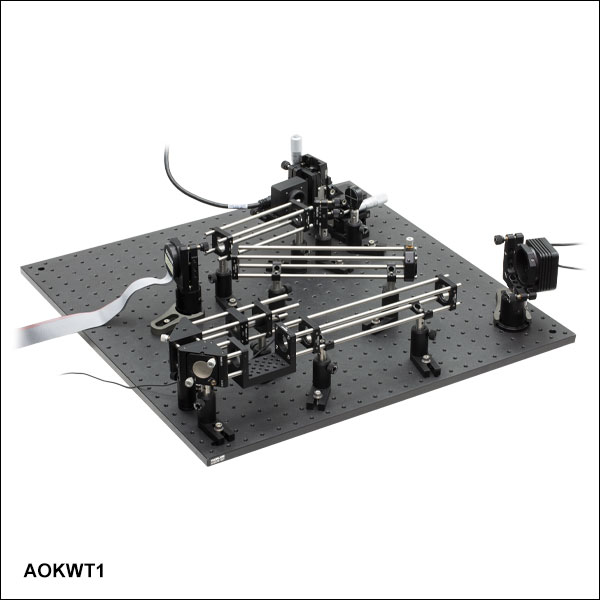

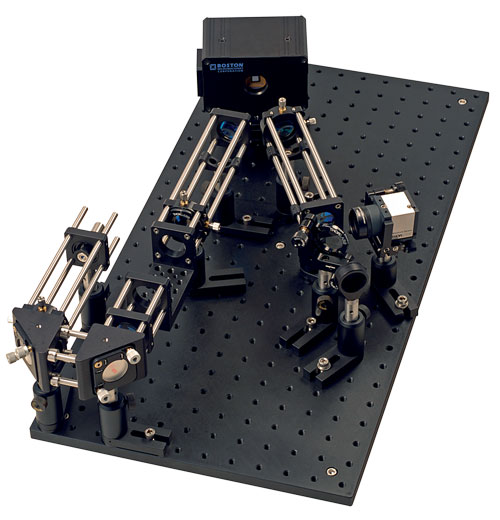

Assembled AOKWT1
Woofer-Tweeter Kit

(Breadboard Not Included)

Related Items


Please Wait

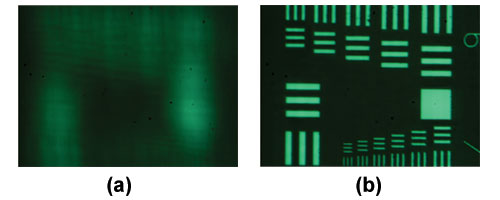

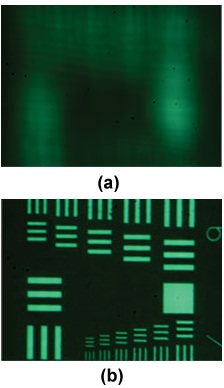

Adaptive Optics Air Force Target Imaging
Resolution target imaged using (a) a flat mirror (b) an optimized deformable mirror.
The smallest lines are separated by 2 μm.
Related White Papers

Features

  • Complete Kit and Software for Out-of-the-Box Wavefront Measurement and Control
  • Options with One Deformable Mirror (DM) or a Woofer-Tweeter Configuration with Two DMs
  • Each Kit Includes (See the Components Tab for Details):
    • One or Two Continuous Surface DM(s)
    • Shack-Hartmann Wavefront Sensor (880 fps Max CMOS Sensor)
    • Laser Diode Module (635 nm)
    • All Imaging Optics and Associated Mounting Hardware

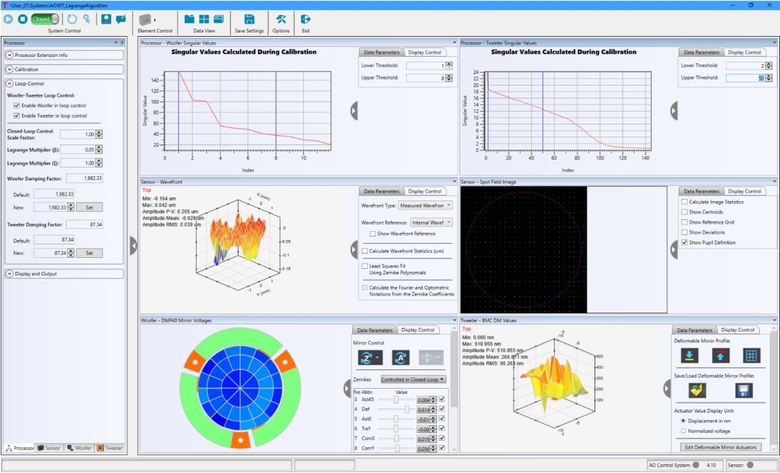

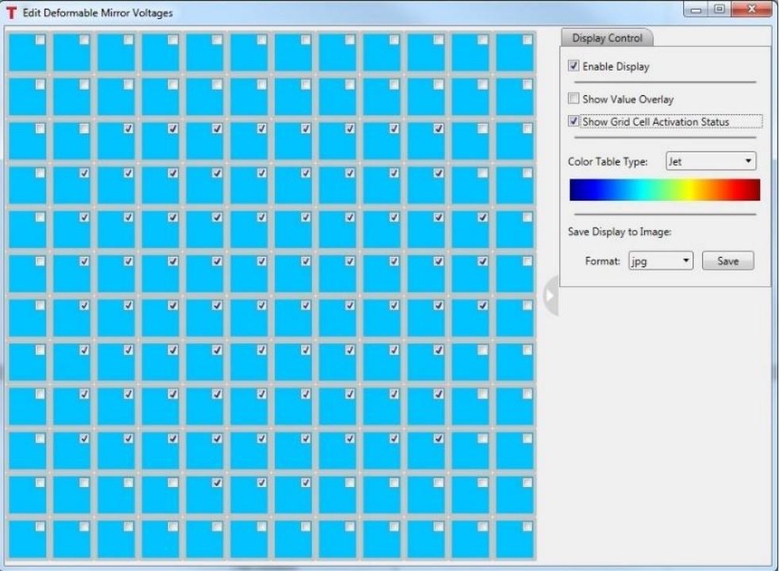

    • Fully Functional Standalone Control Software for Windows
    • SDK for Custom Applications Authored by the End User
  • Two Protected Silver-Coated Deformable Mirror Options Available Below:
  • Custom Kits with Other Mirror Coatings, Mirror Types, and Wavefront Sensors Available by Contacting Tech Support (See the Custom AO Kits Section Below for Options)

Each Thorlabs Adaptive Optics (AO) Kit is a complete adaptive optics imaging solution, including one or two deformable mirrors (DMs), a wavefront sensor (WFS), control software, and optomechanics for assembly. These precision wavefront control devices are useful for beam shaping, microscopy, laser communications, and retinal imaging as well as educational demonstrations. To learn more about how the wavefront sensor, deformable mirror, and software operate as a closed-loop system to correct wavefront distortion, please see the various tabs on this page or the Adaptive Optics 101 white paper.

In addition to AO kits based on a single MEMS-based or piezoelectric DM, Thorlabs also offers the AOKWT1(/M) woofer-tweeter AO kit that includes one of each type of DM. In a woofer-tweeter AO system, two deformable mirrors are used in conjugate planes, such that one mirror (a woofer) corrects for lower order aberrations and the other, the tweeter, corrects higher order aberrations.

Please note that a breadboard is not included. We recommend building the single-DM AO kits on an 18" x 24" (450 mm x 600 mm) breadboard such as Item # MB1824 (MB4560/M) and the dual-DM AO kit on a 24" x 24" (600 mm x 600 mm) breadboard such as Item # MB2424 (MB6060/M). The kit does not include the 1/4"-20 (M6) screws needed to mount the kit to an optical table or breadboard.

Deformable Mirror(s)
The kits below are available with a protected silver-coated MEMS deformable mirror with 140 actuators or piezoelectric deformable mirror with 40 actuators. The woofer-tweeter kits come with one of each type of mirror. Custom kits including other MEMS or piezoelectric DMs can be ordered by contacting Tech Support; options are outlined in the Custom AO Kits section below.

Wavefront Sensor
Each adaptive optics kit offered below includes a high-speed 880 fps (max) CMOS-based Shack-Hartmann wavefront sensor. Custom kits are also available by contacting Tech Support.

Custom AO Kits

In addition to the stock options offered below, we can create custom AO kits using different combinations of the deformable mirrors (DMs) and wavefront sensors (WFS) offered in our catalog. Please contact Tech Support with inquiries.

Deformable Mirror Options

AO Kit Item # Included Deformable Mirror(s) Included Wavefront Sensor
AOK5(/M) DM140A-35-P01 MEMS-Based DM WFS20-5C(/M)
AOK8(/M) DMH40(/M)-P01 Piezoelectric DM
AOKWT1(/M) DM140A-35-P01 MEMS-Based DM
and DMH40(/M)-P01 Piezoelectric DM

Deformable Mirror Item # DM140A-35-P01 DMH40-P01 (DMH40/M-P01)
Deformable Mirror Type Boston Micromachines MEMS Multi-DM Piezoelectric DM
Included In AOK5(/M)
AOKWT1(/M)
AOK8(/M)
AOKWT1(/M)
Actuator Array 140 Actuators in a 12 x 12 Arraya 40 Piezoceramic Disk Segments in a Circular Keystone Array
(Elements 1 - 24 Inside Pupil Diameter,
Elements 25 - 40 Outside Pupil Diameter)
Segment Voltage Range N/A 0 to 300 V
(Default: +150 V on Actuator Array for Flat Mirror)
Stroke (Max) 3.5 µm per Actuator Defocusb: ±17.6 µm
Astigmatismb: ±18.4 µm
Comab: ±6.8 µm
Trefoilb: ±6.5 µm
Tetrafoilb: ±5.7 µm
Secondary Astigmatismb: ±3.0 µm
Third Order Spherical Aberrationb: ±2.7 µm
Actuator Pitch 400 µm N/A
Clear Aperture 4.4 mm x 4.4 mm Ø17.0 mm
Pupil Dimensions N/A Ø14.0 mmc
Mirror Coating (Click for Plot) Protected Silver Protected Silver
Mirror Wavelength Range - 450 nm - 2 µm: Ravg > 97.5%,
2 - 20 µm: Ravg > 96%
AR Coated Window Wavelength Range (Click for Plot) 400 - 1100 nmd -
Surface Quality <30 nm RMS -
Surface Flatness - 200 nm RMS (Defocus Term Actively Flattened)
Average Step Size <1 nm N/A
Hysteresis None 20% Typical, 25% Max
Fill Factor >99%e 100%
Response Time <75 μs (~13.3 kHz) Mechanical Response Time (10% - 90%) 0.5 ms (Full Stroke) Mirror Response Time
Interactuator Coupling, CDMf 13% See Footnote b
Frame Rate (Max) 2 kHz 4.0 kHz via USB 2.0
(Over Entire Voltage Range)
Resolution 14 Bit N/A
Head Dimensions Ø2" x 0.89"
(Ø50.8 mm x 22.5 mm)
64.0 mm x 60.0 mm x 30.9 mm
(2.52" x 2.36" x 1.22")
Driver Dimensions 9.0" x 7.0" x 2.5"
(229 mm x 178 mm x 64 mm)
N/A
Computer Interface USB 2.0
  • The four corner actuators are inactive.
  • Maximum Peak-to-Valley (PV) stroke at mirror surface within the 14.0 mm pupil diameter. The wavefront amplitudes are twice as high. The defocus range may have a maximum asymmetry of 30%. Maximum correction for this aberration assuming that no other aberrations are corrected for at the same time. When more than one type of aberration is corrected for simultaneously, these numbers will decrease.
  • Maximum usable beam diameter is limited to the optical aperture: a wider beam will be truncated. The optical aperture diameter is wider than the pupil diameter to aid in maintaining beam quality and performing wavefront corrections at the pupil border. The pupil diameter is related to the normalized Zernike diameter: when using a wavefront sensor and deformable mirror together, a beam expander must be used to ensure that the pupil diameters of both devices are optically aligned.
  • The mirrors are protected by a 6° wedged window that is AR coated for the 400 - 1100 nm range. If a wider wavelength range is desired please contact Tech Support.
  • The fill factor is less than 100% due to the print-through of the etch access holes (about Ø2 µm) used in the fabrication process.
  • Continuous Deformable Mirror

Wavefront Sensor Item # WFS20-5C(/M)a
Wavefront Sensor Type CMOS-Based Sensor
Included In AOK5(/M)
AOK8(/M)
AOKWT1(/M)
Frame Rate (Max) 880 fps
Camera
Aperture Size (Max) 7.20 mm x 5.40 mm
Resolution (Max) 1440 x 1080 Pixels, Selectable
Pixel Size 5.0 x 5.0 µm
Shutter Global
Exposure Range 4 µs - 83.3 ms
Image Digitization 8 Bit
Microlens Array
Wavelength Range 300 - 1100 nm
Lenslet Pitch 150 µm
Lenslet Diameter Ø140 µm
Number of Lenslets (Max) 47 x 35
Effective Focal Length 4.1 mm
Substrate Fused Silica (Quartz)
Coating Chrome Mask
Wavefront Measurement
Accuracy @ 633 nm (RMS) λ/30
Sensitivity @ 633 nm (RMS) λ/100
Dynamic Range @ 633 nm >100λ
Local Radius of Curvature >7.4 mm
Housing Dimensions and Threads
Optical Input Connector C-Mount (1.00"-32)
Physical Size (H x W x D) 46.0 mm x 56.0 mm x 33.1 mm
(1.81" x 2.20" x 1.30")
Warm-Up Time for Rated Accuracy 15 minutes
Power Supply External; 12 V DC, 1.5 A
Operating Temperature 5 to 35 °C
Storage Temperature -40 to 70 °C
  • All technical data is specified at 23 ± 5 °C and 45 ± 15% relative humidity (non-condensing).
Close-up of Piezoelectric DM
Click to Enlarge

The Piezoelectric DM mounted on its circuit board. The three piezoelectric ceramic arms used for tip and tilt correction are seen around the edges of the mirror.
Close-up of Multi-DM showing electrical wiring
A close-up of the MEMS DM electrical interface to show the wiring of the chip.
Included Deformable Mirrors in AO Kitsa
Kit Item # Mirror Type Actuator Array Mirror Coating
AOK5(/M) MEMS 12 x 12 DM140A-35-P01 Protected Silver
AOK8(/M) Piezoelectric 40 DMH40-P01
(DMH40/M-P01)
AOKWT1(/M) MEMS 12 x 12 DM140A-35-P01
Piezoelectric 40 DMH40-P01
(DMH40/M-P01)
  • Custom AO kits with other mirror options are available upon request; please contact Tech Support with inquiries.

Selecting a Deformable Mirror

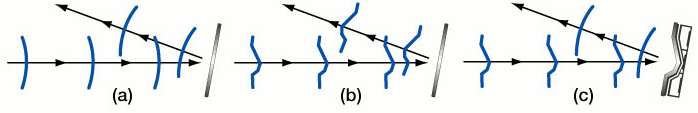

Ideally, the deformable mirror (DM) needs to assume a surface shape that is complementary to, but half the amplitude of, the aberration profile in order to compensate for the aberrations and yield a flat wavefront. However, the actual range of wavefronts that can be corrected by a particular deformable mirror is limited by several factors:

  • Actuator stroke is another term for the dynamic range (i.e., the maximum displacement) of the deformable mirror actuators and is typically measured in microns. Inadequate actuator stroke leads to poor performance by limiting aberration amplitudes that may be compensated, preventing the convergence of the control loop.
  • The number of actuators limits the degrees of freedom of the wavefront control system, and therefore the complexity of the wavefront that may be corrected.
  • The speed of the deformable mirror is important if you are trying to correct for rapidly changing wavefronts. For mirrors that exhibit hysteresis (i.e., piezoelectric deformable mirrors), the control software will need to calculate the correct voltage changes to produce the desired mirror displacement, which can lower the mirror speed.
  • Optical power handling will also vary depending on the mirror coating and actuator design. For our mirrors, the piezoelectric deformable mirrors have significantly higher power handling than the MEMS systems [up to 1 J/cm² (1064 nm, 10 ns, 10 Hz, Ø10 mm)]. They can also be custom coated to operate inside laser cavities (contact techsupport@thorlabs.com for details).
  • Hysteresis in piezoelectric deformable mirrors means that the displacement of a mirror segment at a given voltage is different if that voltage is approached from a higher voltage compared to a lower voltage. Our AOK8(/M) adaptive optics (AO) kit uses a piezoelectric deformable mirror and offers hysteresis compensation, while the MEMS-based deformable mirror used in our AOK5(/M) AO kit are inherently hysteresis-free; the AOKWT1(/M) kit comes with one of each mirror. The hysteresis compensation for the piezoelectric deformable mirrors can be turned off when operating the mirror with open-loop control, which can increase the speed.

The first four considerations are physical limitations of the deformable mirror itself, whereas hysteresis may be a limitation of the control software and/or a physical limitation of the mirror itself. Additionally, the wavelength range of the deformable mirror coating and any protective windows installed in the mirror head must be appropriate for the application wavelength.

Comparison

Thorlabs' piezoelectric deformable mirrors provide a larger stroke, and therefore are able to correct for larger wavefront deviations, than our MEMS deformable mirrors. However, they contain a lower density of actuators over the active area of the mirror than the MEMS deformable mirrors, which means they cannot correct wavefront deviations on as fine of a spatial scale as the MEMs deformable mirrors. While the piezoelectric deformable mirrors do experience hysteresis, the control software includes integrated hysteresis compensation to minimize the impact of this effect.

MEMS Deformable Mirrors Selection Guidea
Mirror Item # Actuator Array Coating
DM140A-35-UP01 12 x 12b Aluminum
DM140A-35-P01 Protected Silverc
DM140A-35-UM01 Gold
  • See the Specs tab here for complete specifications.
  • The four corner actuators are inactive.
  • This mirror is included in the AOK5(/M) and AOKWT1(/M) AO kits.
Mini-DM Deformable Mirror
Click to Enlarge

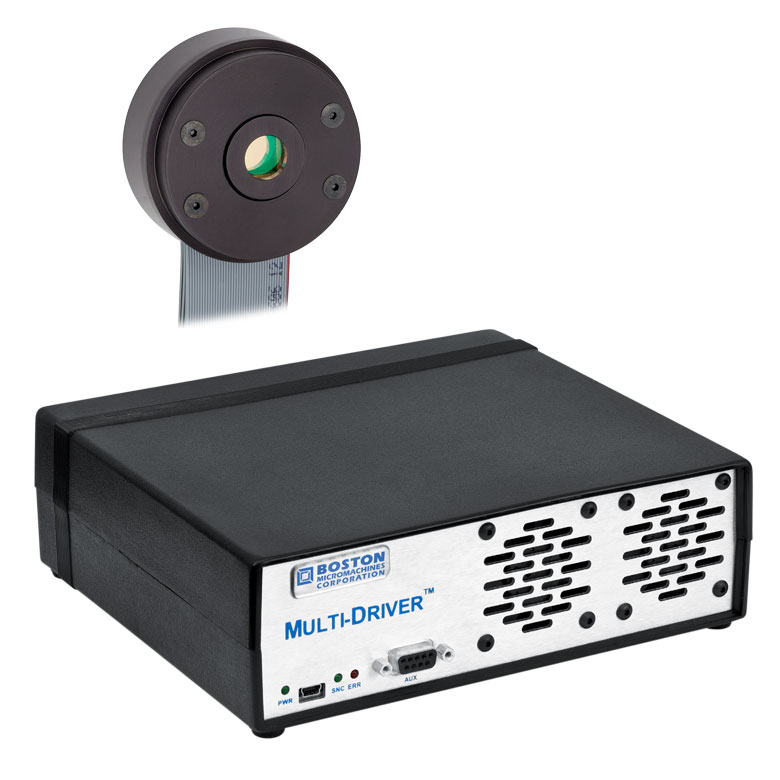

12 x 12 Actuator Multi DM

12 x 12 MEMS Deformable Mirrors

  • 12 x 12 Actuator Array (140 Active)
  • 3.5 μm Maximum Actuator Displacement
  • High-Speed Operation up to 3.5 kHz
  • 400 μm Center-to-Center Actuator Spacing
  • Low Inter-Actuator Coupling Results in High Spatial Resolution
  • Zero Hysteresis Actuator Displacement
  • 14-Bit Drive Electronics Yield Sub-Nanometer Repeatability
  • Compact Driver Electronics with Built-In High-Voltage Power Supply Suitable for Benchtop or OEM Integration

Through our partnership with Boston Micromachines Corporation (BMC), Thorlabs is pleased to offer BMC's Multi- Micro-electro-mechanical (MEMS)-based Deformable Mirrors as part of our adaptive optics kits. These DMs are ideal for advanced optical wavefront control; they can correct monochromatic aberrations (spherical, coma, astigmatism, field curvature, or distortion) in a highly distorted incident wavefront. MEMS deformable mirrors are currently the most widely used technology in wavefront shaping applications given their versatility, maturity of technology, and the high resolution wavefront correction capabilities they provide.

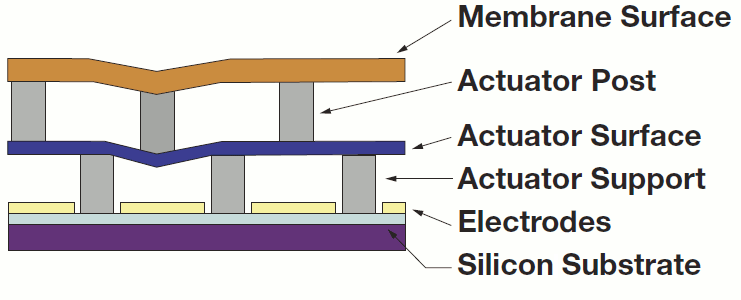

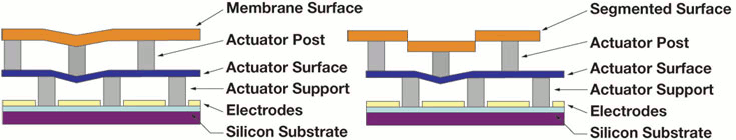

MEMS Mirror Structure
Click to Enlarge

MEMS Deformable Mirror Structure

These deformable mirrors, fabricated using polysilicon surface micromachining fabrication methods, offer sophisticated aberration compensation in easy-to-use packages. The mirror consists of a mirror membrane that is deformed by 140 electrostatic actuators (i.e., a 12 x 12 actuator array with four inactive corner actuators). These actuators provide 3.5 μm of stroke (over 11 waves at 632.8 nm) with zero hysteresis.

The AOK5(/M) and AOKWT1(/M) AO Kits each include a MEMS DM with a protected silver (-P01) coating. Custom kits with are available with aluminum (-UP01) or gold (-UM01) coated mirrors (see the MEMS Deformable Mirrors Selection Guide above). Each mirror is protected by a 6° wedged window that has a broadband AR coating for the 400 - 1100 nm range. See the coating curve graphs below for details. Custom coatings are available for the protective window; please contact Tech Support for more information.

BMC's Multi-DMs are also available separately. Click here for more information.

DM140A-35 Window AR Coating Reflectance
Click to Enlarge

Reflectance of the AR-Coated, 6° Wedged Window on the DM140A-35 Mirrors
DM140A-35 Window AR Coating Reflectance
Click to Enlarge

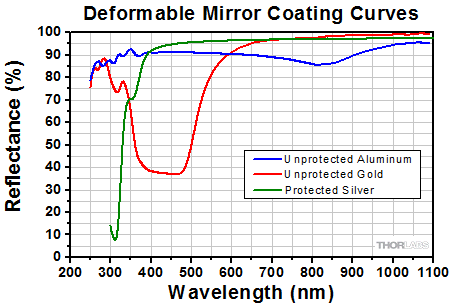

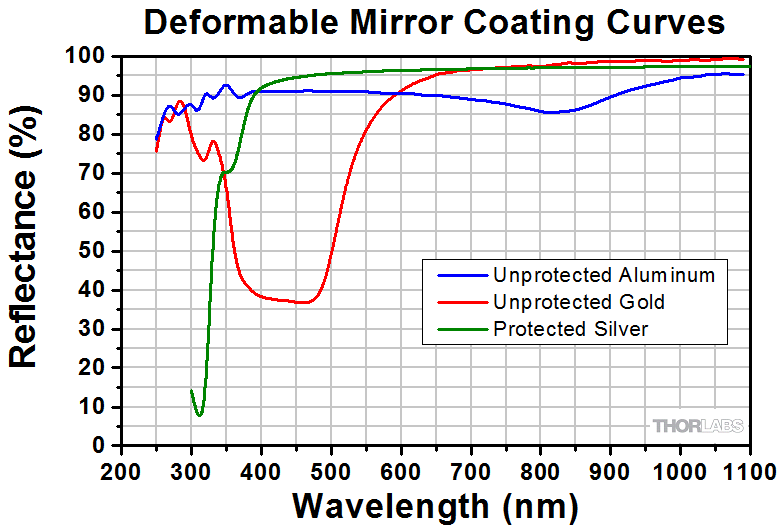

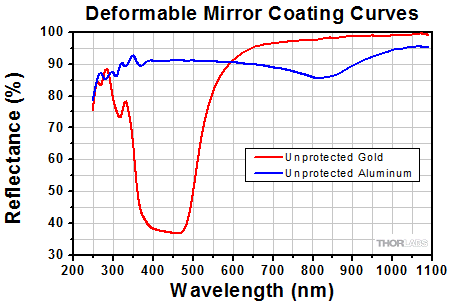

Reflectance of the DM140A-35 Metallic Mirror Coatings

Piezoelectric Deformable Mirrors Selection Guidea
Mirror Item # Actuator Array (Click for Diagram) Coating
DMP40-F01 (DMP40/M-F01) 40 in a Circular Keystone Array
and 3 Tip/Tilt Spiral Arms
UV-Enhanced Aluminum
DMP40-P01 (DMP40/M-P01) Protected Silver
DMH40-F01 (DMH40/M-F01) 40 in a Circular Keystone Array UV-Enhanced Aluminum
DMH40-P01 (DMH40/M-P01) Protected Silverb
  • See the Specs tab here for complete specifications.
  • This mirror is included in the AOK8(/M) and AOKWT1(/M) AO kits.

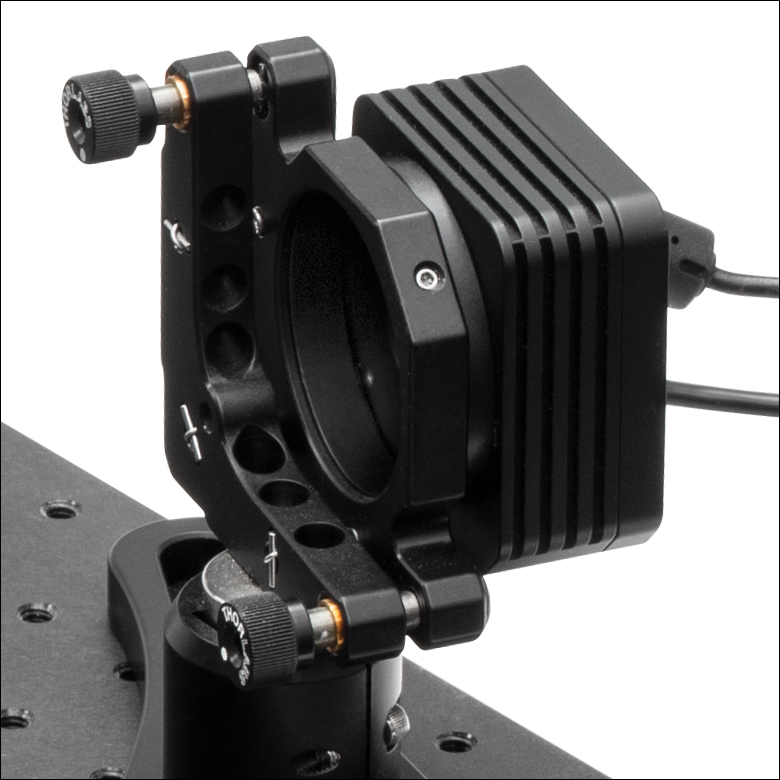

40 Actuator Piezoelectric Deformable Mirrors


Click to Enlarge

40 Actuator DMH40(/M)-P01 Deformable Mirror
  • Mirror is Deformed by 40 Electrodes Attached to a Single Piezoceramic Disk
    (See Diagrams in the Table to the Right)
  • UV-Enhanced-Aluminum- or Protected-Silver-Coated Mirror
    • Deformable Mirrors with Tip-Tilt Actuation (DMP40 Series) Have Ø10.0 mm Active Area
    • High-Stroke Deformable Mirrors (DMH40 Series) Have Ø14.0 mm Active Area
  • Integrated Hysteresis Compensation
  • 4 kHz Max Update Rate
  • Mirror Head Includes Built-In High-Voltage Driver

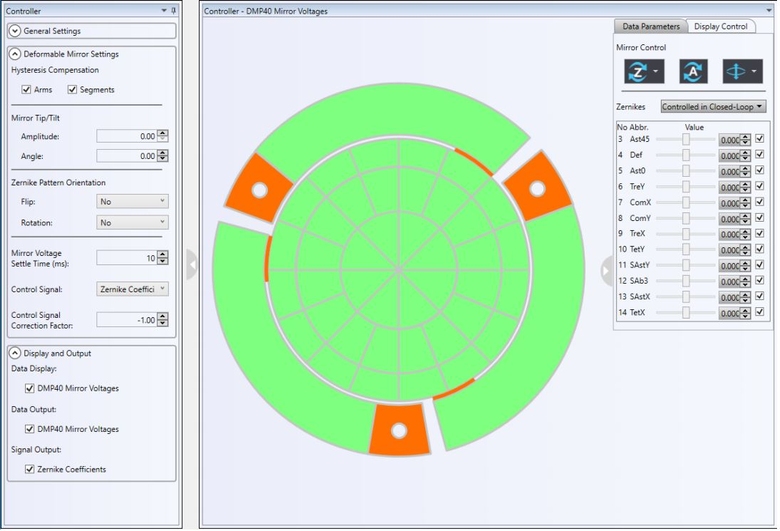

  • Software Program for Mirror Control Incorporates Hysteresis Compensation

For applications requiring larger stroke than the MEMS-based mirrors can provide, Thorlabs is pleased to offer piezoelectric deformable mirrors as part of our AO kits. These deformable mirrors are ideal for correcting distortions that result from common sources of wavefront aberrations, such as astigmatism and coma (see the Aberrations tab for more details). To effectively use the deformable mirror in an adaptive optics application, the input beam must fill or overfill the active area of the deformable mirror (matching the 1/e² beam diameter to the pupil diameter is a common practice), and the defined pupil in the software for the wavefront sensor needs to be adjusted to match the pupil of the deformable mirror.


Click to Enlarge

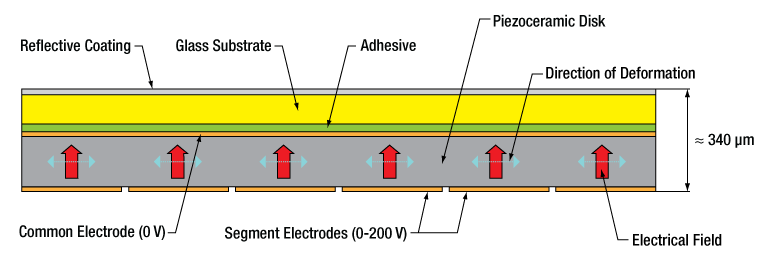

Piezoelectric Deformable Mirror Structure

To construct the mirror assembly, a thin, UV-enhanced-aluminum-coated or protected-silver-coated glass disk is glued to a circular piezoceramic disk. The electrode attached to the back of the disk is divided into 40 single segments arranged in a circular keystone pattern. See the table above for a diagram of the keystone pattern, and the drawing to the left for a diagram of the mirror/piezoceramic disk/electrode structure. Each segment is controlled independently by applying a voltage between 0 and 200 V for the DMP40 series mirrors and 0 and 300 V for the DMH40 series mirrors. The surface is designed to be flat when 100 V for the DMP40 series DMs or 150 V for the DMH40 series DMs is applied across each electrode (see the graphs below).

In addition to the 40 actuators, the DMP40 series DMs have three arms attached to the edge of the piezoelectric disk. Applying a voltage to an arm will change the height of the mirror at the connection point. By using three identical arms, the mirror can be tilted in any direction within ±2 mrad. Applying the same voltage to each arm will move the mirror parallel to its surface while holding the tilt constant, which can be used for optical phase modulation.

While all piezoelectric deformable mirrors will experience hysteresis, the software package for these mirrors has been designed with integrated hysteresis compensation to help mitigate the effect.

The AOK8(/M) and AOKWT1(/M) AO Kits come with a high-stroke piezoelectric DM with Protected Silver (-P01) coating. The protected-silver-coated mirror is designed for use with light in the 450 nm to 20 µm range and has a 14.0 mm active area (pupil diameter). Custom kits are also available with mirrors that incorporate tip/tilt spiral arms or a UV-enhanced aluminum coating (see the Available Piezoelectric Deformable Mirrors Selection Guide above).

These deformable mirrors are also available separately. Click here for more information.


Click to Enlarge

Excel Spreadsheet with Raw Data for UV-Enhanced Aluminum Coating
The shaded region denotes the range over which we recommend using the UV-enhanced aluminum coating. Performance outside the shaded regions will vary from lot to lot and is not guaranteed, especially in out-of-band regions where the reflectance is fluctuating or sloped.


Click to Enlarge

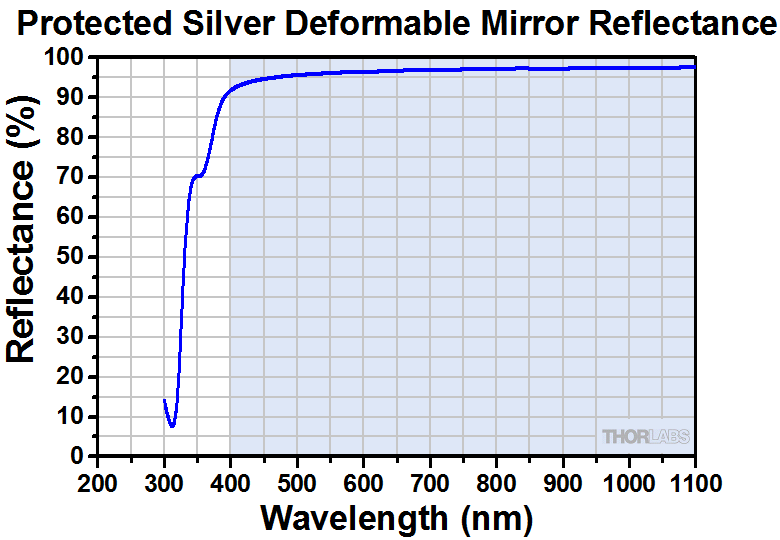

Excel Spreadsheet with Raw Data for Protected Silver Coating
The shaded region denotes the range over which we recommend using the protected silver coating. Performance outside the shaded regions will vary from lot to lot and is not guaranteed, especially in out-of-band regions where the reflectance is fluctuating or sloped.

Click to Enlarge

This graph shows a typical hysteresis curve for a DMP40 mirror undergoing spherical deformation as the voltage across all 40 mirror segments is cycled between 0 and 200 V. The hysteresis is indicated by the black line in the graph above.

Click to Enlarge

This graph shows a typical hysteresis curve for a DMH40 mirror undergoing spherical deformation as the voltage across all 40 mirror segments is cycled between 0 and 300 V. The hysteresis is indicated by the black line in the graph above.
High-Sensitivity Wavefront Sensor
Click to Enlarge

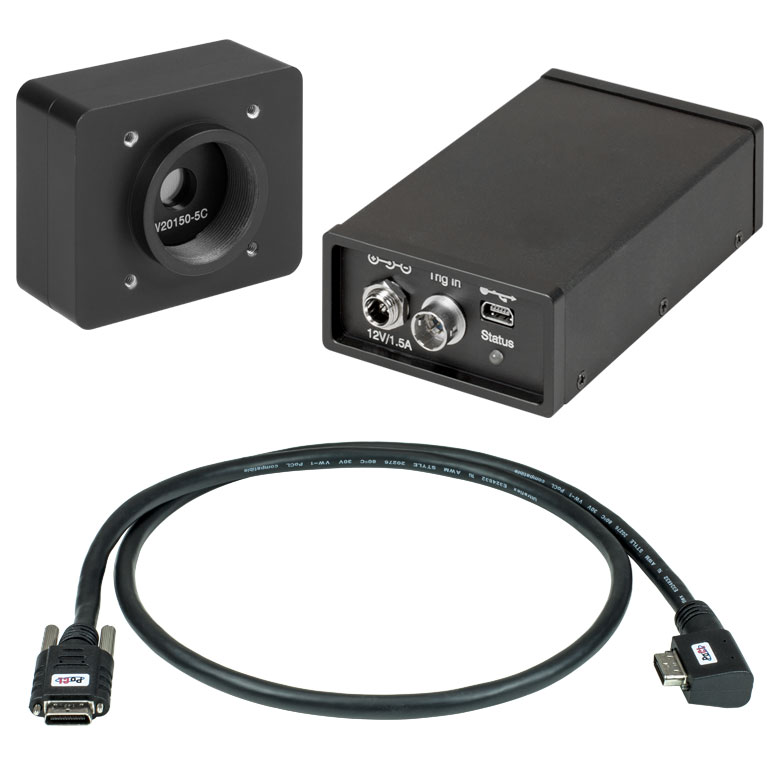

A WFS20-5C High-Speed CMOS Wavefront Sensor with λ/100 sensitivity is included in each of our adaptive optics kits.

Shack-Hartmann Wavefront Sensors

  • High-Speed CMOS-Based Wavefront Sensors Available
  • Wavelength Range: 300 - 1100 nm or 400 - 900 nm
  • Real-Time Wavefront and Intensity Distribution Measurements
  • Nearly Diffraction-Limited Spot Size
  • For CW and Pulsed Light Sources
  • Flexible Data Export Options (Text or Excel)
  • Live Data Readout via TCP/IP

Thorlabs' Shack-Hartmann wavefront sensors provide accurate measurements of the wavefront shape and intensity distribution of incident beams. Each wavefront sensor includes a CMOS-based sensor head and a microlens array (MLA). When incorporated in an adaptive optics (AO) kit, the sensor can detect distortions in the wavefront that can then be corrected by the deformable mirror. As summarized in the table below, we currently offer high-speed wavefront sensors along with three MLA options with different lenslet pitches and focal lengths which, when combined with the choice of sensor head, support optimal accuracy and wavefront dynamic ranges for a variety of applications.

Each of the AO kits offered below includes the WFS20-5C(/M) high-speed CMOS-based Shack-Hartmann wavefront sensor. This wavefront sensor operates at frame rates as high as 880 Hz and has a wavefront sensitivity of up to λ/100 RMS (5.0 µm pixel pitch). For custom kits incorporating our other wavefront sensors (see the table below for a summary of options), please contact Tech Support.

Thorlabs' CMOS-Based wavefront sensors are also available separately.

Shack-Hartmann Wavefront Sensor Selection Guidea
Item # Prefix
(Sensor Head)
Type Item # Suffix
(MLA)
Mask or Coating
(Wavelength)
Lenslet
Pitch
Frame Rate Effective
Focal Lengthb
Wavefront
Accuracyc
Wavefront
Sensitivityd
Wavefront
Dynamic Rangee
WFS20 High Speed -5C Chrome Mask (300 - 1100 nm) 150 µm 23 - 880 fps 4.1 mm λ/30 RMS λ/100 RMS >100λf
-7AR AR Coating (400 - 900 nm) 150 µm 23 - 880 fps 5.2 mm λ/30 RMS λ/100 RMS >100λf
-14AR AR Coating (400 - 900 nm) 300 µm 28 - 1120 fps 14.6 mm λ/60 RMS λ/200 RMS >50λf
  • See the Specs tab here for complete specifications.
  • Typical, When Mounted in Wavefront Sensor
  • At 633 nm. Absolute accuracy using internal reference. Measured for spherical wavefronts with a known radius of curvature.
  • At 633 nm. Typical relative accuracy with respect to a reference wavefront (user calibration). Reference and each measurement values are averaged over 10 frames in Normal Mode.
  • At 633 nm. Over entire aperture of wavefront sensor.
  • In Normal Mode.

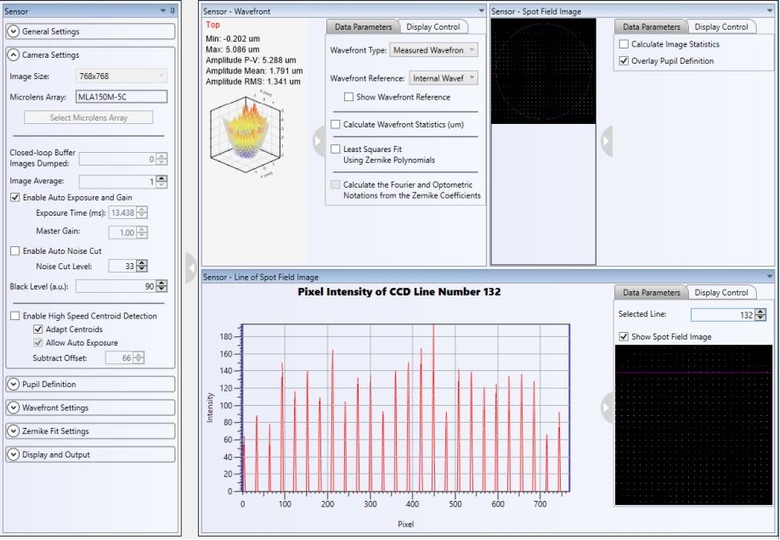

Software

Version 1.5.0

Click the button below to visit the software page.

Software Download

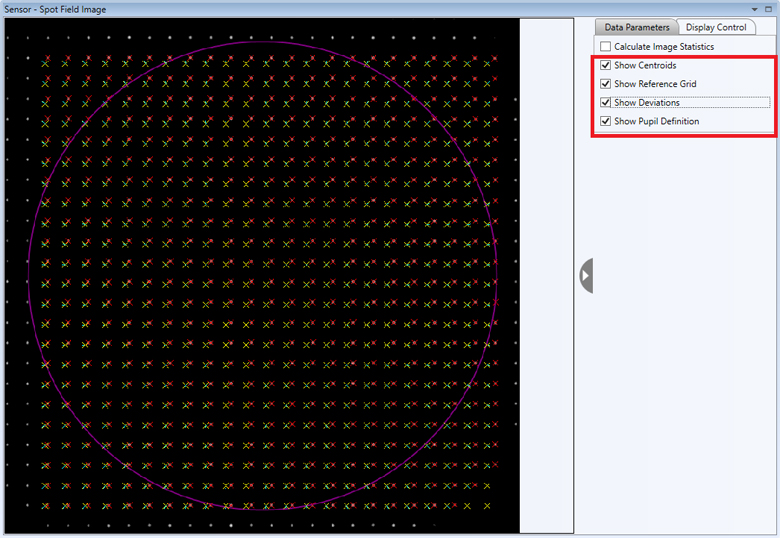

Shack Hartmann Calibration
Click to Enlarge

Software GUI

Application Software

For out-of-the-box operation, the AO Kit comes with a fully functional stand-alone program for immediate operation of the instrument. The program is compatible with Windows® 7, 8, or 10. This software is capable of minimizing wavefront aberrations by analyzing the signals from the Shack-Hartmann wavefront sensor and generating a voltage set that is applied to the deformable mirror. Users can also monitor the deformable mirror actuator control voltages, wavefront corrections, and intensity distribution in real time. Since the application software provides full control of the AO Kit, it is an excellent tool for research and development or developing educational packages based on adaptive optics. A software development kit is also included for custom applications (see below).



Deformable Mirror Control
Click to Enlarge

MEMS-Based Deformable Mirror Control
DMP40 Control Window
Click to Enlarge

MEMS-Based Deformable Mirror Control

Deformable Mirror Control

MEMS-Based DMs

  • Real-Time Representation of the Deformable Mirror Actuator Displacements (Based on Voltages Applied to the Mirror)
  • Spreadsheet-Like Numerical Interface Provides User-Input of Actuator Deflections
  • Save/Recall Mirror Surface Maps

The deformable mirror control for MEMS-based DMs shows a graphical plot of the DM surface shape as well a spreadsheet-like numerical interface that allows the user to input actuator deflections (in nanometers). The actuator deflection values may be changed individually or in selected groups. The actual shape of the DM will differ slightly due to a small influence of adjacent actuators.

Specific mirror shapes can be loaded and saved from this window, allowing the creation of a library of unique and specialized mirror shapes that can be later recalled at the click of a button.



DMP40 Control Window
Click to Enlarge

Piezoelectric Deformable Mirror Control

Piezoelectric DMs

  • GUI Interface to View and Control Mirror Deformation
  • Control Voltage of Individual Segments or Apply Zernike Terms to Entire Mirror Surface
  • Tip/Tilt Control of Mirror Surface

The deformable mirror control window for piezoelectric DMs is laid out in five sections. The main section provides a graphical display of the mirror segments and arms, color-coded for the applied voltage. The 40 bimorph piezoelectric actuators of these mirrors are arranged in a radial pattern to allow the application of Zernike-based shapes to the mirror surface. The sidebar on the right of the screen allows Zernike terms Z4 through Z15 to be individually applied and controlled. Above the schematic of the DM actuators, the Segment Control section allows the voltage of individual mirror segments to be adjusted. Finally, these mirrors also feature three bimorph spiral arms attached to the edge of the main mirror disk to provide tip/tilt control of the entire mirror surface. The Tip/Tilt controls allow the user to adjust these settings.



Shack-Hartmann Spot Field
Click to Enlarge

Shack-Hartmann Spot Field

Shack-Hartmann Control

  • Four Tab Displays
    • Wavefront Sensor Spot Field Measured Directly from the Sensor
    • Wavefront Plot (See Example at Right)
    • Contour Wavefront Plot
    • Measured Zernike Coefficients
  • Wavefront Plot is Scalable / Rotatable
  • Easily Access Wavefront Sensor and Display Control Settings in Each Tab Display
  • Display Measured, Reference, or Difference Wavefront Plots
  • Min/Max Threshold Eliminates 'Flickering' Active/InactiveWFS Spots
  • User-Controllable Spot Centroid and Reference Spot Indicators (See Example to the Right)

In the spot field window (far right image), the camera’s exposure time and gain can be controlled. A pupil control allows the user to analyze the wavefront data within a user-defined circular pupil. The camera image of the spots (white spots), spot centroid locations (red X’s), reference locations (yellow X’s), deviations (white lines between red and yellow X’s), and intensity levels can be displayed in the spot field window, as shown in the images to the far right and the bottom right.

In addition to the camera controls mentioned above, when viewing the wavefront, the user has the option to display the measured wavefront, target (reference) wavefront, or the difference between these two wavefronts. The wavefront plot can be viewed at pre-defined angles or can be continuously adjusted by the user.

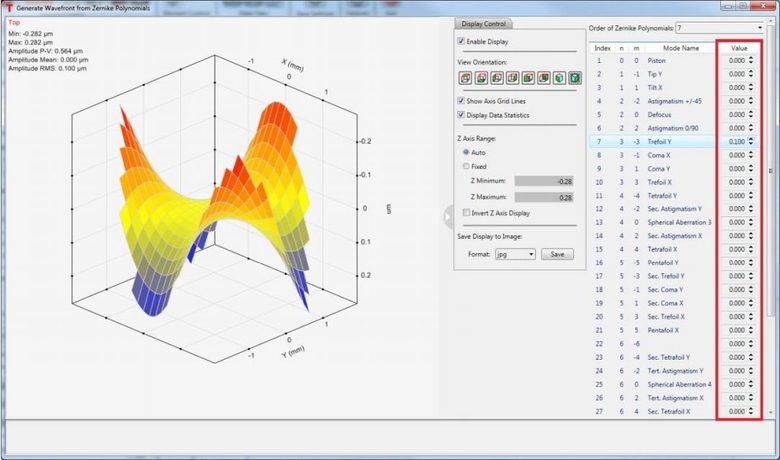

Zernike Function Generator
Click to Enlarge

Zernike Function Generator

Zernike Wavefront Function Generator

  • User-Controllable Reference Wavefront
  • User-Defined Zernike Sampling Pupil Size and Position
  • User-Defined Reference Using First 36 Zernike Terms
  • User-Captured Reference Wavefront
  • 3D Surface Plot or 2D Contour Plot Display

The Wavefront Generator control enables the user to create a reference wavefront by combining the first 36 Zernike polynomials in the spreadsheet-like grid. A graphical display of the created wavefront, along with the minimum, maximum, and peak-to-peak wavefront deviations are provided.

The wavefront generator control window also allows the user to capture the current measured wavefront and set it as the reference wavefront. Reference wavefronts can be saved and later recalled by the user.

Software Development Kit

The Adaptive Optics Kit includes a Software Development Kit (SDK) in the form of a flexible, cross-platform-compatible Dynamic Link Library (DLL) as well as full-featured Windows application software with an easy-to-use Graphical User Interface (GUI) for full system control right out of the box. The SDK is designed to be a conduit for easy integration of AO instrumentation, control, and arithmetic functions into a user system, making it ideal for research, development, and education applications. The application software provides immediate interaction with the AO Kit Deformable Mirror and Shack-Hartmann Wavefront Sensor and provides pop-up tooltips containing detailed information pertaining to specific function calls dispatched by the associated GUI control.

SDK Memory Management
A unique aspect of the SDK is its versatile memory structure. We provide an SDK that is compatible with a broad range of programming environments, including C-based languages, Visual Basic, LabVIEW, and any other language capable of interfacing with standard DLLs. These languages allocate data memory using different methods. In order to maximize performance and cross-platform compatibiity, the SDK employs a flexible memory structure that allows it to transparently use either its own or user software-allocated data space.

Multi-DM AO kit setup photo
Click to Enlarge

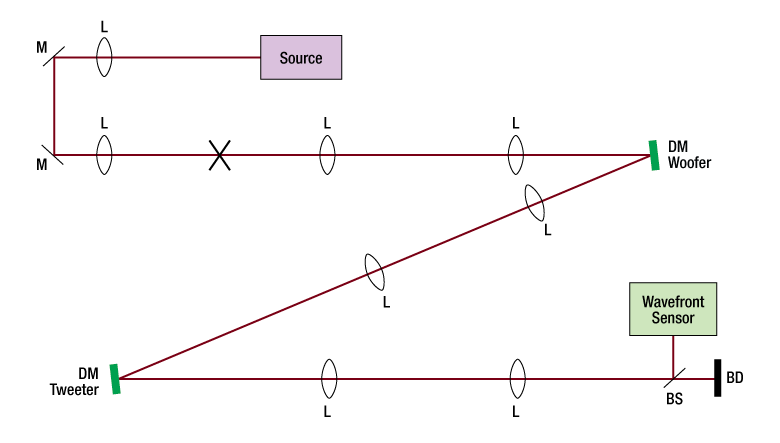

Figure 2. Schematic showing the major components included with the Dual-DM Adaptive Optics Kit (Item # AOKWT1(/M)). L, M, DM, BS, and BD refer to lens, mirror, deformable mirror, beamsplitter, and beam dump, respectively. The "X" marks the position of the cage system U-bench, which is also the location of an image plane in the setup; if desired, a user-supplied sample can be inserted at this location.

Single DM AO kit setup photo
Click to Enlarge

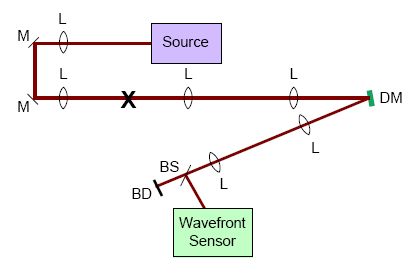

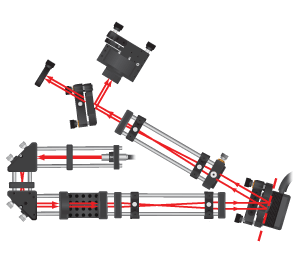

Figure 1. Schematic showing the major components included with the Single-DM Adaptive Optics Kits (Item #s AOK5(/M) and AOK8(/M)). L, M, DM, BS, and BD refer to lens, mirror, deformable mirror, beamsplitter, and beam dump, respectively. The "X" marks the position of the cage system U-bench, which is also the location of an image plane in the setup; if desired, a user-supplied sample can be inserted at this location.

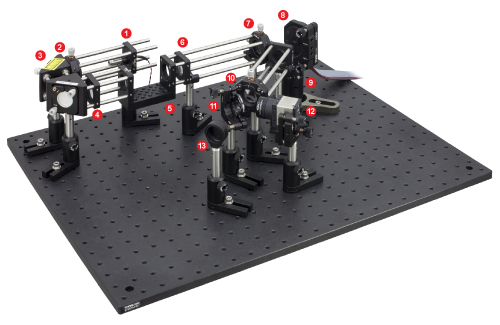

Image of AO Kit numbered
Click to Enlarge

Figure 3. A photograph of an AOK5 Adaptive Optics Kit. Please note that the breadboard is not included with the purchase of an AO kit. The key components discussed in the text to the left are numbered.

Image of AO Kit numbered
Click to Enlarge

Figure 4. A photograph of an AOKWT1 Woofer-Tweeter Adaptive Optics Kit. Please note that the breadboard is not included with the purchase of an AO kit. The key components discussed in the text to the left are numbered.

AO Kit Construction

These adaptive optics (AO) kits come with a WFS20-5C High-Speed CMOS Shack-Hartmann Wavefront Sensor (WFS), one or two deformable mirrors (DMs), and control software (Windows 7, 8, and 10 compatible). Additionally, these kits include a light source, all collimation/imaging optics, and all mounting hardware necessary to build the layouts depicted in Fig. 1 (single-DM configuration) and Fig. 2 (dual-DM configuration) to the right. Please note that a breadboard is not included. We recommend building the single-DM AO kits on an 18" x 24" (450 mm x 600 mm) breadboard such as the MB1824 (MB4560/M) and the dual-DM AO kit on a 24" x 24" (600 mm x 600 mm) breadboard such as the MB2424 (MB6060/M).

Fig. 3 shows an assembled AOK5 AO Kit, which is a single-DM configuration, while Fig. 4 shows the AOKWT1 Woofer-Tweeter kit, which is a dual-DM configuration. The AOK5(/M) and AOK8(/M) adaptive optics kits have the same basic structure but use different lenses and mirrors to account for the DM coating and input aperture. The AOKWT1(/M) kit has an additional section to account for the extra DM in the kit. The construction of the single-DM AOK5 AO kit and dual-DM AOKWT1 AO kit are described here, and the optics included in each kit are outlined in the table below. More combinations are available as specials.

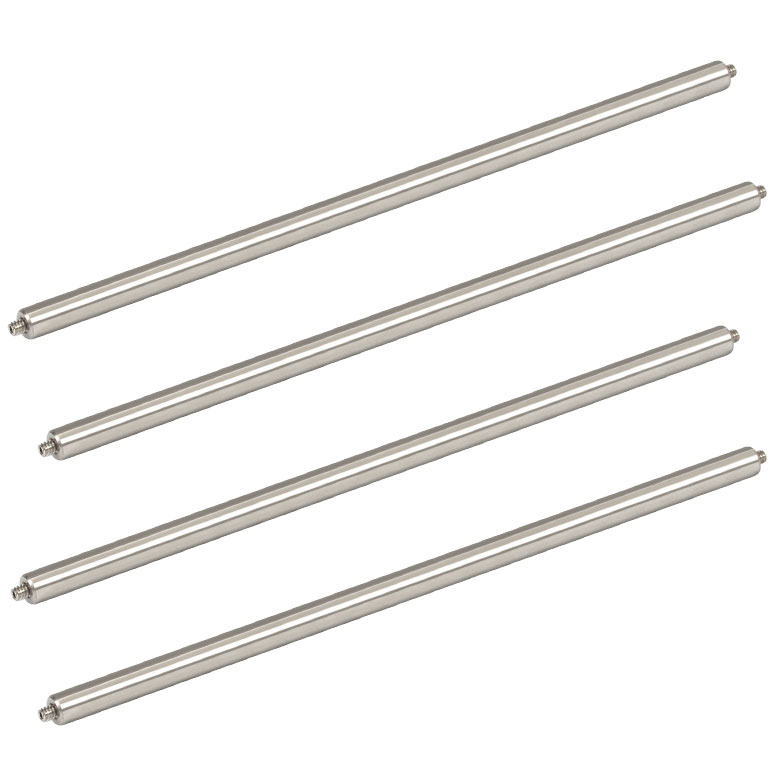

If you are not familiar with Thorlabs' 30 mm cage assemblies, they consist of cage-compatible components that are interconnected with Ø6 mm cage rods. This design ensures that the optical components housed inside the cage system have a common optical axis.

Single-DM Kit Construction

These single-DM kits include three pre-aligned sections that need to be arranged on a user-supplied breadboard. There are two sections of preassembled cage components that are used together to image a beam waist onto the DM surface and a third preassembled cage system is used to image a beam waist onto the Shack-Hartmann wavefront sensor.

The first preassembled cage section of the AOK5(/M) kit consists of the laser diode source, one 50 mm focal length lens, one 75 mm focal length lens, two turning mirrors, and a U-shaped bench. The 635 nm Laser Diode Module, which outputs ~0.3 mW of light at 635 nm, is housed inside a CP33 Cage Plate (labeled as #1 in Fig. 3). Light exiting the module is directed through a LA1131-B 50 mm focal length lens housed in the CXY1A Translating Lens Mount (#2 in Fig. 3). The light then passes through two KCB1 Right-Angle Cage-Compatible Kinematic Mounts (the first of which is labeled as #3 in Fig. 3), which house PF10-03-P01 Protected Silver Mirrors; these mirrors offer an average reflectance of >97% from 450 nm to 2 µm and >95% from 2 to 20 µm. Then an LA1608-B 75 mm focal length lens housed in a CP33 Cage Plate (#4 in Fig. 3) images a beam waist to the center of the CBB1(/M) 30 mm Cage System U-Bench (represented by an X in Fig. 1 and labeled as #5 in Fig. 3 to the right). A sample can be placed in this image plane. This subassembly in the AOK8(/M) is configured similarly, but the lenses have focal lengths of 30 mm and 100 mm.

The second preassembled cage section uses two more LA1608-B 75 mm focal length lenses (one is housed in the CP33 mount labeled as #6 and the other in the CXY1A mount labeled as #7 in Fig. 3) to image a beam waist onto the DM (#8); by having a beam waist at the DM surface, the range of actuation needed to correct for any aberrations is minimized. The second subassembly is similar in the AOK8(/M) kit, except that 75 mm and 150 mm focal length lenses are used.

The DM reflects the beam through a shallow angle of ~35° into the third preassembled cage section. This section of the AOK5(/M) kit contains two more 75 mm focal length lenses, which are once again housed using a CP33 Cage Plate (#9 in Fig. 3) and CXY1A Translating Lens Mount (#10 in Fig. 3). In the AOK8(/M) kit, one 60 mm focal length lens and one 175 mm focal length lens are used. These lenses are used to place the DM in a plane that is conjugate with the Shack-Hartmann lenslet array, thereby relaying the image on the DM to the WFS. This provides the software with image information used to not just observe the wavefront but effectively optimize the DM actuator positions when running in closed-loop operation.

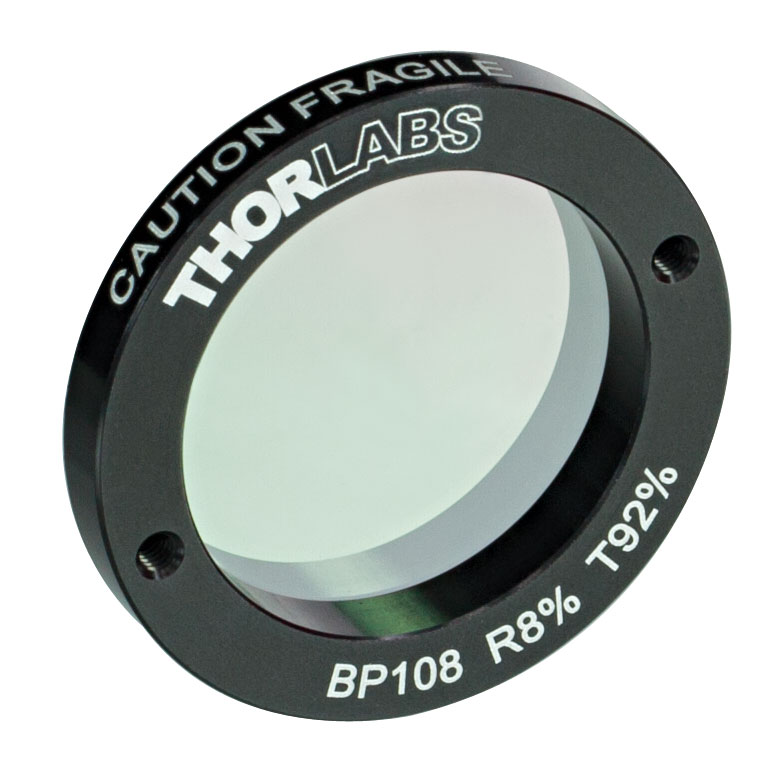

After exiting the third cage subassembly, a BP108 8:92 (R:T) pellicle beamsplitter (#11 in Fig. 3) is used to direct a small portion of the light to the last major component of the AO kit, the Shack-Hartmann WFS (#12). The portion of light transmitted by the beamsplitter can be blocked by a beam block (#13) that is constructed from an SM1A7 Alignment Blank. Alternatively, the beam block can be removed and the light can be launched into an application.

Dual-DM Kit Construction

The cage components are divided into four pre-aligned pieces that need to be arranged on a user-supplied breadboard. There are two sections of preassembled cage components that are used together to image a beam waist onto the first DM surface, a third section that images the light onto the second DM, and a fourth preassembled cage system is used to image a beam waist onto the Shack-Hartmann WFS.

The first two preassembled cage sections of the AOKWT1(/M) kit consist of the laser diode source, four lenses, two turning mirrors, and a U-shaped bench. The 635 nm Laser Diode Module, which outputs ~0.3 mW of light at 635 nm, is housed inside a CP33 Cage Plate (labeled as #1 in Fig. 4). Light exiting the module is focused by a LA1289-B 30 mm focal length lens housed in the CXY1A Translating Lens Mount (#2 in Fig. 4). The light then passes through two KCB1 Right-Angle Cage-Compatible Kinematic Mounts (the first of which is labeled as #3 in Fig. 4), which house PF10-03-P01 Protected Silver Mirrors; these mirrors offer an average reflectance of >97% from 450 nm to 2 µm and >95% from 2 to 20 µm.

The AOKWT1 kit uses an LA1509-B 100 mm focal length lens housed in the CP33 Cage Plate (#4 in Fig. 4) to image a beam waist at the center of the CBB1(/M) 30 mm Cage System U-Bench (represented by an X in Fig. 2 and labeled as #5 in Fig. 4 to the right). A sample can be placed in this image plane. Then, two more lenses (LA1608-B 75 mm and LA1433-B 150 mm focal length lenses, both of which are housed in the CP33 mounts labeled as #6 and #7 in the figure) are used to image a beam waist onto the first DM (#8), acting as a woofer correcting for lower order aberrations. By having a beam waist at the DM surface, the range of actuation needed to correct for any aberrations is minimized.

The first DM reflects the beam through a shallow angle of ~30° into the third preassembled cage section. This section contains a LA1708-B 200 mm focal length lens housed using a CXY1A Translating Lens Mount (#9 in Fig. 4) and a LA1134-B 60 mm focal length lens in a CP33 Cage Plate (#10 in Fig. 4). The lenses image a beam waist onto the second DM (#11), which acts as the tweeter of the system correcting the higher order aberrations.

The second DM reflects the beam through another shallow angle of ~40° into the fourth preassembled cage section. This section contains two LA1608-B 75 mm focal length lenses, which are once again housed in two CP33 Cage Plates (#12 and #13). These lenses are used to place the DM in a plane that is conjugate with the Shack-Hartmann lenslet array, thereby relaying the image on the DM to the WFS. This provides the software with image information used to not just observe the wavefront but effectively optimize the DM actuator positions when running in closed-loop operation.

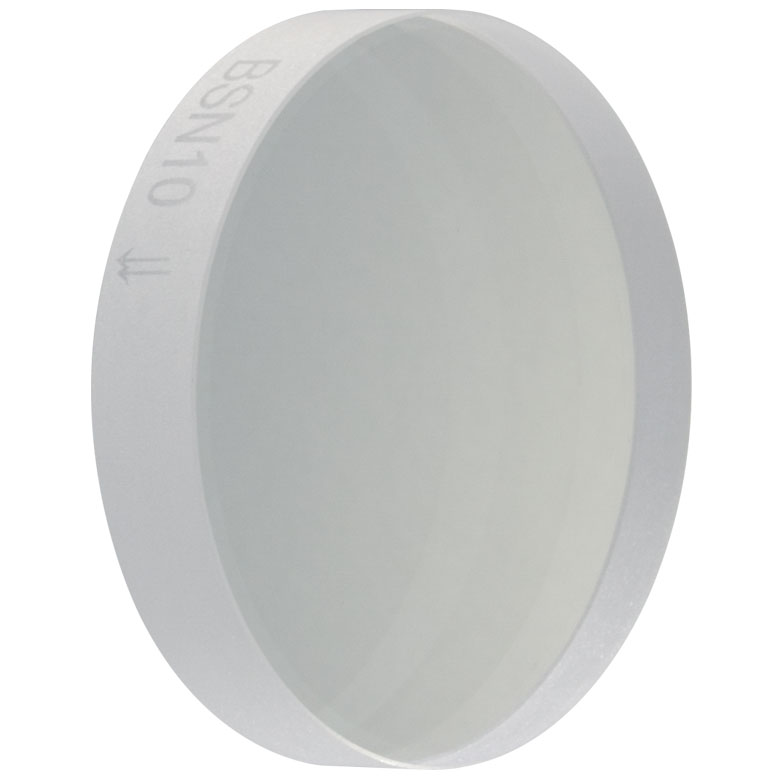

After exiting the third cage subassembly, a BSN10 10:90 (R:T) UVFS Plate Beamsplitter (#14 in Fig. 4) is used to direct a small portion of the light to the last major component of the AO kit, the Shack-Hartmann WFS (#15). The portion of light transmitted by the beamsplitter can be blocked by a beam block (#16) that is constructed from an SM1A7 Alignment Blank. Alternatively, the beam block can be removed and the light can be launched into an application.

A Note about the Optics Included with the Adaptive Optics Kits:

The AOK5(/M) and AOK8(/M) adaptive optics kits include similar optical and mechanical components. The optics that vary between the kits are described in the table below. The AOK8(/M) kit also uses longer beam expander sections than the AOK5(/M) kit to accommodate the larger entrance pupil of the piezoelectric deformable mirror. The AOKWT1(/M) kit includes both the MEMS and piezoelectric DM. A complete list of components included in each kit are outlined in the table on the Components tab, which is set up to highlight the similarities and differences between the kits.

Wavelength-Dependent Components Included with Each AO Kita
Item # Wavefront Sensor Deformable Mirror Lenses (Qty.) Mirrors (Qty.) Beamsplitter (Qty.) Neutral Density Filters (Qty.)
AOK5(/M) WFS20-5C(/M) DM140A-35-P01 LA1131-B (1)
LA1608-B (5)

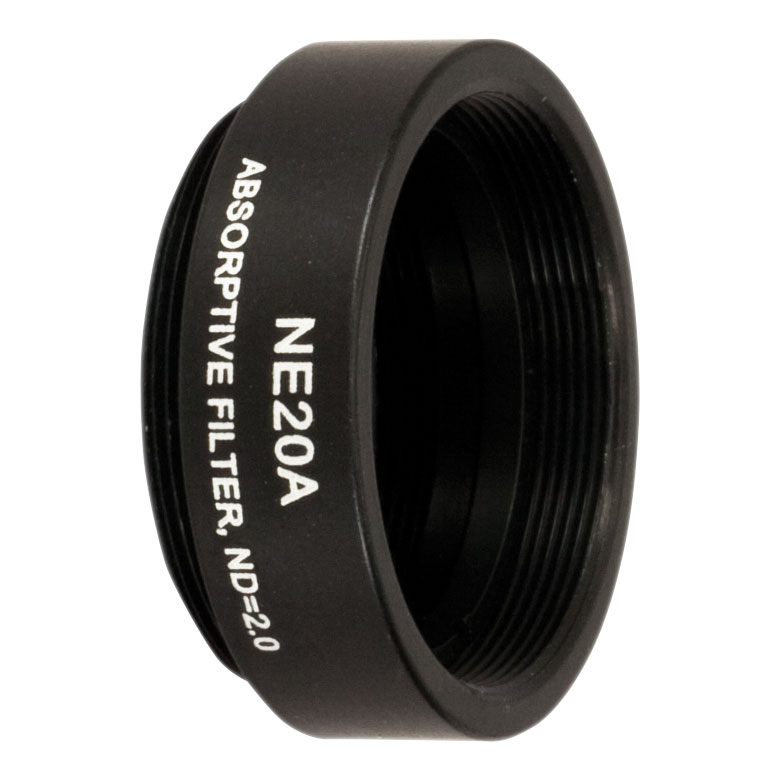

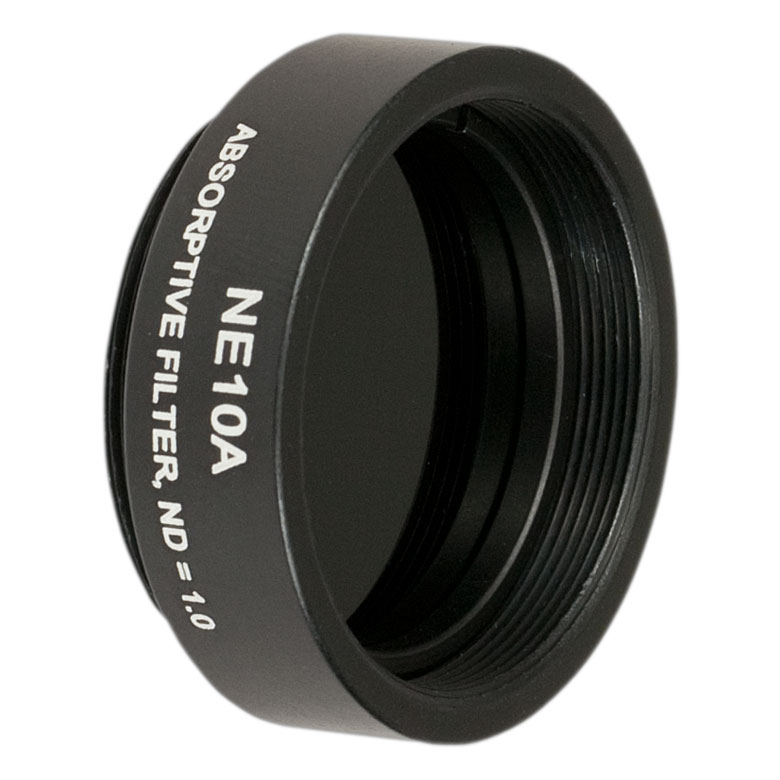

PF10-03-P01 (2) BP108 (1) NE10A (1)
NE20A (1)
AOK8(/M) WFS20-5C(/M) DMH40-P01
(DMH40/M-P01)
LA1134-B (1)
LA1229-B (1)
LA1289-B (1)
LA1433-B (1)
LA1509-B (1)
LA1608-B (1)
PF10-03-P01 (2) BP108 (1) NE10A (1)
NE20A (1)
AOKWT1(/M) WFS20-5C(/M) DM140A-35-P01
and DMH40-P01
(DMH40/M-P01)
LA1134-B (1)
LA1289-B (1)
LA1433-B (1)
LA1509-B (1)
LA1608-B (3)
LA1708-B (1)
PF10-03-P01 (2) BSN10 (1) NE10A (1)
NE20A (1)
  • See the Components tab for the full list.
AO Kit Components
AOK5(/M) AOK8(/M) AOKWT1(/M)
AOK5(/M)
Click for Details

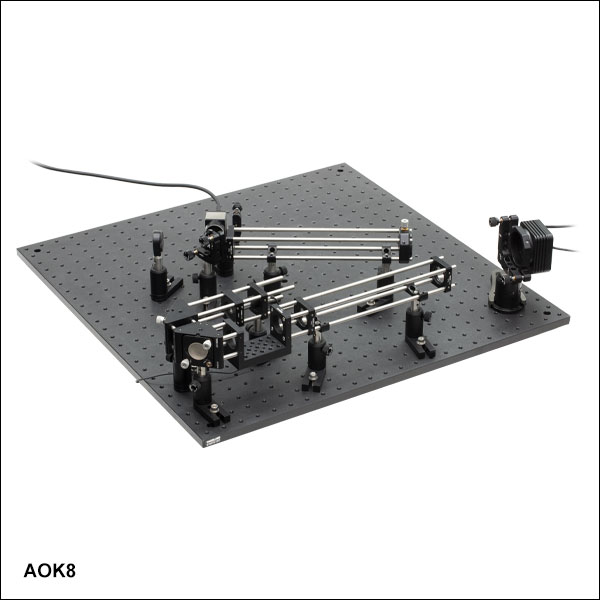

AOK8(/M)
Click for Details
AOKWT1(/M)
Click for Details

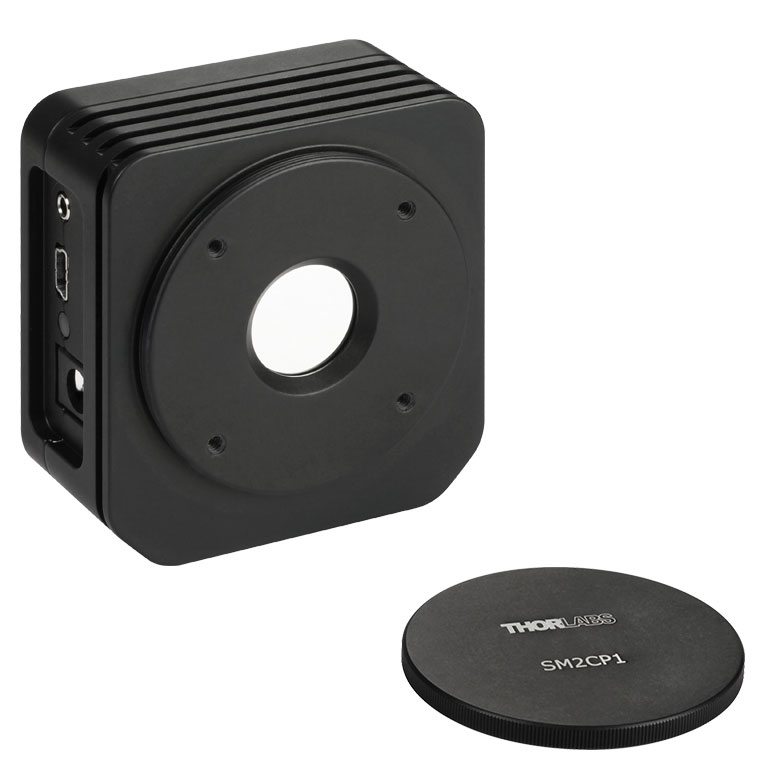

Wavefront Sensor

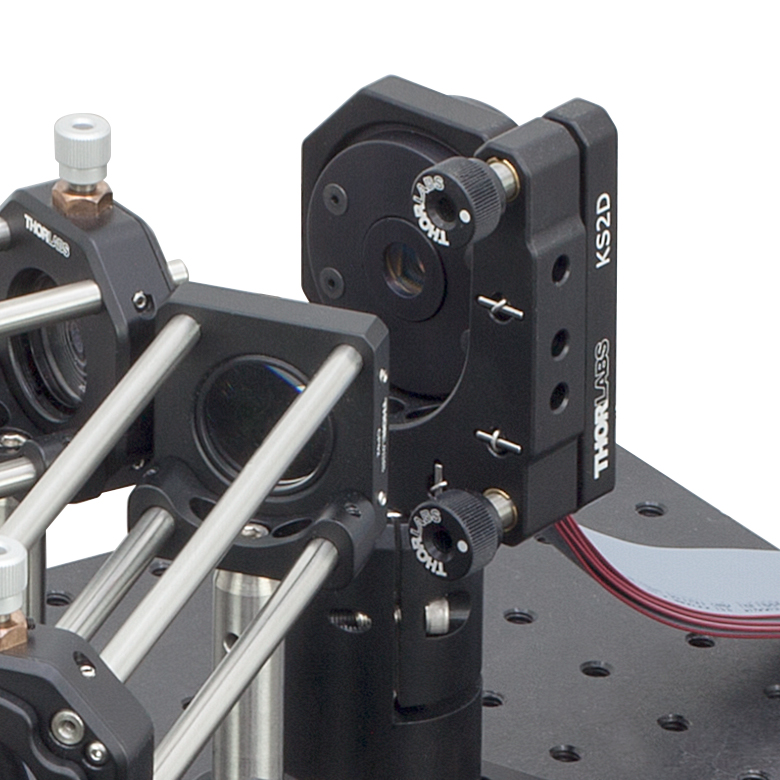

Deformable Mirror(s)

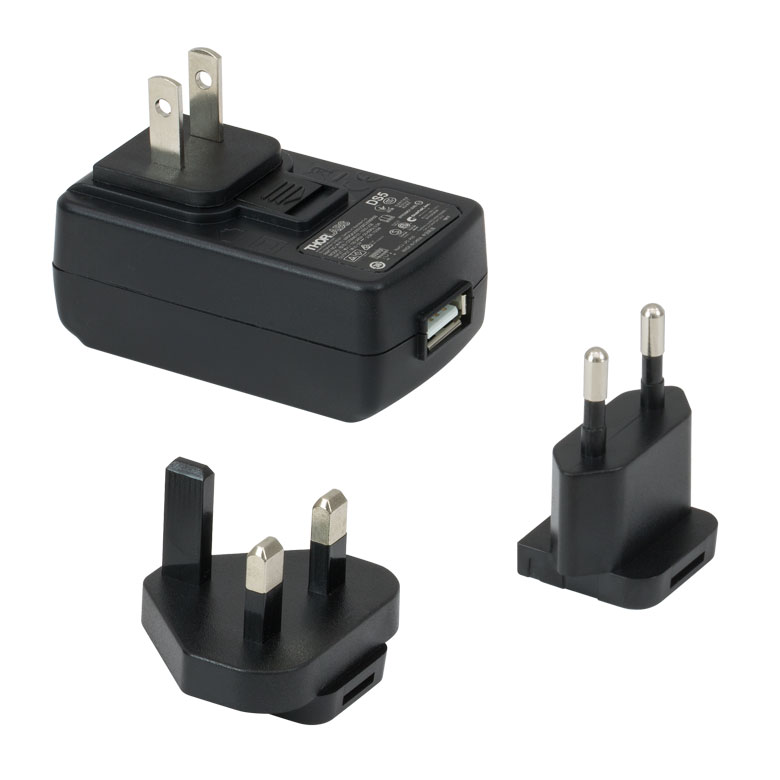

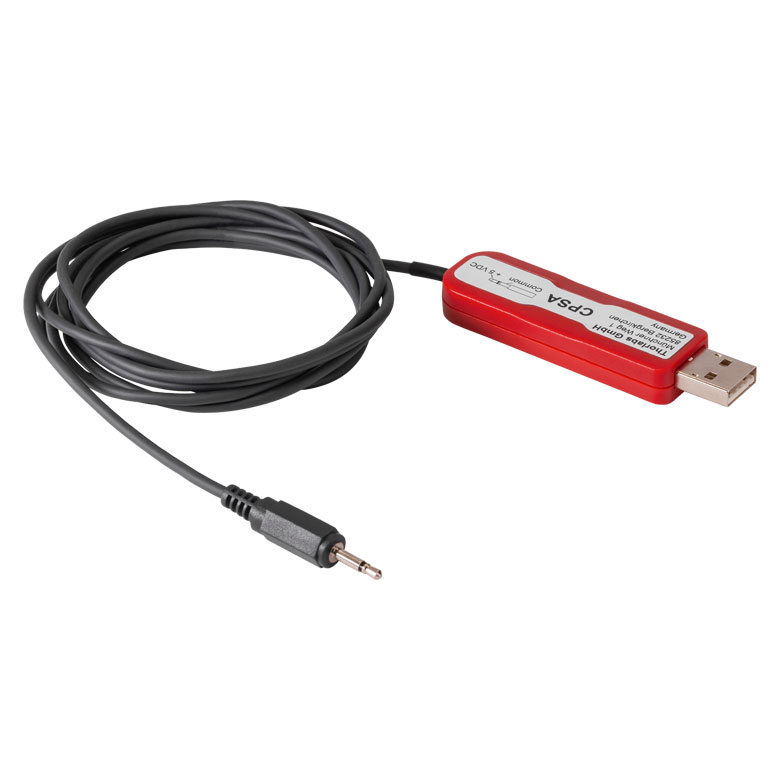

Light Source

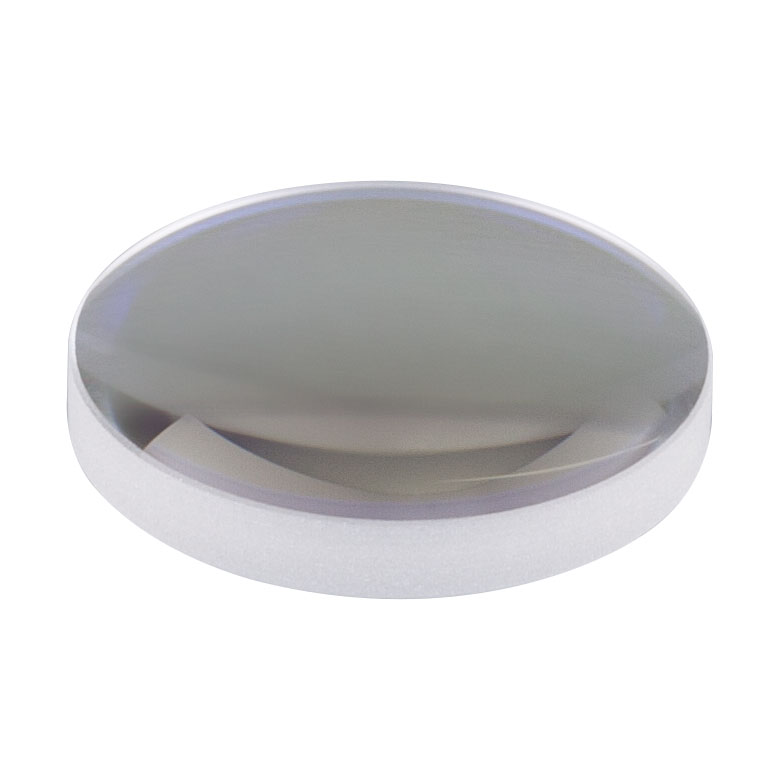

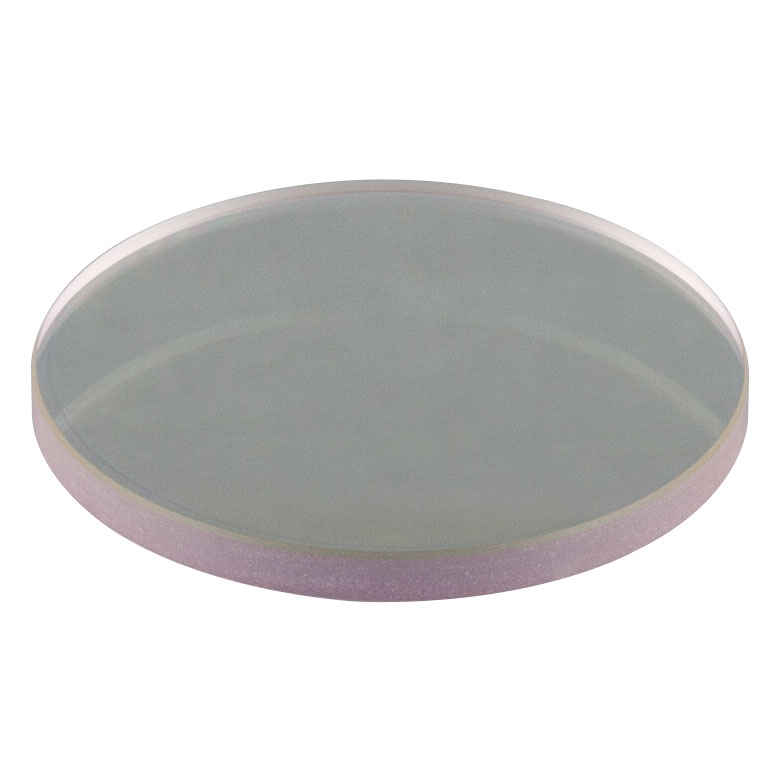

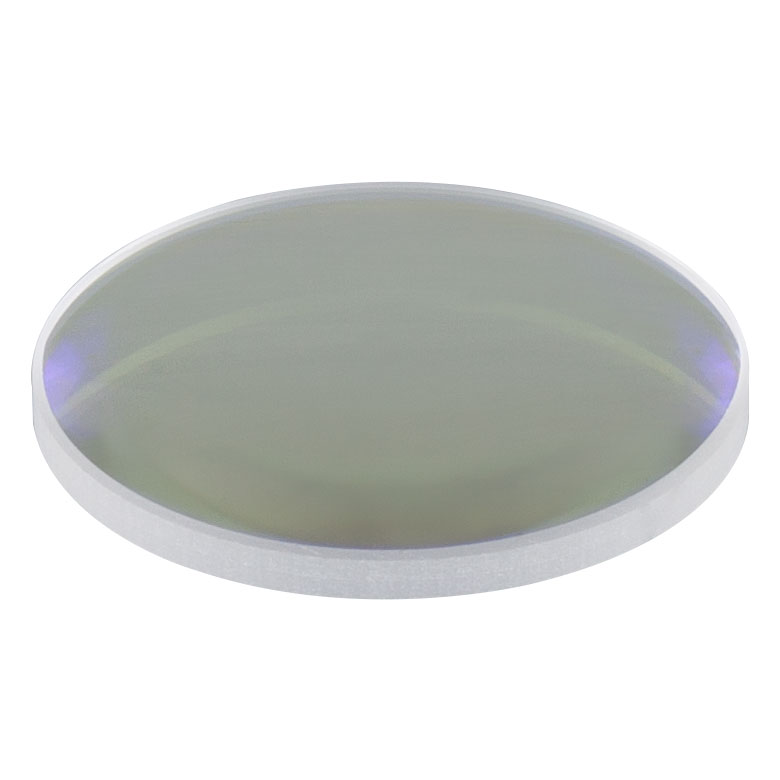

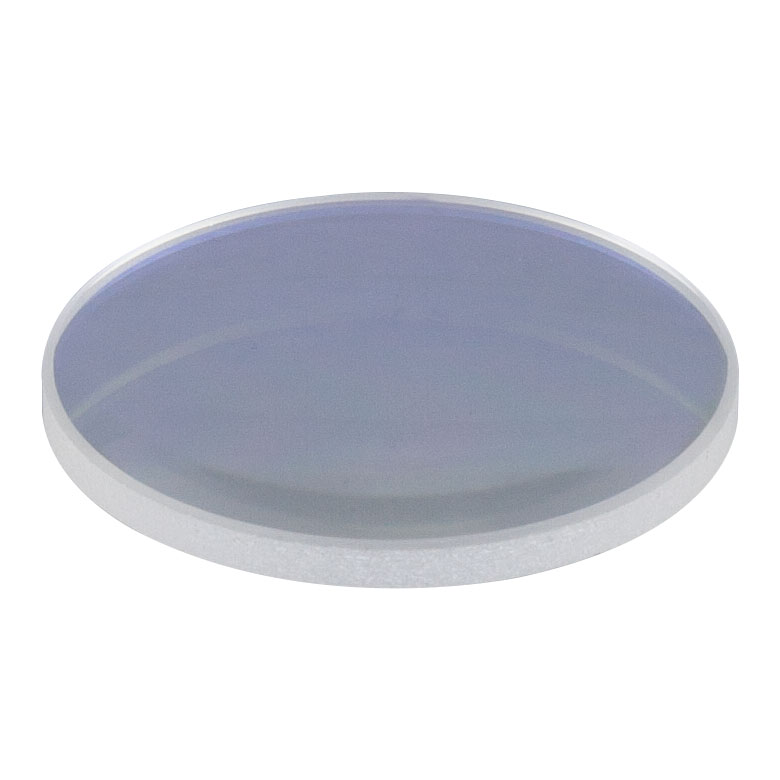

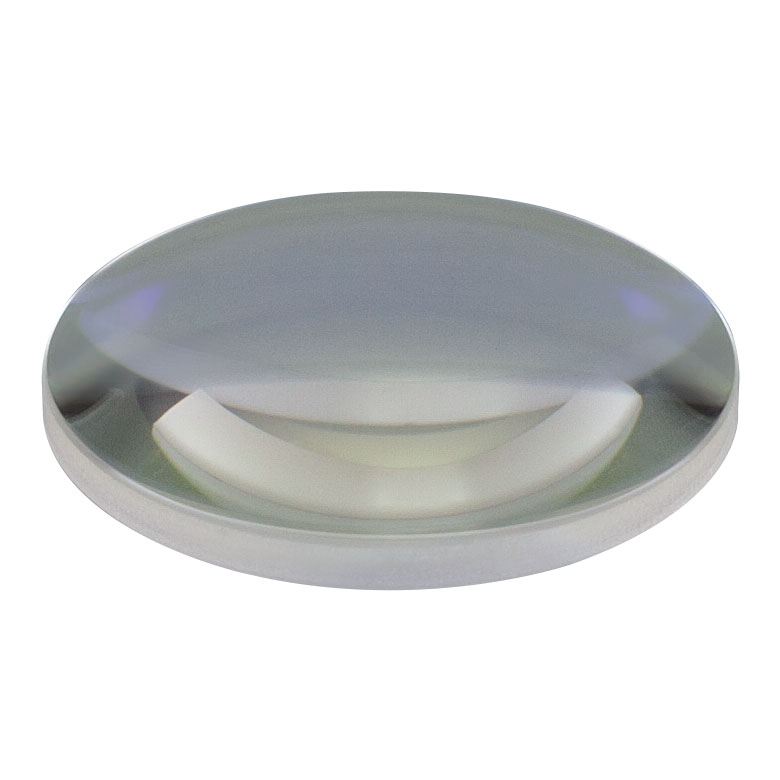

Optics

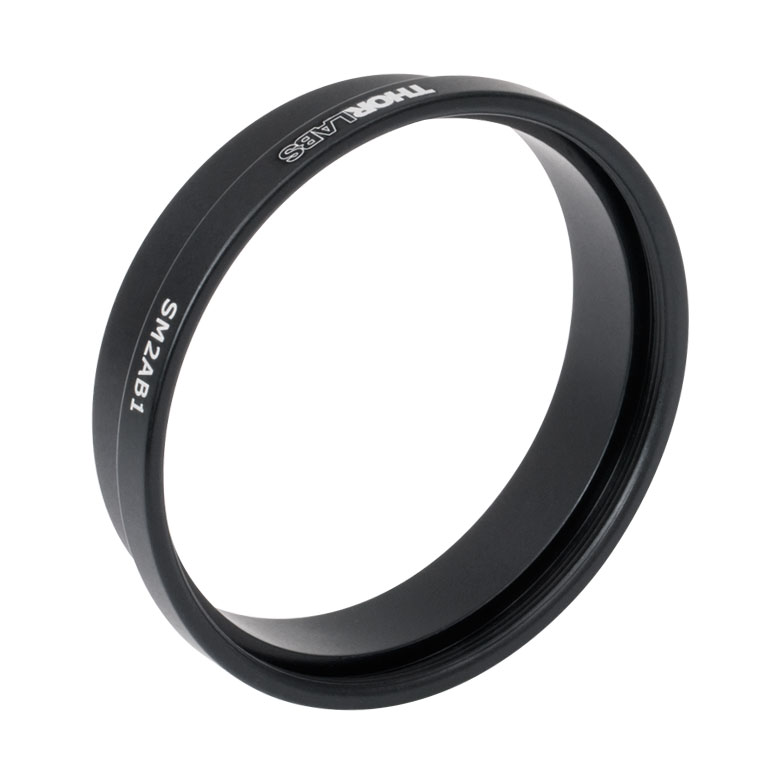

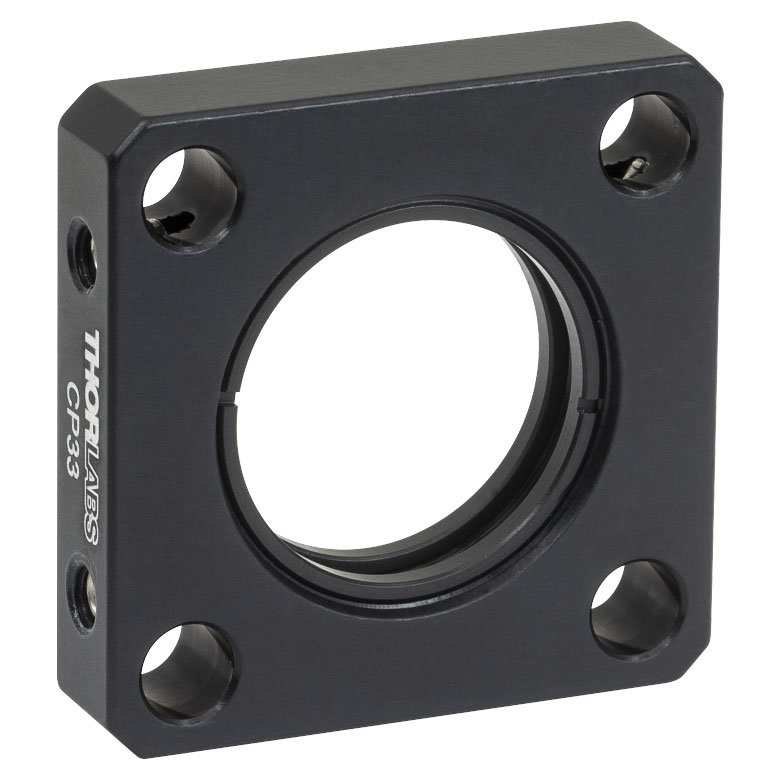

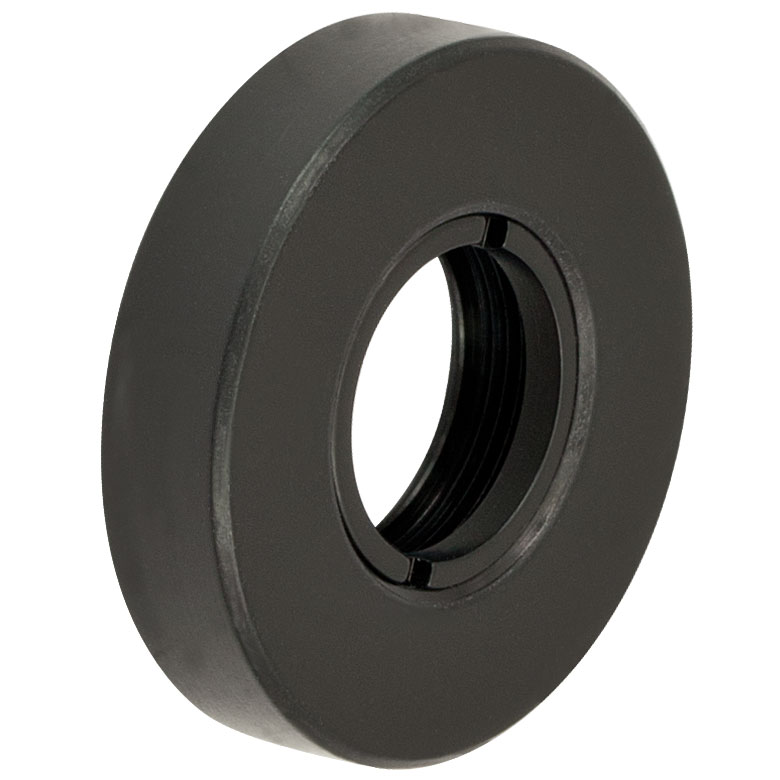

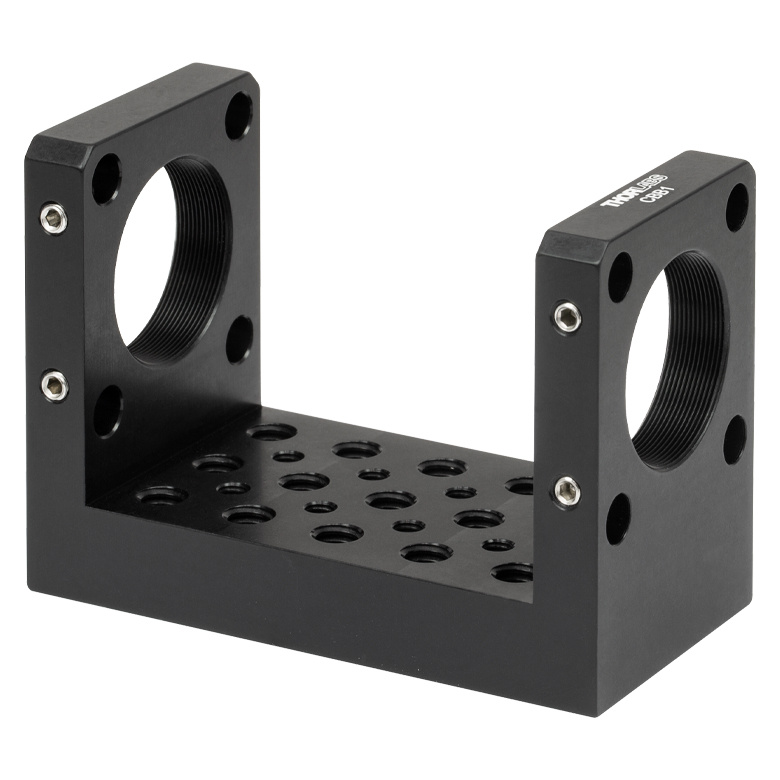

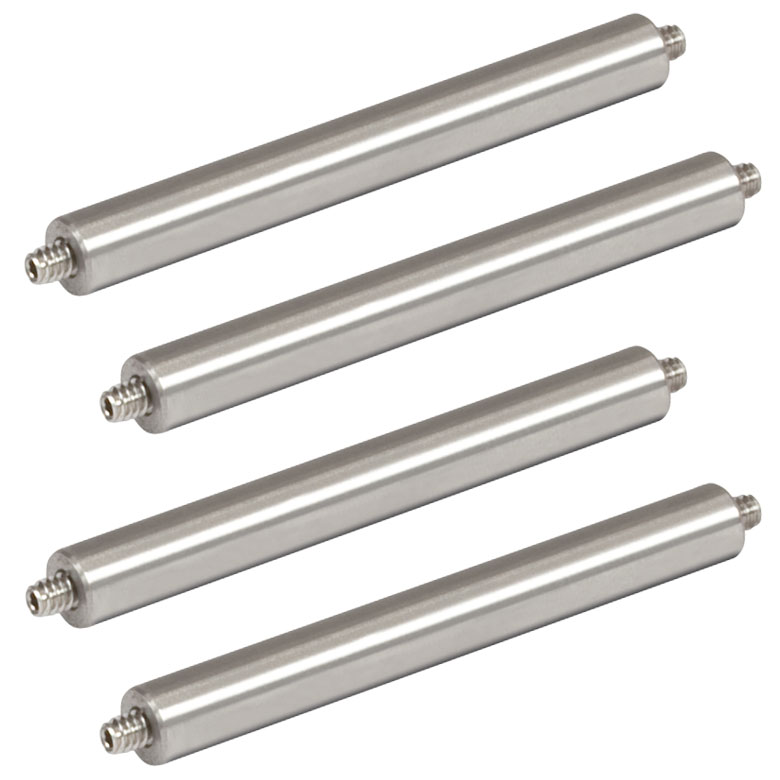

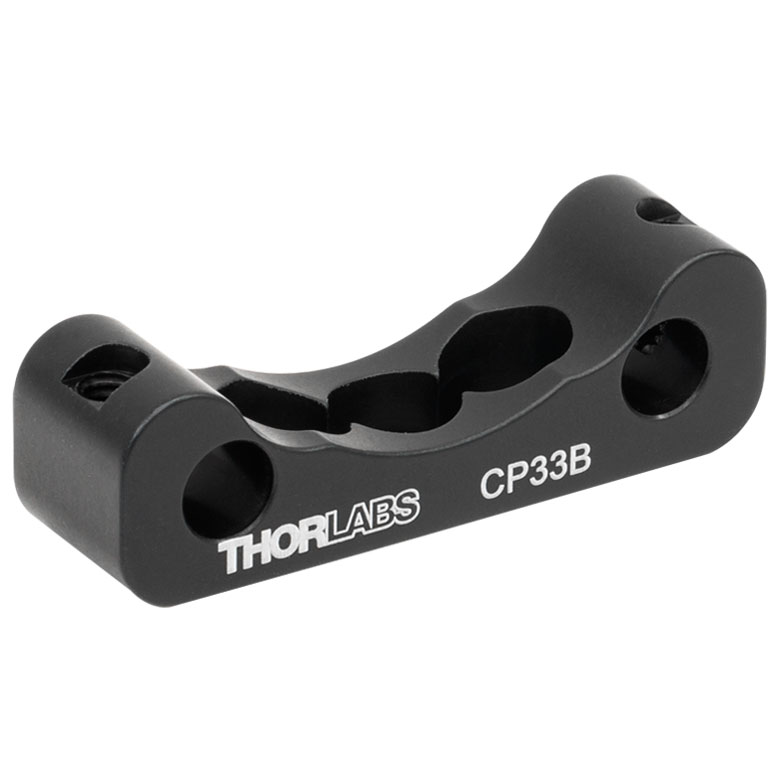

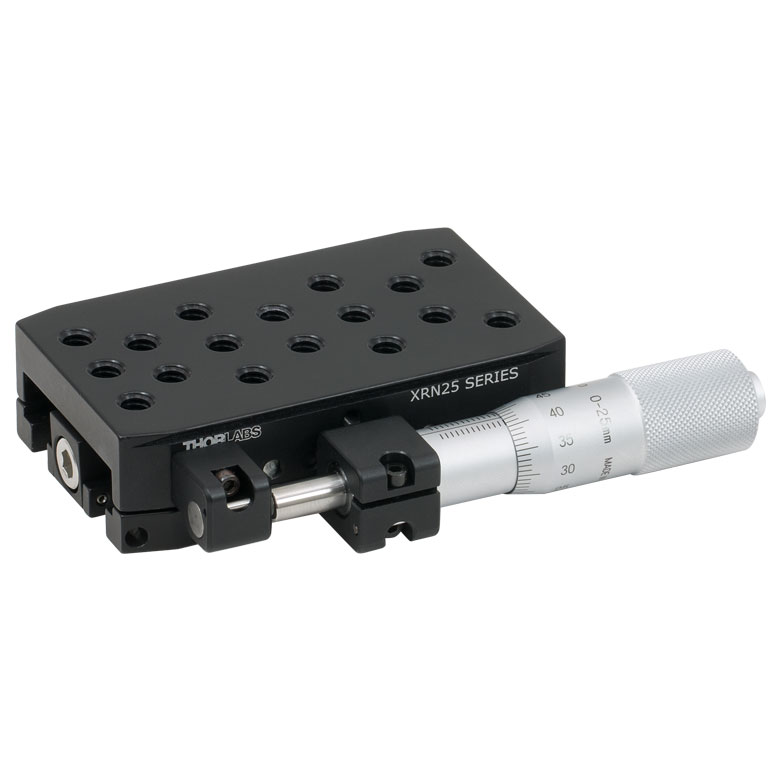

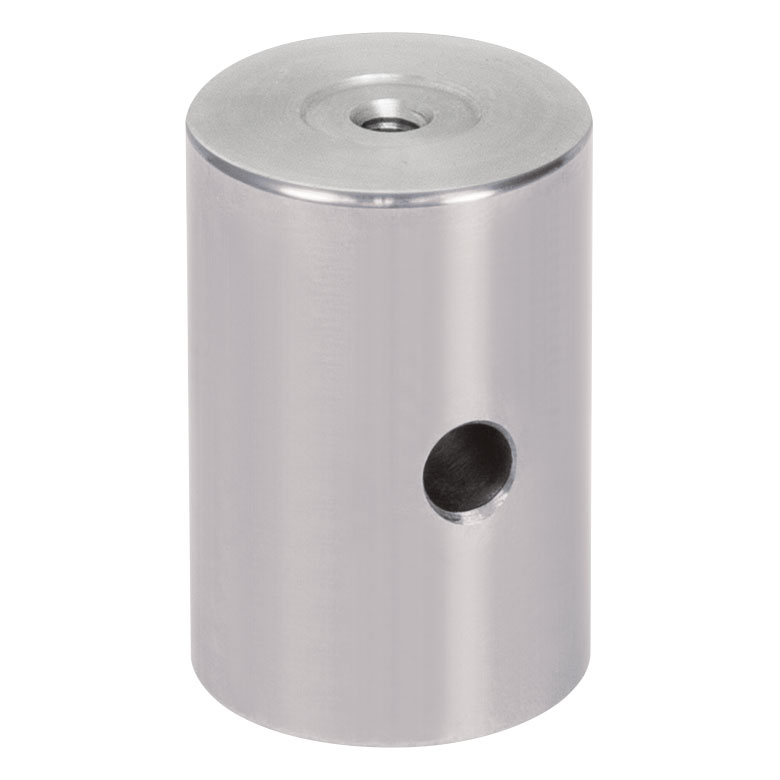

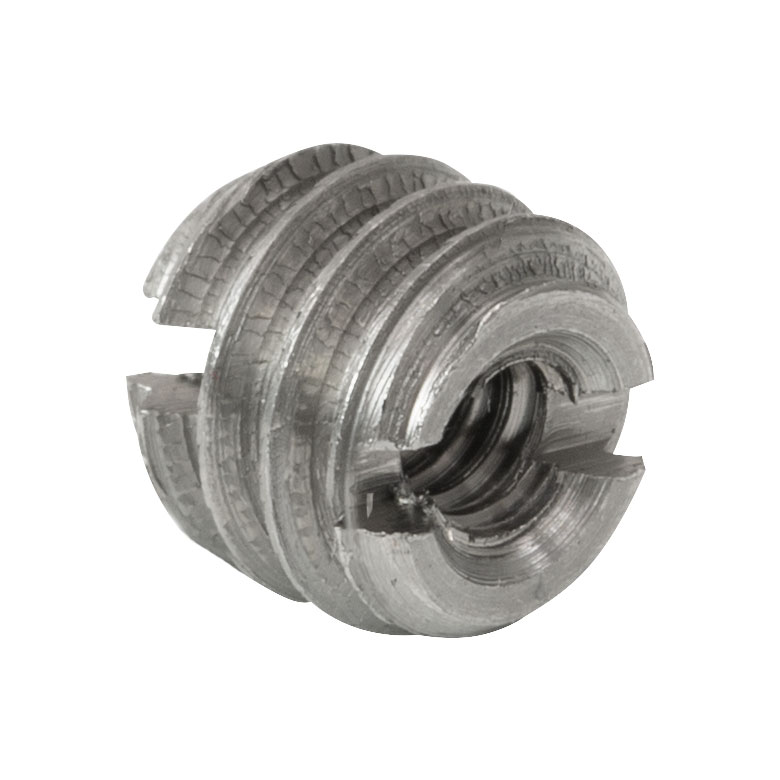

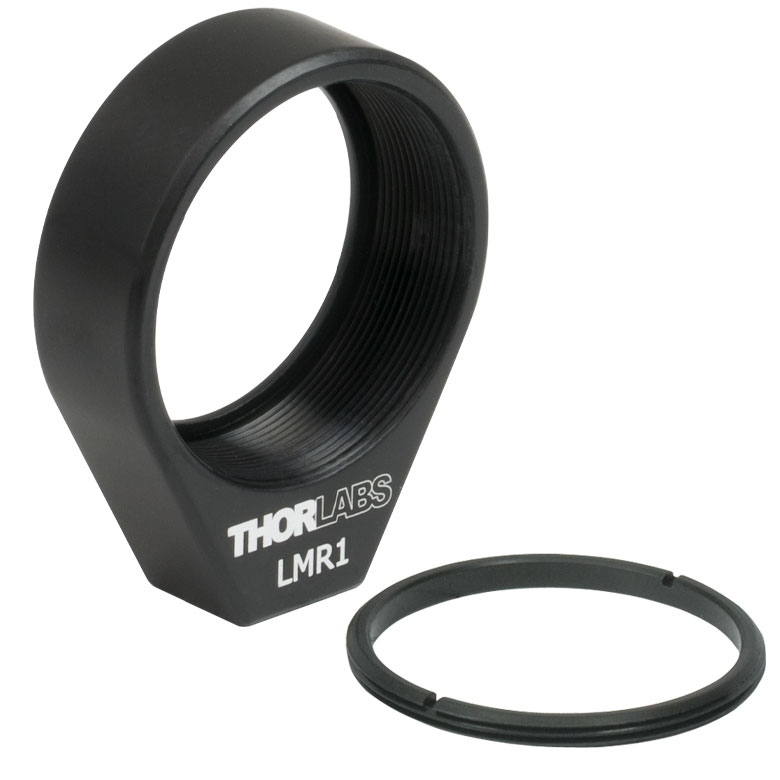

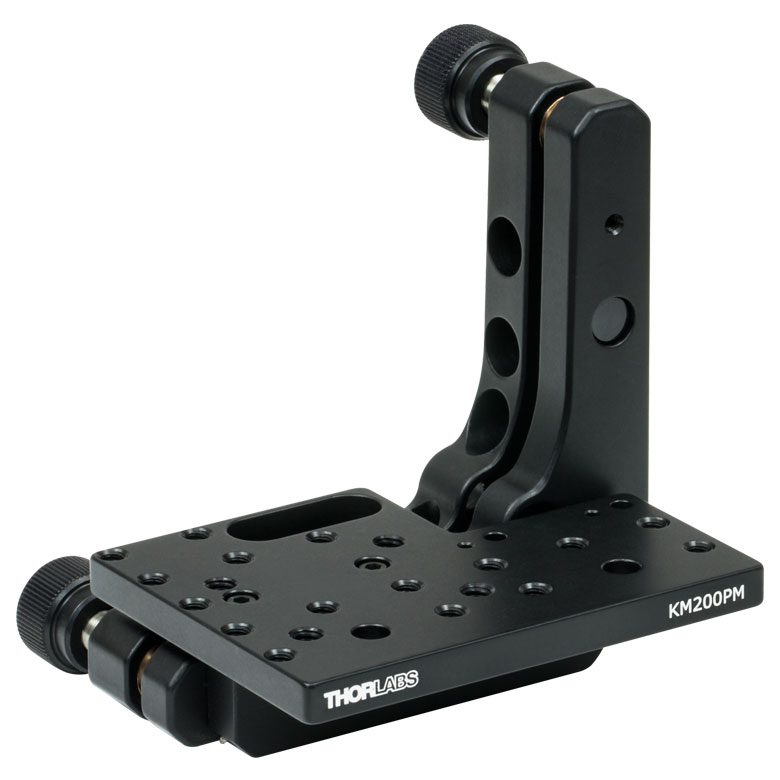

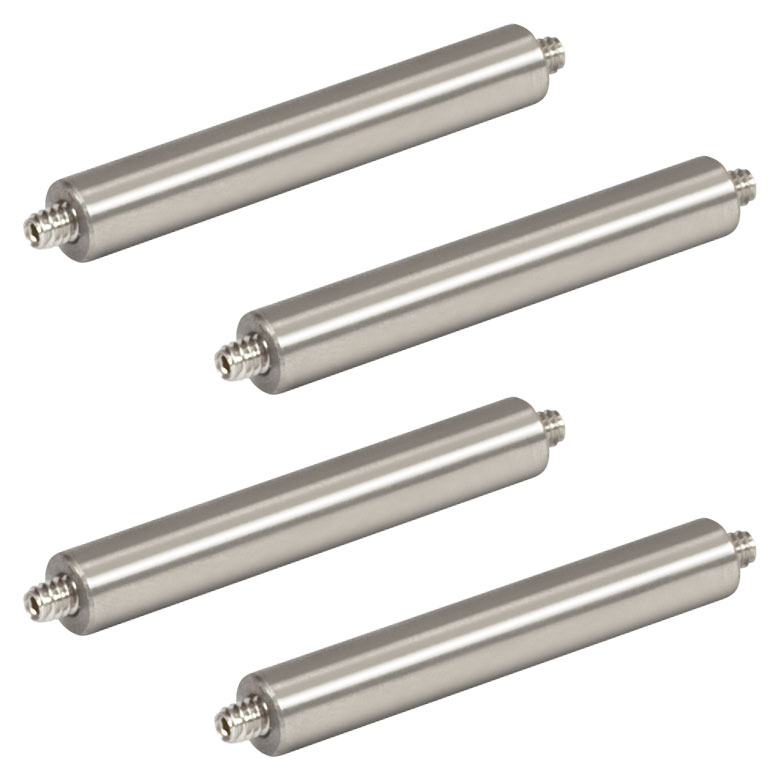

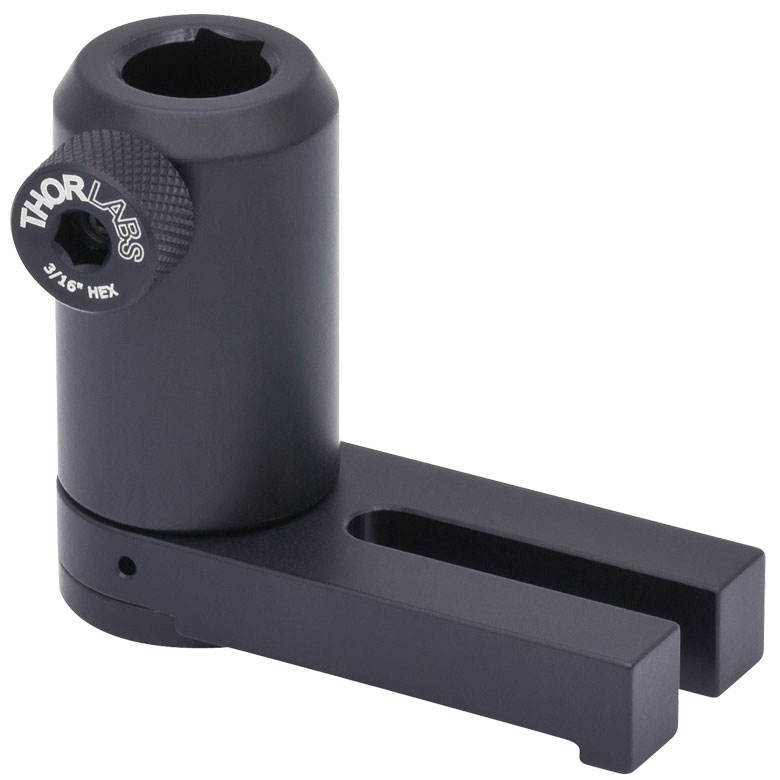

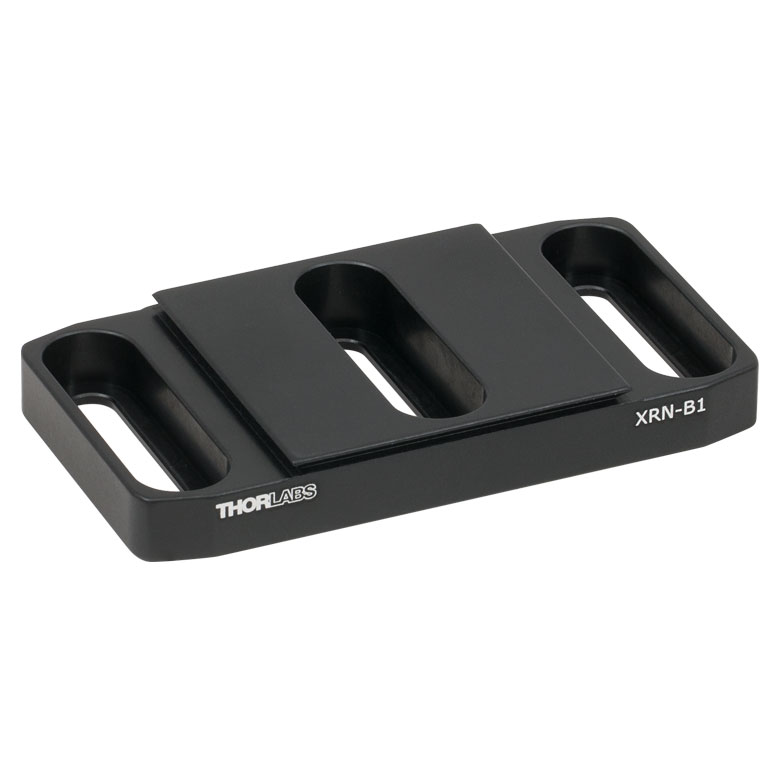

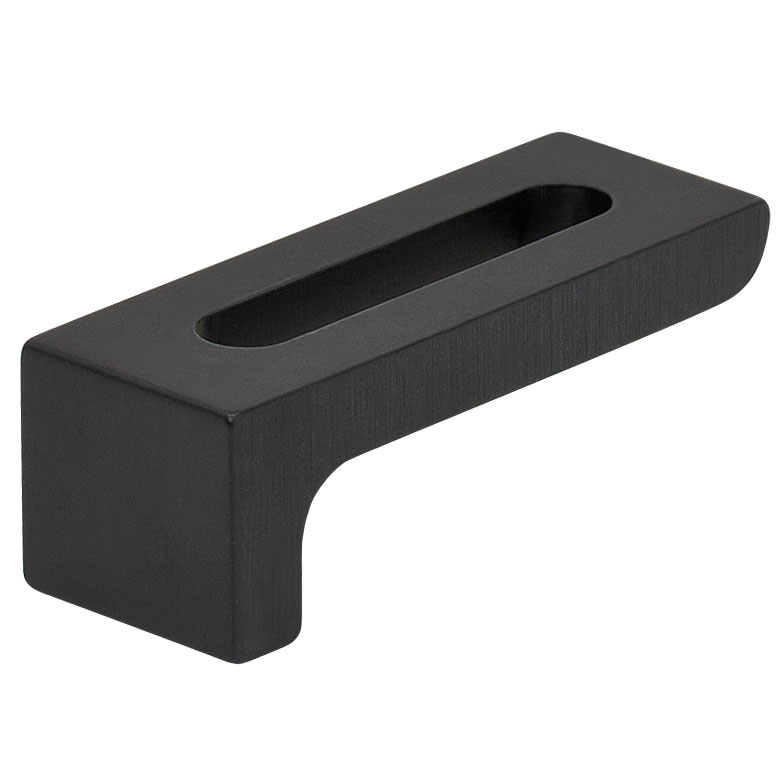

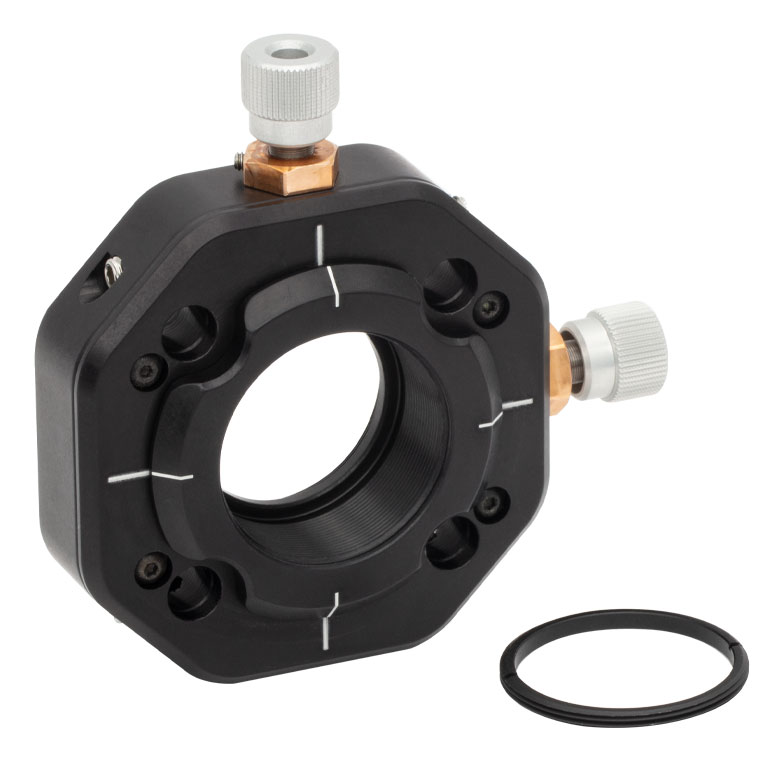

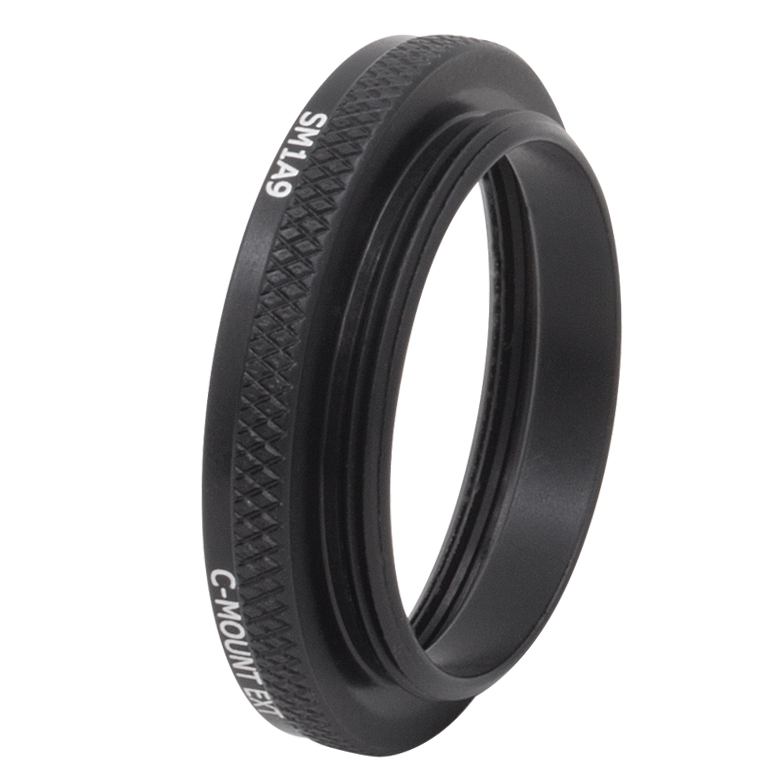

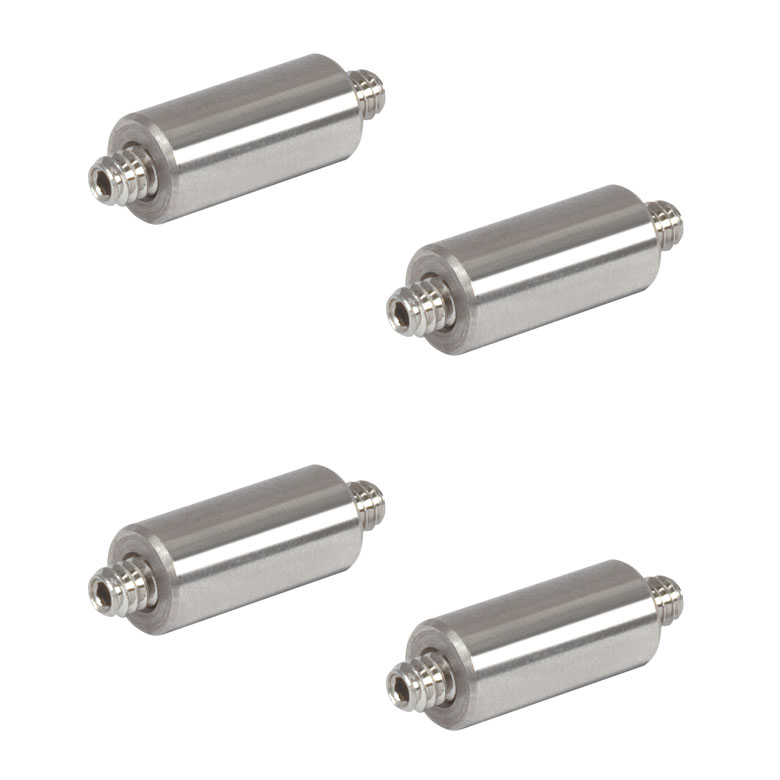

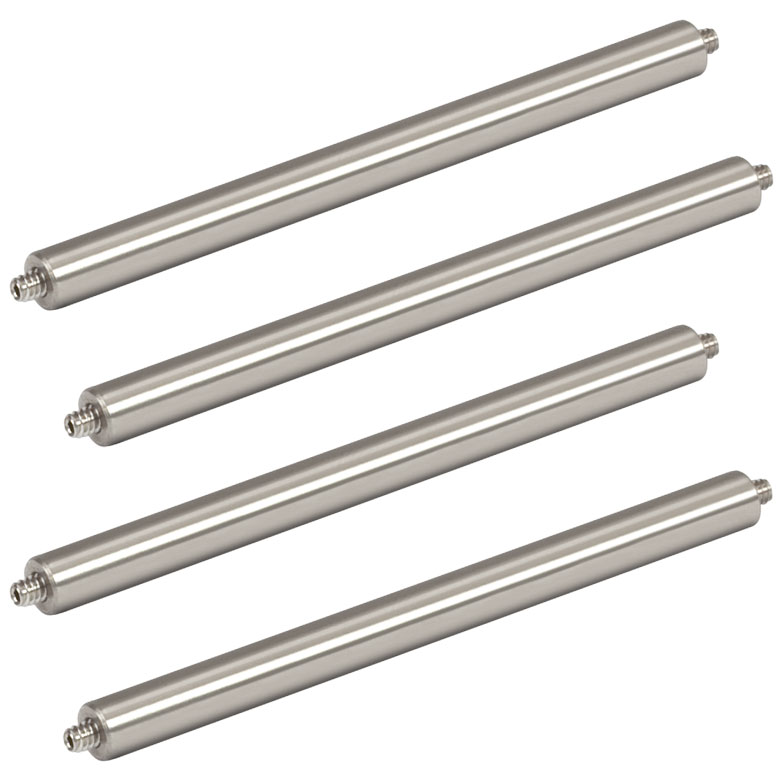

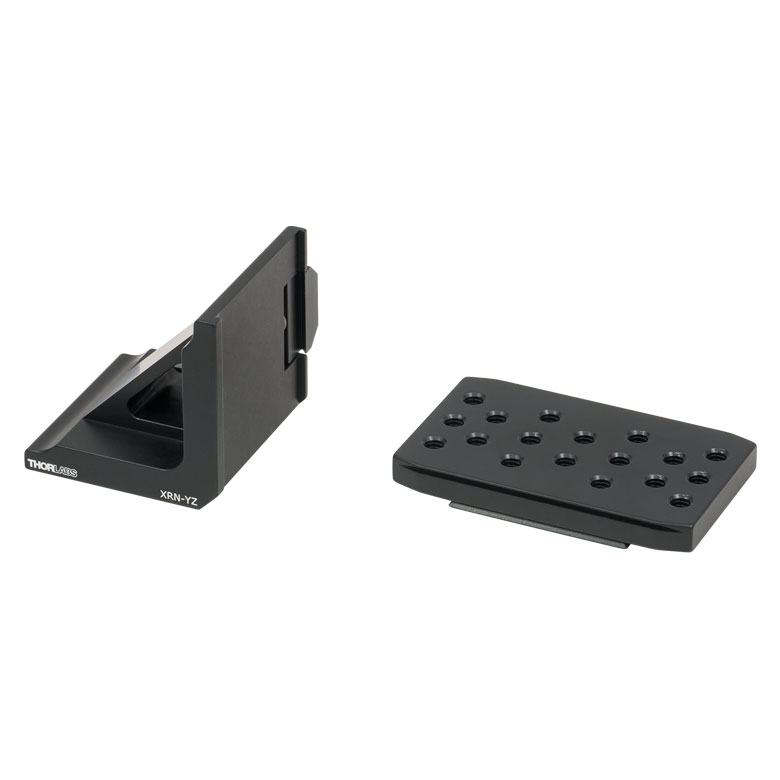

Mechanics

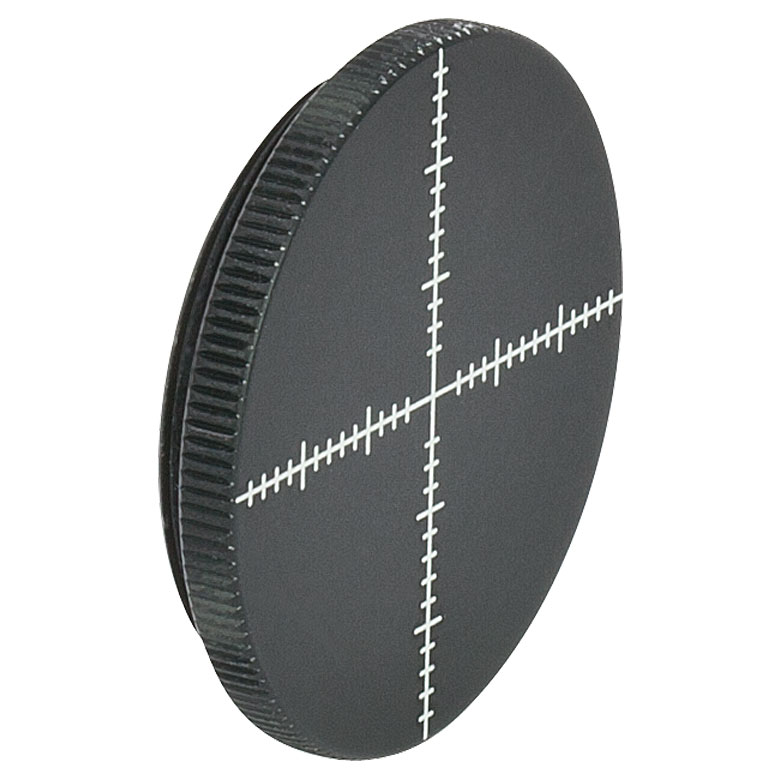

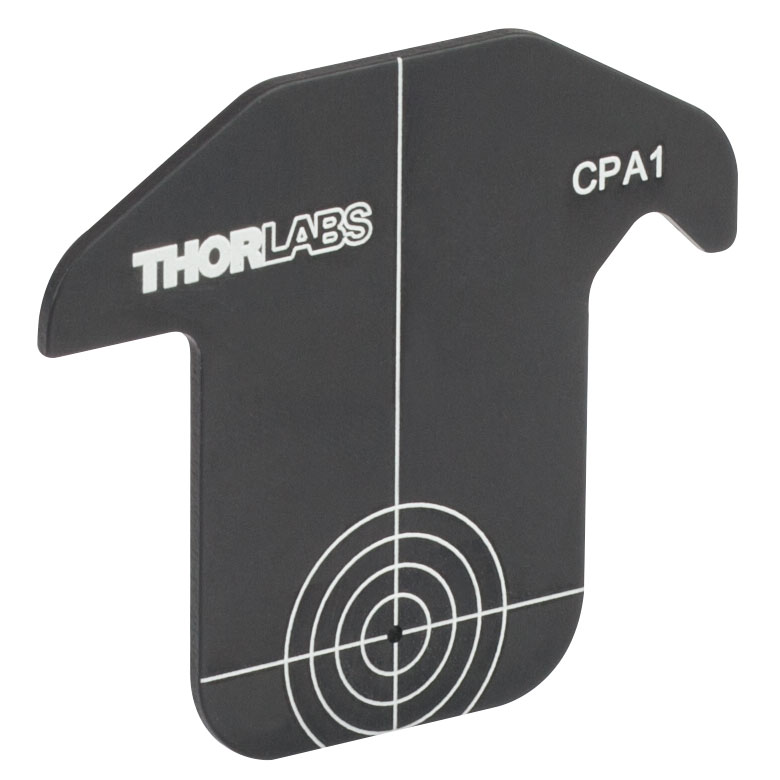

Alignment Tools

Introduction:
Adaptive optics (AO) is a rapidly growing multidisciplinary field encompassing physics, chemistry, electronics, and computer science. AO systems are used to correct (shape) the wavefront of a beam of light. Historically, these systems have their roots in the international astronomy and US defense communities. Astronomers realized that if they could compensate for the aberrations caused by atmospheric turbulence, they would be able to generate high resolution astronomical images; with sharper images comes an additional gain in contrast, which is also advantageous for astronomers since it means that they can detect fainter objects that would otherwise go unnoticed. While astronomers were trying to overcome the blurring effects of atmospheric turbulence, defense contractors were interested in ensuring that photons from their high-power lasers would be correctly pointed so as to destroy strategic targets. More recently, due to advancements in the sophistication and simplicity of AO components, researchers have utilized these systems to make breakthroughs in the areas of femtosecond pulse shaping, microscopy, laser communication, vision correction, and retinal imaging. Although dramatically different fields, all of these areas benefit from an AO system due to undesirable time-varying effects.

Typically, an AO system is comprised from three components: (1) a wavefront sensor, which measures these wavefront deviations, (2) a deformable mirror, which can change shape in order to modify a highly distorted optical wavefront, and (3) real-time control software, which uses the information collected by the wavefront sensor to calculate the appropriate shape that the deformable mirror should assume in order to compensate for the distorted wavefront. Together, these three components operate in a closed-loop fashion. By this, we mean that any changes caused by the AO system can also be detected by that system. In principle, this closed-loop system is fundamentally simple; it measures the phase as a function of the position of the optical wavefront under consideration, determines its aberration, computes a correction, reshapes the deformable mirror, observes the consequence of that correction, and then repeats this process over and over again as necessary if the phase aberration varies with time. Via this procedure, the AO system is able to improve optical resolution of an image by removing aberrations from the wavefront of the light being imaged.

The Wavefront Sensor:
The role of the wavefront sensor in an adaptive optics system is to measure the wavefront deviations from a reference wavefront. There are three basic configurations of wavefront sensors available: Shack-Hartmann wavefront sensors, shearing interferometers, and curvature sensors. Each has its own advantages in terms of noise, accuracy, sensitivity, and ease of interfacing it with the control software and deformable mirror. Of these, the Shack-Hartmann wavefront sensor has been the most widely used.

A Shack-Hartmann wavefront sensor uses a lenslet array to divide an incoming beam into a bunch of smaller beams, each of which is imaged onto a CCD camera, which is placed at the focal plane of the lenslet array. If a uniform plane wave is incident on a Shack-Hartmann wavefront sensor (refer to Fig. 1), a focused spot is formed along the optical axis of each lenslet, yielding a regularly spaced grid of spots in the focal plane. However, if a distorted wavefront (i.e., any non-flat wavefront) is used, the focal spots will be displaced from the optical axis of each lenslet. The amount of shift of each spot’s centroid is proportional to the local slope (i.e., tilt) of the wavefront at the location of that lenslet. The wavefront phase can then be reconstructed (within a constant) from the spot displacement information obtained (see Fig. 2).

Wavefront correction

Figure 1. When a planar wavefront is incident on the Shack-Hartmann wavefront sensor's microlens array, the light imaged on the CCD sensor will display a regularly spaced grid of spots. If, however, the wavefront is aberrated, individual spots will be displaced from the optical axis of each lenslet; if the displacement is large enough, the image spot may even appear to be missing. This information is used to calculate the shape of the wavefront that was incident on the microlens array.

Screen Shots of Spotfield and Wavefront

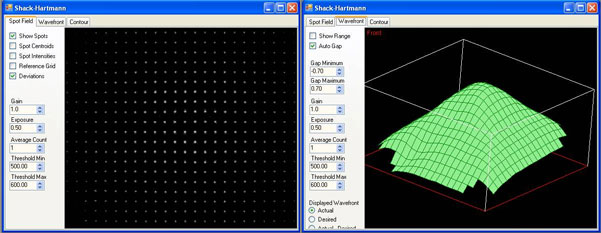

Figure 2. Two Shack-Hartmann wavefront sensor screen captures are shown: the spot field (left-hand frame) and the calculated wavefront based on that spot field information (right-hand frame).

Comparison of sensitivity and dynamic range

Figure 3. Dynamic range and measurement sensitivity are competing properties of a Shack-Hartmann wavefront sensor. Here, f, Δy, and d represent the focal length of the lenslet, the spot displacement, and the lenslet diameter, respectively. The equations provided for the measurement sensitivity θ min and the dynamic range θmax are obtained using the small angle approximation. θmin is the minimum wavefront slope that can be measured by the wavefront sensor. The minimum detectable spot displacement Δymin depends on the pixel size of the photodetector, the accuracy of the centroid algorithm, and the signal to noise ratio of the sensor. θmax is the maximum wavefront slope that can be measured by the wavefront sensor and corresponds to a spot displacement of Δymax, which is equal to half of the lenslet diameter. Therefore, increasing the sensitivity will decrease the dynamic range and vice versa.

The four parameters that greatly affect the performance of a given Shack-Hartmann wavefront sensor are the number of lenslets (or lenslet diameter, which typically ranges from ~100 – 600 μm), dynamic range, measurement sensitivity, and the focal length of the lenslet array (typical values range from a few millimeters to about 30 mm). The number of lenslets restricts the maximum number of Zernike coefficients that a reconstruction algorithm can reliably calculate; studies have found that the maximum number of coefficients that can be used to represent the original wavefront is approximately the same as the number of lenslets. When selecting the number of lenslets needed, one must take into account the amount of distortion s/he is trying to model (i.e., how many Zernike coefficients are needed to effectively represent the true wave aberration). When it comes to measurement sensitivity θmin and dynamic range θmax, these are competing specifications (see Fig. 3 to the right). The former determines the minimum phase that can be detected while the latter determines the maximum phase that can be measured.

A Shack-Hartmann sensor’s measurement accuracy (i.e., the minimum wavefront slope that can be measured reliably) depends on its ability to precisely measure the displacement of a focused spot with respect to a reference position, which is located along the optical axis of the lenslet. A conventional algorithm will fail to determine the correct centroid of a spot if it partially overlaps another spot or if the focal spot of a lenslet falls outside of the area of the sensor assigned to detect it (i.e., spot crossover). Special algorithms can be implemented to overcome these problems, but they limit the dynamic range of the sensor (i.e., the maximum wavefront slope that can be measured reliably). The dynamic range of a system can be increased by using a lenslet with either a larger diameter or a shorter focal length. However, the lenslet diameter is tied to the needed number of Zernike coefficients; therefore, the only other way to increase the dynamic range is to shorten the focal length of the lenslet, but this in turn, decreases the measurement sensitivity. Ideally, choose the longest focal length lens that meets both the dynamic range and measurement sensitivity requirements.

The Shack-Hartmann wavefront sensor is capable of providing information about the intensity profile as well as the calculated wavefront. Be careful not to confuse these. The left-hand frame of Fig. 4 shows a sample intensity profile, whereas the right-hand frame shows the corresponding wavefront profile. It is possible to obtain the same intensity profile from various wavefunction distributions.

Schematic of a sample intensity distribution and wavefront profile for the WFS

Figure 4. Several pieces of information are provided by the Shack-Hartmann wavefront sensor, including information about the total power at each lenslet and the calculated wavefront distribution present. Here, the left-hand frame shows a sample intensity profile, while the right-hand frame shows the corresponding wavefront.

The Deformable Mirror:
The deformable mirror (DM) changes shape in response to position commands in order to compensate for the aberrations measured by the Shack-Hartmann wavefront sensor (refer to the Aberrations tab to learn more about the aberrations that the DM can correct). Ideally, it will assume a surface shape that is conjugate to the aberration profile (see Fig. 5). In many cases, the surface profile is controlled by an underlying array of actuators that move in and out in response to an applied voltage. Deformable mirrors come in several different varieties, but the two most popular categories are segmented and continuous (see Fig. 6). Segmented mirrors are comprised from individual flat segments that can either move up and down (if each segment is controlled by just one actuator) or have tip, tilt, and piston motion (if each segment is controlled by three actuators). These mirrors are typically used in holography and for spatial light modulators. Advantages of this configuration include the ability to manufacture the segments to tight tolerances, the elimination of coupling between adjacent segments of the DM since each acts independently, and the number of degrees of freedom per segment. However, on the down side, the regularly spaced gaps between the segments act like a diffraction pattern, thereby introducing diffractive modes into the beam. In addition, segmented mirrors require more actuators than continuous mirrors to compensate for a given incoming distorted wavefront. To address the optical problems with segmented DMs, continuous faceplate DMs (such as those included in our AO Kits) were fabricated. They offer a higher fill factor (i.e., the percentage of the mirror that is actually reflective) than their segmented counterparts. However, their drawback is that the actuators are mechanically coupled. Therefore, when one actuator moves, there is some finite response along the entire surface of the mirror. The 2D shape of the surface caused by displacing one actuator is called the influence function for that actuator. Typically, adjacent actuators of a continuous DM are displaced by 10-20% of the actuation height; this percentage is known as the actuator coupling. Note that segmented DMs exhibit zero coupling but that isn’t necessarily desirable.

Wavefront reflection from a DM

Figure 5. The aberration compensation capabilities of a flat and MEMS deformable mirror are compared. (a) If an unaberrated wavefront is incident on a flat mirror surface, the reflected wavefront will remain unaberrated. (b) A flat mirror is not able to compensate for any deformations in the wavefront; therefore, an incoming highly aberrated wavefront will retain its aberrations upon reflection. (c) A MEMS deformable mirror is able to modify its surface profile to compensate for aberrations; the DM assumes the appropriate conjugate shape to modify the highly aberrated incident wavefront so that it is unaberrated upon reflection.

segmented vs continuous mirrors

Figure 6. Cross sectional schematics of the main components of BMC's continuous (left) and segmented (right) MEMS deformable mirrors.

The range of wavefronts that can be corrected by a particular DM is limited by the actuator stroke and resolution, the number and distribution of actuators, and the model used to determine the appropriate control signals for the DM; the first two are physical limitations of the DM itself, whereas the last one is a limitation of the control software. The actuator stroke is another term for the dynamic range (i.e., the maximum displacement) of the DM actuators and is typically measured in microns. Inadequate actuator stroke leads to poor performance and can prevent the convergence of the control loop. The number of actuators determines the number of degrees of freedom that the mirror can correct for. Although many different actuator arrays have been proposed, including square, triangular, and hexagonal, most DMs are built with square actuator arrays, which are easy to position on a Cartesian coordinate system and map easily to the square detector arrays on the wavefront sensors. To fit the square array on a circular aperture, the corner actuators are sometimes removed. Although more actuators can be placed within a given area using some of the other configurations, the additional fabrication complexity usually does not warrant that choice.

Cross-like pattern shown on DM

Figure 7. A cross-like pattern is created on the DM surface by applying the voltages necessary for maximum deflection of the 44 actuators that comprise the middle two rows and middle two columns of the array. The frame on the left shows a screen shot of the AO kit software depicting the DM surface, whereas the frame on the right, which was obtained through quasi-dark field illumination, shows the actual DM surface when programmed to these settings. Note that the white light source used for illumination is visible in the lower right-hand corner of the photograph.

Figure 7 (left frame) shows a screen shot of a cross formed on the 12 x 12 actuator array of the DM included with the adaptive optics kit. To create this screen shot, the voltages applied to the middle two rows and middle two columns of actuators were set to cause full deflection of the mirror membrane. In addition to the software screen shot depicting the DM surface, quasi-dark field illumination was used to obtain a photograph of the actual DM surface when programmed to these settings (see Fig. 7, right frame)

The Control Software:
In an adaptive optics setup, the control software is the vital link between the wavefront sensor and the deformable mirror. It converts the wavefront sensor’s electrical signals, which are proportional to the slope of the wavefront, into compensating voltage commands that are sent to each actuator of the DM. The closed-loop bandwidth of the adaptive optics system is directly related to the speed and accuracy with which this computation is done, but in general, these calculations must occur on a shorter time scale than the aberration fluctuations.

In essence, the control software uses the spot field deviations to reconstructs the phase of the beam (in this case, using Zernike polynomials) and then sends conjugate commands to the DM. A least-squares fitting routine is applied to the calculated wavefront phase in order to determine the effective Zernike polynomial data outputted for the end user. Although not the only form possible, Zernike polynomials provide a unique and convenient way to describe the phase of a beam. These polynomials form an orthogonal basis set over a unit circle with different terms representing the amount of focus, tilt, astigmatism, comma, et cetera; the polynomials are normalized so that the maximum of each term (except the piston term) is +1, the minimum is –1, and the average over the surface is always zero. Furthermore, no two aberrations ever add up to a third, thereby leaving no doubt about the type of aberration that is present.

Monochromatic Aberrations

There are five primary monochromatic aberrations, which can be further divided into two subgroups: those that deteriorate the image (spherical aberration, coma, and astigmatism) and those that deform the image (field curvature and distortion). These aberrations are a direct result of departures from first-order (i.e., sinθ≈θ) theory, which assumes the light rays make small angles with the principal axis. As soon as one wants to consider light rays incident on the periphery of a lens, the statement sinθ≈θ, which forms the basis of paraxial optics, is no longer satisfactory and one must consider more terms in the expansion:

sine expansion

The five primary monochromatic aberrations were first studied by Ludwig von Seidel, and hence, they are frequently referred to as the Seidel aberrations. Please note that since the expansion of sinθ is an infinite sum, the five monochromatic aberrations discussed below are not the only ones possible; there are additional higher-order aberrations that make smaller contributions to image degradation. The surface of the deformable mirror can be altered to accommodate all of these types of monochromatic aberrations.

1) Spherical Aberrations

For parallel incoming light rays, an ideal lens will be able to focus the rays to a point on the optical axis as shown in Fig. 1a; consequently, under ideal circumstances, the image of a point source that is located on the optical axis will be a bright circular disk surrounded by faint rings (see the Airy diffraction pattern shown in Fig. 1b). However, in reality, the light rays that strike a spherical converging lens far from the principal axis will be focused to a point that is closer to the lens than those light rays that strike the spherical lens near the principal axis (see Fig. 1c). Consequently, there is no single focus for a spherical lens, and the image will appear to be blurred; instead of having an Airy diffraction pattern in which nearly all the light is contained in a central bright circular spot, spherical aberration will redistribute some of the light from the central disk to the surrounding rings (see Fig. 1d), thereby reducing image contrast. Whenever spherical aberration is present, the best focus for an uncorrected lens will be somewhere between the focal planes of the peripheral and axial rays. Please note that spherical aberration only pertains to object points that are located on the optical axis.

Figure of Spherical Aberration

Figure 1.  Comparison of an ideal situation to one in which spherical aberration is present. (a) For a perfect lens, all incoming light rays get focused to a single point. (b) The Airy diffraction pattern corresponding to a point source that has been imaged by a perfect lens consists of a bright central spot surrounded by faint concentric rings. (c) For a real lens, light incident on the edges of a lens is refracted more than the light striking the center of the lens, and thus, there is not one unique focal point for all incident light rays. (d) Spherical aberration degrades resolution by redistributing some of the light from the central bright spot to the surrounding concentric rings.

2) Coma

Coma, or comatic aberration, is an image-degrading aberration associated with object points that are even slightly off axis. When an off-axis bundle of light is incident on a lens, the light will undergo different amounts of refraction depending on where it strikes the lens (see Fig. 2a); as a result, each annulus of light will focus onto the image plane at a slightly different height and with a different spot size (see Fig. 2b), thereby leading to different transverse magnifications. The resulting image of a point source, which is shown in Fig. 2c, is a complicated asymmetrical diffraction pattern with a bright central core and a triangular flare that departs drastically from the classical Airy pattern shown in Fig 1b above. The elongated comet-like structure from which this type of aberration takes its name can extend either towards or away from the optical axis depending on whether the comatic aberration is negative or positive, respectively. Due to the asymmetry that coma causes in images, many consider it to be the worst type of aberration.

Coma Abberation

Figure 2. The effects of positive coma are shown. (a) When a light source is off-axis, the various portions of the lens do not refract the light to the same point on the image plane. (b) The central region of the lens forms a point image at the vertex of the cone, while larger rings on the periphery of the lens correspond to larger comatic circles that are displaced farther from the principal axis. (c) Coma leads to a complicated asymmetrical comet-like diffraction pattern characterized by an elongated structure of blotches and arcs. Note that the diffraction pattern shown assumes no spherical aberration.

3) Astigmatism

Astigmatism, like coma, is an aberration that arises when an object point is moved away from the optical axis. Under such conditions, the incident cone of light will strike the lens obliquely, leading to a refracted wavefront characterized by two principal curvatures that ultimately determine two different focal image points. Figure 3a shows the two planes one needs to consider: the tangential (also known as the meridional) plane and the sagittal plane; the tangential plane is defined by the chief ray (i.e., the light ray from the object that passes through the center of the lens) and the optical axis, while the sagittal plane is a plane that contains the chief ray and is perpendicular to the tangential plane. In addition to the chief light ray, Fig. 3a also shows two other off-axis light rays, one passing through the tangential plane and the other passing through the sagittal plane. For complex multi-element lens systems (e.g., microscope objective or ASOM system), the tangential plane remains coherent from one end of the system to the other while the sagittal plane usually changes slope as the chief ray’s propagation direction is altered by the various components in the lens system. Consequently, in general, the focal lengths associated with these planes will be different (see Fig. 3b). If the sagittal focus and the tangential focal points are coincident, then the object point is on axis and the lens is free of astigmatism. However, as the amount of astigmatism present increases, the distance between these two foci will also increase, and as a result, the image will lose definition around its edges. The presence of astigmatism will cause the ideal circular point image to be blurred into a complicated elongated diffraction pattern that appears more linelike when more astigmatism is present (see Figs. 3c and 3d).

Astigmatism Abberation

Figure 3. The effects of astigmatism, assuming the absence of spherical aberration and coma, are illustrated. (a) The tangential and sagittal planes are shown. (b) Light rays in the tangential and sagittal planes are refracted differently, ultimately leading to two different focal planes, which are labeled as the tangential focus and sagittal focus. (c) The Airy diffraction pattern of a point source as viewed at the tangential focal plane. (d) The Airy diffraction pattern of a point source as viewed at the sagittal focal plane.

4) Field Curvature

For most optical systems, the final image must be formed on a planar surface; however, in actuality, a lens that is free of all other off-axis aberrations creates an image on a curved surface known as a Petzval surface. This nominal curvature of this surface, which is known as the Petzval curvature, is the reciprocal of the lens radius. For a positive lens, this surface curves inward towards the object plane, whereas for a negative lens, the surface curves away from that plane. The field curvature aberration arises from forcing a naturally curved image surface into a flat one. For the image, the presence of field curvature makes it impossible to have both the edges and central region of the image be crisp simultaneously. If the focal plane is shifted to the vertex of the Petzval surface (Position A in Fig. 4), the central part of the image will be in focus while the outer portion of the image will be blurred, making it impossible to distinguish minor structural details in this outer region. Alternatively, if the image plane is moved to the edges of the Petzval surface (Position B in Fig. 4), the opposite effect occurs; the edges of the image will come into focus, but the central region will become blurred. The best compromise between these two extremes is to place the image plane somewhere in between the vertex and edges of the Petzval surface, but regardless of its location, the image will never appear sharp and crisp over the entire field of view.

Diagram showing field curvature

Figure 4. Field curvature, an aberration associated with off-axis objects, arises because the best image is not formed on the paraxial image plane but on a parabolic surface called the Petzval surface. (a) Depending on the location of the focal plane along the optic axis, either the central (if at location A) or peripheral (if at location B) portions of the field of view will be in focus but not both. (b) The central portion of the image will be crisp if the image plane is located at position A. (c) The edges of the image will be sharply in focus if the image plane is located at position B.

5) Distortion

The last of the Seidel aberrations is distortion, which is easily recognized in the absence of all other monochromatic aberrations because it deforms the entire image even though each point is sharply focused. Distortion arises because different areas of the lens usually have different focal lengths and magnifications. If no distortion is present in a lens system, the image will be a true magnified reproduction of the object (see Fig. 5b). However, when distortion is present, off-axis points are imaged either at a distance greater than normal or less than normal, leading to a pincushion (see Fig. 5a) or barrel (see Fig. 5c) shape, respectively.

Image Distortion

Figure 5. The effects of distortion, assuming the absence of all other forms of aberration, are illustrated. (a) Positive or pincushion distortion occurs when the transverse magnification of a lens increases with the axial distance; this effect causes each image point to be displaced radially outward from the center, with the most distant points undergoing the largest displacements. (b) If no distortion is present, the image will be a scaled duplicate of the object. (c) Negative or barrel distortion occurs when the transverse magnification of a lens decreases with axial distance; in this case, each image point moves radially inward toward the center; again, the most distant points undergo the largest displacements.

Chromatic Aberrations

The monochromatic aberrations discussed above can all be compensated for using a deformable mirror such as the one included in these adaptive optics kits. However, when a broadband light source is used, chromatic aberrations will result. Since a DM cannot compensate for these aberrations, we will only briefly mention them here. Chromatic aberrations, which come in two forms (i.e., lateral and longitudinal), arise from the variation of the index of refraction of a lens with incident wavelength. Since blue light is refracted more than red light, the lens is not capable of focusing all colors to the same focal point; therefore, the image size and focal point for each color will be slightly different, leading to an image that is surrounded by a halo. Generally, since the eye is most sensitive to the green part of the spectrum, the tendency is to focus the lens for that region; if the image plane is then moved towards (away from) the lens, the periphery of the blurred image will be tinted red (blue).

Introduction
Off-axis scanning is frequently used in many imaging techniques including Optical Coherence Tomography (OCT), Confocal Microscopy, and Adaptive Scanning Optical Microscopy (ASOM). Without adaptive optics, images obtained using these techniques will suffer from the off-axis aberrations discussed in the Aberrations tab, thereby requiring one to choose between resolution and field of view. However, by using a deformable mirror, this tradeoff is overcome. To learn more about how a deformable mirror works and its role in an adaptive optics system, please see the AO Tutorial tab.

ASOM Photo

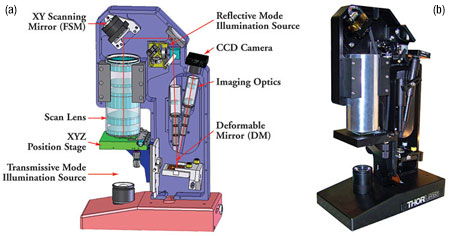

Figure 1. (a) A schematic of Thorlabs' ASOM system, which consists of a custom-designed scan lens, a fast steering mirror, a 4.4 mm x 4.4 mm DM with a 12 x 12 grid of electrostatic actuators, and a CCD camera. (b) A photograph of the ASOM system.

An Example: ASOM
As an example, consider Thorlabs’ Adaptive Scanning Optical Microscope (ASOM), which is shown in Fig. 1 at the right and combines a high-speed steering mirror, large aperture scan lens, and micro-electro-mechanical (MEMS) deformable mirror to provide a large field of view (Ø40 mm) while preserving resolving power (1.5 μm over the entire field of view) and a high image acquisition rate (30 fps). As the imaged area on the sample is changed (by changing the orientation of the fast steering mirror), the deformable mirror is used to correct the off-axis aberrations introduced by the scan lens, thus maintaining the diffraction-limited 1.5 μm resolution across the extended composite field of view.

ASOM works by taking a sequence of small spatially separated images in rapid succession and then assembling them to form a large composite image. Although mosaic construction has been used in the past to expand the field of view while preserving resolution, it necessitated the use of a moving stage. In contrast, the ASOM uses a high speed 2D mirror, a specially designed scanner lens assembly, a deformable mirror, and additional imaging optics to overcome this tradeoff.

Figure 2 shows a schematic of the ASOM scanner lens assembly (SLA). Unlike a traditional microscope objective, which must image onto a flat surface, the ASOM allows for a curved image field (i.e., the natural image field shape for a lens – refer to the Field Curvature Section under the Aberrations tab), thereby greatly simplifying the optical design and number of lens elements necessary. The figure shows four different scan angle positions. The blue lines represent on-axis scanning, whereas the green, red, and yellow lines correspond to various off-axis scan angles. For each scan angle illustrated, the wavefront distortion as a function of linear displacement from the central position on the image tile of the wavefront sensor is given.

Off-Axis Wavefront Distortion for ASOM system
Figure 2. Adaptive Scanning Optical Microscopy (ASOM) utilizes a curved image field, thereby greatly simplifying the scanner lens assembly shown. The blue, green, red, and yellow rays represent various off-axis scan angles (0°, 2°, 4°, and 6°, respectively). For each angle, the corresponding wavefront distortion is shown. The graphs show the distortion (in waves) as a function of position on the wavefront sensor tile. Regardless of scan angle, notice that no waves of distortion are present at the exact center of each image tile. Please note that for this figure, the term "distortion" is meant to encompass all types of aberrations.

Although the large aperture scan lens and overall system layout are specifically designed to deal with field curvature, all other off-axis aberrations, such as coma and astigmatism (see the Aberrations tab for a detailed discussion), are still present in the ASOM system. These aberrations are compensated for at each individual field position throughout the scanner’s range by a deformable mirror. Figure 3 shows the optimal DM shape for a given angular position of the high speed steering mirror.

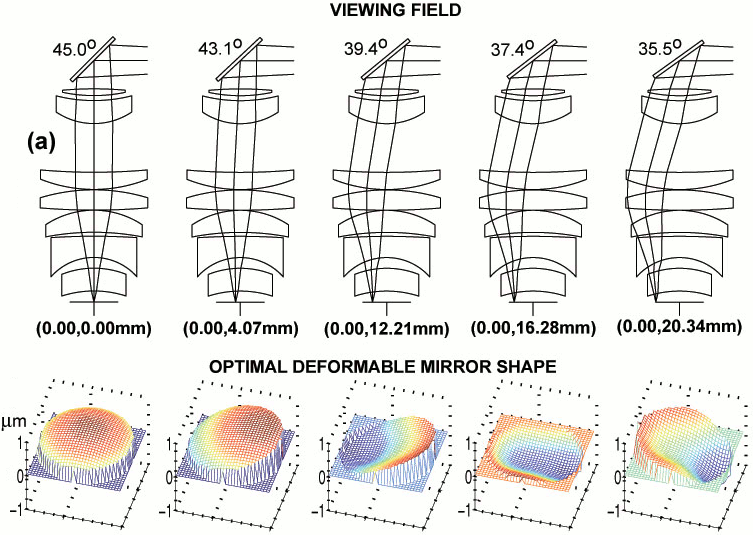

ASOM Scan
Figure 3. The angular position of the 2D steering mirror defines the observable field position. Here, the various mirror positions map out the image at five points along the y-axis. For each angular position of the high speed steering mirror shown in frame (a), the corresponding optimal deformable mirror shape is shown in frame (b). Note that the DM topology configuration necessary to correct the image at each field position is not trivial.
Air Force Target Image
Figure 4. Resolution target imaged using (a) a flat mirror (b) an optimized deformable mirror. The smallest lines are separated by 2 μm.

The deformable mirror's impressive wavefront correction abilities are demonstrated in Fig. 4, which shows an air force target imaged using a flat mirror in frame (a) and a deformable mirror in frame (b). In frame (a), the image is completely blurred, making it impossible to distinguish any structure, whereas, in frame (b), the smallest lines, which are only separated by 2 μm, are now discernable.

AO Image

Adaptive Optics Enhances Multiphoton Retinal Images

Featured Researchers: J. M. Bueno, E. J. Gualda, and P. Arta

Application Article Button

Adaptive Optics and Deformable Mirror Publications

2019



Emily Finan; Thomas Milster; Young Sik Kim, “Adaptive optics correction using coherently illuminated diffractive optics,” Proc. SPIE 11125, Optical Engineering and Applications, 1112509 (August 30, 2019); doi: 10.1117/12.2530045.

Ming Zhang, Dun Li, Yu Ning, Xin Wang, and Fengjie Xi "Simulation and analysis of distortion correction of supercontinuum wavefront based on SPGD algorithm," Proc. SPIE 11046, Fifth International Symposium on Laser Interaction with Matter, 110460Y (March 29, 2019); doi: 10.1117/12.2524367.

Yide Zhang, Ian H. Guldner, Evan L. Nichols, David Benirschke, Cody J. Smith, Siyuan Zhang, and Scott S. Howard "Three-dimensional deep tissue multiphoton frequency-domain fluorescence lifetime imaging microscopy via phase multiplexing and adaptive optics," Proc. SPIE 10882, Multiphoton Microscopy in the Biomedical Sciences XIX, 108822H (February 22, 2019); doi: 10.1117/12.2510674.

2018



Tracy T. Chow, Ziaoyu Shi, Jen=Hsuan Wei, Juan Guan, Guido Stadler, Bo Huang, and Elizabeth H. Blackburn, "Local enrichment of HP1alpha at telomeres alters their structure and regulation of telomere protection," Nature Commmunications, Vol. 9, 3583 (2018); doi: 10.1038/s41467-018-05840-y.

Jamie Soon, François Rigaut, Ian Price, "CACAO: a generic low-cost adaptive optics system for small aperture telescopes," Proc. SPIE 10703, Adaptive Optics Systems VI, 107035Z (July 11, 2018); doi: 10.1117/12.2311823.

Andrey Aristov, Benoit Lelandais, Elena Rensen, and Christophe Zimmer, "ZOLA-3D allows flexible 3D localization microscopy over an adjustable axial range," Nature Communications, Vol. 9, 2409 (2018); doi: 10.1038/s41467-018-04709-4.

2017



Boris Ayancán, Héctor González-Núñez, and Andrés Guesalaga, “A flexible AO system for research and educational purposes,” Óptica Pura y Aplicada, Vol. 50, Issue 4, pp. 389-399 (2017).

Thomas Milster; Young Sik Kim, “Adaptive optics for data recovery on optical disk fragments,” Proc. SPIE 10384, Optical Engineering and Applications, 103840J (September 20, 2017); doi:10.1117/12.2277078.

Moon-Seob Jin ; Ryan Luder ; Lucas Sanchez ; Michael Hart, “Control code for laboratory adaptive optics teaching system,” Proc. SPIE 10401, Astronomical Optics: Design, Manufacture, and Test of Space and
Ground Systems, 104011K (September 5, 2017); doi:10.1117/12.2276176.

Lucas Sanchez ; Moon-Seob Jin ; R. Phillip Scott ; Ryan Luder ; Michael Hart, “Voltage linear transformation circuit design,” Proc. SPIE 10401, Astronomical Optics: Design, Manufacture, and Test of Space and
Ground Systems, 1040115 (September 5, 2017); doi:10.1117/12.2276166.

Xiaoyu Shi, Galo Garcia III, Julie C. Van De Weghe, Ryan McGorty, Gregory J. Pazour, Dan Doherty, Bo Huang, and Jeremy F. Reiter, "Super-resolution microscopy reveals that disruption of ciliary transition-zone architecture causes Joubert syndrome," Nature Cell Biology, Vol. 9, pp. 1178 - 1188 (2017); doi: 10.1038/ncb3599.

2016



M. Ishizuka, T. Kotani, J. Nishikawa, M. Tamura, T. Kurokawa, T. Mori, and T. Kokubo "Fiber mode scrambler experiments for the Subaru Infrared Doppler Instrument (IRD)," Proc. SPIE 9912, Advances in Optical and Mechanical Technologies for Telescopes and Instrumentation II, 99121Q (August 12, 2016); doi: 10.1117/12.2232166.

2012



Jiangpei Dou ; Deqing Ren ; Yongtian Zhu ; Xi Zhang ; Rong Li, “A dark-hole correction test for the step-transmission filter based coronagraphic system,” Proc. SPIE 8442, Space Telescopes and Instrumentation 2012: Optical, Infrared, and Millimeter Wave, 84420D (September 21, 2012); doi:10.1117/12.924248.

R. Davies, M. Kasper, “Adaptive Optics for Astronomy,” arXiv:1201.5741v1 [astro-ph.IM].

Wei Sun, Yang Lu, Thomas G. Bifano, Jason B. Stewart, and Charles P. Lin, “Critical considerations of pupil alignment to achieve open-loop control of MEMS deformable mirror in nonlinear laser scanning fluorescence microscopy,” Proc. SPIE 8253, 82530H (2012); http://dx.doi.org/10.1117/12.909652.

Alexis Hill ; Steven Cornelissen ; Daren Dillon ; Charlie Lam ; Dave Palmer ; Les Saddlemyer, “Flexure mount for a MEMS deformable mirror for the Gemini Planet Imager,” Proc. SPIE 8450, Modern Technologies in Space- and Ground-based Telescopes and Instrumentation II, 84500H (September 13, 2012); doi:10.1117/12.926842.

Katie M. Morzinski, Andrew P. Norton, Julia Wilhelmson Evans, Layra Reza, Scott A. Severson, Daren Dillon, Marc Reinig, Donald T. Gavel, Steven Cornelissen, Bruce A. Macintosh, Claire E. Max, “MEMS practice, from the lab to the telescope,” arXiv:1202.1566v1 [astro-ph.IM].

Thomas Bifano, Yang Lu, Christopher Stockbridge, Aaron Berliner, John Moore, Richard Paxman, Santosh Tripathi and Kimani Toussaint, “MEMS spatial light modulators for controlled optical transmission through nearly opaque materials,” Proc. SPIE 8253, 82530L (2012); http://dx.doi.org/10.1117/12.911384.

Ravi S. Jonnal, Omer P. Kocaoglu, Qiang Wang, Sangyeol Lee, and Donald T. Miller, “Phase-sensitive imaging of the outer retina using optical coherence tomography and adaptive optics,” Biomedical Optics Express, Vol. 3, Issue 1, pp. 104-124 (2012) http://dx.doi.org/10.1364/BOE.3.000104.

Yiin Kuen Fuh, Kuo Chan Hsu, and Jia Ren Fan, “Rapid in-process measurement of surface roughness using adaptive optics,” Optics Letters, Vol. 37, Issue 5, pp. 848-850 (2012) http://dx.doi.org/10.1364/OL.37.000848.

C. Baranec, R. Riddle, A. N. Ramaprakash, N. Law, S. Tendulkar, S. Kulkarni, R. Dekany, K. Bui, J. Davis, M. Burse, H. Das, S. Hildebrandt, S. Punnadi, R. Smith, “Robo-AO: autonomous and replicable laser-adaptive-optics and science system,” Proc. SPIE 8447, Adaptive Optics Systems III, 844704 (September 13, 2012).

Renate Kupke ; Donald Gavel ; Constance Roskosi ; Gerald Cabak ; David Cowley ; Daren Dillon ; Elinor L. Gates ; Rosalie McGurk ; Andrew Norton ; Michael Peck ; Christopher Ratliff ; Marco Reinig, “ShaneAO: an enhanced adaptive optics and IR imaging system for the Lick Observatory 3-meter telescope,” SPIE doi:10.1117/12.926470.

N. Jeremy Kasdin and Tyler D. Groff, “Shaped pupils with two micromechanical deformable mirrors for exoplanet imaging,” 2 February 2012, SPIE Newsroom. DOI: 10.1117/2.1201201.004084.

Y. Lua, E. Ramsayb, C.R. Stockbridgea, A. Yurtc, F.H. Köklüd, T.G. Bifanoa, e, M.S. Ünlüd, B.B. Goldberg, “Spherical aberration correction in aplanatic solid immersion lens imaging using a MEMS deformable mirror,” Microelectronics Reliability Volume 52, Issues 9.10, September-October 2012.

Weiyao Zou and Stephen A. Burns, “Testing of Lagrange multiplier damped least-squares control algorithm for woofer-tweeter adaptive optics,” Applied Optics, Vol. 51, Issue 9, pp. 1198-1208 (2012) http://dx.doi.org/10.1364/AO.51.001198.

Toco Y. P. Chui, Dean A. VanNasdale, and Stephen A. Burns, “The use of forward scatter to improve retinal vascular imaging with an adaptive optics scanning laser ophthalmoscope,” Biomedical Optics Express, Vol. 3, Issue 10, pp. 2537-2549 (2012).

2011



K. Enya, L. Abe, S. Takeuchi, T. Kotani, T. Yamamuro, “A high dynamic-range instrument for SPICA for coronagraphic observation of exoplanets and monitoring of transiting exoplanets,” arXiv:1110.2621v1 [astro-ph.IM].

M. B. Roopashree, Akondi Vyas, and B. Raghavendra Prasad, “A novel model of influence function: calibration of a continuous membrane deformable mirror,” Proc. of Int. Conf. on Advances in Electrical & Electronics 2011 ACEEE DOI: 02.AEE.2011.02.49.

S. Burns, W. Zou, Z. Zhong, G. Huang, and X. Qi, “Adapting AO systems for clinical Imaging,” Adaptive Optics: Methods, Analysis and Applications, OSA Technical Digest (CD) (Optical Society of America, 2011), paper AMA1.

Xiaodong Tao, Bautista Fernandez, Diana C. Chen, Oscar Azucena, Min Fu, Yi Zuo and Joel Kubby, “Adaptive Optics Confocal Fluorescence Microscopy with Direct Wavefront Sensing for Brain Tissue Imaging,” Proceedings of the SPIE, Volume 7931, pp. 79310L-79310L-8 (2011). DOI: 10.1117/12.876524.

Xiaodong Tao, Bautista Fernandez, Oscar Azucena, Min Fu, Denise Garcia, Yi Zuo, Diana C. Chen, and Joel Kubby, “Adaptive optics confocal microscopy using direct wavefront sensing,” Optics Letters, Vol. 36, Issue 7, pp. 1062-1064 (2011).

Xiaodong Tao, Bautista Fernandez, Oscar Azucena, Min Fu, Denise Garcia, Yi Zuo, Diana C. Chen, and Joel Kubby, “Adaptive optics confocal microscopy using direct wavefront sensing,” Optics Letters, Vol. 36, Issue 7, pp. 1062-1064 (2011).

Xiaodong Tao, Oscar Azucena, Min Fu, Yi Zuo, Diana C. Chen, and Joel Kubby, “Adaptive optics microscopy with direct wavefront sensing using fluorescent protein guide stars,” Optics Letters, Vol. 36, Issue 17, pp. 3389-3391 (2011).

Yaopeng Zhou, Thomas Bifano, and Charles Lin, “Adaptive optics two-photon fluorescence microscopy,” Proc. SPIE 7931, 79310H (2011); doi:10.1117/12.875596.

Oscar Azucena, Xiaodong Tao, Justin Crest, Shaila Kotadia, William Sullivan, Donald Gavel, Marc Reinig, Scot Olivier, Joel Kubby, “Adaptive optics widefield microscope corrections using a MEMS DM and Shack-Hartmann wavefront sensor,” Proc. of SPIE Vol. 7931, 79310J (2011) doi:10.1117/12.876439.

Oscar Azucena, Justin Crest, Shaila Kotadia, William Sullivan, Xiaodong Tao, Marc Reinig, Donald Gavel, Scot Olivier, and Joel Kubby, “Adaptive optics wide-field microscopy using direct wavefront sensing,” Opt. Lett. 36, 825-827 (2011).

Toco Y. P. Chui, James D. Akula, Anne B. Fulton, Jennifer L. Norris, Alfredo Dubra, Melanie Campbell, Daniel X. Hammer, R. D. Ferguson, Mircea Mujat, David P. Biss, Nicusor V. Iftimia, Ankit H. Patel, and Emily Plumb, “Advanced capabilities of the multimodal adaptive optics imager,” Proc. SPIE 7885, 78850A (2011).

M N Horenstein, J B Stewart, S Cornelissen, R Sumner, D S Freedman, M Datta, N Kani, P Miller, “Advanced MEMS systems for optical communication and imaging,” M N Horenstein et al 2011 Journal of Physics: Conf. Ser. 301 (2011) 012056.

Akondi Vyas,M. B. Roopashree and B. Raghavendra Prasad, “Advanced Methods for Improving the Efficiency of a Shack Hartmann Wavefront Sensor,” Indian Institute of Astrophysics, Koramangala, Bangalore, India.

Hao Ren, Fenggang Tao, Weimin Wang, and Jun Yao, “An out-of-plane electrostatic actuator based on the lever principle,” J. Micromech. Microeng. 21 045019 doi:10.1088/0960-1317/21/4/045019.

Juan M. Bueno, Anastasia Giakoumaki, Emilio J. Gualda, Frank Schaeffel, and Pablo Artal, “Analysis of corneal stroma organization with wavefront optimized nonlinear microscopy,” Cornea: June 2011 - Volume 30 - Issue 6 - pp 692-701 doi: 10.1097/ICO.0b013e3182000f94.

Diego Rativa, Brian Vohnsen, “Analysis of individual cone-photoreceptor directionality using scanning laser ophthalmoscopy,” Biomedical Optics Express, Vol. 2, Issue 6, pp. 1423-1431 (2011).

Juan M. Bueno, Anastasia Giakoumaki, Emilio J. Gualda, Frank Schaeffel, and Pablo Artal, “Analysis of the chicken retina with an adaptive optics multiphoton microscope,” Biomedical Optics Express, Vol. 2, Issue 6, pp. 1637-1648 (2011).

Donald Gavel, “ASTRONOMICAL IMAGING: New adaptive optics system at Lick Observatory uses MEMS,” Laser Focus World, 08/01/2011.

B.B. Goldberg, A. Yurt, Y. Lu, E. Ramsay, F.H. Koklu, J. Mertz, T.G. Bifano, M.S. Unlud, “Chromatic and spherical aberration correction for silicon aplanatic solid immersion lens for fault isolation and photon emission microscopy of integrated circuits,” Science Direct, http://dx.doi.org/10.1016/j.microrel.2011.07.047.

F. Kong, N. V. Proscia, K. K. Lee, and Y. Chen, “Controlling Spatial Coherence in Multimode Fibers,” in Adaptive Optics: Methods, Analysis and Applications, OSA Technical Digest (CD) (Optical Society of America, 2011), paper AMC4.

Donald T. Gavel, “Development of an enhanced adaptive optics system for the Lick Observatory Shane 3-meter Telescope,” Proc. SPIE 7931, 793103 (2011); http://dx.doi.org/10.1117/12.876413.

Célia Blain, Olivier Guyon, Colin Bradley, and Olivier Lardiere, “Fast iterative algorithm (FIA) for controlling MEMS deformable mirrors: principle and laboratory demonstration,” Optics Express, Vol. 19, Issue 22, pp. 21271-21294 (2011) http://dx.doi.org/10.1364/OE.19.021271.

Emilio J. Gualda, Javier R. Vázquez de Aldana, M. Carmen Martínez-García, Pablo Moreno, Juan Hernández-Toro, Luis Roso, Pablo Artal, and Juan M. Bueno, “Femtosecond infrared intrastromal ablation and backscattering-mode adaptive-optics multiphoton microscopy in chicken corneas,” Biomedical Optics Express, Vol. 2, Issue 11, pp. 2950-2960 (2011).

Geoff Anderson and Fassil Ghebremichael, “Holographic Adaptive Laser Optics System,” .

Omer P. Kocaoglu, Sangyeol Lee, Ravi S. Jonnal, Qiang Wang, Ashley E. Herde, Jack C. Derby, Weihua Gao, and Donald T. Miller, “Imaging cone photoreceptors in three dimensions and in time using ultrahigh resolution optical coherence tomography with adaptive optics,” Biomedical Optics Express, Vol. 2, Issue 4, pp. 748-763 (2011) http://dx.doi.org/10.1364/BOE.2.000748.

Lisa A. Poyneer, “Imaging extra-solar planets with adaptive optics and a MEMS mirror,” SPIE Newsroom. DOI: 10.1117/2.1201102.003471.

Qiang Wang, Omer P. Kocaoglu, Barry Cense, Jeremy Bruestle, Ravi S. Jonnal, Weihua Gao, Donald T. Miller, “Imaging Retinal Capillaries Using Ultrahigh-Resolution Optical Coherence Tomography and Adaptive Optics,” Invest. Ophthalmol. Vis. Sci. January 18, 2011 iovs.10-6424.

Omer P. Kocaoglu, Barry Cense, Ravi S. Jonnal, Qiang Wang, Sangyeol Lee, Weihua Gao, and Donald T. Miller, “Imaging retinal nerve fiber bundles using optical coherence tomography with adaptive optics,” Vision Research, doi:10.1016/j.visres.2011.06.013.

J.M. Girkin, “Implementation of adaptive optics in beam scanning and wide-field optical microscopy,” Proc. SPIE 7931, 79310E (2011).

Weiyao Zou, Xiaofeng Qi, Gang Huang, and Stephen A. Burns, “Improving wavefront boundary condition for in vivo high resolution adaptive optics ophthalmic imaging,” Biomedical Optics Express, Vol. 2, Issue 12, pp. 3309-3320 (2011).

Yiin Kuen Fuh, Kuo Chan Hsu, Jia Ren Fan, Ming Xien Lin, “Induced aberrations by combinative convex/concave interfaces of refractive-index-mismatch and capability of adaptive optics correction,” Microw. Opt. Technol. Lett., 53: 2610-2615. doi: 10.1002/mop.26323.

Akondi Vyas, M. B. Roopshree, B. Raghavendra Prasad, “Intensity Weighted Noise Reduction in MEMS Based Deformable Mirror Images,” AIP Conf. Proc. 1391, pp. 347-349; doi:10.1063/1.3643545.

Joseph Carroll, Michael Pircher, and Robert J. Zawadzki, “Introduction: Feature Issue on Cellular Imaging of the Retina,” Biomedical Optics Express, Vol. 2, Issue 6, pp. 1778-1780 (2011).

P. Martinez, E. Aller Carpentier, M. Kasper, A. Boccaletti, C. Dorrer, J. Baudrand, “Laboratory comparison of coronagraphic concepts under dynamical seeing and high-order adaptive optics correction,” The Authors Monthly Notices of the Royal Astronomical Society 2011 DOI: 10.1111/j.1365-2966.2011.18529.x.

Carrasco-Casado, A.; Vergaz, R.; Sanchez-Pena, J.M.; Oton, E.; Geday, M.A.; Oton, J.M.;, “Low-Impact Air-to-Ground Free-Space Optical Communication System Design and First Results,” Proc. Space Optical Systems and Applications (ICSOS), 2011 International Conference (2011).

I. Dobrev, Marc Balboa, Ryan Fossett, C. Furlong, and E. J. Harrington, “MEMS for real-time infrared imaging,” MEMS and Nanotechnology, Volume 4. Proceedings of the 2011 Annual Conference on Experimental and Applied Mechanics.

Juan M. Bueno, Emilio J. Gualda, Anastasia Giakoumaki, Pablo Pérez-Merino, Susana Marcos and Pablo Artal, “Multiphoton Microscopy of Ex Vivo Corneas after Collagen Cross-Linking,” Invest. Ophthalmol. Vis. Sci. July 18, 2011 vol. 52 no. 8 5325-5331 doi: 10.1167/iovs.11-7184.

Donald T. Gavel, “New adaptive-optics technology for ground-based astronomical telescopes,” SPIE Newsroom. DOI: 10.1117/2.1201101.003434.

P.R. Lawson, O.P. Lay, S.R. Martin, R.D. Peters, A.J. Booth, R.O. Gappinger, A. Ksendzov and D.P. Scharf, “New technologies for exoplanet detection with mid-IR interferometers,” Research, Science and Technology of Brown Dwarfs and Exoplanets: Proceedings of an International Conference held in Shangai on Occasion of a Total Eclipse of the Sun.

David Merino, Jacque L. Duncan, Pavan Tiruveedhula, and Austin Roorda, “Observation of cone and rod photoreceptors in normal subjects and patients using a new generation adaptive optics scanning laser ophthalmoscope,” Biomedical Optics Express, Vol. 2, Issue 8, pp. 2189-2201 (2011).

Laurent Pueyo, Jason Kay, N. Jeremy Kasdin, Tyler Groff, Michael McElwain, Amir Giveon, and Ruslan Belikov, “Optimal dark hole generation via two deformable mirrors with stroke minimization,” Applied Optics, Vol. 48, Issue 32, pp. 6296-6312.

JS Werner, JL Keltner, RJ Zawadzki, and SS Choi, “Outer retinal abnormalities associated with inner retinal pathology in nonglaucomatous and glaucomatous optic neuropathies,” Cambridge Ophthalmological Symposium, Eye 25, 279-289 (March 2011).

Z. Liu, O. P. Kocaoglu, R. S. Jonnal, Q. Wang, and D. T. Miller, “Performance of an off-axis ophthalmic adaptive optics system with toroidal mirrors,” Adaptive Optics: Methods, Analysis and Applications, OSA Technical Digest (CD) (Optical Society of America, 2011), paper AMA4.

Ravi S. Jonnal, Omer P. Kocaoglu, Qiang Wang, Sangyeol Lee, and Donald T. Miller, “Phase-sensitive imaging of the outer retina using optical coherence tomography and adaptive optics,” Biomedical Optics Express, Vol. 3, Issue 1, pp. 104-124 (2012).

Fanting Kong, Ronald H. Silverman, Liping Liu, Parag V. Chitnis, Kotik K. Lee, and Y. C. Chen, “Photoacoustic-guided convergence of light through optically diffusive media,” Optics Letters, Vol. 36, Issue 11, pp. 2053-2055 (2011).

Sotaro Ooto, MD; Masanori Hangai, MD; Nagahisa Yoshimura, MD, “Photoreceptor Restoration in Unilateral Acute Idiopathic Maculopathy on Adaptive Optics Scanning Laser Ophthalmoscopy,” Archives of Opthalmology, Vol. 129 No. 12, December 2011.

Yang Lu, Samuel M. Hoffman, Christopher R. Stockbridge, Andrew P. LeGendre, Jason B. Stewart, and Thomas G. Bifano, “Polymorphic optical zoom with MEMS DMs,” Proc. of SPIE Vol. 7931 79310D-1: DOI: 10.1117/12.874207.

Kevin M. Ivers, Chaohong Li, Nimesh Patel, Nripun Sredar, Xunda Luo, Hope Queener, Ronald S. Harwerth, Jason Porter, “Reproducibility of measuring lamina cribrosa pore geometry in human and non-human primates using in vivo adaptive optics imaging,” Invest. Ophthalmol. Vis. Sci. May 5, 2011 iovs.11-7347.

Kevin M. Ivers, Chaohong Li, Nimesh Patel, Nripun Sredar, Xunda Luo, Hope Queener, Ronald S. Harwerth and Jason Porter, “Reproducibility of Measuring Lamina Cribrosa Pore Geometry in Human and Nonhuman Primates with In Vivo Adaptive Optics Imaging,” Invest. Ophthalmol. Vis. Sci. July 2011 vol. 52 no. 8 5473-5480.

Allyson L. Hartzell, Mark G. da Silva, Herbert R. Shea, “Root Cause and Failure Analysis,” MEMS Reliability, MEMS Reference Shelf, 2011, 179-214.

Yiin-Kuen Fuh, Kuo Chan Hsu, Jia Ren Fan, “Roughness measurement of metals using a modified binary speckle image and adaptive optics,” Optics and Lasers in Engineering: Volume 50, Issue 3, March 2012, Pages 312-316.

J.F. Morizur, S. Armstrong, N. Treps, J. Janousek, H.A. Bachor, “Spatial reshaping of a squeezed state of light,” The European Physical Journal D - Atomic, Molecular, Optical and Plasma Physics, Volume 61, Number 1, 237-239.

Toco Y.P. Chui, , Zhangyi Zhong, Stephen A. Burns, “The relationship between peripapillary crescent and axial length: Implications for differential eye growth,” Science Direct, http://dx.doi.org/10.1016/j.visres.2011.08.008.

K. Enya, T. Kotani, K. Haze, K. Aono, T. Nakagawa, H. Matsuhara, H. Kataza, T. Wada, M. Kawada, K. Fujiwara, M. Mita, S. Takeuchi, K. Komatsu, S. Sakai, H. Uchida, S. Mitani, T. Yamawaki, T. Miyata, S. Sako, T. Nakamura, K. Asano, T. Yamashita,N. Narita, “The SPICA coronagraphic instrument (SCI) for the study of exoplanets,” Advances in Space Research, Volume 48, Issue 2, 15 July 2011, Pages 323-333.

Lisa A. Poyneer, Brian Bauman, Steven Jones, Bruce A. Macintosh, Steven Cornelissen, Joshua Isaacs, David W. Palmer, “The use of a high-order MEMS deformable mirror in the Gemini Planet Imager,” Proc. SPIE 7931, 793104 (2011).

Mark N. Horenstein, Robert Sumner, Preston Miller, Thomas Bifano, Jason Stewart, Steven Cornelissen, “Ultra-low-power multiplexed electronic driver for high resolution deformable mirror systems,” Proc. SPIE 7930, 79300M (2011); http://dx.doi.org/10.1117/12.876404.

Brian Vohnsen, Diego Rativa, “Ultrasmall spot size scanning laser ophthalmoscopy,” Biomedical Optics Express, Vol. 2, Issue 6, pp. 1597-1609 (2011).

Hongxin Song, Toco Yuen Ping Chui, Zhangyi Zhong, Ann E. Elsner, Stephen A. Burns, “Variation of Cone Photoreceptor Packing Density with Retinal Eccentricity and Age,” Association for Research in Vision and Ophthalmology (2011).

Oscar Azucena, Justin Crest, Jian Cao, William Sullivan, Peter Kner, Donald Gavel, Daren Dillon, Scot Olivier, and Joel Kubby, “Wavefront aberration measurements and corrections through thick tissue using fluorescent microsphere reference beacons,” Optics Express, Vol. 18, Issue 16, pp. 17521-17532 (2010).

Heidi Hofer, Nripun Sredar, Hope Queener, Chaohong Li, and Jason Porter, “Wavefront sensorless adaptive optics ophthalmoscopy in the human eye,” Optics Express, Vol. 19, Issue 15, pp. 14160-14171 (2011).

Weiyao Zou, Xiaofeng Qi, and Stephen A. Burns, “Woofer-tweeter adaptive optics scanning laser ophthalmoscopic imaging based on Lagrange-multiplier damped least-squares algorithm,” Biomedical Optics Express, Vol. 2, Issue 7, pp. 1986-2004 (2011).

P. Martinez, E. Aller Carpentier, and M. Kasper, “XAO coronagraphy with the High-Order Test bench,” EPJ Web of Conferences 16, 03005 (2011).

2010



Julie Smith, “An Experimental Study Showing the Effects on a Standard PI Controller Using a Segmented MEMS DM Acting as a MOD (lambdal) Device,” Proc. SPIE 7816, 78160H (2010).

Dani Guzman, Francisco Javier De Cos Juez, Richard M. Myers, Fernando Sanchez Lasheras, Laura K. Young, and Andrés Guesalaga, “Deformable mirror models for open-loop adaptive optics using non-parametric estimation techniques,” Proc. SPIE Vol. 7736

S. A. Burns, “Designing AO Retinal Imaging Systems for Real World Uses: Issues and Limitations,” Frontiers in Optics, OSA Technical Digest (CD) (Optical Society of America, 2010), paper FTuB2..

Steven Cornelissen, Jason Stewart, Tom Bifano, “High Actuator Count MEMS Deformable Mirrors for Space Telescopes,” Presented at Mirror Technology Days, Boulder, Colorado, USA, 7-9 June 2010.

Andrew Norton, Donald Gavel, Daren Dillon, and Steven Cornelissen, “High-power visible-laser effect on a Boston Micromachines' MEMS deformable mirror,” Proc. SPIE Vol. 7736.

Scot S. Olivier, Thomas G. Bifano, and Joel A. Kubby, “Low power MEMS modulation retroreflectors for optical communication,” Proc. SPIE 7595, 759505 (2010).

T. Bifano, S. Cornelissen, and P. Bierden, “MEMS deformable mirrors in astronomical adaptive optics,” 1st AO4ELT conference, 06003 (2010).

Robert D. Peters, Oliver P. Lay, and Peter R. Lawson, “Mid-Infrared Adaptive Nulling for the Detection of Earth-like Exoplanets,” Publications of the Astronomical Society of the Pacific (2010) Volume: 122, Issue: 887, Pages: 85-92.

Dani Guzman, Francisco Javier de Cos Juez, Richard Myers, Andrés Guesalaga, and Fernando Sánchez Lasheras, “Modeling a MEMS deformable mirror using non-parametric estimation techniques,” Optics Express, Vol. 18, Issue 20, pp. 21356-21369 (2010).

C. Vogel, G. Tyler, Y. Lu, T. Bifano, R. Conan, and C. Blain, “Modeling and parameter estimation for point-actuated continuous-facesheet deformable mirrors,” J. Opt. Soc. Am. A 27, A56-A63 (2010).

Curtis R. Vogel, Glenn A. Tyler, and Yang Lu, “Modeling, parameter estimation, and open-loop control of MEMS deformable mirrors,” Proc. SPIE 7595, 75950E (2010). s>

Alioune Diouf, Thomas G. Bifano, Andrew P. Legendre, and Yang Lu, “Open loop control on large stroke MEMS deformable mirrors,” Proc. SPIE 7595, 75950D (2010).

Katie Morzinski, Luke C. Johnson, Donald T. Gavel, Bryant Grigsby, Daren Dillon, Marc Reinig, and Bruce A. Macintosh, “Performance of MEMS-based visible-light adaptive optics at Lick Observatory: Closed- and open-loop control,” Proc. SPIE 7736, 77361O (2010).

Donald T. Gavel, “Progress update on the visible light laser guidestar experiments at Lick Observatory,” Proc. SPIE 7595, 759508 (2010).

Marc Reinig, Donald Gavel, Ehsan Ardestani, and Jose Renau, “Real-time control for Keck Observatory next-generation adaptive optics,” Proc. SPIE 7736, 77363J (2010).

Marc Reinig, Donald Gavel, Ehsan Ardestani, and Jose Renau, “Real-time control for Keck Observatory next-generation adaptive optics,” Proc. SPIE 7736, 77363J (2010).

Thomas Bifano, Steven Cornelissen, and Paul Bierden, “Recent Advances in high-resolution MEMS DM fabrication and intergration,” Advanced Maui Optical and Space Surveillance Technologies Conference, 14-17 Sep 2010, Maui, HI.

Allyson L. Hartzell, Steven A. Cornelissen, Paul A. Bierden, Charlie V. Lam, and Daniel F. Davis, “Reliability of MEMS deformable mirror technology used in adaptive optics imaging systems,” Proc. SPIE 7595, 75950B (2010).

Thomas Bifano, “Shaping light: MOEMS deformable mirrors for microscopes and telescopes,” Proc. SPIE Vol. 7595

Keigo Enya, “SPICA infrared coronagraph for the direct observation of exo-planets,” Advances in Space Research Volume 45, Issue 8, 15 April 2010, Pages 979-999. lwr

Alioune Diouf, Thomas G. Bifano, Jason B. Stewart, Steven Cornelissen, and Paul Bierden, “Through-wafer interconnects for high degree of freedom MEMS deformable mirrors,” Proc. SPIE 7595, 75950N (2010).

2009



Andrew Norton, Julia W. Evans, Donald Gavel, Daren Dillon, David Palmer and Bruce Macintosh, Katie Morzinski, and Steven Cornelissen, “Preliminary characterization of Boston Micromachines' 4096-actuator deformable mirror" Proc. SPIE, Vol. 7209

Steven A. Cornelissen, Paul A. Bierden, Thomas G. Bifano, Charlie V. Lam, “4096-element continuous face-sheet MEMS deformable mirror for high-contrast imaging” J. Micro/Nanolith. MEMS MOEMS, Vol. 8, 031308

Marie Levine and Rémi Soummer, “Overview of Technologies for Direct Optical Imaging of Exoplanets” NASA, JPL

Kevin L. Baker, Eddy A. Stappaerts, Doug C. Homoelle, Mark A. Henesian, Erlan S. Bliss, Craig W. Siders, and Chris P. J. Barty, “Interferometric adaptive optics for high-power laser pointing and wavefront control and phasing” J. Micro/Nanolith. MEMS MOEMS, Vol. 8, 033040

Byung-Wook Yoo, Jae-Hyoung Park, I. H. Park, Jik Lee, Minsoo Kim, Joo-Young Jin, Jin-A Jeon, Sug-Whan Kim, and Yong-Kweon Kim, “MEMS micromirror characterization in space environments” Optics Express, Vol. 17, Issue 5, pp. 3370-3380

Sandrine Thomas, Julia W. Evans, Donald Gavel, Daren Dillon, and Bruce Macintosh, “Amplitude variations on a MEMS-based extreme adaptive optics coronagraph testbed” Applied Optics, Vol. 48, Issue 21, pp. 4077-4089

K. Enya, T. Kotani, T. Nakagawa, H. Kataza, K. Haze, S. Higuchi, T. Miyata, S. Sako, T. Nakamura, T. Yamashita, N. Narita, M. Tamura, J. Nishikawa, H. Hayano, S. Oya, Y. Itoh, M. Fukagawa, H. Shibai, M. Honda, N. Baba, N. Murakami, M. Takami, T. Matsuo, S. Ida, L. Abe, O. Guyon, M. Venet, T. Yamamuro, P. Bierden and SPICA coronagraph team, “SPICA Coronagraph Instrument (SCI) for the Direct Imaging and Spectroscopy of Exo-Planets” SPICA Workshop, 01004 (2009) DOI: 10.1051/spica/200901004

Julia W. Evans, Robert J. Zawadzki, Steve Jones, Scot Olivier and John S. Werner, “Performance of a MEMS-based AO-OCT system using Fourier reconstruction” Proc. SPIE, Vol. 7209, 720905 (2009); doi:10.1117/12.808002

Choi, Philip I.; Horn, R. B.; Rudy, A. R.; Gurman, Z. R.; Beeler, D. J.; Penprase, B. E.; Esin, A. A.; Zook, A. C. “CUCAO-Cam: The Claremont Undergraduate Colleges Adaptive Optics Camera” American Astronomical Society, AAS Meeting #214, #409.17; Bulletin of the American Astronomical Society, Vol. 41, p.674

Jason D. Kaya, Laurent A. Pueyob, and N. Jeremy Kasdin, “Demonstration of a symmetric dark hole with a stroke-minimizing correction algorithm” Proc. SPIE, Vol. 7209, 72090G (2009); doi:10.1117/12.809815

Weiyao Zou and Stephen A. Burns, “High-accuracy wavefront control for retinal imaging with Adaptive-Influence-Matrix Adaptive Optics” Optics Express, Vol. 17, Issue 22, pp. 20167-20177

Belikov, Rusian; Angel, Roger; Bekele, Asfaw; Cahoy, Kerri; Connelley, Michael; Dettmann, Lee; Gavel, Donald; Give'on, Amir; Guyon, Olivier; Jay, Daniel; Kasdin, N. Jeremy; Kendrick, Rick; Kern, Brian; Levine, Marie; Lynch, Dana; McKelvey, Mark; Peters, Bridget; Pluzhnik, Eugene; Shaklan, Stueart; Shao, Michael; Sylvester, Clay; Traub, Wesley; Trauger, John; Vanderbei, Robert; Witteborn, Fred; Woodruff, Robert, “Overview of Technology Development for the Phase-Induced Amplitude Apodization (PIAA) Coronagraph” Astro2010: The Astronomy and Astrophysics Decadal Survey, Technology Development Papers, no. 38

Ying Geng, Kenneth P. Greenberg, Robert Wolfe, Daniel C. Gray, Jennifer J. Hunter, Alfredo Dubra, John G. Flannery, David R. Williams, and Jason Porter,“In Vivo Imaging of Microscopic Structures in the Rat Retina” Investigative Ophthalmology and Visual Science. 2009;50:5872-5879

Chaohong Li, Nripun Sredar, Hope Queener, Kevin Ivers and Jason Porter, “Direct slope reconstruction algorithm for woofer-tweeter adaptive optics systems” Optical Society of America, 2009

Lawrence C Sincich, Yuhua Zhang, Pavan Tiruveedhula, Jonathan C Horton & Austin Roorda, “ Resolving single cone inputs to visual receptive fields,” Nature Neuroscience, 28 June 2009

2008



Delphine D'ebarre, Edward J. Botcherby, Martin J. Booth, and Tony Wilson, “Adaptive optics for structured illumination microscopy,” University of Oxford, (2008)

O. Keskin, R. Conan, P. Hampton, C. Bradley, “Derivation and experimental evaluation of a point-spread-function reconstruction from a dual-deformable-mirror adaptive optics system,” Optical Engineering, 2008

Robert J. Zawadzki, Barry Cense, Yan Zhang, Stacey S. Choi, Donald T. Miller, and John S. Werner, “Ultrahigh-resolution optical coherence tomography with monochromatic and chromatic aberration correction,” Optics Express, Vol. 16, Issue 11, pp. 8126-8143

Daniel X. Hammer, Nicusor V. Iftimia, R. Daniel Ferguson, Chad E. Bigelow, Teoman E. Ustun, Amber M. Barnaby, and Anne B. Fulton, “Foveal Fine Structure in Retinopathy of Prematurity: An Adaptive Optics Fourier Domain Optical Coherence Tomography Study,” The Association for Research in Vision and Ophthalmology, Inc., (2008)

Keyvan Sayyah, David M. Pepper, “Dynamic optical tag communicator and system using corner cube modulating retroreflector,” 2008

A. Leray, K. Lillis and J. Mertz, “Enhanced Background Rejection in Thick Tissue with Differential-Aberration Two-Photon Microscopy,” The Biophysical Society, (2008)

Robert D. Peters, Oliver. P. Lay, and Muthu Jeganathan, “Broadband phase and intensity compensation with a deformable mirror for an interferometric nuller,” Applied Optics, Vol. 47, Issue 21, pp. 3920-3926

Huanqing Guo, David A. Atchison, Benjamin J. Birt, “Changes in through-focus spatial visual performance with adaptive optics correction of monochromatic aberrations,”Vision Research Volume 48, Issue 17, August 2008, pp. 1804-1811

Zhangyi Zhong, Benno L. Petrig, Xiaofeng Qi, and Stephen A. Burns , “In vivo measurement of erythrocyte velocity and retinal blood flow using adaptive optics scanning laser ophthalmoscopy,” Optics Express, Vol. 16, Issue 17, pp. 12746-12756

Toco Yuen Ping Chui, HongXin Song, and Stephen A. Burns, “Individual variations in human cone photoreceptor packing density: variations with refractive error,” 2008

Lisa A. Poyneer, Daren Dillon, Sandrine Thomas, and Bruce A. Macintosh, “ Laboratory demonstration of accurate and efficient nanometer-level wavefront control for extreme adaptive optics,” Applied Optics, Vol. 47, Issue 9, pp. 1317-1326, (2008)

JI Morgan, JJ Hunter, B Masella, R Wolfe, DC Gray, WH Merigan, FC Delori, DR Williams, “Light-induced retinal changes observed with high-resolution autofluorescence imaging of the retinal pigment epithelium,” Invest Ophthalmol Vis Sci., (2008)

Nicholas Devaney, Derek Coburn, Chris Coleman, J. Christopher Dainty, Eugenie Dalimier, Thomas Farrell, David Lara, David Mackey, and Ruth Mackey, “Characterisation of MEMs mirrors for use in atmospheric and ocular wavefront correction,” Proc. SPIE, Vol. 6888

Julia W. Evans, Robert J. Zawadzki, Steve Jones, Samelia Okpodu, Scot Olivier, John S. Werner, “Performance of a MEMS-based AO-OCT system,” Proc. SPIE, Vol. 6888, (2008)

Benjamin Potsaid and John Ting-Yung Wen, “Design of Adaptive Optics Based Systems by Using MEMS Deformable Mirror Models,” International Journal of Optomechatronics, Volume 2, Issue 2 April 2008, pages 104 – 125

T.D. Farrel and J.C. Dainty, “Woofer-Tweeter Adaptive Optics” 2008

P. Bierden, “ MEMS Deformable Mirrors for High Performance AO Applications,” 2008

2007



N. Jeremy Kasdin, Robert J. Vanderbei, and Ruslan Belikov, “Shaped pupil coronagraphy,” Comptes Rendus Physique, Volume 8, Issues 3-4, pp. 312-322 (2007)

Pircher, Michael; Zawadzki, Robert J, “ Combining adaptive optics with optical coherence tomography: unveiling the cellular structure of the human retina in vivo,” Expert Review of Ophthalmology, Volume 2, Number 6, pp. 1019-1035 (2007)

Delphine Debarre, Martin J. Booth, and Tony Wilson, “Image based adaptive optics through optimisation of low spatial frequencies,” Optics Express, Vol. 15, Issue 13, pp. 8176-8190

J.K. Wallace, B. Macintosh, M. Shao, R. Bartos, P. Dumont, B.M. Levine, S. Rao, R. Samuele, C. Shelton, “An Interferometric Wave Front Sensor for Measuring Post-Coronagraph Errors on Large Optical Telescopes,” Aerospace Conference, pp. 1-7, (2007)

Amir Give'on, Ruslan Belikov, Stuart Shaklan, and Jeremy Kasdin , “Closed loop, DM diversity-based, wavefront correction algorithm for high contrast imaging systems,” Optics Express, Vol. 15, Issue 19, pp. 12338-12343

Daniel X. Hammer, Nicusor V. Iftimia, Chad E. Bigelow, Teoman E. Ustun, Benjamin Bloom, R. Daniel Ferguson, Stephen A. Burns, “High resolution retinal imaging with a compact adaptive optics spectral domain optical coherence tomography system,” Vol. 6426, (2007)

David A. Horsley , Hyunkyu Park, Sophie P. Laut and John S. Werner , “Characterization of a bimorph deformable mirror using stroboscopic phase-shifting interferometry,” Sensors and Actuators A: Physical, Volume 134, (2007), Pages 221-230

Alfredo Dubra , “Wavefront sensor and wavefront corrector matching in adaptive optics,” Optics Express, Vol. 15, Issue 6, pp. 2762-2769

Jacque L. Duncan, Yuhua Zhang, Jarel Gandhi, Chiaki Nakanishi, Mohammad Othman, Kari E. H. Branham, Anand Swaroop, and Austin Roorda, “High-Resolution Imaging with Adaptive Optics in Patients with Inherited Retinal Degeneration,” Invest Ophthalmol Vis Sci. 2007

Diana C. Chen, Steven M. Jones, Dennis A. Silva, and Scot S. Olivier , “High-resolution adaptive optics scanning laser ophthalmoscope with dual deformable mirrors,” JOSA A, Vol. 24, Issue 5, pp. 1305-1312

Gordon T. Kennedy, Carl Paterson, “Correcting the ocular aberrations of a healthy adult population using microelectromechanical (MEMS) deformable mirrors,” Optics Communications, Volume 271, Pages 278-284, (2007)

Bruce Macintosha, James Grahama, David Palmera, Rene Doyond, Don Gavela, James Larkina, Ben Oppenheimera, Leslie Saddlemyerh, J. Kent Wallacea, Brian Baumana, Darren Eriksonh, Lisa Poyneera, Anand Sivaramakrishnana, Rémi Soummera, and Jean-Pierre Veranh, “Adaptive optics for direct detection of extrasolar planets: the Gemini Planet Imager,” Comptes Rendus Physique, Volume 8, pp. 365-373, (2007)

2006



Michael Shao, Bruce M. Levine, James K. Wallace, Glenn S. Orton, Edouard Schmidtlin, Benjamin F. Lane, Sara Seager, Volker Tolls, Richard G. Lyon, Rocco Samuele, Domenick J. Tenerelli, Robert Woodruff, Jian Ge, “A nulling coronagraph for TPF-C,” Proc. SPIE, Vol. 6265, (2006)

Robert D. Peters, Oliver P. Lay, Akiko Hirai, and Muthu Jeganathan, “Adaptive nulling for the Terrestrial Planet Finder Interferometer,” Proc. SPIE, Vol. 6268, (2006)

Volker Tolls, Michael Aziz, Robert A. Gonsalves, Sylvain Korzennik, Antoine Labeyrie, Richard Lyon, Gary Melnick, Ruth Schlitz, Steve Somerstein, Gopal Vasudevan, and Robert Woodruff, “Study of coronagraphic techniques,” Proc. SPIE, Vol. 6265, (2006)

Elizabeth Daly, Eugenie Dalimier, and Chris Dainty, “Requirements for MEMS mirrors for adaptive optics in the eye,” 2006

Bruce Macintosh, Katie Morzinski, Dave Palmer and Lisa Poyneer, “The extreme adaptive optics testbed at UCSC: current results and coronagraphic upgrade,” Proc. SPIE, Vol. 6272, (2006)

Aymeric Leray and Jerome Mertz, “Rejection of two-photon fluorescence background in thick tissue by differential aberration imaging,” Optics Express, Vol. 14, Issue 22, pp. 10565-10573

Yuhua Zhang, Siddharth Poonja, and Austin Roorda, “AOSLO: from benchtop to clinic,” Proc. SPIE, Vol. 6306, (2006)

Steven A. Cornelissen, Paul A. Bierden, Steven Menn and Thomas G. Bifano, “A 4096-element micromirror for high-contrast astronomical imaging,” Proc. SPIE, 2006

Katie M. Morzinski, Julia W. Evans, Scott Severson, Bruce Macintosh, Daren Dillon, Don Gavel, Claire Max, and Dave Palmer, “Characterizing the potential of MEMS deformable mirrors for astronomical adaptive optics,” Proc. SPIE, Vol. 6272, (2006)

Brian P. Wallace, Peter J. Hampton, Colin H. Bradley and Rodolphe Conan, “Evaluation of a MEMS deformable mirror for an adaptive optics test bench,” Optics Express, Vol. 14, Issue 22, pp. 10132-10138

B. Potsaid, J.T. Wen, Automation of Challenging Spatial-Temporal Biomedical Observations with the Adaptive Scanning Optical Microscope (ASOM), pp. 8-10 Oct. 2006.

Julia W. Evans, Bruce Macintosh, Lisa Poyneer, Katie Morzinski, Scott Severson, Daren Dillon, Donald Gavel, and Layra Reza, " Demonstrating sub-nm closed loop MEMS flattening," Optics Express, Vol. 14, Issue 12, pp. 5558-5570, 2006.

Daniel X. Hammer, R. Daniel Ferguson, Chad E. Bigelow, Nicusor V. Iftimia, Teoman E. Ustun, and Stephen A. Burns, Adaptive optics scanning laser ophthalmoscope for stabilized retinal imaging, Optics Express, Vol. 14, Issue 8, pp. 3354-3367, 2006.

L Abe, M. Tamura, T. Nakagawa, K. Enya, S. Tanaka, K. Fujita, J. Nishikawa, N. Murakami, and H. Kataza, "Current status of the coronagraphic mode for the 3.5m SPICA space telescope," Proceedings of the IAU Colloquium #200, pp. 329-334, 2006.

Onur Keskin, Peter Hampton, Rodolphe Conan, Colin Bradleyk, Aaron Hilton, and Celia Blain, " Woofer-Tweeter Adaptive Optics Test Bench," First NASA/ESA Conference on Adaptive Hardware and Systems, pp. 74-80, 2006.

Curtis R. Vogel and Qiang Yang, Modeling, simulation, and open-loop control of a continuous facesheet MEMS deformable mirror," Journal of the Optical Society of America A, Vol. 23, Issue 5, pp. 1074-1081, 2006.

Jason B. Stewart, Thomas G. Bifano, Paul Bierden, Steven Cornelissen, Timothy Cook, and B. Martin Levine, Design and development of a 329-segment tip-tilt piston mirrorarray for space-based adaptive optics," Proceedings of SPIE, Vol. 6113, pp. 181-189, 2006.

Keigo Enya, Takao Nakagawa, Hirokazu Kataza, Hidehiro Kaneda, Yukari Yamashita Yui, Motohide Tamura, Lyu Abe, Yoshiyuki Obuchi, Takashi Miyata, Shigeyuki Sako, Takashi Onaka, and Hidenori Takahashi, Cryogenic infrared optics for SPICA coronagraph," Proceedings of the IAU Colloquium #200, pp. 467-472, 2006.

Alexandros Papavasiliou and Scot Olivier, Nanolaminate foils used to make deformable mirrors," SPIE Newsroom, 2006.

R. Daniel Ferguson, Daniel X. Hammer, Chad E. Bigelow, Nicusor V. Iftimia, Teoman E. Ustun, Stephen A. Burns, Ann E. Elsner, and David R. Williams, Tracking adaptive optics scanning laser ophthalmoscope," Proceedings of SPIE, Vol. 6138, pp. 232-240, 2006.

Daniel X. Hammer, R. Daniel Ferguson, Chad E. Bigelow, Nicusor V. Iftimia, Teoman E. Ustun, Gary D. Noojin, David J. Stolarski, Harvey M. Hodnett, Michelle L. Imholte, Semih S. Kumru, Michelle N. McCall, Cynthia A. Toth, and Benjamin A. Rockwell, Precision targeting with a tracking adaptive optics scanning laser ophthalmoscope," Proceedings of SPIE, Vol. 6138, pp. 241-250, 2006.

Yuhua Zhang, Siddharth Poonja, and Austin Roorda, "Adaptive optics scanning laser ophthalmoscope using a micro-electro-mechanical (MEMS) deformable mirror," Proceedings of SPIE, Vol. 6138, pp. 221-231, 2006.

J. W. Evans, K. Morzinski, S. Severson, L. Poyneer, B. Macintosh, D. Dillon, L. Reza, D. Gavel, D. Palmer, S. Olivier, and P. Bierden, Extreme Adaptive Optics Testbed: Performance and Characterization of a 1024 Deformable Mirror," Proceedings of SPIE, Vol. 6113, pp. 131-136, 2006.

Yaopeng Zhou and Thomas Bifano, Characterization of contour shapes achievable with a MEMS deformable mirror," Proceedings of SPIE, Vol. 6113, pp. 123-130, 2006.

Robert J. Zawadzki, Steven M. Jones, Mingtao Zhao, Stacey S. Choi, Sophie S. Laut, Scot S. Olivier, Joseph A. Izatt, and John S. Werner, Adaptive optics-optical coherence tomography for in vivo retinal imaging: comparative analysis of two wavefront correctors," Proceedings of SPIE, Vol. 6079, pp. 38-46, 2006.


Posted Comments:
user  (posted 2024-08-14 17:23:54.97)
Hello, I would like to ask about the artificial aberration sources that can be placed at the sample location of adaptive optics systems. What kinds of samples are available? Do you sell any products, such as transparent phase plates? Additionally, could you recommend a product for introducing dynamic aberrations?
ksosnowski  (posted 2024-08-19 02:03:59.0)
Thank you for reaching out to us. Some customers have used eyeglasses as a sample for demonstration purposes. We do not have any specific wavefront distortion samples however many different lenses could be used as a static setup. We make a tunable lens however the much smaller aperture would require additional optics to adjust the AO kit beam size to pass through. I have reached out directly to discuss your application in further detail.
Amr Ragheb  (posted 2024-04-16 18:03:20.507)
Hello, I'm Dr.Amr working as an associate professor at King Saud University, Riyadh, Saudi Arabia. I have some research experiments regarding free space optics correction of laser beam working at 1064 nm. I'd like to have your recommendation regarding the appropriate components that I need to have. My application is targeting: 1- Beam correction at the transmitter side for different weather turbulence effects (i.e., weak, moderate, strong). 2- Beam focusing. 3- Beam steering. Regards Amr
Satya ranjan Behera  (posted 2024-03-13 19:48:55.453)
Hi, Looking for AOK5 which will provide a complete AO solution. However, the price mentioned includes delivery and other charges. Mailing from Bangalore India. Do you have any Indian vendor for quick response and the total price to deliver to India. Kindly reply me soon. Thanking you
ksosnowski  (posted 2024-03-13 03:47:10.0)
Hello Satya, thanks for reaching out to Thorlabs. Our primary distributor in India can be reached directly at sales@MELSS.com to discuss this further. You can view our full list of distributors here as well: https://www.thorlabs.com/distributors.cfm.
user  (posted 2024-02-21 18:14:25.54)
We need a mirror file named "BMC Multi DM v4.mir" for a multi DM bought in 2015. Please sent it to us.
cdolbashian  (posted 2024-02-22 09:49:14.0)
Thank you for requesting this file from us. The necessity of this stems from using new AOkit software with an old device (2015). Rather than this approach, we have sent you the old software for your 2015 AOkit. Because of this approach, the file you request here was not required, and your system has been confirmed to be working.
user  (posted 2024-02-14 14:58:54.567)
We have AOK1 bought in 2015 (WFS10-5C and Multi BMC DM). We lost the programs and installation CDs. Can you send us the correct control software, WFS and DM driver software for 2015? Please help us to solve this. Thank you.
cdolbashian  (posted 2024-02-22 09:47:59.0)
Thank you for reaching out to us with this inquiry. I have sent you the old software which was released with this AOKit from 2015. You have confirmed that this solved the issue.
user  (posted 2023-01-17 14:32:23.46)
We have the AOK5/M and the AOKit SDK software. The calibration of DM mirrors works fine. The problem is that the feedback does not work appropriately once the loop is closed. All the mirrors except one seem to displace to their maximum position and the one is at zero. the wavefront is not getting corrected. Please tell me how to solve this problem. Thank you
ksosnowski  (posted 2023-01-25 02:01:49.0)
Thanks for reaching out to Thorlabs. It is expected for the algorithm to place one actuator at zero, though the rest of the actuators generally should not be stuck at maximum extension. I have reached out directly to discuss this in more detail.
Ingemar Eriksson  (posted 2022-04-27 20:25:23.677)
I'm curious, has your kit been applied successfully for smaller telescopes, say 20 inches?
jdelia  (posted 2022-05-05 08:32:49.0)
Thank you for contacting Thorlabs. We have a section on our website with a listing of some publications using these kits: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=3208&tabname=publications. There may be some papers that are more relevant to your application in the list, but this one in particular may be helpful: https://www.spiedigitallibrary.org/conference-proceedings-of-spie/10703/107035Z/CACAO--a-generic-low-cost-adaptive-optics-system-for/10.1117/12.2311823.short?SSO=1.
K User  (posted 2022-02-15 12:24:40.14)
We have an older AOK9/M-P01 and are trying to upgrade to the new software (v1.3). It recognises the DM, but not the WFS. No plugin shows for the WFS even though it is in the equivalent directory to the DM path. The WFS still works with the old software.
ksosnowski  (posted 2022-03-08 12:54:47.0)
Thanks for reaching out to us Kieran. The new AOK software supports the latest WFS v5.5 driver. As our ThorAOControl is a 64bit application, you will want the 64bit WFS Software install to obtain the correct .dll's for TL_WFS_Plugin.dll. There are three .dlls: CamUsb_API64.dll, uc480_64.dll and WFS_64.dll; all can be found in the folder C:\Program Files\IVI Foundation\VISA\Win64\Bin. Please make sure these three .dlls are also in C:\Program Files\Thorlabs\ThorAOControl (these are the default install locations). These will make sure the ThorAOControl can use the local copy of the .dlls to recognize the TL_WFS_Plugin.dll. I have reached out directly to follow up on this.
Dong IL Lee  (posted 2021-10-18 18:27:46.087)
I purchased "WFS20-7AR" and "DMP40-P01" separately and trying to use them together with the "Adaptive Optics Kits Software". However, after select my components at the "configure user profile" and click the "open system" of the AOkit in the program, nothing happened and the program just shutted down. I don't think I have missed something but cannot find a way to solve this problem. I have tried to reboot the computer, delete all the related programs, and re-installed them. But still doesn't work. Please tell me how to solve this problem. Thank you
YLohia  (posted 2021-12-23 10:42:37.0)
Hello, thank you for contacting Thorlabs. We are sorry to hear that you're having issues with this device. We have reached out to you directly to troubleshoot further.
user  (posted 2021-10-04 11:46:36.523)
Hello. We have the AOK9/M-P01 and the AOKit SDK software. The Demo works well, but when we try use TL_ControlSystemSDK.dll from C#.net there are problems. The handles of modules or externs points need use Marshal in C#.Net, which need to know modules struct detail like name and sizeof. Could you please provide demo program in C#.Net using TL_ControlSystemSDK.dll? Thanks!
cdolbashian  (posted 2021-10-15 04:36:31.0)
Thank you for reaching out to us with this software inquiry. I have contacted you directly with some potential solutions and sample code snippets for your application.
user  (posted 2020-10-13 07:31:01.063)
Hello. We have the AOK7/M-P01 and the AOKit software on the PC can't detect the DMP40. When we connect the usb cable and the DC plug on the power supply shipped with the DM, We can see a green light for 5 seconds on the DM wich turn to red immediatiadtly. So the AO Kit application detect the wavefront sensor but not the DM. However, we had download previously the correct drivers on the PC for the DM. Thank you.
asundararaj  (posted 2020-10-20 02:48:29.0)
Thank you for your feedback. We have contacted you directly via email to troubleshoot.
asundararaj  (posted 2020-10-20 02:48:29.0)
Thank you for your feedback. We have contacted you directly via email to troubleshoot.
Jeffrey Guest  (posted 2020-10-02 13:11:57.023)
WHat are the requirements for the computer to interface with this kit? What memory, version of windows, etc? Also, what ports are used to interface with the components? USB? And how many? Thank you.
asundararaj  (posted 2020-10-07 08:48:59.0)
Thank you for your feedback. The AOKit software has been tested on systems running Windows 7 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit) and Windows 10 (32-bit and 64-bit) and requires 2 USB ports, one each for the deformable mirror and the WFS. The most recent version of the device drivers must also be installed.
K User  (posted 2020-09-22 10:52:01.293)
We have just bought the AOK9/M-P01 kit and are having trouble installing the software on Win10 as a clean install. I have tried AOKIT2 ( on 2 machines and get the same error with the DM not being recognised. It works on the standalone software but not on AOKIT2. The disc is v 4.4.1 and the SW is 4.40 according to the install.
YLohia  (posted 2020-09-24 03:36:17.0)
Hello, thank you for contacting Thorlabs. Please copy the TLDFMX_32.dll and TLDFMX_32.dll from C:\Program Files (x86)\IVI Foundation\VISA\WinNT\Bin to C:\Program Files (x86)\Thorlabs\AOKit\AOkit, overwriting the old drivers. This should fix the issue.
Jeffrey Guest  (posted 2020-09-02 18:56:45.23)
I have a question about these systems and my application, particularly their efficacy in compensating for spherical aberration. Would someone be available for a phone call tomorrow? Thank you. Jeff
YLohia  (posted 2020-09-03 10:45:32.0)
Hello Jeff, thank you for contacting Thorlabs. We will contact you directly to discuss your application. For future requests, please note that our Tech Support team can be reached at 973-300-3000 between 8am-8pm EST.
tony.travouillon  (posted 2018-11-15 17:15:19.84)
I would like to use this for educational purposes. The kit as sold, doesn't have an imaging camera. Can you recommend one?
YLohia  (posted 2018-11-27 02:56:00.0)
Hello, thank you for contacting Thorlabs. For obtaining the beam profile, we recommend looking into one of our CCD based beam profilers: BC106N-UV or BC106N-VIS (depending on your wavelength of interest). I have reached out to you directly to discuss your requirements and application.
georgios.kolliopoulos  (posted 2018-10-15 13:54:28.13)
Hello. We have purchased your AOKit (AOK5-UM01) and we are happy working with it. We need to understand a little better how the software works. Where could we find more information about the .cwf files which are used as captured reference? How can we open them? Is it possible for us to write our own reference files which are not necessarily captured wavefronts?
nbayconich  (posted 2018-11-17 10:13:40.0)
Thank you for contacting Thorlabs. The Captured Wavefront Files (.cwf) can only be created in the AOKit program at this time. You can use optics externally, adjustments to the mirror via the software, and Zernike polynomials to create a custom wavefront for capture in the software. The other way a user can write their own reference is to create a zernike profile in the wavefront generator and save it as a Zernike Surface Profile (.zsp) file explained on page 54 in the AOK manual. Once created or loaded you can select the Zernike generated wavefront as the user target reference wavefront.
sunjakchoi  (posted 2018-07-31 23:59:16.193)
Hello. We have a AOKit(AOK5-UM01). Is it possible to measure the wavefront distortion using AOK5-UM01?' We want to measure a Yb:;YAG crystal rod's Wavefront distortion value( like λ / 10)
YLohia  (posted 2018-08-02 08:36:40.0)
Response from Yashasvi at Thorlabs USA: Hello, thank you for contacting Thorlabs. It is possible to visibly see the distortions using the wavefront sensor after calibrating to the beam with the rod removed. Please note that this assumes that the rod is not curved and is not acting like a cylindrical lens. That being said, unfortunately, the software will not yield a wavefront distortion in terms of a fractional wavelength but it will, however, yield Zernike coefficients. Typically, such values are measured using interferometry (the Fizeau Interferometer and the Twyman Green Interferometer are a couple of standard setups used for such applications).
bednaja4  (posted 2017-12-12 15:07:31.517)
[AOK v2 or v4][DM32][Win7 64b] Hello, we have tried both AOK software in versions 2 and 4.4. Our system is win7 64b. The SH sensor is working well, but we have troubles with our MiniDM32. Both versions refuse to see the device, but in software from Boston Micromachines - if I put a correct number as S/N, the DM is working. Can you tell me, if it will work with the DM and SH in AOK software and what should I try? In old pc with AOK v2 and winXP, it works, but it looks like it is some bit laggy. Thanks Jan
YLohia  (posted 2018-03-29 09:47:34.0)
Response from Yashasvi at Thorlabs USA: Hello Jan, thank you for contacting Thorlabs. Please look for and uninstall any installed software under the name Cambridge Innovations. This is the name of the older BMC files. Then, restart your computer before reinstalling the 4.4 version of the AOKit application. After the AOKit files have been installed, you will be asked to install the BMC files. Installing the BMC files will add the newer files, which are under the name Boston Micromachines. You will then be directed to install the 32-bit and 64-bit versions of the BMC files; this is required for the AOKit application to work properly. I have reached out to you directly as well in case additional troubleshooting is necessary.
al  (posted 2017-04-20 08:41:00.08)
Hi, Are you able to provide the MEMS DM Coating & AR-coated window reflectance curves at 1550nm? Thanks and Regards, Andrew
tfrisch  (posted 2017-05-04 04:25:18.0)
Hello, thank you for contacting Thorlabs. The curves can be found on the below page. I will reach out to you directly as well. https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_ID=3258&tabname=Graphs
seob5308  (posted 2017-02-22 16:58:37.37)
We have your adaptive optics kit. I try to use AO kit C++ and C#. But both of them are not working. C# demo cannot read .dll and C++ cannot find hardware even if it is connected. Could you send me current version of AO Kit software or could you give me a comment to solve this problem? I'm working on visual studio and I prefer to work on C++ not C#. Thanks
tfrisch  (posted 2017-03-13 03:58:21.0)
Hello, thank you for contacting Thorlabs. It looks like you already have a ticket with our Technical Support Group to help you troubleshoot this.
michael.plante  (posted 2016-08-11 17:02:33.493)
I am interested in interfacing directly to AO Kit without using the SDK, as I need to support platforms other than Windows. Can you provide detailed documentation on the hardware interfaces?
pichesh1234  (posted 2016-01-19 06:56:40.037)
Hello I need adaptive optical systems for real-time correction of optical aberrations and generation of precision wavefronts.for planets photography and deep sky photography with my celestron c14 edge f:11 telescope. please tell me the price,configuration and how to buy it.
besembeson  (posted 2016-01-19 12:49:56.0)
Response from Bweh at Thorlabs USA: Thanks for contacting Thorlabs. We will contact you to further discuss your application and provide a quotation for a suitable configuration.
kjw05187  (posted 2015-04-21 22:27:49.777)
Hi, i'm Jun-Woo Kim in Korea. AO Kits of your company looks like very good. But i want description of control software more detail. what is input data to DM control, zonal or modal?
besembeson  (posted 2015-04-30 11:56:13.0)
Response from Bweh. I will provide this information to you by email.
akhizhnyak  (posted 2014-12-11 16:28:57.467)
We have problem with AOKit2 software. It can't connect deformable mirror to wavefront sensor. The wavefront sensor processes good independantly. Deformabl mirror processing well too, but can't connect with wavefront sensor. Anatoliy
besembeson  (posted 2014-12-18 03:58:04.0)
Response from Bweh at Thorlabs USA: I will contact you directly via email to fix this issue.
akhizhnyak  (posted 2013-06-03 20:36:10.25)
We have problem with AOKit2 software. After installing at start it shows: AOKit2.exe has stopped working The wavefront sensor processes good. So we can use deformable mirror. Anatoliy
tcohen  (posted 2013-06-06 12:38:00.0)
Response from Tim at Thorlabs: We will contact you directly to troubleshoot.
tcohen  (posted 2012-12-05 17:01:00.0)
Response from Tim at Thorlabs to Cristian: Thank you for contacting us. The design engineer will contact you directly to discuss your code.
cmena96  (posted 2012-12-01 17:55:36.93)
I am programming the AOKit2 through AOSystem.dll. My code has been developed in visual studio 2008. The application is CLR form based. I get to initialize the AOSystem and get to pointer to AOSystemData structure. I also get to read some values of AOSystemData But I am not able to read the values of the structures and array with pointers in AOSystemData structure (spotinfo, instr, dDMCoeff, and so on). I am going to give a little example: [code] struct AOSystemData *aoSystemData; double dDMCoeff[3]; dDMCoeff={0.0279, 9.3708, 0.0}; DM_SetQuadraticCoeffAndMaxV(dDMCoeff, 225.0); AOS::AOS_GetVarAddress(6, (void**) &aoSystemData); double coeficientes[0]=aoSystemData->dDMCoeff[0]; [#code] In this example, all values in aoSystemData->dDMCoeff array (retrieved to “coeficientes”) are null. But I found these values in aoSystemData->dDMDesired array. I also was not able to read values from, for example, spotinfo structure. In this case I try to point by that through this line: AOS_GetVarAddress(VAR_SPOTINFO, (void **)&aoSystemData->spotinfo). What is wrong? Is there anyone in Thorlabs I could contact through email to help in my problem? This is my problem. Thanks. Cristian Mena Acedo.
jlow  (posted 2012-10-05 10:05:00.0)
Response from Jeremy at Thorlabs: I apologize for the issue you are having with the installation. Can you please confirm that when you installed the AOKit application that then led into the BMC install you followed the instructions on the screen when it noticed it was being installed on a Windows 7 64-bit system. The window notice mentioned that it would install the 32-bit and 64-bit drivers. Did you go through the two BMC installs? Both are required to work with the AOKit since the AOKit is a 32-bit application. We will get in touch with you directly to troubleshoot this further.
mgoodwin  (posted 2012-10-04 04:10:27.0)
Cannot install the BMC DM USB driver 'CiGenUSB' on Windows 7 (64-bit) due to incompatibility. Can you please provide an updated driver so AOKit S/W can recognize the DM, Thanks.
jlow  (posted 2012-08-21 14:53:00.0)
Response from Jeremy at Thorlabs: We will get in touch with you directly regarding this.
vijayratan.singh  (posted 2012-08-21 06:57:57.0)
We just received our AO kit. It refuses to get well installed on our Windows 7 (64-bit). It just throws up a window saying "AOKit2.exe has stopped working" Could you please get in touch with us so we can sort out the problems? It's possible there's an upgrade to the s/w that we might be missing. Thanks, VJ
bdada  (posted 2012-01-25 14:39:00.0)
Response from Buki at Thorlabs: Thank you for your feedback. We have contacted you to assist you with your application.
tiago-paivas  (posted 2012-01-25 09:26:16.0)
I have been programming the AOKit2 through AOSystem.dll. Now I want to add some more tools to my program. One of them is the average count and roll count. I could activate the average count if I set “average_cnt=1”, however it doesn’t seem to work. I would also like to add in my program the “Wavefront Generator Window” like in thorlabs program “AOKit2”. Could you explain me how can I do this? What are the variables of AOSystemData Structure I need to get or set data (dDesired, wavefront_type, wavefront?)? Thank you, Best Regards. Tiago Correia
jgarciam  (posted 2011-09-29 18:22:00.0)
I am interested on deformable mirrors from Boston. I see you have a model with 6X6 elements and I would like to know if: 1. it can reproduce numerical functions, 2. Its own aberrations, 3. Is it flicker free? 4. What are the system requirements, 5. What kind of control modulus uses, analog or digital, 6. Whats its dynamic range for 532 nm and 632 nm. Thak you, Sincerely, Jorge Garcia Centro de Investigaciones en Optica Leon, MEXICO
jjurado  (posted 2011-05-16 18:35:00.0)
Response from Javier at Thorlabs to Walter: Thank you very much for contacting us. Please contact us at techsupport@thorlabs.com and we will gladly help you troubleshoot your application.
user  (posted 2011-05-16 13:02:16.0)
Were currently running 64-bit Windows 7. The Shack-hartmann sensor works and we acquired updated drivers from Boston Micromachines that allow the deformable mirror to work. The AOKit2 software itself just crashes as soon as we try loading it. Is there a more recent version that works under 64-bit Windows 7 or are we required to run XP? -Walter
bdada  (posted 2011-04-26 11:26:00.0)
Response from Buki at Thorlabs: Thank you for using our Feedback Tool. We can send you another copy of the software. We will contact you directly.
lwaller  (posted 2011-04-26 09:44:08.0)
Where can i get the software??? we have one of these but lost the disc....
jjurado  (posted 2011-03-15 10:22:00.0)
Response from Javier at Thorlabs to Tiago Correia: We will contact you directly to assist you with your application.
tiago-paivas  (posted 2011-03-14 13:17:27.0)
I am programming the AOKit2 through AOSystem.dll. The program works well. I want to save a calibration and afterwards loading this calibration. I know I have to save some data, but I think I don’t need to save all data from aoSystemData struture. So, which variables and arrays do I need saving? What is the size of SVD arrays? ( svd_m, svd_v, so on). Thank you, Best Regards, Tiago Correia
tor  (posted 2010-11-22 10:36:55.0)
A response from Tor at Thorlabs to Jorge: 1) Yes, but it depends on the type of function; frequency and amplitude would be limiting factors. 2) The AO kit can correct for any aberration introduced by the mirror shape in the unpowered state. 3) Yes, it is flicker-free. 4) For the AOkit, you need an XP operating system and standard Pentium computer. The Deformable mirror (independently) works with Windows 7. 5) Digital (usb 2.0) 6) The performance of the mirror at 532nm and 632nm is found on the graphs tab of this page.
Thorlabs  (posted 2010-09-03 08:56:36.0)
Response from Sam at Thorlabs to nssycit: Dear customer, Thank you for contacting us. Our office in China will contact you directly. You can also reach Thorlabs China at chinasales@thorlabs.com.
nssycit  (posted 2010-09-03 08:26:00.0)
Im from China, our department want to stock the AOkits, so we would kown the flows of the purchase.Can you introduce an Chinese agent to me. thank you.
Thorlabs  (posted 2010-08-16 15:39:28.0)
Response from Javier at Thorlabs to Tiago: thank you for submitting your inquiry. We will contact you directly with some pointers for developing your application.
tiago-paivas  (posted 2010-08-12 07:35:17.0)
I am programming the AOKit2 through AOSystem.dll. My code has been developed in visual studio 2005. The application is CLR form based. I get to initialize the AOSystem and get to pointer to AOSystemData structure. I also get to read some values of AOSystemData (e.g. DM_Voltage or SH_Threshold_Off). But I am not able to read the values of the structures and array with pointers in AOSystemData structure (spotinfo, instr, dDMCoeff, and so on). I am going to give a little example: [code] struct AOSystemData *aoSystemData; double dDMCoeff[3]; dDMCoeff={0.0279, 9.3708, 0.0}; DM_SetQuadraticCoeffAndMaxV(dDMCoeff, 225.0); AOS::AOS_GetVarAddress(6, (void**) &aoSystemData); double coeficientes[0]=aoSystemData->dDMCoeff[0]; [#code] In this example, all values in aoSystemData->dDMCoeff array (retrieved to “coeficientes”) are null. But I found these values in aoSystemData->dDMDesired array. I also was not able to read values from, for example, spotinfo structure. In this case I try to point by that through this line: AOS_GetVarAddress(VAR_SPOTINFO, (void **)&aoSystemData->spotinfo). What is wrong? Is there anyone in Thorlabs I could contact through email to help in my problem? Thanks, Tiago Correia.
jens  (posted 2009-09-16 12:00:08.0)
A reply from Jens at Thorlabs: We can offer a mirror with the window removed. It will be however necessary to only operate the device in a humidity controlled (<30% relative humidity, preferable dry N2), clean environment. You will need to order the mirror without window since for the standard part it cannot be removed once the deformable mirror has been sealed.
hyoon  (posted 2009-09-15 13:38:39.0)
Hi Thorlabs, Can the Multi DM be operated without the window for spectrally flat operations?
klee  (posted 2009-07-28 14:42:49.0)
Response from Ken at Thorlabs to misterfig: An engineer from the Advanced Imaging Group will contact you directly to troubleshoot the AO Kit.
misterfig  (posted 2009-07-28 11:45:58.0)
Hello, I am working with Professor Bifano at Boston University and Boston Micromachines on writing code using AOSystem.dll. I am working with developer studio 2008, C++. The application is CLR form based. I am able to initialize the dll and get a memory pointer to the aoSystemData record. I can also send voltages to the DM. But there seems to be no data coming from the wavefront sensor. Also, the wavefront sensor is being reported as present even when I disconnect the device. Additionally, the application AOKit2 can not connect to the wavefront sensor as well (although the wavefront sensor application WFS works fine). Is there anyone at Thorlabs I could contact through email to help troubleshoot AOKit2? Thanks, Richard Newton
user  (posted 2009-03-14 11:33:30.0)
Awesome
Laurie  (posted 2009-02-16 14:09:53.0)
Response from Laurie at Thorlabs to walter.collins: Thank you for your post concerning the AO Kit software. We are going to have an expert from our Imaging Group contact you directly so that your questions can be addressed promptly. Based on the results of those conversations, we may update the software so as to facilitate the interfacing process better. As far as the best forum for such concerns, this feedback tool is appropriate. You could also contact us directly if youd prefer.
walter.collins  (posted 2009-02-16 13:13:53.0)
The toolkits included software seems to function fairly well, but interfacing with the library has proven rather frustrating. In part this is due to documentation being not quite sufficient in a few areas and also seems to be due to trying to combine the existing products of WFS and DM (though thats just a guess on my part). Is there a proper forum for submitting feature requests?
Laurie  (posted 2008-09-08 12:55:26.0)
Response from Laurie at Thorlabs to dreinhardt: Thank you for your feedback concerning this page. I have made our web team aware of the fact that the text is not currently wrapping appropriately on our "Print Friendly" version. We will work to correct the problem as quickly as possible. In the short term, there are two ways for you to print the content found on these pages: (1) If you click on the individual tab of interest, and click print (w/o choosing the print friendly version), that tabs information should print without a problem. (2) Since I authored these pages, I can directly email you the content that you are most interested in. Again, we apologize for this short-term inconvenience, thank you for bringing it to our attention, and will work to address to rectify the problem in a timely manner.
dreinhardt  (posted 2008-09-08 12:30:33.0)
Printer friendly pages: text does not wrap when printed (line length hard coded?). Alternatively: is there a PDF version for download?
Back to Top

AO Kit with MEMS Deformable Mirror & 880 fps CMOS Wavefront Sensor

Item # Mirror Wavefront Sensor
Type Coating (Wavelength Range) Actuator Array
AOK5(/M) MEMS Protected Silver
(400 - 1100 nma)
140 Actuators in a 12 x 12 Arrayb 300 - 1100 nm (880 fps)
  • The mirrors are protected by a 6° wedged window that is AR coated for the 400 - 1100 nm range. If a wider wavelength range is desired please contact Tech Support.
  • The four corner actuators are inactive.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
AOK5 Support Documentation
AOK5Adaptive Optics Kit with Protected Silver-Coated Multi-DM (140 Actuators) and CMOS Shack-Hartmann WFS
$32,702.29
Today
+1 Qty Docs Part Number - Metric Price Available
AOK5/M Support Documentation
AOK5/MAdaptive Optics Kit with Protected Silver-Coated Multi-DM (140 Actuators) and CMOS Shack-Hartmann WFS, Metric
$32,702.29
Today
Back to Top

AO Kit with Piezoelectric Deformable Mirror & 880 fps CMOS Wavefront Sensor

Item # Mirror Wavefront Sensor
Type Coating (Wavelength Range) Actuator Array
AOK8(/M) Piezoelectric Protected Silver
(450 nm - 2 µm: Ravg > 97.5%,
2 - 20 µm: Ravg > 96%)
40 Piezoceramic Disk Segments
in a Circular Keystone Arraya
300 - 1100 nm (880 fps)
  • Elements 1 - 24 Inside Pupil Diameter, Elements 25 - 40 Outside Pupil Diameter
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
AOK8 Support Documentation
AOK8Adaptive Optics Kit with Protected Silver-Coated Piezoelectric DM (40 Actuators) and CMOS Shack-Hartmann WFS
$14,886.90
Today
+1 Qty Docs Part Number - Metric Price Available
AOK8/M Support Documentation
AOK8/MAdaptive Optics Kit with Protected Silver-Coated Piezoelectric DM (40 Actuators) and CMOS Shack-Hartmann WFS, Metric
$14,886.90
Lead Time
Back to Top

Woofer-Tweeter AO Kits

Item # Mirror Wavefront Sensor
Type Coating (Wavelength Range) Actuator Array
AOKWT1(/M) MEMS Protected Silver
(400 - 1100 nma)
140 Actuators in a 12 x 12 Arrayb 300 - 1100 nm (880 fps)
Piezoelectric Protected Silver
(450 nm - 2 µm: Ravg > 97.5%,
2 - 20 µm: Ravg > 96%)
40 Piezoceramic Disk Segments
in a Circular Keystone Arrayc
  • The mirrors are protected by a 6° wedged window that is AR coated for the 400 - 1100 nm range. If a wider wavelength range is desired please contact Tech Support.
  • The four corner actuators are inactive.
  • Elements 1 - 24 Inside Pupil Diameter, Elements 25 - 40 Outside Pupil Diameter
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
AOKWT1 Support Documentation
AOKWT1Woofer-Tweeter Adaptive Optics Kit with Protected Silver-Coated Multi-DM (140 Actuators), Piezoelectric DM (40 Actuators), and CMOS Shack-Hartmann WFS
$38,699.41
Today
+1 Qty Docs Part Number - Metric Price Available
AOKWT1/M Support Documentation
AOKWT1/MWoofer-Tweeter Adaptive Optics Kit with Protected Silver-Coated Multi-DM (140 Actuators), Piezoelectric DM (40 Actuators), and CMOS Shack-Hartmann WFS, Metric
$38,699.41
Lead Time
