Preset Torque Wrenches


  • Torque Wrenches for Coaxial Connectors or Polaris® Lock Nuts
  • Preset Torque Values Between 24 and 128 oz-in
  • Engraved for Easy Identification

TQW5A

80 oz-in Torque Wrench, 5/16" Hex

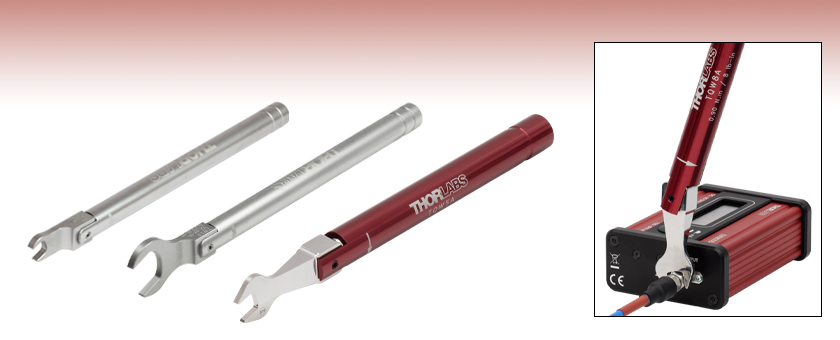

TQW8A 8 in-lbs torque wrench used to secure a 2.92 mm connector. The break-over design ensures that the proper mating torque is supplied.

TW6

24 oz-in Torque Wrench, 6 mm Hex

TW13

32 oz-in Torque
Wrench, 13 mm Hex

Related Items


Please Wait

Features

  • Break-Over Design Ensures Proper Mating Torque is Supplied
  • Preset Torque Values Prevent Over-Tightening
  • Engraved with Preset Torque Value, Torque Direction, Wrench Size, and Item #

Thorlabs' Torque Wrenches provide preset torque values to secure either coaxial connectors or Polaris lock nuts. When the preset torque value has been achieved, the break-over design will cause the pivoting joint to "break," as shown in the image above. This will prevent further force from being applied to the connector. The wrench's hex head will move back into place once the force is removed.
