Ø20 mm Petri Dish

  • Fused Silica Petri Dish with 1 mL Sample Capacity
  • Low Background Signal when Used in Raman Applications
  • Ø20 mm x 6 mm Outer Dimensions


Application Idea

The DSH20F Petri Dish can be used with the
RASP2 Portable Raman Spectrometer.
The dish is sold individually or as part of the
RASPA1 Sample Accessory Kit.


Related Items

Please Wait

Click for Details

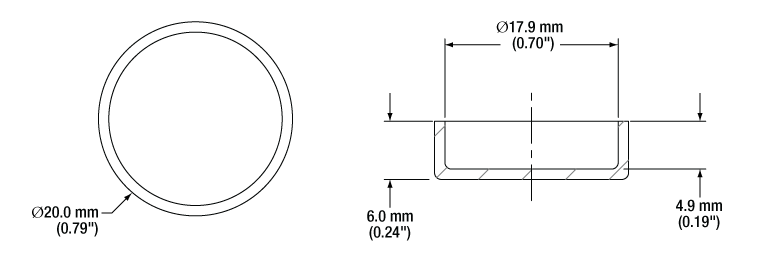

Mechanical Drawings

The DSH20F Ø20 mm, 6 mm Thick Petri Dish holds up to 1 mL of a sample. Its fused silica composition makes it suitable for Raman spectroscopy applications, where the low background signal of fused silica improves measurement sensitivity. The broad UV to NIR transmission window also makes the petri dish suitable for a range of other microscopy and spectroscopy applications.

This petri dish is included in our RASPA1 Sample Accessory Kit for RASP Series Spectrometers, and can be purchased as a replacement part for the RAPSA1 kit or on its own for use in custom Raman setups.

Posted Comments:
No Comments Posted

Ø20 mm Petri Dish

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
DSH20F Support Documentation
DSH20F1 mL Petri Dish, Ø20 mm x 6 mm, Fused Silica
