Purge Connector for SM1 Lens Tubes


  • Connects Purge Gas to Optical Beam Path Enclosed by SM1 Lens Tubes
  • Hose Barb Compatible with 3/16" Internal Diameter Tubing
  • Compatible with 30 mm Cage Systems

CPPC

Purge Connector
for SM1 Lens Tubes

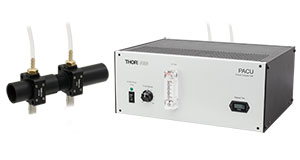

Application Idea

Two CPPC Purge Connectors can be used
for Intake and Exhaust in a Closed-Loop Configuration

Related Items


Please Wait

Click to Enlarge
View Imperial Product List
Item #QtyDescription
CPPC2Ø1" Lens Tube Purge Connector, 8-32 Taps
PACU1Pure Air Circulator Unit
SM1L102SM1 Lens Tube, 1.00" Thread Depth, One Retaining Ring Included
SM1T101SM1 (1.035"-40) Coupler, External Threads, 1" Long, Two Locking Rings
SM1NT11SM1 (1.035"-40) Locking Ring, 1.25" Outer Diameter, Slots for Spanner Wrench
SM1L201SM1 Lens Tube, 2.00" Thread Depth, One Retaining Ring Included
View Metric Product List
Item #QtyDescription
CPPC/M2Ø1" Lens Tube Purge Connector, M4 Taps
PACU1Pure Air Circulator Unit
SM1L102SM1 Lens Tube, 1.00" Thread Depth, One Retaining Ring Included
SM1T101SM1 (1.035"-40) Coupler, External Threads, 1" Long, Two Locking Rings
SM1NT11SM1 (1.035"-40) Locking Ring, 1.25" Outer Diameter, Slots for Spanner Wrench
SM1L201SM1 Lens Tube, 2.00" Thread Depth, One Retaining Ring Included
The PACU Pure Air Circulator Unit operates ideally in a closed-loop configuration.

Click to Enlarge

Cross-Section View of CPPC Purge Connector with Two SM1L10 Lens Tubes

Features

The CPPC Purge Connector for SM1 Lens Tubes makes enclosed SM1 lens tube systems compatible with our PACU Pure Air Filtration System via the hose barb. The barb is compatible with 3/16" internal diameter tubing, such as that included with the PACU system or the tubing sold below. The purge connector has SM1 (1.035"-40) internal thread to use with SM1 Lens Tubes or accessories. It also features four Ø6 mm bores for compatibility with our 30 mm cage system and is 0.75" (19 mm) thick. Each cage locking set screw has a 5/64" (2 mm) hex. The bottom and side of the cage plate also offer 8-32 (M4) mounting holes for post mounting.

We recommend using two or more CPPC Purge Connectors with our pure air filtration system, which has two connections: one for supply and one for return. The device incorporates dessicant and particulate filters in series and excels at providing an extremely clean, dry atmosphere for closed-loop experimental setups.

Note: The CPPC Purge Connector is strictly intended for purging or purifying the air in a lens-tube-enclosed beam path. Our lens tubes are not air tight and the SM1 thread is not suitable for pressurized or vacuum applications. Please do not apply sealant or tape to the thread.


Posted Comments:
No Comments Posted

Purge Connector for SM1 Lens Tubes

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
CPPC Support Documentation
CPPCCustomer Inspired! Ø1" Lens Tube Purge Connector, 8-32 Taps
$51.38
Today
+1 Qty Docs Part Number - Metric Price Available
CPPC/M Support Documentation
CPPC/MCustomer Inspired! Ø1" Lens Tube Purge Connector, M4 Taps
$51.38
Today

Purge Gas Tubing

  • Chemfluor® 367 Fluoropolymer Tubing for CPPC Lens Tube Purge Connector (Sold Above)
  • 3/16" ID x 1/4" OD (4.8 mm ID x 6.4 mm OD) Tubing
  • Continuous Operation Temperature: -25 °F to 175 °F (-32 °C to 79 °C)
  • Available in 12' (3.66 m) and 24' (7.32 m) Lengths

This clear Chemfluor® 367 Fluoropolymer Tubing (12' of which is included with our PACU Pure Air Circulator Unit) can be used with our CPPC Purge Connector to supply air or inert gas (N2) to an enclosed SM1 Lens Tube system. This tubing meets FDA requirements, is resistant to abrasions and many commonly used chemicals, and has a specific gravity of 2.15. It is available in both 12' (PACU-TG) and 24' (PACU-TG24) lengths.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
PACU-TG Support Documentation
PACU-TG3/16" ID x 1/4" OD (4.8 mm ID x 6.4 mm OD) Tubing, Length = 12'
$59.85
Today
PACU-TG24 Support Documentation
PACU-TG243/16" ID x 1/4" OD (4.8 mm ID x 6.4 mm OD) Tubing, Length = 24'
$113.40
Today
