Mini-Series Optical Post Assemblies

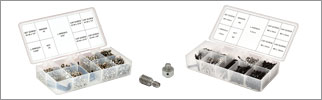

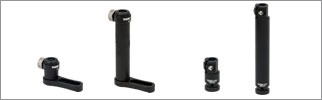

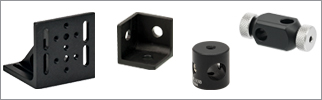

Thorlabs’ Mini-Series products enable a wide range of mounting capabilities for both small- and large-scale optomechanical assemblies. Offered below are Mini-Series posts and pedestal posts, as well as Mini-Series post holders, breadboards, kinematic mounts, a translation mount, a rotation mount, fixed optic mounts, table clamps, and accessories. The posts and one series of pedestal posts feature a bottom-located 4-40 (M3) tapped hole and a top-located 4-40 (M3) removable stud, while the other series of pedestal posts feature a bottom-located 1/4"-20 (M6) tapped hole and a top-located 8-32 (M4) removable stud. These posts are available in variety of lengths.
