Glass Aspheric Lens Kits


  • 6 Mounted Lenses with a Range of Focal Lengths and NAs
  • Three Broadband AR Coatings
  • 10 Adapters for Easy Integration and Experimentation

K4902-A

Aspheric Lens Kit with
Lenses for 350 - 700 nm

Components are
Clearly Labeled

Related Items


Please Wait
Kit Components
Click for Details

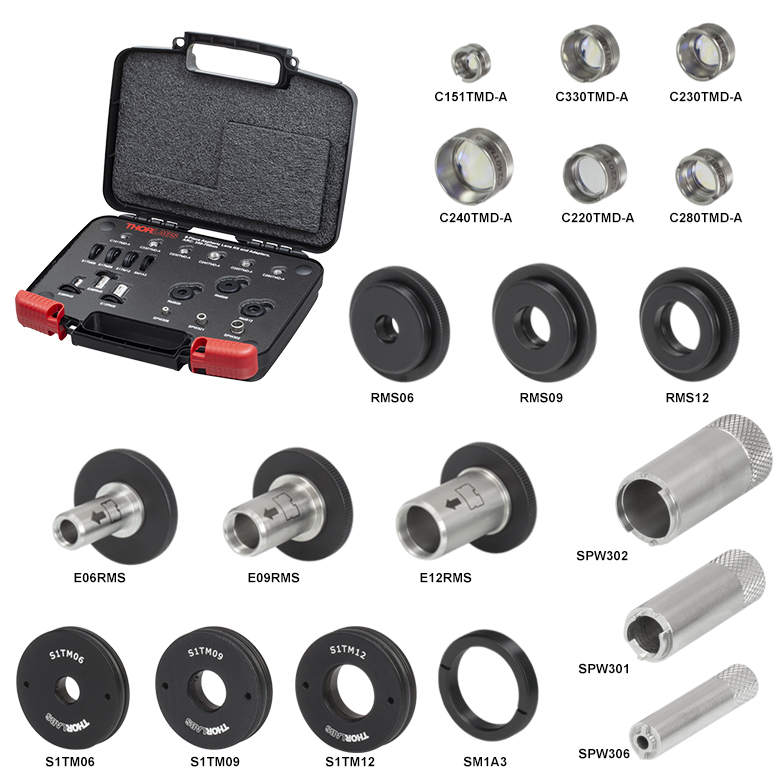

Complete Contents for the K4902-A

Features

  • Diffraction Limited Design
  • High NA (0.15 to 0.7)
  • Storage Box with Labeled Spaces for the Components
  • Ideal for Fiber Coupling
  • Collimate or Focus Light with a Single Element
Kit Contentsa
Description Item #
6 AR-Coated Opticsb C151TMD, C330TMD, C230TMD, C240TMD, C220TMD, C280TMD
3 RMS Microscope Adapters RMS06, RMS09, RMS12
3 Adapters to Fit Our
SM1 Series Lens Tubes
S1TM06, S1TM09, S1TM12
1 SM1 to RMS Adapter SM1A3
3 Extended Microscope Adapters E06RMS, E09RMS, E12RMS
3 Spanner Wrenches SPW306, SPW301, SPW302
  • Please refer to the Specs tab for detailed information about the contents of these kits and for links to related items.
  • For the full item number, add the coating designation as the suffix. For example, the K4902-A contains the C151TMD-A, the K4902-B contains the C151TMD-B, and the K4901-C contains the C151TMD-C.

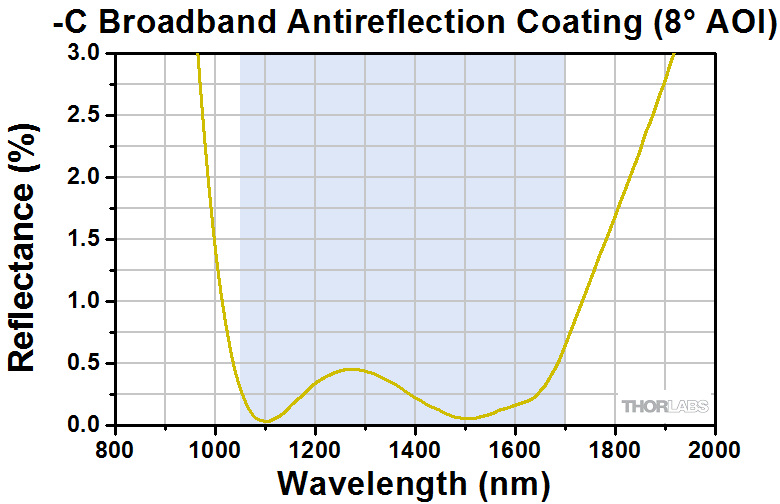

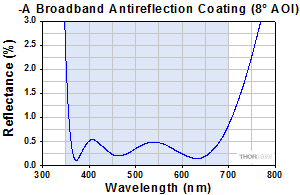

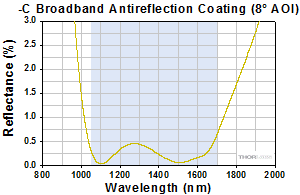

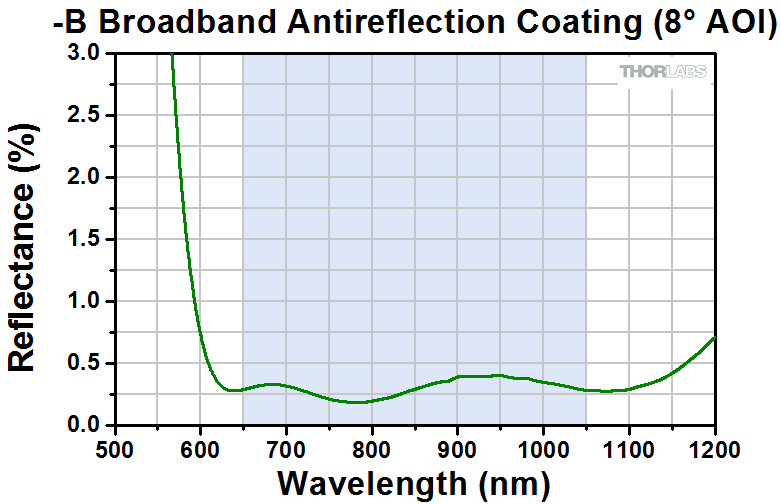

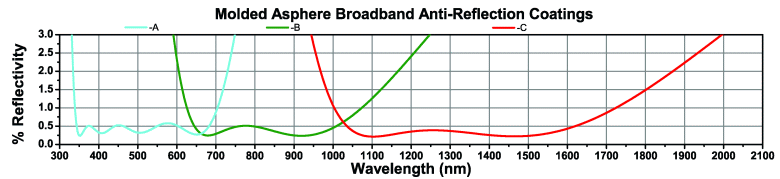

Standard Antireflection (AR) Coating Curves


Click to Enlarge
Click Here for Raw Data

Click to Enlarge
Click Here for Raw Data

Click to Enlarge
Click Here for Raw Data

Contents of K4902 Series Glass Aspheric Lens Kits

Optics
Item # Prefixa EFL NA OD CA WD DW M Glass Thread
C151TMD 2.00 mm 0.50 6.2 mm 2.00 mm 0.28 mm 780 nm D-ZLAF52LA M6 x 0.5
C330TMD 3.1 mm 0.7 9.24 mm S1: 5.00 mm
S2: 3.84 mm
1.8 mm 830 nm D-ZK3 M9 x 0.5
C230TMD 4.51 mm 0.55 9.2 mm 5.07 mm 2.43 mm 780 nm D-ZLAF52LA M9 x 0.5
C240TMD 8.00 mm 0.50 12.24 mm S1: 8.00 mm
S2: 6.94 mm
4.8 mm 780 mm D-ZK3 M12 x 0.5
C220TMD 11.00 mm 0.25 9.2 mm 5.50 mm 5.81 mm 633 nm D-ZK3 M9 x 0.5
C280TMD 18.40 mm 0.15 9.2 mm 5.50 mm 15.56 mm 780 nm D-ZK3 M9 x 0.5
  • For the full item number, add the coating designation as the suffix. For example, the K4902-A contains the C151TMD-A, the K4902-B contains the C151TMD-B, and the K4901-C contains the C151TMD-C.
Adapters
Item # Description
S1TM06 Internal M6 Thread, External SM1 (1.035"-40) Thread
S1TM09 Internal M9 Thread, External SM1 (1.035"-40) Thread
S1TM12 Internal M12 Thread, External SM1 (1.035"-40) Thread
SM1A3 Internal RMS Thread, External SM1 (1.035"-40) Thread
RMS06 Internal M6 Thread, External RMS Thread
RMS09 Internal M9 Thread, External RMS Thread
RMS12 Internal M12 Thread, External RMS Thread
E06RMS Extended RMS to M6 x 0.5 Adapter
E09RMS Extended RMS to M9 x 0.5 Adapter
E12RMS Extended RMS to M12 x 0.5 Adapter
Spanner Wrenches
Item # Description
SPW306 Spanner Wrench for M6 Threaded Lens Cells
SPW301 Spanner Wrench for M9 Threaded Lens Cells
SPW302 Spanner Wrench for M12 Threaded Lens Cells
