Kinematic Microscope Objective Mount

Designed to Mount RMS-Threaded Microscope Objectives
Removable Knobs Expose Hex Sockets in Lead Screws
Post Mountable Hardened Steel Inserts Remove Wear

KM100R

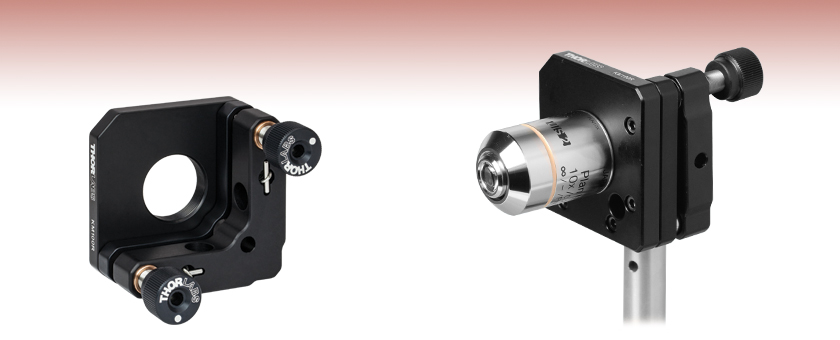

KM100R Mount Shown with an RMS10X Objective
(RMS10X Not Included)

Application Idea

Please Wait

Overview
Feedback

Features

0.800"-36 RMS Microscope Objective Thread
Angular Range: ±4°
Resolution: 8 mrad (0.5°) per rev
1/4"-80 Stainless Steel Lead Screws with Brass Bushings
Fabricated from Black Anodized Aluminum
Post Mountable via 8 (M4) Counterbored Clearance Hole

The KM100R Kinematic Microscope Objective Mount is specifically designed to allow easy integration of standard RMS-threaded microscope objectives (sold separately) into free-space setups. The mount features 1/4"-80 adjusters for tip and tilt adjustments. An optional accessory, the LN2580 bronze locking nut, is available to lock the adjusters once the desired position is reached.

Posted Comments:
Attia Awan (posted 2025-04-17 19:54:49.863) Hi, i need this EGies (posted 2025-04-17 06:30:55.0) Thank you for contacting Thorlabs. Your local Thorlabs team has reached out to you directly regarding this.

Kinematic Microscope Objective Mount

Features

RMS-Threaded Kinematic Microscope Objective Mount
