Rigid, Lightweight, Non-Isolating Support Frame
Support Frame for 600 mm x 900 mm Breadboard
Caster and Leveling Foot
with Breadboard Installed
The PFM series of support frames are designed to provide a lightweight, portable option for supporting optical breadboards. The all-steel construction and vibration-damping Sorbothane pads provide an excellent base for an optical breadboard (compatible breadboards are listed on the Breadboards tab above).
The frame comes with casters to facilitate relocation without needing to remove the optical breadboard and its contents. Once the frame is in the desired location, the four leveling feet can be lowered to level the table and lift it off the casters. These support frames are shipped fully assembled. An optional under shelf is also available.
Recommended Breadboards and Under Shelf for the PFM52501
Recommended Breadboards and Under Shelf for the PFM52502
Recommended Breadboards and Under Shelf for the PFM52503
Recommended Breadboards and Under Shelf for the PFM52504
In addition to the breadboards listed in the tables above, Thorlabs carries a large supply a breadboards suitable for almost any application. Many of these breadboards can be supported by the PFM series frames; however it is important to remember that the maximum recommended load for these frames is 200 kg (441 lbs), which includes the mass (weight) of the frame, breadboard, and all of the items on the breadboard.

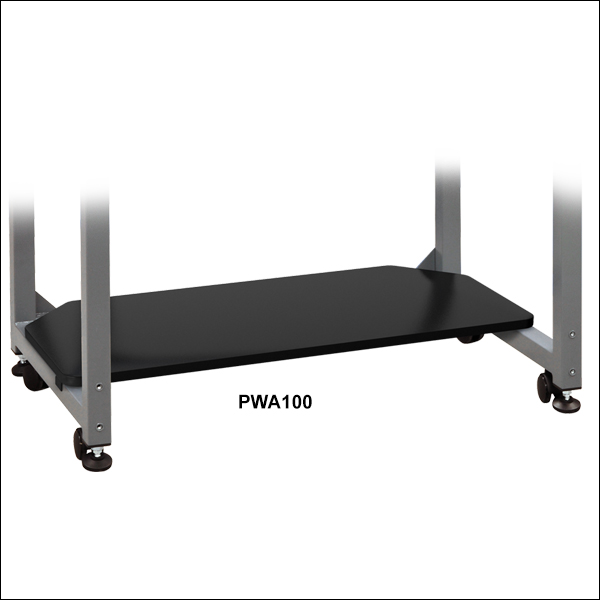

These large under shelves span the rear of the support frame and provide a large shelf depth, while not impeding user movement in front of the frame. The surface provides extensive storage both at the rear and sides of the frame and allows heavy items, such as controllers and power supplies, to be stored away from the work surface. The size of the shelf corresponds to the size of frame with which it is to be used. The shelves ship complete with attachment brackets and all necessary screws. For details on installation, please see the manual, available by clicking the Docs icon () below.
