Tubings, Fittings, and In-Line Filter for Liquid Coolant

5 m Long Polyurethane Hoses
In-Line Coupling Inserts and Bodies
In-Line Filter for Chillers
Can Withstand Up to 120 psi or 250 psi of Pressure

QVF6

11/64" Inner Diameter, 1/4" Outer Diameter Valved In-Line Coupling Insert, White Acetal

QVM9B

1/4" Inner Diameter, 3/8" Outer Diameter Valved In-Line Coupling Body, Brass with Chrome Finish

HPU6

Polyurethane Hose, 1/4" Outer Diameter, 11/64" Inner Diameter, 5 m Length

LKF40

In-Line Filter for Chillers

Please Wait

Overview
Feedback

Hose Item #	OD	ID	Compatible Coupling Insert	Compatible Coupling Body
HPU6	1/4"	11/64"	QVF6, QVF6B	QVM6, QVM6B
HPU9	3/8"	1/4"	QVF9, QVF9B	QVM9, QVM9B

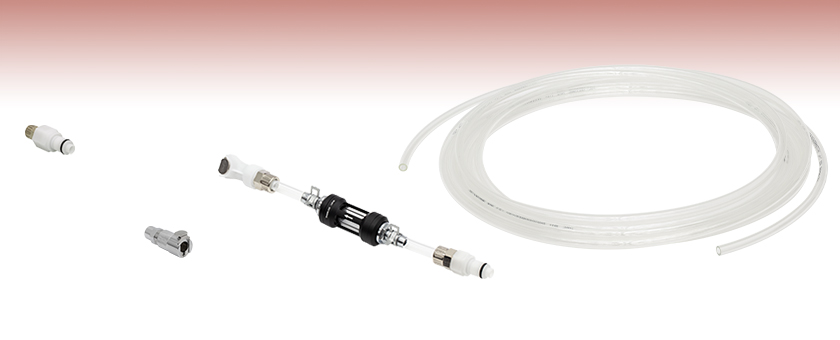

Thorlabs' polyurethane hoses, coupling inserts and bodies, and in-line filters are compatible with Thorlabs' Liquid-Cooled Cold Plates, Liquid Chiller Systems, Water-Cooled Breadboards, Spatial Light Modulators, and Liquid-Cooled HHL Laser Mount. Two sizes of polyurethane hoses are available for connection to a water or coolant supply. Additionally, we offer 1/4" and 3/8" coupling inserts and bodies and an in-line filter for removing debris inadvertently introduced into the liquid line. All items can withstand pressure up to 120 psi, with the metal coupling bodies and inserts withstanding pressure up to 250 psi. These parts can be used with water, ethanol-based coolants, or any glycol-based coolant, such as our CDTX Coolant.

Posted Comments:
No Comments Posted

Polyurethane Hoses

Zoom

5 m Long Polyurethane Hoses
Two Hose Sizes Available:
- 1/4" Outer Diameter and 11/64" Inner Diameter
- 3/8" Outer Diameter and 1/4" Inner Diameter

These 5 m Long Polyurethane (PU) Hoses can withstand up to 120 psi of pressure and can be used in temperatures from -15 to 60 °C. The hoses can be trimmed to suit any application. To do so, simply cut the tubing to the required length, trim the tubing edges flush, insert the tubing into the connectors, and connect the other end to your coolant supply/chiller unit. These hoses are intended to be used alongside the in-line coupling accessories sold below. The inserts and bodies sold below can be used to convert from 1/4" ID to 11/64" ID. Note that our HPU6 hose with 1/4" (6.35 mm) OD is compatible with both 1/4" and 6 mm ID push-fit pipe fittings.

These hoses allow for easy connection to a water or coolant supply. Both hoses are compatible with our Liquid-Cooled Cold Plates. The HPU9 1/4" ID hose can directly connect to the liquid-cooled plates, while the fittings sold below can be used to adapt to the HPU6 11/64" ID hose. The HPU6 polyurethane hose is also directly compatible with our Liquid-Cooled Breadboards, Liquid-Cooled HHL Laser Mount, and Liquid-Cooled Baseplates.

In-Line Coupling Accessories

Zoom

Click to Enlarge
Figure 740B QVM6 with Nut Detached

Click to Enlarge
Figure 740A QVF6 with Nut Detached

RoHS Compliant Materials:
- Natural White Acetal or Brass with Chrome Finish
- Stainless Steel Valve Spring
- Barrel Nickel Plated Brass Nut
BUNA-N Seals

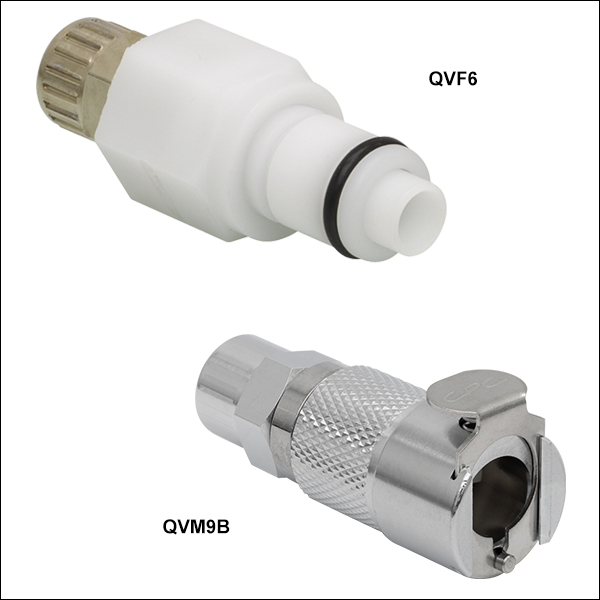

These Valved In-Line Coupling Inserts and Bodies are made from either natural white acetal or brass with a chrome finish, and can withstand pressures up to 120 psi or 250 psi, respectively, in temperatures from -40 to 82 °C (-40 to 180 °F). The inserts have male connection ports, while the bodies have female connectors with a self-lock structure for secure connection. Inserts and bodies are intended to be used in pairs, as any coupling insert can mate with any coupling body, and are recommended to be used in pairs of the same material. The QVF6(B) coupling insert and QVM6(B) coupling body can support HPU6 tubing with a 11/64" inner diameter (ID) and 1/4" outer diameter (OD), while the QVF9(B) coupling insert and QVM9(B) coupling body can support HPU9 tubing with a 1/4" ID and 3/8" OD.

These coupling accessories are directly compatible with our Liquid-Cooled Cold Plates. Additionally, they can be used with the LK220 and LK500 Liquid Chillers, Spatial Light Modulators, or our Liquid-Cooled HHL Laser Mount, which all come with compatible CPC^®valved quick-connect coupling inserts.

In-Line Filter

Zoom

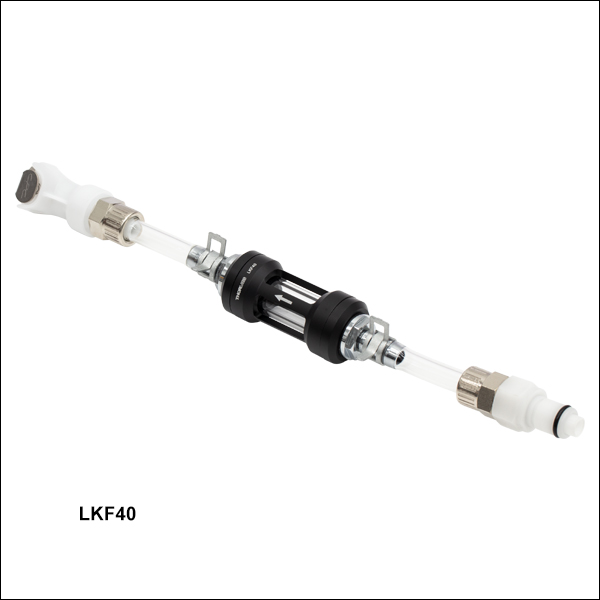

Compact In-Line Liquid Filter
