Optical Spectrum Analyzers


  • Dual-Function Broadband Spectrometer and Wavelength Meter
  • 1.9 GHz or 7.5 GHz Resolution Models
  • Seven Models Available for Wavelengths from 250 nm to 12.0 µm
  • FC/PC Fiber Connector and Free-Space Optical Inputs

OSA202C

600 - 1700 nm,
7.5 GHz Resolution


All OSAs include a Windows® laptop with our data collection and analysis software.

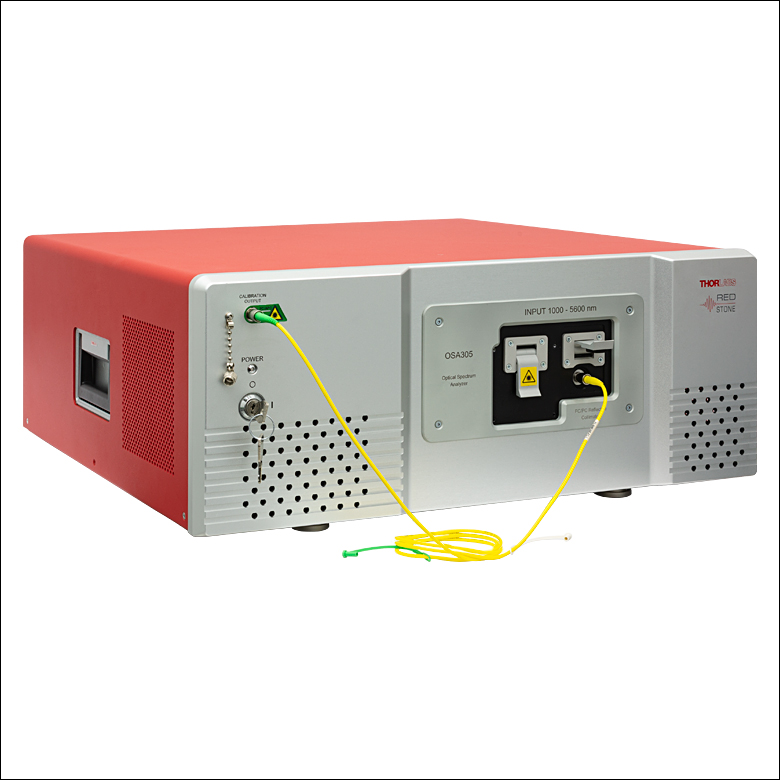

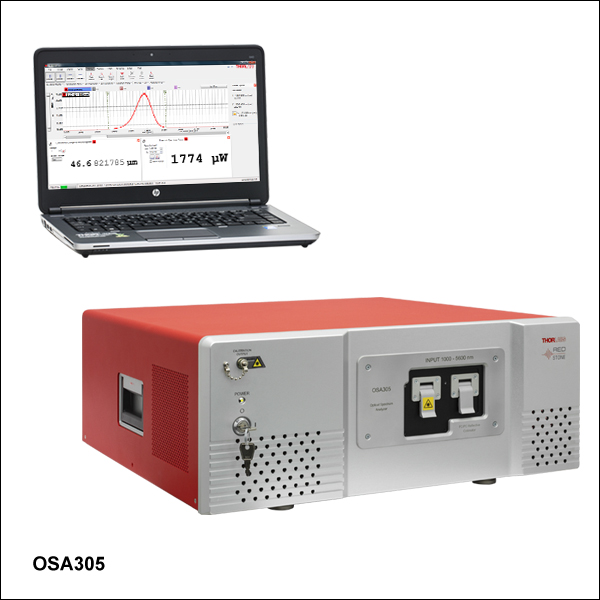

Redstone® OSA305

1.0 µm - 5.6 µm,
1.9 GHz Resolution

Related Items


Please Wait

Olle Rosenqvist
Olle Rosenqvist
OSA R&D Manager

Contact Me

Pre-Purchase Support and Customization

To help ensure that our Optical Spectrum Analyzers will meet your application needs, we would be pleased to provide the following:

  • Demo Units for Trial Use in Your Lab
  • Example Measurements
  • Evaluation of Suitability for Your Application
  • "Virtual Device" Software Demo (See the
    Software Tab)

We also invite customers whose needs are not addressed by the OSA models below to work with our engineering and manufacturing team to tailor an application-specific unit. Examples of customization options include:

  • Different Input Receptacle
  • Small Adjustments to the Wavelength Range
  • Extra Test Protocols
  • Shipping Without a Laptop

If you would like to take advantage of any of these services, or if you have feedback or questions, I'd be happy to assist!

Quick Comparisona
Item # OSA20xC Redstone® OSA30x
Noise Floorb Absolute Power Graph
Absolute Power


Power Density Graph
Power Density
Resolution (pm)c Resolution in Spectrometer Mode Graph
Click to Enlarge
Spectral Resolution 7.5 GHz (0.25 cm-1) 1.9 GHz (0.063 cm-1)
Spectral Accuracy ±2 ppm ±0.2 ppm
Wavelength Meter Accuracy ±1 ppm ±0.5 ppm
Power Level Accuracy ±1 dB ±0.4 dB
Optical Rejection Ratio 30 dB 40 dB
Polarization Dependence ±1 dB ±0.2 dB (OSA302)
±0.1 dB (OSA305)
Free-Space Input
(Collimated Beams)
≤Ø6 mm ≤Ø10 mm
Input Fiber Compatibility FC/PC Connectors as Standard
Dimensions 320.3 mm x 149.2 mm x 474.7 mm
(12.61" x 5.88" x 18.69")
541.0 mm x 224.1 mm x 532.6 mm
(21.30" x 8.82" x 20.97")
Weight 20 lbs (10 kg) 58.4 lbs (26.5 kg)
Feature Comparison
Alignment Laser
Optional Purging
GUI with Analysis Tools
Accessible Calibration Laser -
External Trigger -
Multi-Detector Configuration -
Piezoelectric Beam
Path Optimization
-
  • See the Specs tab for details on all available models.
  • Absolute Power mode is recommended for narrowband sources, while Power Density mode is recommended for broadband sources.
  • This is the resolution in spectrometer mode, and details for this calculation can be found on the Design tab.

Features

  • General-Purpose (OSA20xC) and High-Performance (Redstone® OSA30x) Instruments Available
  • Spectrometer Mode Resolution

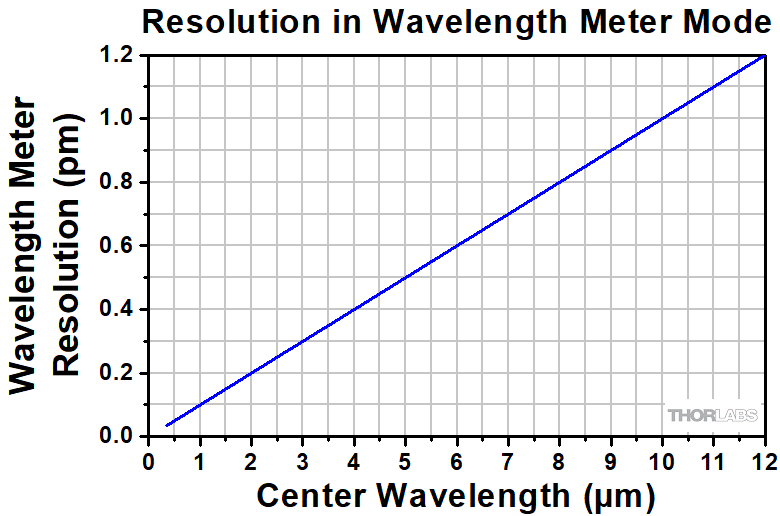

  • Wavelength Meter Mode Resolution: 0.1 ppm (Only for <10 GHz Linewidth Sources)
  • Spectrum Obtained Using Michelson Interferometer and Fourier Transform
  • Free-Space (with Cage Compatibility) and FC/PC Fiber-Coupled Inputs
  • Operated by Included Windows® Laptop with Pre-Installed Software
    • Straightforward, Intuitive, and Responsive Interface
    • Real-Time Math Operations and Statistical Analysis

Thorlabs' Optical Spectrum Analyzers (OSAs) perform highly accurate spectral measurements. Compatible with fiber-coupled and free-space light sources, these benchtop instruments suit a wide variety of applications, such as analyzing the spectrum of a telecom signal, resolving the Fabry-Perot modes of a gain chip, and identifying gas absorption lines. We offer two instrument types: the general-purpose OSA20xC instruments, which have a high update rate and moderate resolution, and the high-performance Redstone® OSA30x instruments, which have a high dynamic range and high resolution.

Our optical spectrum analyzers acquire the spectrum via Fourier transform, using a scanning Michelson interferometer. This approach enables a high-precision Wavelength Meter mode with seven significant figures and ±1 part-per-million (ppm) spectral precision, allows robust statistical analysis of the acquired spectra, and provides broadband spectral measurements with every scan. A frequency-stabilized 632.9918 nm HeNe alignment laser is included in each OSA20xC unit, which is used to ensure a spectral accuracy of ±2 ppm. Each Redstone OSA includes a frequency-locked 1532.8323 nm reference laser, resulting in a spectral accuracy down to ±0.2 ppm.

Thorlabs' OSA20xC spectrum analyzers are optimized to cover five different spectral ranges with a spectral resolution of 7.5 GHz (0.25 cm-1) and a 30 dB optical rejection ratio. Designed for applications that require higher optical resolutions or sensitivities, the Redstone OSAs feature two detectors, which allow for measurements over a wide wavelength range with a 1.9 GHz (0.063 cm-1) spectral resolution, as well as a noise floor with a 40 dB optical rejection ratio. For additional details on the interferometer design, please see the Design tab.

These instruments are designed to measure CW light sources. They also work in some applications where a pulsed light source is used; details may be found on the Pulsed Sources tab. Similarly, our OSA instruments are not designed for applications where it is necessary to recover small signals, including fluorescence detection and Raman spectroscopy. If your application would benefit from increased detection sensitivity, please refer to the Custom OSAs tab for some of our capabilities.

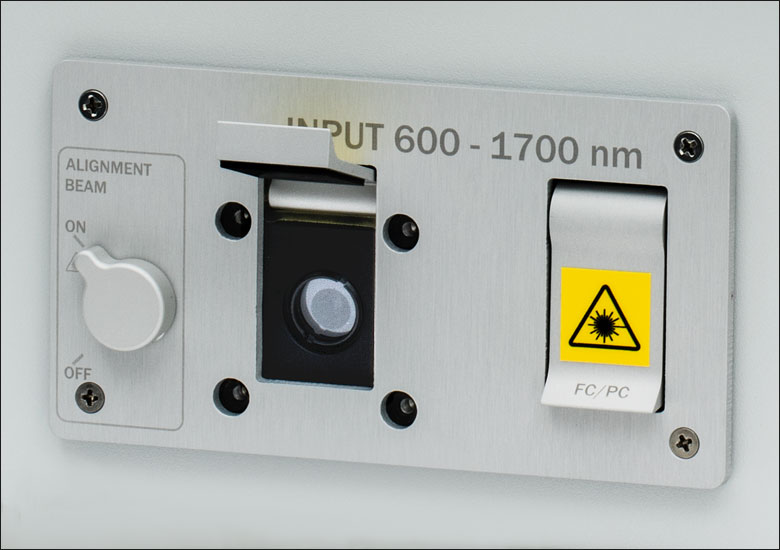

Optical Inputs

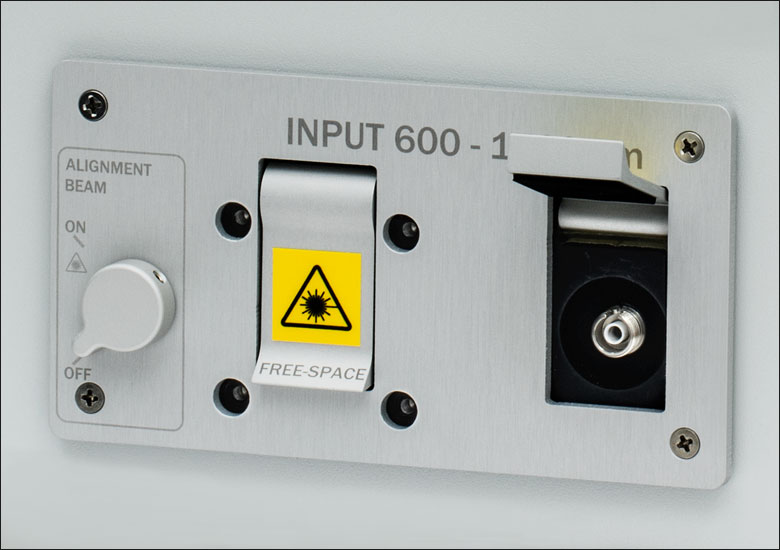

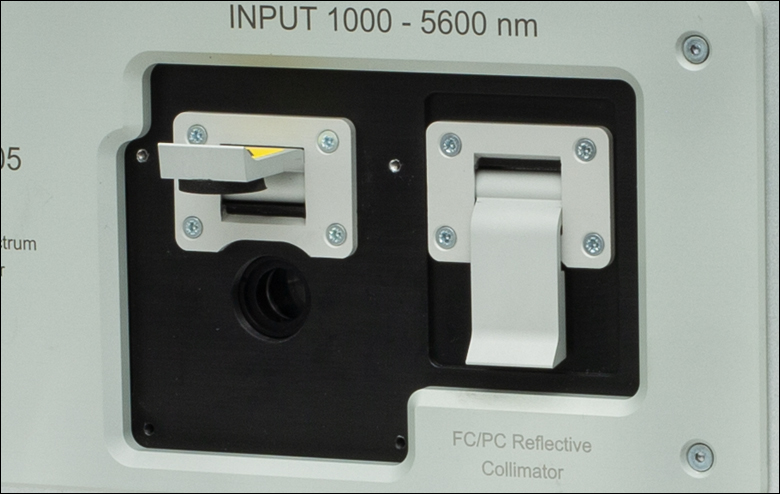

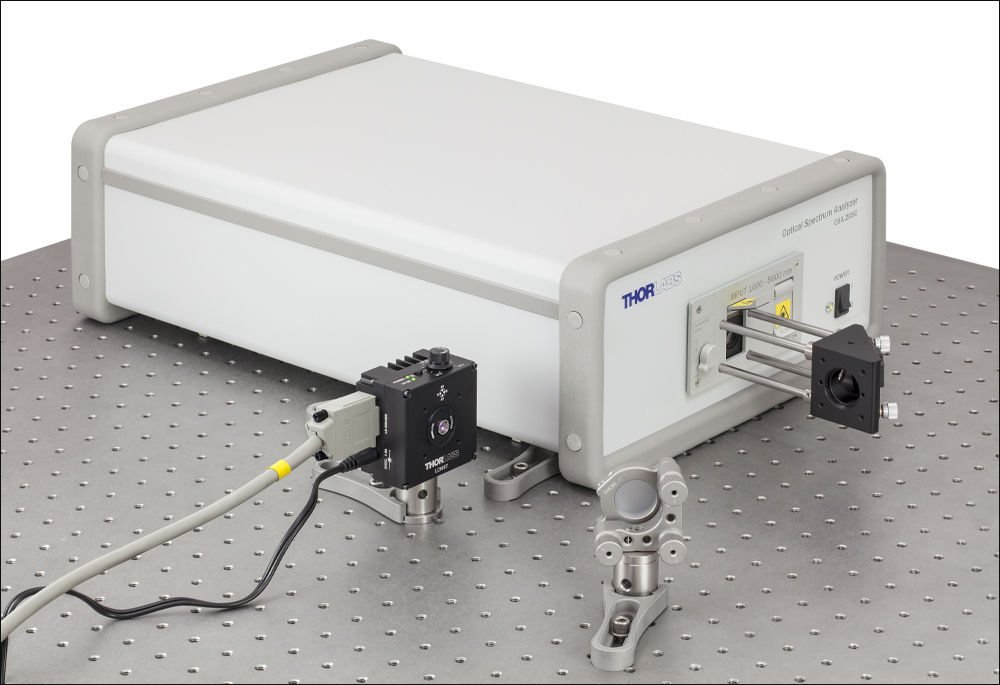

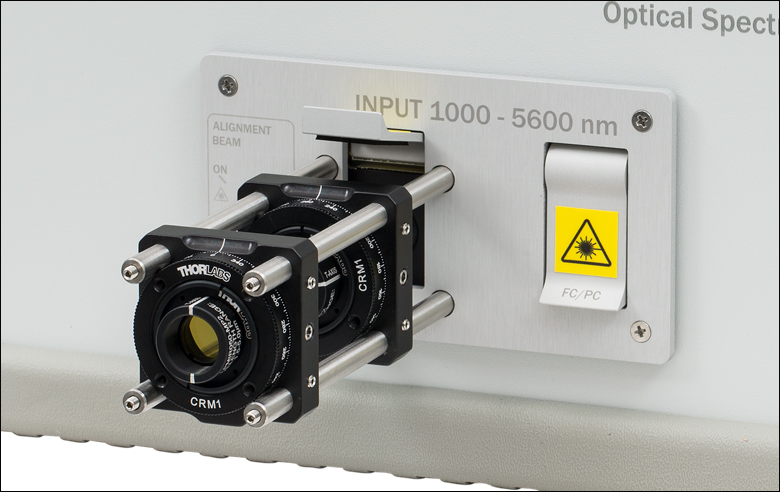

All of Thorlabs' OSAs accept FC/PC-terminated fiber patch cables and collimated free-space beams up to Ø6 mm (OSA20xC) or Ø10 mm (Redstone OSA30x). Details on compatibility are in the Specs and Free-Space Coupling tabs. For wavelengths from 2 µm to 5.5 µm, we offer fluoride single mode and fluoride multimode fiber patch cables. Optical Spectrum Analyzers with other fiber input receptacles are available by contacting Tech Support.

Software

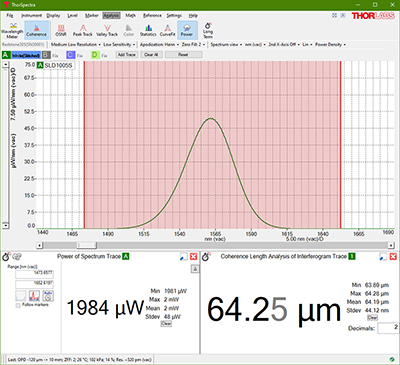

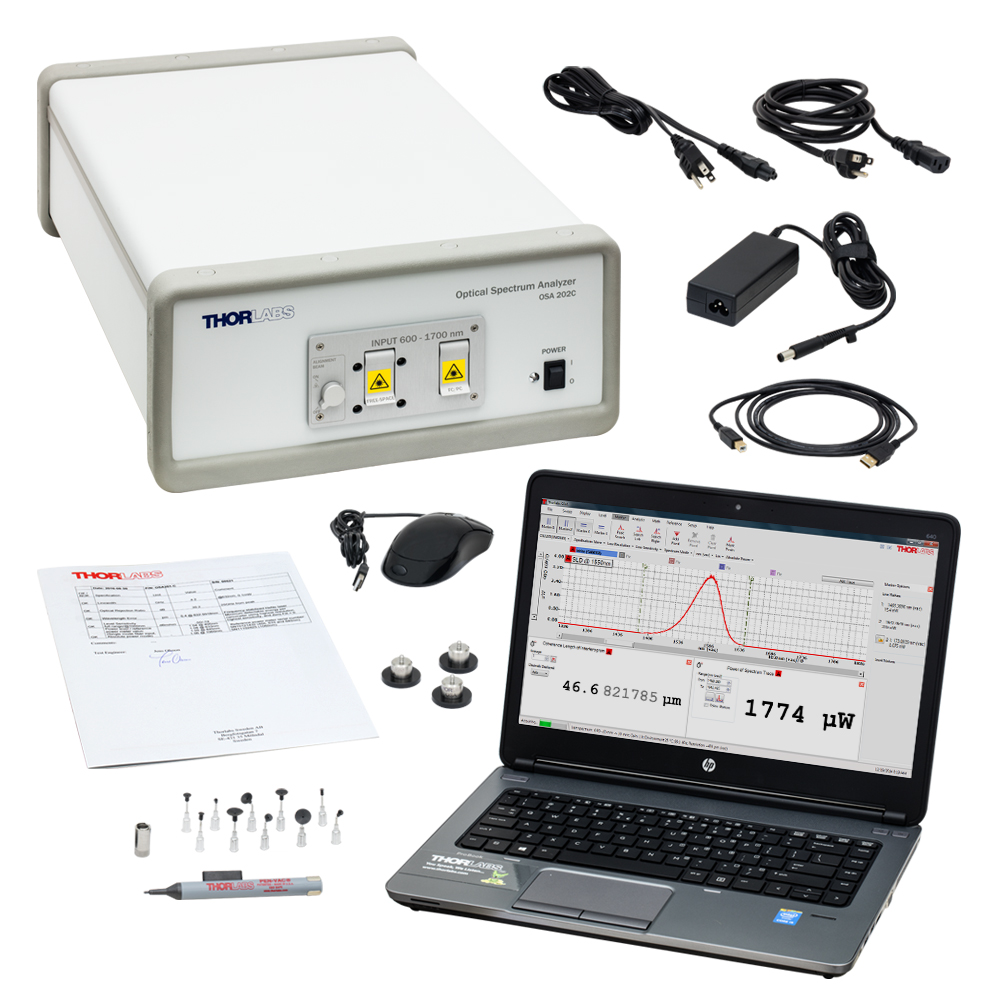

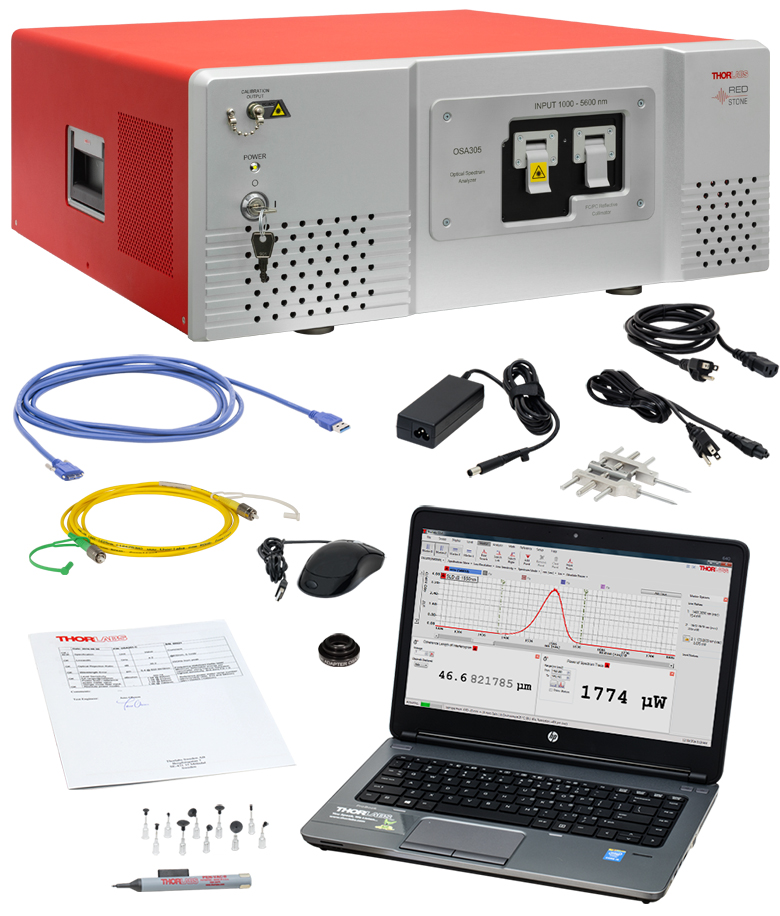

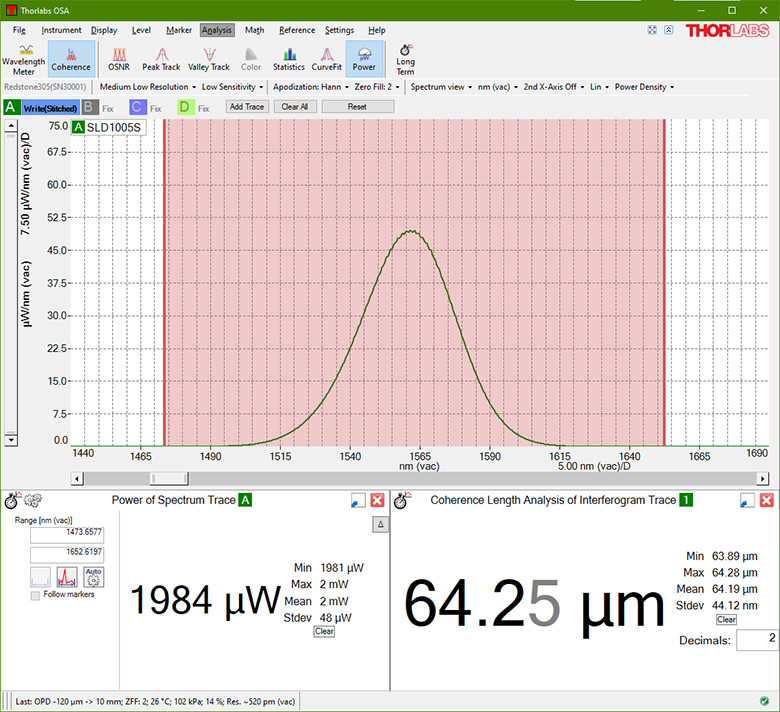

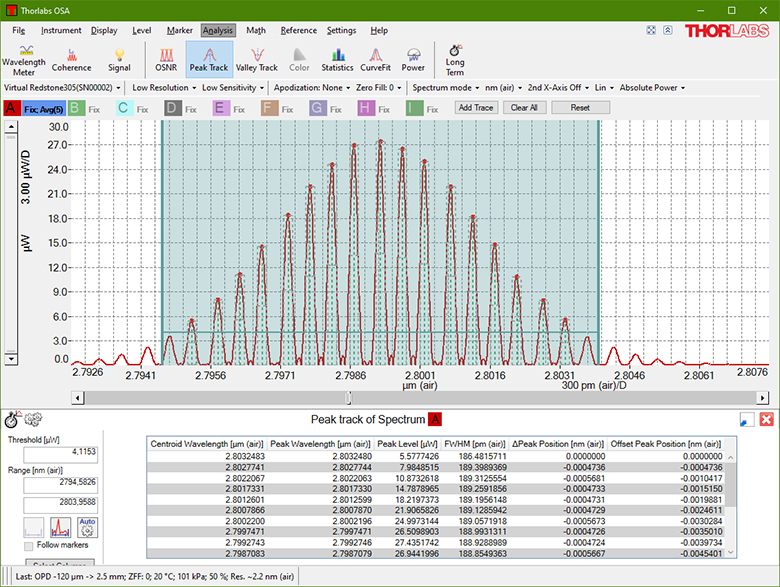

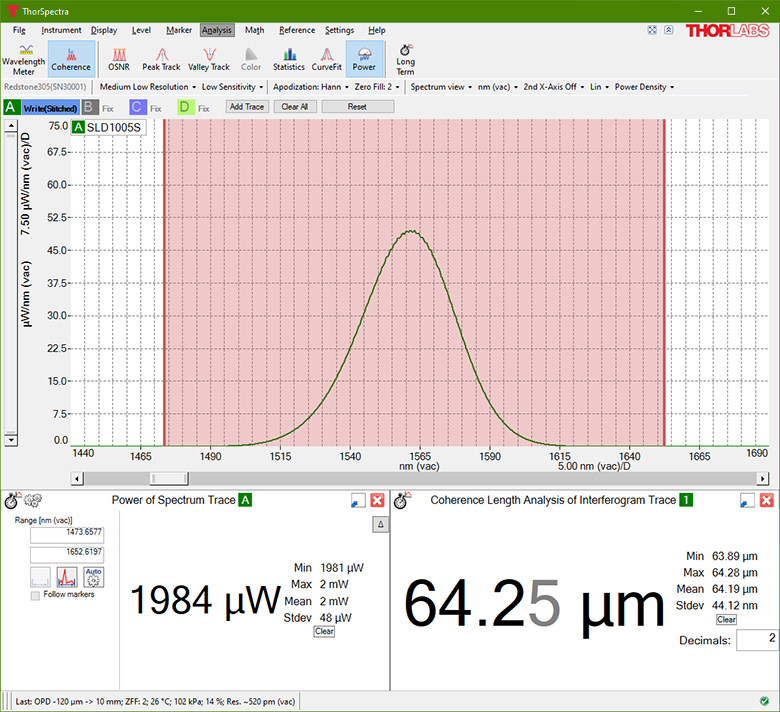

Each Optical Spectrum Analyzer includes a Windows® laptop with our OSA software suite pre-installed. This software includes built-in tools for simple and complex analysis, controls for adjusting sensitivity and resolution, a wavelength meter tool for narrowband sources, and a coherence length tool for broadband sources. Also available are apodization functions, which are used to account for the finite path length over which the interferogram is measured. This software also includes built-in support for the HITRAN reference database for spectroscopic analysis. For additional details on software capabilities, please see the Software tab.

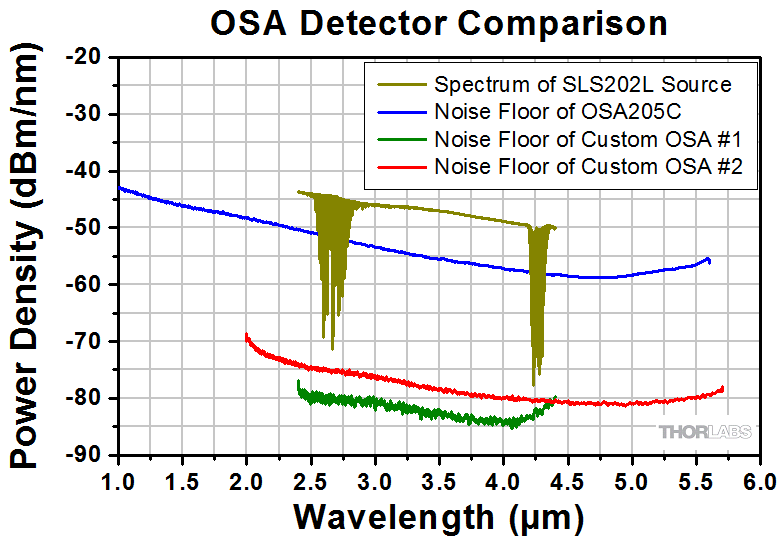

Application Note

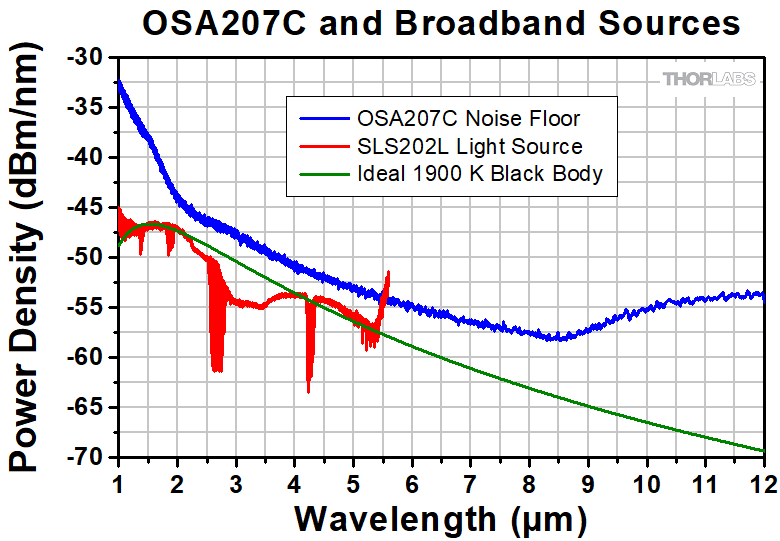

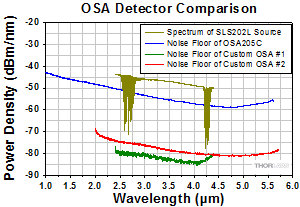

Due to its broad wavelength responsivity, the OSA207C's noise floor is higher than that of our other Optical Spectrum Analyzers, which achieve lower noise floors at the expense of having narrower wavelength ranges. This OSA will easily detect lasers and other narrowband sources, but many broadband sources will not have sufficient power spectral density to be detected. This plot compares the OSA207C's noise floor in Power Density mode to an ideal 1900 K black body and Thorlabs' SLS202La Stabilized Broadband Light Source (which was measured with an OSA205C).

Power Spectral Density Comparison
Click to Enlarge

  • This item is no longer available for purchase. Stabilized light sources with similar performance are available here. Please contact Technical Support for assistance with your specific application.
Item # OSA201C OSA202C OSA203C OSA205C OSA207C
Wavelength Rangea 350 - 1100 nm 600 - 1700 nm 1.0 - 2.6 µmb
(10 000 - 3846 cm-1)
1.0 - 5.6 µm
(10 000 - 1786 cm-1)
1.0 - 12.0 µm
(10 000 - 833 cm-1)
Level
Sensitivityc,d
-50 dBm/nme (350 - 500 nm)
-60 dBm/nm (500 - 1100 nm)
-65 dBm/nm (600 - 700 nm)
-70 dBm/nm (700 - 1700 nm)
-70 dBm/nmf
-40 dBm/nm -30 dBm/nm (1.0 - 2.0 µm)
-40 dBm/nm (2.0 - 12.0 µm)
Free-Space
Window Material
Uncoated CaF2 Uncoated ZnSe
Operating Temperature 10 °C to 40 °C 10 °C to 35 °C
  • Limited by Bandwidth of Detectors and Optics
  • Specified in high-temperature mode. In low-temperature mode, the wavelength range is 1.0 - 2.5 µm.
  • Minimum detectable power per nanometer using Zero Fill = 0 and the highest resolution and sensitivity settings.
  • See Graphs Below
  • In the 350 - 500 nm range, the OSA201C will easily detect lasers and other narrowband sources, but broadband sources may not have sufficient power spectral density to be detected.
  • Specified in low-temperature mode over 1.0 - 2.5 µm. In high-temperature mode, the level sensitivity is -65 dBm/nm over 1.0 - 2.6 µm.
Item # Redstone® OSA302 Redstone OSA305
Wavelength Rangea 250 nm - 2.5 µmb
(40 000 - 4000 cm-1)
1.0 - 5.6 µm
(10 000 - 1786 cm-1)
Level Sensitivityc,d -50 dBm/nm (250 - 1500 nm)
-70 dBm/nm (1500 - 2500 nm)
-65 dBm/nm (1.0 - 1.5 µm)
-70 dBm/nm (1.5 - 5.6 µm)
Free-Space
Window Material
Uncoated CaF2
Operating Temperature 10 °C to 40 °C
  • Limited by Bandwidth of Detectors and Optics
  • Please note that the Redstone OSA302 is sensitive to wavelength ≤240 nm. Light sources at these wavelengths will limit the lifetime of the detectors within the instrument. We recommend using a long-pass filter to block wavelengths ≤240 nm.
  • Minimum detectable power per nanometer using Zero Fill = 0 and the highest resolution and sensitivity settings.
  • See Graphs Below
General Specificationsa
Item # OSA20xC Redstone OSA30x Notes
Spectral Resolutionb 7.5 GHz (0.25 cm-1)
See Resolution in Spectrometer Mode Graph Below
1.9 GHz (0.063 cm-1)
See Resolution in Spectrometer Mode Graph Below
Spectrometer Mode
Spectral Accuracyc ±2 ppmd ±0.2 ppmd
Spectral Precisione 1 ppmd 0.2 ppmd
Wavelength Meter Resolutionf 0.1 ppmd Wavelength Meter Mode
(Linewidth < 10 GHz)
Wavelength Meter
Display Resolutionf,g
 9 Decimals
Wavelength Meter Accuracyc,f ±1 ppmd ±0.5 ppmd
Wavelength Meter Precisionf,h 0.2 ppmd
Input Power (Max) 10 mW (10 dBm) CW Source
Input Damage Thresholdi 20 mW (13 dBm) -
Power Level Accuracyj ±1 dB ±0.4 dB -
Optical Rejection Ratiok 30 dB 40 dB See the Design Tab
for Details
Polarization Dependence ±1 dB ±0.2 dB (OSA302)
±0.1 dB (OSA305)
-
Internal Source Specifications
Source Type Frequency-Stabilized Laser
(Alignment and Reference Laser)
Alignment Laser Frequency-Locked
Reference Laser
-
Wavelength 633 nm 636 nm 1.53 µm -
Maximum Output Power <80 µW <100 µW <10 mW -
Beam Divergence 0.2 rad 0.2 rad 0.2 rad Approximate Value
Trigger Specifications
Trig, AUX In N/A Schmitt Trigger Input with 10 kΩ Pull-Up Resistor to +5 V
Positive-Going Threshold Voltage, Min: 1.3 V Max: 2.5 V
Negative-Going Threshold Voltage, Min: 0.6 V Max: 1.8 V
Hysteresis Voltage, Min: 0.4 V Max: 1.5 V
Maximum Input Voltage: +5.5 V
-
Acquiring Data, AUX Out N/A LOW-Level Output Voltage Max 0.1 V (I ≤ 100 µA)
HIGH-Level Output Voltage Min 4.7 V (I ≤ 100 µA)
-
Interlock Specifications
Interlock Switch Requirements N/A Must be Normally Open Dry Contacts,
Apply No External Voltages to the Interlock Input
-
Type of Connector N/A 2.5 mm Mono Phono Jack -
Open Circuit Voltage N/A 5 VDC -
Short Circuit Current N/A 0.5 mA Typical
Physical Specifications
Input Fiber Compatibility FC/PC Connectorsl
All Single Mode Fiber Patch Cables, Including Fluoride SM Fiber Patch Cables
Standard and Hybrid Multimode Fiber Patch Cables with ≤Ø50 µm Core and NA ≤ 0.22
Fluoride Multimode Fiber Patch Cables with ≤Ø100 µm Core and NA ≤ 0.26
(Single Mode Patch Cables Provide the Highest Contrast)
-
Free-Space Input Accepts Collimated Beams up to Ø6 mm
Red Alignment Laser Beam Output (Class 1)

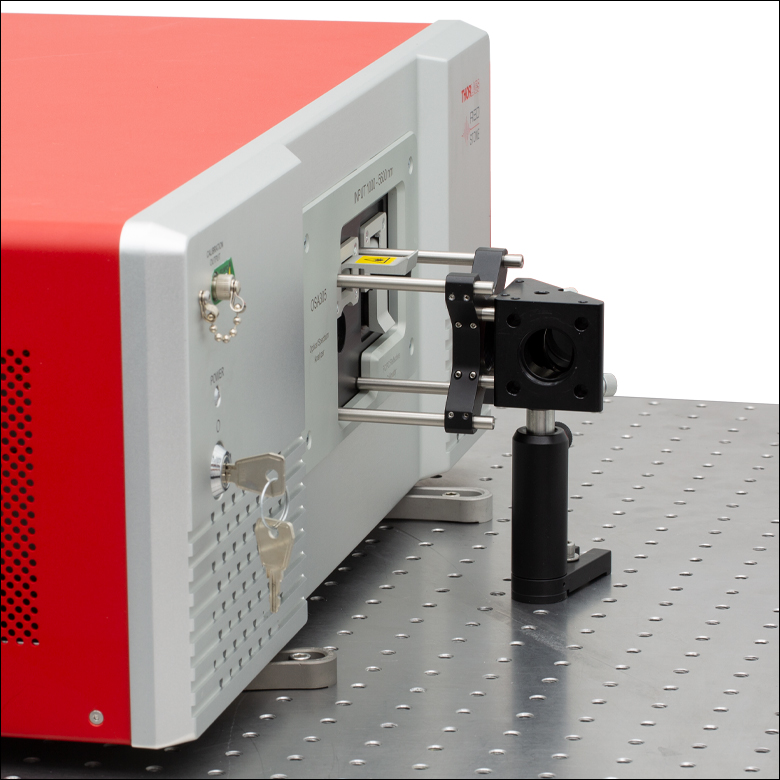

Four 4-40 Taps for 30 mm Cage Systems
Accepts Collimated Beams up to Ø10 mm
Red Alignment Laser Beam Output (Class 1)
Four 4-40 Taps for 60 mm Cage Systems
-
Free-Space Input
Beam Height
61 mm (2.4")
When Using the Included Mounting Feet
117.3 mm (4.62") -
Dimensions 320.3 mm x 149.2 mm x 474.7 mm
(12.61" x 5.88" x 18.69")
541.0 mm x 224.1 mm x 532.6 mm
(21.30" x 8.82" x 20.97")
-
Absolute Maximum Ratings
Input Powerm 100 - 240 VAC, 47 - 63 Hz, 250 W (Max) -
Relative Humidity <80%, Non-Condensing -
Storage Temperature -10 °C to 60 °C -
Optical CW Power (Max)i 20 mW
(13 dBm)
Limited by Damage Threshold
of Internal Components
  • Each specification is valid for a single mode FC/PC-terminated patch cable, as well as for a collimated free-space beam with diameter <3 mm and divergence <3 mrad, assuming the included protective window is installed in the free-space aperture.
  • Defined according to the Rayleigh criterion.
  • After a 20 minute warm-up (Item #s OSA20xC), for a single mode FC/PC-terminated patch cable at an operating temperature of 20 - 30 °C.
  • Specified in parts per million, which corresponds to nearly seven significant figures (depending on the specification). For instance, if the wavelength being measured is 1 µm, the wavelength meter precision will be 200 fm.
  • Spectral Precision is the repeatability with which a spectral feature can be measured using the Peak Track tool.
  • Measured in Wavelength meter mode (linewidth <10 GHz)
  • Can be set from 0 - 9 decimals and has a feature that automatically estimates the relevant number of decimals.
  • Using the same input single mode fiber for all measurements.
  • Limited by the damage threshold of the internal components.
  • Specified using Absolute Power Mode, Zero Fill = 2, and Hann apodization, after a 20 minute warm-up (Item #s OSA20xC), for an operating temperature of 20 - 30 °C. (The different apodization modes available in the OSA software are described in the OSA20xC and Redstone® OSA30x manual.) The specified wavelength range is 450 - 2500 nm for OSA302, 400 - 1000 nm for OSA201C, 600 - 1600 nm for OSA202C, 1.0 - 2.4 µm for OSA203C, 1.3 - 5.0 µm for OSA205C, 2.0 - 11.0 µm for OSA207C, and 1.0 - 5.5 µm for OSA305.
  • Specified at ±25 GHz from Main Peak using High Resolution, Low Sensitivity, Hann Apodization, and an Average of 5 Traces
  • Connectors for other fiber input receptacles are available upon request. Please contact Tech Support or see the Custom OSAs tab for details.
  • The OSA and the Windows® laptop each come with a region-specific power cord.

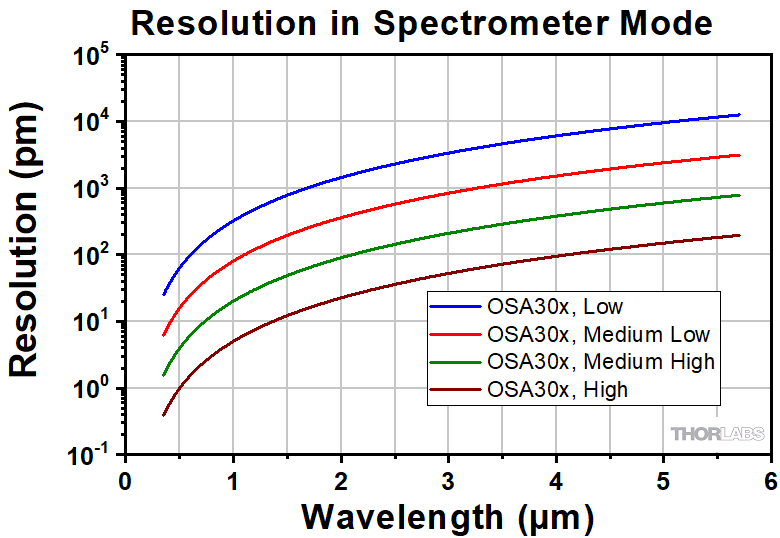

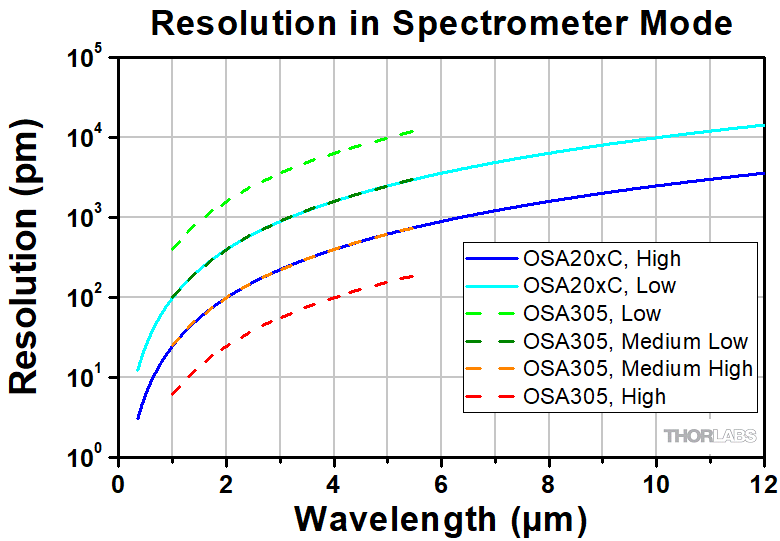

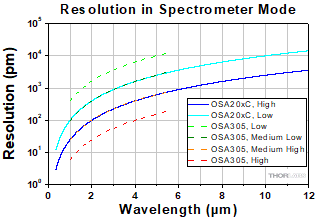

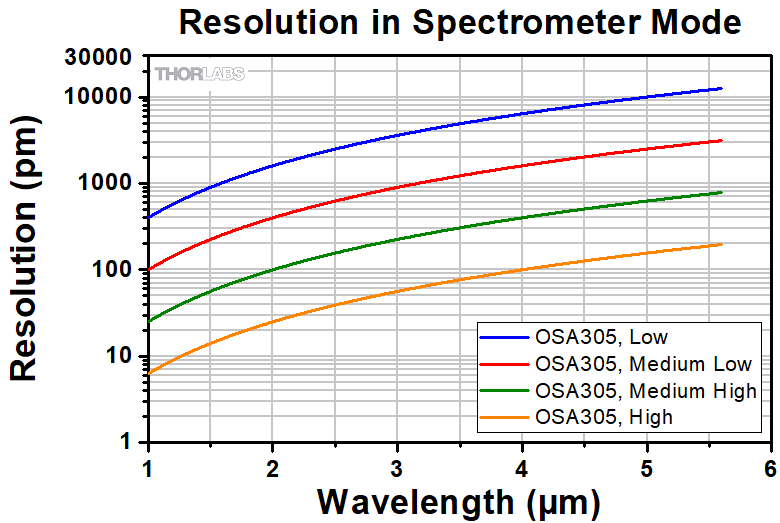

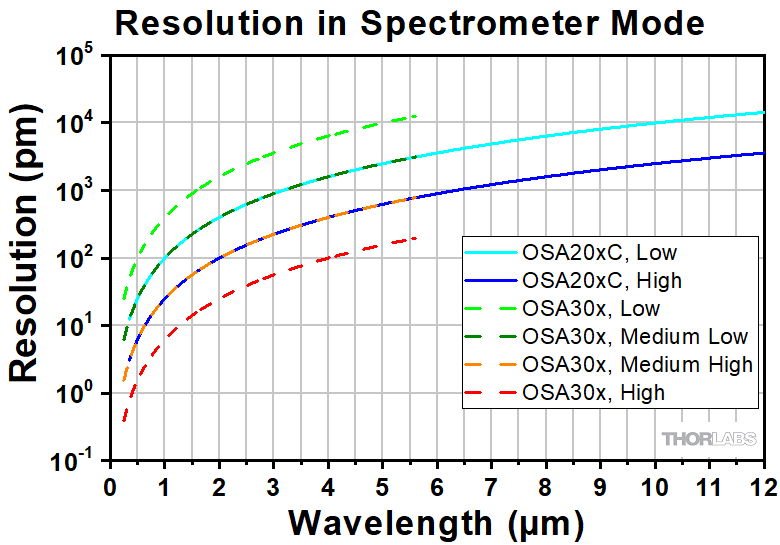

Resolution in Spectrometer Mode
Click to Enlarge

The resolution shown here was calculated using the formula explained in the Design tab. Although the formula is valid for all OSA models, the usable wavelength range of each model is limited by the bandwidth of the detectors and optical coatings. Note that the resolution is valid only for the specified wavelength range of the instrument.

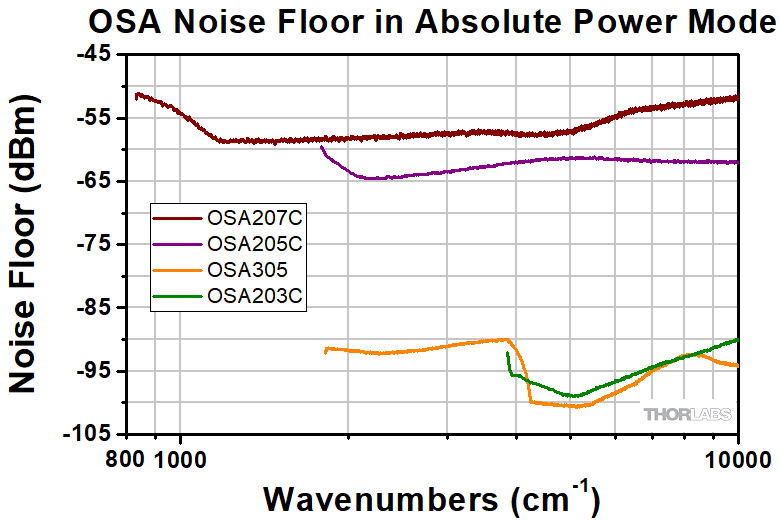

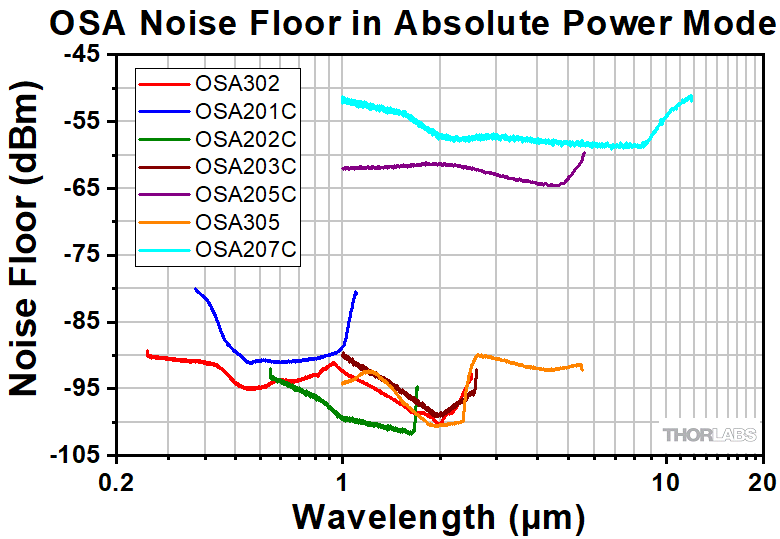

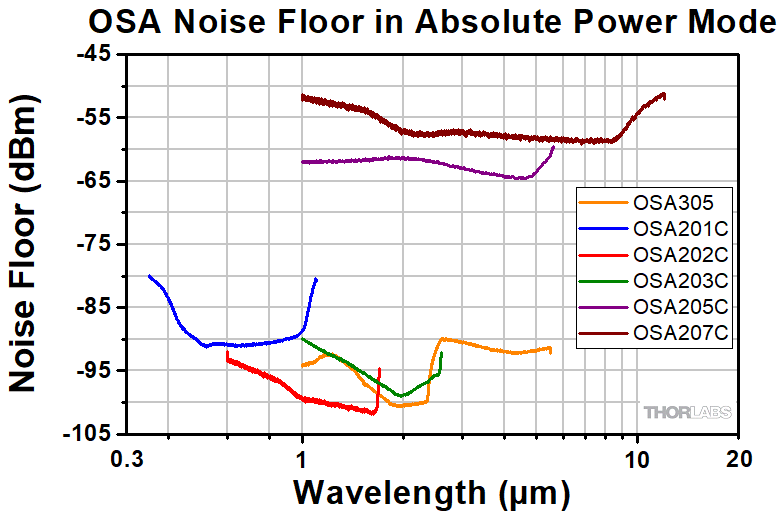

Noise Floor in Absolute Power Mode
Click to Enlarge

Absolute Power mode is recommended for narrowband sources. The OSA203C noise floor was measured in low-temperature mode.

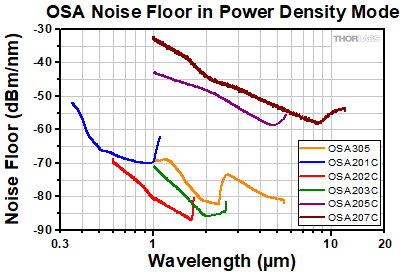

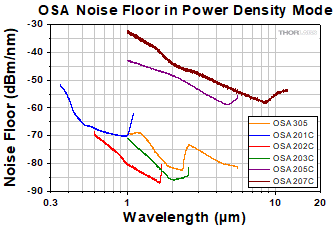

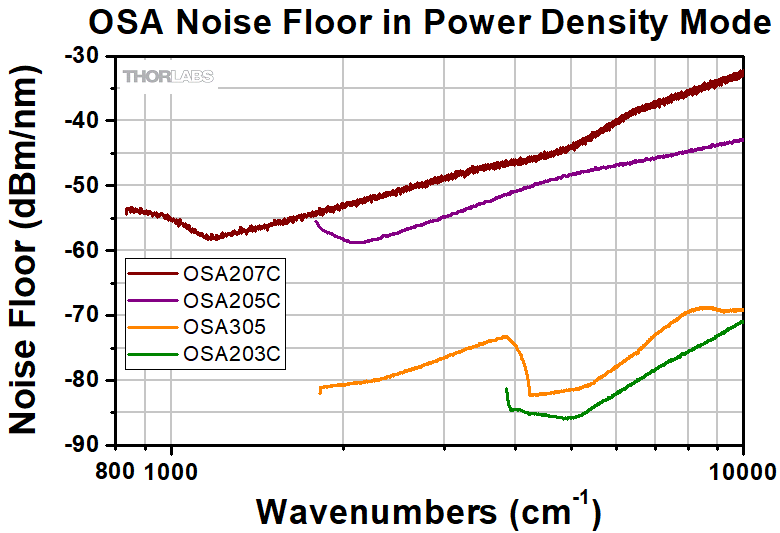

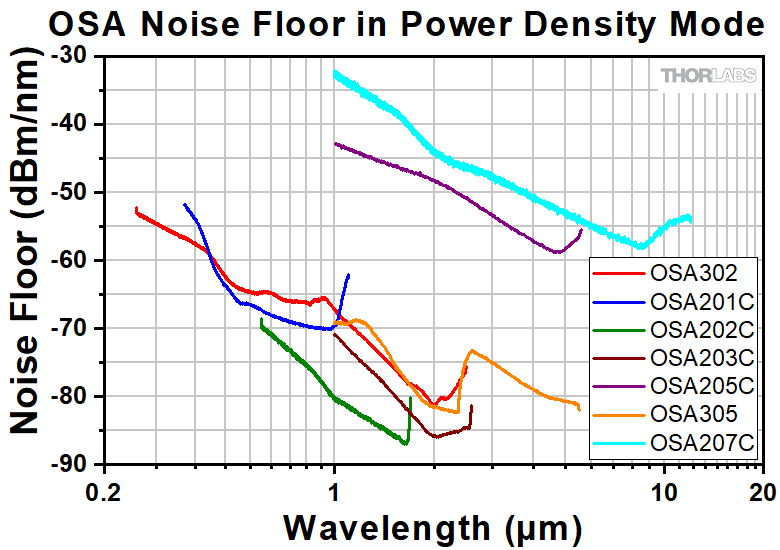

Noise Floor in Power Density Mode
Click to Enlarge

Power Density mode is recommended for broadband sources. The OSA203C noise floor was measured in low-temperature mode.

Data Acquisition Specifications

The scan sensitivity and resolution are two independent settings controlled from the software. The sensitivity setting modifies the range of detector gain levels, while the resolution setting changes the optical path difference (OPD). For more details, see the Design tab.

OSA20xC Series Time Between Updates (Update Frequency)
Sensitivity Resolution
Low High
Low 0.5 s (1.9 Hz) 1.8 s (0.6 Hz)
Medium Low 0.8 s (1.2 Hz) 2.9 s (0.3 Hz)
Medium High 1.5 s (0.7 Hz) 5.2 s (0.2 Hz)
High 2.7 s (0.4 Hz) 9.5 s (0.1 Hz)
OSA30x Time Between Updates (Update Frequency)
Sensitivity Resolution
Low Medium Low Medium High High
Low 1.6 s (0.64 Hz) 2.0 s (0.51 Hz) 3.7 s (0.27 Hz) 9.5 s (0.11 Hz)
Medium 3.1 s (0.32 Hz) 4.1 s (0.24 Hz) 8.6 s (0.12 Hz) 23 s (0.04 Hz)
High 7.8 s (0.13 Hz) 10 s (0.10 Hz) 22 s (0.05 Hz) 63 s (0.02 Hz)

Design

This tab describes the key concepts and implementation of the design used in Thorlabs' Fourier Transform Optical Spectrum Analyzers.

Contents

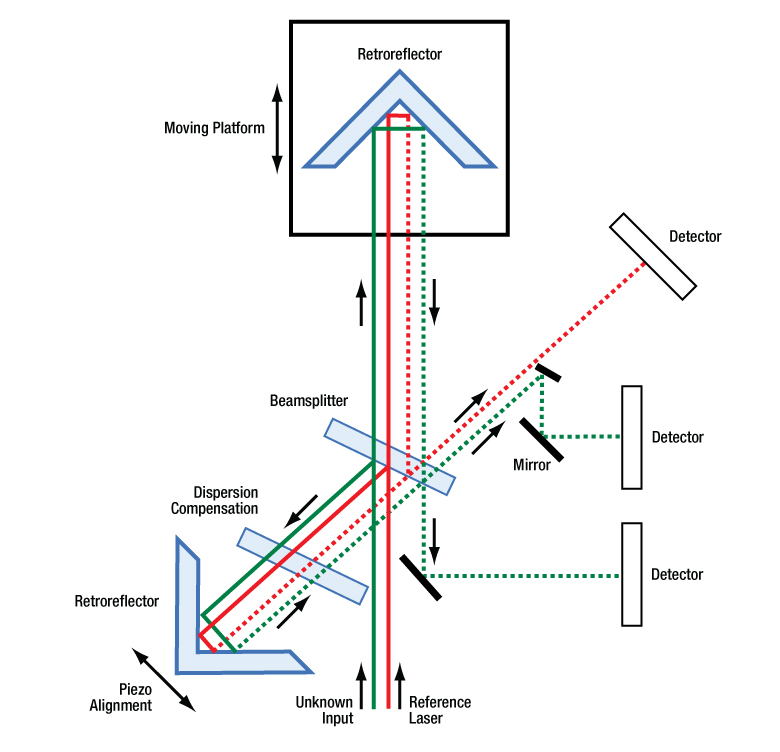

Redstone FT-OSA Diagram
Click to Enlarge

Figure 2: Schematic of the optical path in Thorlabs' Redstone OSA30x. Note that the OSA302 does not include the dispersion compensation plate in the interferometer.
FT-OSA Diagram
Click to Enlarge

Figure 1: Schematic of the optical path in Thorlabs' OSA20xC OSAs, detailing the dual retroreflector design.

Interferometer Design

Thorlabs' OSA20xC Fourier Transform Optical Spectrum Analyzers (FT-OSA) utilize two retroreflectors, as shown in Figure 1. These retroreflectors are mounted on a voice-coil-driven platform, which dynamically changes the optical path length of the two arms of the interferometer simultaneously and in opposite directions. The advantage of this layout is that it changes the optical path difference (OPD) of the interferometer by four times the mechanical movement of the platform. The longer the change in OPD, the finer the spectral detail the FT-OSA can resolve.

The Redstone® OSA302 and OSA305 FT-OSAs use a standard arrangement of one fixed and one movable retroreflector as shown in Figure 2. The mobile retroreflector is mounted on Thorlabs' patented voice-coil-driven platform*, which changes the optical path length of the branch. The fixed retroreflector is mounted on a piezo actuator that translates the retroreflector in the two dimensions orthogonal to the beam path in a self-alignment algorithm. This configuration changes the OPD between the two branches by twice the mechanical movement of the platform.

*The Redstone OSA30x is constructed using Thorlabs' patented voice-coil-driven platform design.

After collimating the unknown input, a beamsplitter divides the optical signal into two separate paths. The path length difference between the two paths is varied up to 40 mm for the OSA20xC and 160 mm for the Redstone OSA30x. The collimated light fields then optically interfere as they recombine at the beamsplitter.

The detector assemblies shown in Figures 1 and 2 record the interference pattern, commonly referred to as an interferogram. This interferogram is the autocorrelation waveform of the input optical spectrum. By applying a Fourier transform to the waveform, the optical spectrum is recovered. Note that the Redstone OSA models collect asymmetrical interferograms in terms of the location of the point of zero path difference (ZPD), and these interferograms are usually called single-sided; the OSA20xC instruments collect double-sided interferograms. The resulting spectrum offers both high resolution and very broad wavelength coverage with a spectral resolution that is related to the optical path difference. The wavelength range is limited by the bandwidth of the detectors and optical coatings. The accuracy of our systems is ensured by including a frequency-stabilized 632.9918 nm HeNe reference laser in the OSA20xC models and a frequency-locked 1532.8323 nm infrared reference laser in the Redstone OSA30x models. The reference laser is inserted into the interferometer and closely follows the same path traversed by the unknown input light field. This reference laser provides highly accurate, interferometric measurements of beam path length changes, allowing the systems to continuously self-calibrate and ensure accurate optical analysis well beyond what is possible with a grating based OSA.

OSA Resolution vs Wavelength
Click to Enlarge

Figure 3: OSA Resolution vs. Wavelength of the Unknown Input
The resolution shown here was calculated using the formula to the left. Although the formula is valid for all OSA models, the usable wavelength range of each model is limited by the bandwidth of the detectors and optical coatings. Note that for the OSA20xC instruments, Δk = 1 cm-1 for Low Resolution Mode and Δk = 0.25 cm-1 for High Resolution Mode. For the Redstone OSA30x models, Low, Medium Low, Medium High, and High Resolutions correspond to Δk's of 4.0, 1.0, 0.25, and 0.063 cm-1, respectively. Note that the resolution is valid only for the specified wavelength range of the instrument.

The OSA20xC and Redstone OSAs have spectral resolutions of 7.5 GHz (0.25 cm-1) and 1.9 GHz (0.063 cm-1), respectively. The resolution in units of wavelength is dependent on the wavelength of light being measured. For more details, see the Resolution and Sensitivity section below. In this context, the spectral resolution is defined according to the Rayleigh criterion and is the minimum separation required between two spectral features in order to resolve them as two separate lines. These spectral resolution numbers should not be confused with the resolution when operating in the Wavelength Meter mode, which is considerably better.

To reduce the presence of water absorption lines in the MIR region of the spectrum, our OSAs feature two 1/4" ID quick-connect hose connections on the back panel, through which the interferometer can be purged with dry air or nitrogen. Our Pure Air Circulator Unit, which uses hosing that can be directly inserted into these connectors, is ideal for this task.

Resolution and Sensitivity

The resolution of this type of instrument depends on the optical path difference (OPD) between the two paths in the interferometer. It is usually easier to understand the resolution in terms of wavenumbers (inverse centimeters), as opposed to wavelength (nanometers) or frequency (terahertz).

Assume we have two narrowband sources, such as lasers, with a 1 cm-1 energy difference, 6500 cm-1 and 6501 cm-1. To distinguish between these signals in the interferogram, we would need to move away 1 cm from the point of zero path difference (ZPD). The OSA20xC can move ±4 cm in OPD and thus spectral features 0.25 cm-1 apart can be resolved, while the Redstone OSA30x can move 16 cm in OPD and resolve spectral features that are 0.063 cm-1 apart. The resolution of the instrument can be calculated as:

OSA Equation 2

where Δλ is the resolution in pm, Δk is the resolution in cm-1, and λ is the wavelength in µm. The resolution in pm as a function of wavelength, converted using this formula, is shown in Figure 3.

The resolution of the OSA20xC instruments can be set to High or Low in the main window of the software. In high resolution mode, the retroreflectors translate by the maximum of ±1 cm (±4 cm in OPD), while in low resolution mode, the retroreflectors translate by ±0.25 cm (±1 cm in OPD). The Redstone OSA30x instruments can be set to one of four resolution modes: High, Medium High, Medium Low, or Low. These settings correspond to OPDs of 16 cm, 4 cm, 1 cm, and 2.5 mm, respectively. The OSA software can cut the length of the interferogram that is used in the calculation of the spectrum in order to remove spectral contributions from high-frequency components.

The sensitivity of the instrument depends on the electronic gain used in the sensor electronics. Since an increased gain setting reduces the bandwidth of the detectors, the instrument will run slower when higher gain settings are used. The figures below show the dependency of the noise floor on the wavelength and OSA model.

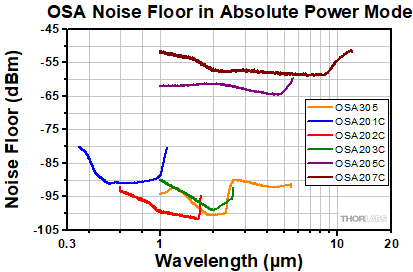

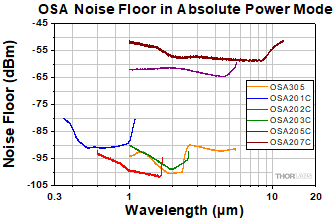

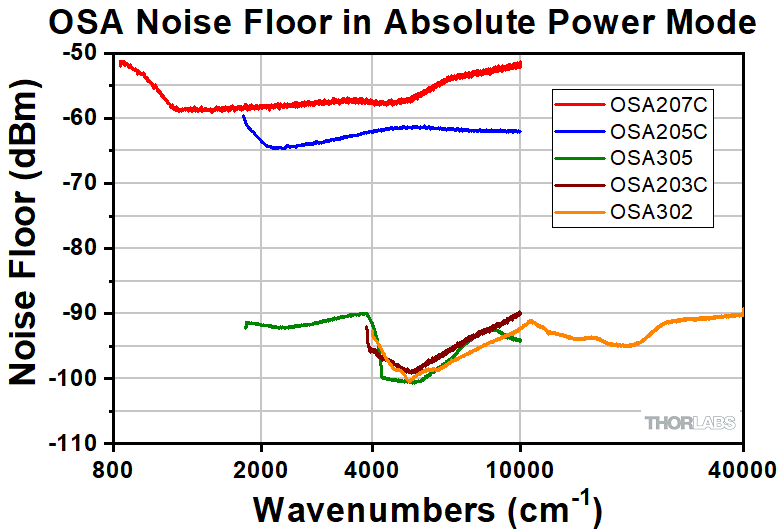

OSA Noise Floor Absolute Power
Click to Enlarge

Figure 4: Noise Floor in Absolute Power Mode
Absolute Power mode is recommended for narrowband sources. The OSA203C noise floor was measured in low-temperature mode.

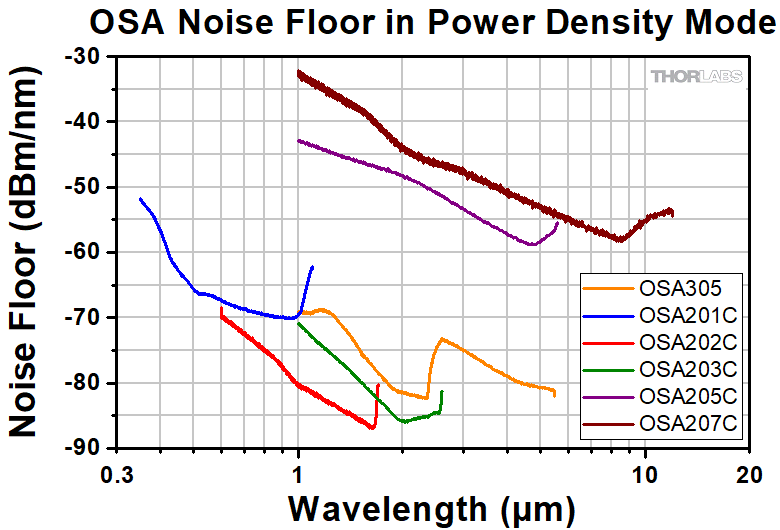

OSA Noise Floor Power Density
Click to Enlarge

Figure 5: Noise Floor in Power Density Mode
Power Density mode is recommended for broadband sources. The OSA203C noise floor was measured in low-temperature mode.

Absolute Power and Power Density

The vertical axis of the spectrum can be displayed as Absolute Power (Figure 4) or Power Density (Figure 5), both of which can be displayed in either a linear or logarithmic scale. In Absolute Power mode, the total power displayed is based on the actual instrument resolution for that specific wavelength; this setting is recommended to be used only with narrow spectrum input light. For broadband devices, it is recommended that the Power Density mode is used. Here the vertical axis is displayed in units of power per unit wavelength, where the unit wavelength is based upon a fixed wavelength band and is independent of the resolution setting of the instrument.

Interferogram Data Acquisition

For the OSA20xC models, the interference pattern of the reference laser is used to clock a 16-bit analog-to-digital converter (ADC) such that samples are taken at a fixed, equidistant optical path length interval. The HeNe reference fringe period is digitized and its frequency multiplied by a phase-locked loop (PLL), leading to an extremely fine sampling resolution. Multiple PLL filters enable frequency multiplication settings of 16X, 32X, 64X, or 128X. At the 128X multiplier setting, data points are acquired approximately every 1 nm of carriage travel. The multiple PLL filters enable the user to balance the system parameters of resolution and sensitivity against the acquisition time and refresh rate.

The Redstone OSA30x instruments instead sample the interferogram at a fixed frequency of up to 1 MHz with an 18-bit ADC while the retroreflector platform moves at a constant speed controlled by a PID loop. At the highest sensitivity setting, there is one data point collected about every 1 nm of travel. The collected data is resampled to fit up to 128 data points per reference laser period.

The fine sampling can be very useful when the measured light is weak and broadband, causing only a very short interval in the interferogram at the ZPD to contain all the spectral information. This portion of the interferogram is normally referred to as the center burst.

A high-speed USB link transfers the interferograms to the OSA software, which is highly optimized to take full advantage of modern multi-core processors, as well as top-performing graphics processing units (GPUs). The software performs a number of calculations to analyze and condition the input waveform in order to obtain the highest possible resolution and signal-to-noise ratio (SNR) at the output of the Fast Fourier transform (FFT).

The OSA20xC devices make use of a very low noise and low distortion detector amplifier with automatic gain control provides a large dynamic range, allows optimal use of the ADC, and ensures excellent signal-to-noise (SNR) for up to 10 mW of input power. For low-power signals, the system can typically detect less than 100 pW from narrowband sources. The balanced detection architecture enhances the SNR of the system by enabling the OSA20xC to use all of the light that enters the interferometer, while also rejecting common mode noise.

The Redstone OSA detector modules contain high gain-bandwidth product (GBP) amplifiers, which fully exploit the detectors’ dynamic range, combined with high-current low-noise buffers driving a high-bandwidth 18-bit ADC. Automatic amplifier adjustments optimize the number of used ADC bits (filling ratio). Switchable optical attenuators provide for a wide input power range even with early saturating IR-detectors. Differential amplifiers, as well as balanced transmission architectures with effective screening and filtering techniques, assure a good signal integrity for a high spurious-free dynamic range.

Interferogram
Click to Enlarge

Figure 6: A Typical Interferogram

Interferogram Data Processing

The interferograms (see Figure 6) generated by the instrument vary from 50 thousand to 16 million data points depending on the resolution and sensitivity mode settings employed. The FT-OSA software analyzes the input data and intelligently selects the optimal FFT algorithm from our internal library.

Additional software performance is realized by utilizing an asynchronous, multi-threaded approach to collecting and handling interferogram data through the multitude of processing stages required to yield spectrum information. The software's multi-threaded architecture manages several operational tasks in parallel by actively adapting to the PC's capabilities, thus ensuring maximum processor bandwidth utilization. Each of our FT-OSA instruments ships complete with a laptop computer that has been carefully selected to ensure that both the data processing and user interface operate optimally.

Wavelength Meter Mode

When narrowband optical signals are analyzed, the FT-OSA automatically calculates the center wavelength of the input, which can be displayed in a window just below the main display that presents the overall spectrum. The central wavelength, λ, is calculated by counting interference fringes (periods in the interferogram) from both the input and reference lasers according to the following formula:

OSA Equation 1

Here, mref is the number of fringes for the reference laser, mmeas is the number of fringes from the input laser, nref is the index of refraction of air at the reference laser wavelength (632.9918 nm or 1532.8323 nm), and λref,vac is the vacuum wavelength of the reference laser. nmeas is the index of refraction of air at the wavelength λmeas,vac and is determined iteratively from λmeas,air (that is, the measured wavelength in air) using a modified version of the Edlén formula (OSA software version 2.90 or lower) or Ciddor's formula (OSA software version 3.00 or higher).

The resolution of the FT-OSA operating as a wavelength meter is substantially higher than the system when it operates as a broadband spectrometer because the system can resolve a fraction of a fringe (see the Interferogram Data Acquisition section above). In practice, the resolution of the system is limited by the bandwidth and structure of the unknown input, noise in the detectors, drift in the reference laser, interferometer alignment, and other systematic errors. In Wavelength Meter mode, the system has been found to offer reliable results as low as ±0.1 pm in the visible spectrum and ±0.2 pm in the NIR/IR (see the Specs tab for details).

The software evaluates the spectrum of the unknown input in order to determine an appropriate display resolution. If the data is unreliable, as would be the case for a multiple peak spectrum, the software disables the Wavelength Meter mode so it does not provide misleading results.

Wavelength Calibration and Accuracy

The OSA20xC instruments use a built-in stabilized HeNe reference laser with a vacuum wavelength of 632.9918 nm. The use of a stabilized HeNe ensures long-term wavelength accuracy as the dynamics of the stabilized HeNe are well-known and controlled. The Redstone OSA30x incorporates a frequency-locked reference laser with a vacuum wavelength of 1532.8323 nm. Because of the frequency-lock, long-term wavelength accuracy is ensured, and the reference laser is connected to an FC/APC output and can be fed into the instrument fiber input for additional calibration if so desired.

The instrument is factory-aligned so that the reference and unknown input beams experience the same optical path length change as the interferometer is scanned. The effect of any residual alignment error on wavelength measurements is less than 0.5 ppm; the input beam pointing accuracy is ensured by a high-precision ceramic receptacle and a robust interferometer cavity design. No optical fibers are used within the scanning interferometer. The wavelength of the reference laser in air is actively calculated for each measurement using the Edlén formula (OSA software version 2.90 or lower) or Ciddor's formula (OSA software version 3.00 or higher) with temperature and pressure data collected by sensors internal to the instrument.

Optical Rejection Ratio
Distance from 1532 nm Peak  OSA205C OSA305
0.2 nm (25 GHz) 30 dB 40 dB
0.8 nm (100 GHz) 37 dB 42 dB
6.2 nm (800 GHz) 44 dB 45 dB
7.8 nm (1000 GHz) 44 dB 45 dB

This table provides the Optical Rejection Ratio of the OSA205C and Redstone OSA305 for a narrowband source at 1532 nm with the following settings: High Resolution, Low Sensitivity, Average = 5, Hann apodization, and zero fill = 2. All OSA20xC models and the Redstone OSA30x show similar behavior if the distance from the peak is in GHz (units of frequency).

Optical Rejection Ratio

The ability to measure low-level signals close to a peak is determined by the optical rejection ratio (ORR) of the instrument. It can be seen as the filter response of the OSA and can be defined as the ratio of the power at a peak of interest to the power at a given distance from said peak. For Thorlabs' OSAs, the ORR is defined with a stricter condition: instead of just considering the power at a single data point, e.g., 25 GHz from the peak, the power of the highest noise in the wavelength range from 25 GHz to 2 THz is related to the power of the peak. This way, any additional limiting peaks that are not located at the test distances will still be included in the ORR value:

If the ORR is not higher than the optical signal-to-noise ratio of the source to be tested, the measurement will be limited by the OSA's response, rather than reflecting a true property of the tested source. The table to the right provides an example.

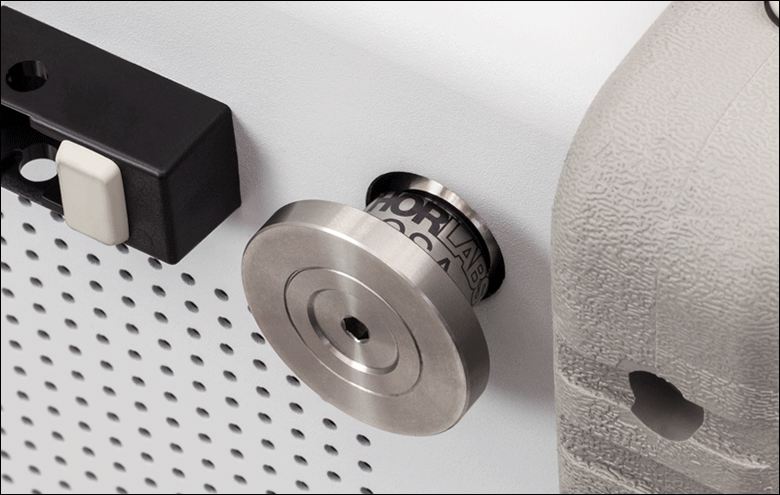

OSA205 with Mounting Post Foot
Click to Enlarge

The underside of the OSA has M4-tapped holes that accept the three mounting feet included with the unit (see the Shipping List tab).
OSA Free-Space Input
Click to Enlarge

View Imperial Product List
Item #QtyDescription
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
CRM12Cage Rotation Mount for Ø1" Optics, SM1 Threaded, 8-32 Tap
LPMIR050-MP22Ø12.5 mm SM05-Mounted Linear Polarizer, 1500 - 5000 nm
SM1A62Adapter with External SM1 Threads and Internal SM05 Threads, 0.15" Long
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
CRM1/M2Cage Rotation Mount for Ø1" Optics, SM1 Threaded, M4 Tap
LPMIR050-MP22Ø12.5 mm SM05-Mounted Linear Polarizer, 1500 - 5000 nm
SM1A62Adapter with External SM1 Threads and Internal SM05 Threads, 0.15" Long
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
Cage-Mounted Polarizers in Front of Free-Space Input (OSA205C Shown)
OSA Free-Space Input
Click to Enlarge

The free-Space optical input on the Redstone OSA30x accepts collimated beams with ≤Ø10 mm beam diameter.

Directly Compatible with Free-Space Beams

Thorlabs' OSAs each include a free-space optical input aperture, allowing them to directly accept collimated beams up to a maximum beam size of Ø6 mm (OSA20xC) or Ø10 mm (Redstone® OSA30x). To align the input light source with respect to the OSA's internal interferometer, a red, Class 1 alignment beam is emitted from the aperture; the alignment beam is activated by rotating a switch on the OSA20xC front panel or by a button in the OSA software for the Redstone*. The input source should be made collinear to the alignment beam for the OSA to provide optimal measurement accuracy. Four 4-40 taps around the input aperture enable compatibility with our 30 mm cage system (OSA20xC) or 60 mm cage system (Redstone OSA30x); use cage rods no shorter than 1.5" to prevent attached cage components from clashing with the door.

The OSA20xC interferometer assembly normally "floats" on gel bushings inside the case. When using the free-space input, it may be desirable to lock the interferometer to the optical table surface. This can be accomplished by using the provided mounting feet (see the Shipping List tab) to secure the OSA using two of Thorlabs' CF175C(/M) clamping forks, as illustrated in the image to the right. Likewise, even though the Redstone OSA30x is rigid and does not float, it is recommended to use two or more clamping forks when using the free-space input.

When the OSA20xC interferometers are locked to an optical table, the beam height is 61 mm (2.4") from the table surface. The Redstone OSA30x free-space input accepts a beam height of 117 mm (4.6") above the table surface. To adjust the input beam height to that of the OSA's input, we recommend using Thorlabs' RS99(/M) Periscope Assembly or a periscope constructed with our DP14A(/M) Damped Post.

We recommend only using the posts supplied with the OSA to secure it to the optical table. Other posts, such as our Ø1/2" optical posts, should not be used to secure the OSA; they will not provide adequate support because the OSA20xC and Redstone OSA30x weigh 20 lbs (10 kg) and 58.4 lbs (26.5 kg), respectively. We also do not recommend using long optical posts to raise the OSA off of the optical table surface.

*Additional details for free-space alignment with the Redstone can be found in the application note here.

OSA305 Free-Space Application
Click to Enlarge

A Redstone OSA305 secured to an optical table and used to measure the free-space beam of a laser diode. The laser diode is mounted in a laser diode mount, and the beam is reflected by mirrors mounted in KM100 and KCB1 Kinematic Mounts. The 30 mm cage assembly is coupled to the 60 mm cage rod holes on the Redstone using the previous generation LCP02 which has been replaced by the LCP33 cage plate adapter.
OSA Free-Space Input
Click to Enlarge

View Imperial Product List
Item #QtyDescription
Optical Spectrum Analyzer
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
Items Attached to Optical Spectrum Analyzer
KCB11Right-Angle Kinematic Mirror Mount with Tapped Cage Rod Holes, 30 mm Cage System and SM1 Compatible, 8-32 and 1/4"-20 Mounting Holes
PF10-03-P011Ø1" Protected Silver Mirror
ER3-P41Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
ERSCB-P41Rod Adapter for Ø6 mm ER Rods, L = 0.27", 4 Pack
CF175C1Clamping Fork for Ø1.25" Pedestal Bases, 1.75" Counterbored Slot, 1/4"-20 Captive Screw
Other Items
LDM9T1Laser Diode Mount with Integrated Temperature Controller
C171TMD-C1f = 6.2 mm, NA = 0.30, WD = 2.8 mm, Mounted Aspheric Lens, ARC: 1050 - 1700 nm
S1TM081SM1 to M8 x 0.5 Lens Cell Adapter
POLARIS-K1E2Polaris® Ø1" Mirror Mount, 3 Adjusters, Monolithic Optic Retention
PF10-03-P011Ø1" Protected Silver Mirror
RS1P8E2Ø1" Pedestal Pillar Post, 8-32 Taps, L = 1"
RS4M1Ø25.0 mm Post Spacer, Thickness = 4 mm
RS10M1Ø25.0 mm Post Spacer, Thickness = 10 mm
CF175C2Clamping Fork for Ø1.25" Pedestal Bases, 1.75" Counterbored Slot, 1/4"-20 Captive Screw
View Metric Product List
Item #QtyDescription
Optical Spectrum Analyzer
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
Items Attached to Optical Spectrum Analyzer
KCB1/M1Right-Angle Kinematic Mirror Mount with Tapped Cage Rod Holes, 30 mm Cage System and SM1 Compatible, M4 and M6 Mounting Holes
PF10-03-P011Ø1" Protected Silver Mirror
ER3-P41Cage Assembly Rod, 3" Long, Ø6 mm, 4 Pack
ERSCB-P41Rod Adapter for Ø6 mm ER Rods, L = 0.27", 4 Pack
CF175C/M1Clamping Fork for Ø1.25" Pedestal Bases, 44.4 mm Counterbored Slot, M6 x 1.0 Captive Screw
Other Items
LDM9T/M1Laser Diode Mount with Integrated Temperature Controller, Metric
C171TMD-C1f = 6.2 mm, NA = 0.30, WD = 2.8 mm, Mounted Aspheric Lens, ARC: 1050 - 1700 nm
S1TM081SM1 to M8 x 0.5 Lens Cell Adapter
POLARIS-K1E2Polaris® Ø1" Mirror Mount, 3 Adjusters, Monolithic Optic Retention
PF10-03-P011Ø1" Protected Silver Mirror
RS1P4M2Ø25.0 mm Pedestal Pillar Post, M4 Taps, L = 25 mm
RS4M1Ø25.0 mm Post Spacer, Thickness = 4 mm
RS10M1Ø25.0 mm Post Spacer, Thickness = 10 mm
CF175C/M2Clamping Fork for Ø1.25" Pedestal Bases, 44.4 mm Counterbored Slot, M6 x 1.0 Captive Screw
An OSA205C secured to an optical table and used to measure the free-space beam of a laser diode. The laser diode is mounted in an LDM9T Laser Diode Mount, and the beam is redirected by mirrors mounted in POLARIS-K1E and KCB1 Kinematic Mounts.

Software

Version 3.31

This version includes a GUI for controlling the OSA20xC and Redstone® OSA30x, as well as a "virtual device" mode ideal for evaluating the software prior to purchase.

Software Download

ThorSpectra Software for the Optical Spectrum Analyzers

Each Optical Spectrum Analyzer includes a Windows® laptop with our OSA software suite pre-installed. This software features a straightforward, intuitive, responsive interface that exposes all functions in one or two clicks. We regularly update this software to add significant new features and make improvements suggested by our users. Several key functions are explained in the Tutorial Videos tab.

The software download page also offers programming reference notes for interfacing with our instruments using LabVIEW®, Visual C++, and Visual C#.

Version 3.20 and higher can be used to control all OSA20xC, Redstone OSA30x, and CCS series devices. The software can export data into various file formats, including Matlab, Galactic SPC, JCAMP-DX, CSV, and text formats.



Software Highlights

The text below summarizes several key features of the OSA software suite. Complete details on the software are available in the ThorSpectra User Guide.


Click to Enlarge

Peak Track Mode Used with a 2.8 µm Fabry-Perot Laser

Click to Enlarge

Coherence Length and Power of 1550 nm Superluminescent Diode (SLD)

Built-In Tools for Simple and Complex Analysis
The OSA software displays either the fast-Fourier-transformed spectrum or the raw interferogram obtained by the instrument. In the main window, it is possible to average multiple spectra or interferograms; display the X-axis in units of nm (in air or vacuum), cm-1, cm-1 (Raman Shift Wavenumber), THz, or eV; compare the live spectrum to previously saved traces; perform algebraic manipulations on data; and calculate common quantities such as transmittance and absorbance.

Robust graph manipulation tools include automatic and manual scaling of the displayed portion of the trace and markers for determining exact data values and visualizing data boundaries. Automated peak and valley tracking tools (see the screenshot to the right) identify up to 2048 peaks or valleys within a user-defined wavelength range and follow them over a long period of time. Statistical parameters of traces such as standard deviations, RMS values, and weighted averages are available, and a curve fit tool fits polynomials, Gaussians, and Lorentzians to the spectrum or interferogram.

Acquired data can be saved as a spectrum file that can be loaded quickly into the main window. Data can also be exported into Matlab, Galactic SPC, JCAMP-DX, CSV, and text formats.

Adjustable Sensitivity and Resolution Settings
The scan sensitivity and resolution can be adjusted by the user to balance the needs of the experiment against the data acquisition rate. These settings vary the number of data points per interferogram from 50 thousand to 16 million. The sensitivity setting modifies the range of detector gain levels, while the resolution setting controls the optical path difference (OPD). The table in the Specs tab shows how the data acquisition rate depends upon the chosen settings.

Wavelength Meter Tool for Narrowband Sources
For sources with <10 GHz linewidth, the Wavelength Meter tool enables extremely accurate determinations of the center wavelength (±1 ppm accuracy, 0.2 ppm precision, and 0.1 ppm resolution). This mode allows the system to resolve a fraction of a fringe in the interferogram, using the internal stabilized reference laser (see Interferogram Data Acquisition in the Design tab for details). The uncertainty in the measurement is continuously determined and displayed as gray numbers.

As shown in the image to the right, a built-in tool plots the output of the wavelength meter measurement as a function of time. If the software determines that the wavelength meter will give inaccurate results (as it would for broadband sources), it is automatically disabled.

Coherence Length Module for Broadband Sources
Because Thorlabs' OSAs obtain the raw interferogram of the unknown source (as opposed to grating-based spectrum analyzers, which cannot offer this capability), the software is able to calculate the coherence length of the input signal, as shown by the screenshot to the right. The Coherence Length tool considers the envelope of the interferogram and reports the optical path length over which the envelope's amplitude decays to 1/e of its maximum value on both sides.

The ability to view the interferogram in real time allows the user to confirm the coherence length reported by the software and adjust the signal amplitude to avoid saturation. The maximum coherence length measurable by the OSA is limited by the maximum optical path difference in the highest-resolution setting, making this tool best suited for broadband sources.

Apodization and Interferogram Truncation
Since the resolution of any Fourier-transformed spectrum is intrinsically constrained by the finite path length over which the interferogram is measured, the software implements several functions to account for the effect of the finite path length on the spectrum that is obtained. The user may select from a number of apodization methods (dampening functions), including cosine, triangular, Blackman-Harris, Gaussian, Hamming, Hann, and Norton-Beer functions. Furthermore, the effective optical path length can also be shortened to eliminate contributions from high-frequency spectral components.

Libraries for LabVIEW, C, C++, and C#
Device interface libraries containing a multitude of routines for data acquisition, instrument control, and spectral processing and manipulation are also provided with the instrument. These libraries can be used to develop customized software using LabVIEW, C, C++, C#, or other programming languages. We also provide a set of LabVIEW routines to assist with writing your own applications.

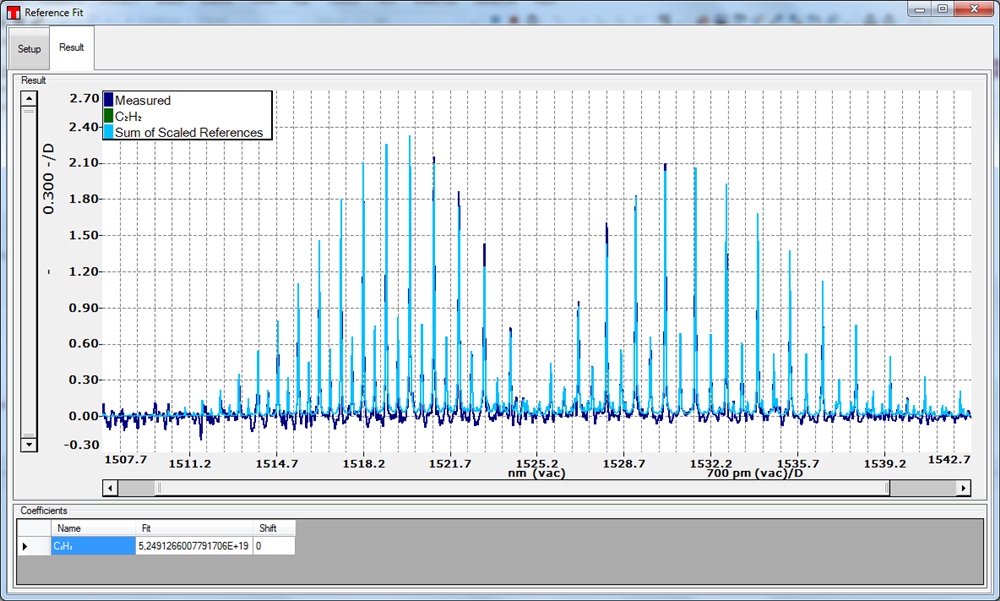

Spectroscopic Analysis from HITRAN Reference Database
In environmental sensing and telecom applications, it is often useful to identify atmospheric compounds (such as water vapor, carbon dioxide, and acetylene) whose absorption lines overlap with that of the source being measured. Some example measurements are shown below. The OSA software includes built-in support for HITRAN line-by-line references, which can be used to calculate absorption cross sections as a function of vapor pressure and temperature. The predictions can be fit to the measured trace for comparison, and fits using mixtures of gases are supported. See the Gas Spectroscopy tab for an example setup.


Click to Enlarge

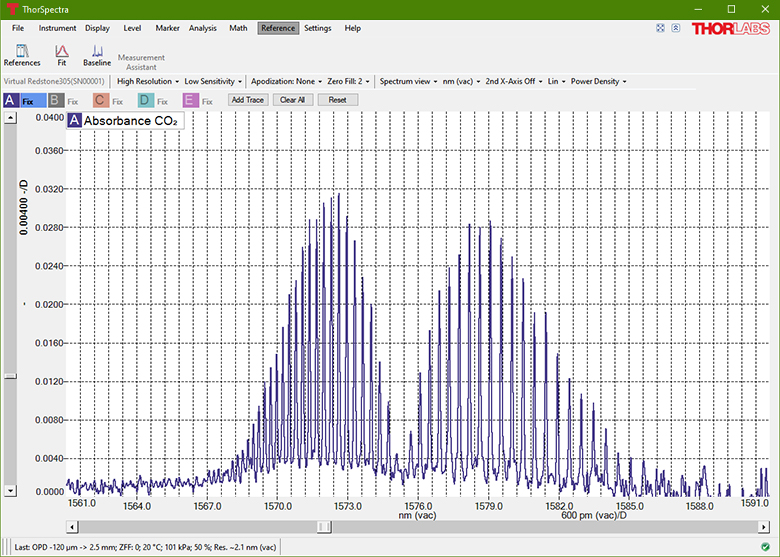

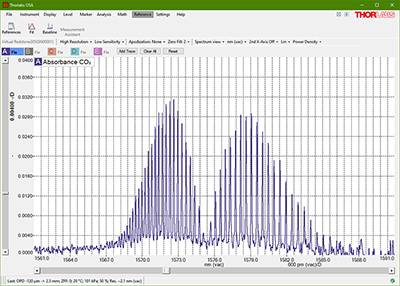

Experimentally Measured Carbon Dioxide (CO2) Absorbance in Near-Infrared

Click to Enlarge

Carbon Dioxide Absorption Before and After Baseline Correction

Software Tutorial Videos

To help customers learn about, use, and understand the Optical Spectrum Analyzer software, we have prepared several short narrated videos that describe the basic aspects of the software and the optimal settings for common types of measurements. Although the OSA model shown in the videos has been discontinued, the principles of operation have not changed.

Basic Features of OSA Software

Topics Covered

  • Acquiring Single and Averaged Spectra
  • Selecting Units
  • Saving, Retrieving, and Exporting Spectra to Different Programs
  • Using Markers

Length: 4:41

Tips for Choosing the Best Acquisition Settings

Topics Covered

  • Appropriate Settings for Narrowband and Broadband Sources
    • Resolution
    • Sensitivity
    • Apodization
  • Isolating Low-Frequency Signals from High-Frequency Noise (in Broadband Sources)

Length: 3:54

Measuring a Narrowband Source

Topics Covered

  • Calculating Center Wavelength and Linewidth with Peak Tracking and Wavelength Meter
  • Resolution, Sensitivity, and Apodization Settings
  • Tracking and Recording Measurements Over a Long Time Period

Length: 3:13

Measuring Optical Input Power

Topics Covered

  • Using Markers to Select an Integration Range
  • Viewing the Source's Coherence Length in Interferogram Mode

Length: 1:24

Performing a Filter Measurement

Topics Covered

  • OSA Software Calculates Transmission and Absorbance from a Baseline
  • Peak Tracking Mode Determines Center Wavelength and Full Width at Half Max of Filter

Length: 2:38

OSA201C and OSA202C Contents
Click to Enlarge

OSA202C Contents (North American Power Cords Shown)

Shipping List

Every OSA20xC order includes the following:

  • Optical Spectrum Analyzer
  • Windows® Laptop
    • Includes Pre-Installed OSA Software (Version 3.30) and a Mouse
    • U.S. English Configuration
  • Factory Calibration Report
  • OSA and Laptop Power Supplies with Region-Specific Power Cords
  • High-Speed USB 2.0 Cable (Replacement Item # USB-A-79)
    • Connects the OSA to the Laptop
  • Three Mounting Feet
    • Used to Secure the Interferometer to an Optical Table (See Free-Space Coupling Tab)
  • SPW603 Spanner Wrench and VP10C Vacuum Pickup Tool
    • Used to Remove Protective Window in Front of Free-Space Input in Cases When
      Etalons are Visible in the Spectrum

Redstone OSA Contents
Click to Enlarge

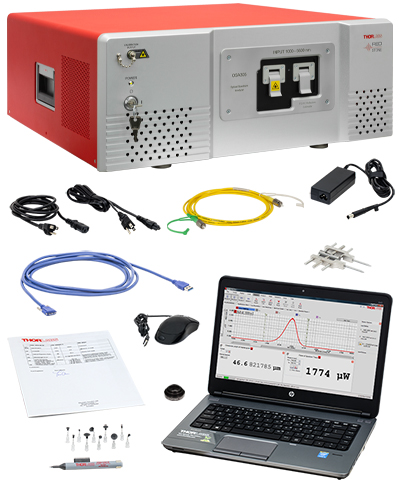

Redstone OSA305 Contents (North American Power Cords Shown)

Every Redstone® OSA30x order includes the following:

  •  Optical Spectrum Analyzer
  •  Windows® Laptop
    • Includes Pre-Installed OSA Software (Version 3.30) and a Mouse
    • U.S. English Configuration
  • Factory Calibration Report
  • OSA and Laptop Power Supplies with Region-Specific Power Cords
  • USB 3.0 Cable (Replacement Item # CABU31)
    • Connects the OSA to the Laptop
  • SPW801 Spanner Wrench and VP10C Vacuum Pickup Tool
    • Used to Remove Protective Window in Front of Free-Space Input in Cases When
      Etalons are Visible in the Spectrum
  • Lens Tube Adapter for Free-Space Port
  • Calibration Patch Cable (Replacement Item # P5-SMF28E-FC-2)

Analyzing Pulsed Sources Using the OSA20xC and Redstone® Instruments

Introduction and Summary of Results
While Thorlabs' Optical Spectrum Analyzers (OSAs) have been designed for analysis of CW signals, it is possible to measure pulsed spectra under certain situations. Measurement of pulsed spectra suffers from several issues that must be overcome for accurate measurements; for instance, "spectral ghosts" arise due to the pulsed nature of the source as well as the varying optical path difference (OPD) of the OSA. In addition, the noise floor for pulsed sources is much higher than that for CW sources. One method for measuring pulsed sources with the OSA involves taking several successive measurements at the different sensitivity levels; the minimum at each wavelength of these traces is used to form a combined spectrum, which suppresses the spectral ghosts. This technique is implemented in the OSA software by choosing "Pulsed" under the "Sweep" or "Instrument" menu. The following tutorial explains the rationale of this technique and the pulsed sources for which it is useful.

In summary, for pulse rates over 30 kHz for the OSA20xC and 6 kHz for the OSA30x, standard measurements can be performed because the repetition rate is greater than the detectors' bandwidth. For broadband signals with low repetition rates, care must be taken to ensure that the "zero burst" of the interferogram coincides with one of the pulses. Also, when using a pulsed source "Automatic Gain" does not work properly, so the user must monitor the interferogram and manually set the gain and offset so that a strong, but not saturated, signal is obtained. For more information on using a pulsed source with our OSA instruments, please contact Tech Support.

Impact of a Pulsed Source on the Interferogram and Spectrum
As the Optical Path Difference (OPD) continuously changes during an interferogram measurement, a pulsed light source effectively modulates the interferogram. In the case of 100% modulation (i.e. on-off pulsation), the resulting interferogram will contain repetitive regions (slots) with no information. These slots correspond to OPDs when no light can be measured by the detector assembly. The resulting interferogram in this case is the true interferogram masked with the pulsed signal. Figure 1 shows measured interferograms and the corresponding spectra for a light source in CW and pulsed operation. Although the spectrum of the light source is expected to be the same for CW and pulsed operation (ignoring small changes in the peak shape and position due to, for example, a decreased LD chip temperature resulting from the pulsed drive), additional frequency artifacts appear symmetrically about the expected peak due to the modulation in the pulsed interferogram. These "spectral ghosts" are a result of the temporal, rather than the spectral, behavior of the source. To measure the true spectrum of the light source, it is crucial to make the spectral ghosts sufficiently small or force the spectral ghosts to fall outside the frequency / wavelength range of interest.

Pulsed_Source_Interferogram

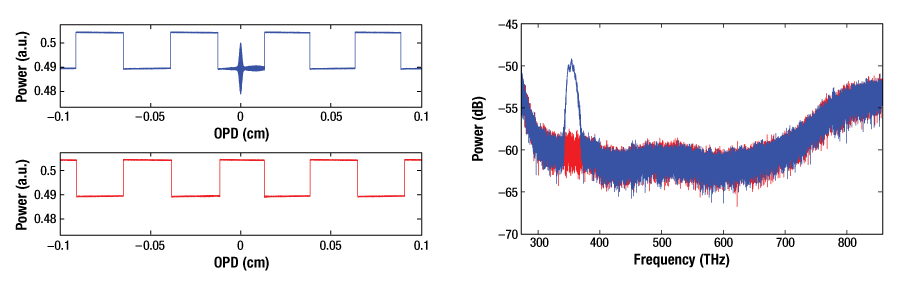

Figure 1: Interferograms and spectra for a narrowband light source in CW (Top) and pulsed at 20 kHz (Bottom)
operation measured with an OSA20xC device. The square wave modulation of the interferogram induces the spectral ghosts shown in the bottom right plot.

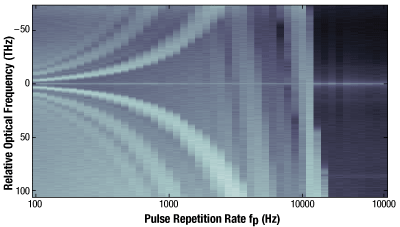

Figure 2: Effect of Repetition Rate on Spectral Ghosts
Click to Enlarge

Figure 2: Stacked spectra for 55 pulse repetition rates between 100 Hz and 100 kHz for a 1550 nm DFB laser diode measured with an OSA20xC device. The intensity is mapped in a logarithmic scale. OSA settings: High Resolution, High Sensitivity, No Apodization, 5 averages.

Mathematically, the resultant spectrum of a pulsed source can be described by a convolution between the spectrum of the light source and the spectrum corresponding to the pulses. As a result, the impact of these artifacts will vary with the pulse repetition rate and the modulation depth of the light source as well as the OPD sample rate (cm/s) of the OSA. The modulation depth of the light source determines the amplitude of the spectral ghosts; a weak modulation yields weak spectral ghosts while a modulation of 100% (on-off pulsation) yields the strongest spectral ghosts.

Figure 2 shows how the behavior of the spectral ghosts as a function of the pulse repetition rate for a narrowband source. In the figure, the spectra were measured for 55 pulse repetition rates between 100 Hz and 100 kHz for a 1550 nm DFB laser diode connected to an OSA20xC device. We have offset the y-axis such that the true peak (the light gray horizontal line) has been centered at a relative frequency of 0 THz. The figure can be divided into three regions: fp ≤ 3 kHz, 3 kHz < fp ≤ 30 kHz and fp >30 kHz. For fp ≤ 3 kHz, the spectral ghosts are clearly observed symmetrically about the true peak within the resultant spectrum, and move farther and farther away from the true peak as the repetition rate increases. The second region starts above 3 kHz, when the first spectral ghosts have moved beyond the spectral range of the OSA. However, aliasing / folding create higher order spectral ghosts that appear within the spectral range of the OSA. In the third region, fp > 30 kHz, the resulting spectrum agrees very well with the CW spectrum because the repetition rate of the source has extended beyond the bandwidth limit of the detectors. As a result, the pulsed source appears like a CW source to the OSA electronics.



"Pulsed Mode" Operation
To help remove some of these frequency artifacts, the OSA software contains a "Pulsed Mode" measurement (Figure 3). The "slot period" of the interferogram, determined by the pulse repetition rate of the light source and the OPD rate of the OSA, affects the positions of the spectral ghosts. A shorter slot period yields a larger spectral distance between the true peak and the first order ghost peaks. In Thorlabs' OSAs, the OPD sample rate is given by the speed of the moving carriage which can be controlled by the user indirectly through the sensitivity setting. The higher the sensitivity setting is, the slower the speed of the moving carriage will be. Thus, the use of the "High" sensitivity mode of the OSA will provide the shortest slot period (i.e. the largest spacing between the feature of interest and the frequency artifacts). In Pulsed Mode, the software acquires several spectra with different sensitivity settings (or OPD sample rates) and filters out the changing spectral features. The sensitivity is set to increasingly high levels, starting with Low. After reaching the highest sensitivity, it is again set to Low, yielding a periodically changing sensitivity. The captured spectra are then combined using the minimum hold function. The spectral ghosts (Figure 4), whose positions depend on the sensitivity setting (the OPD rate), can then be reduced in the measurement as shown in Figure 4. It is important to note that the Pulse Mode button is found under the "Sweep" or "Instrument" menu and can be started only after the current sweep has been completely stopped.

Figure 2: OSA in Pulsed Mode
Click to Enlarge

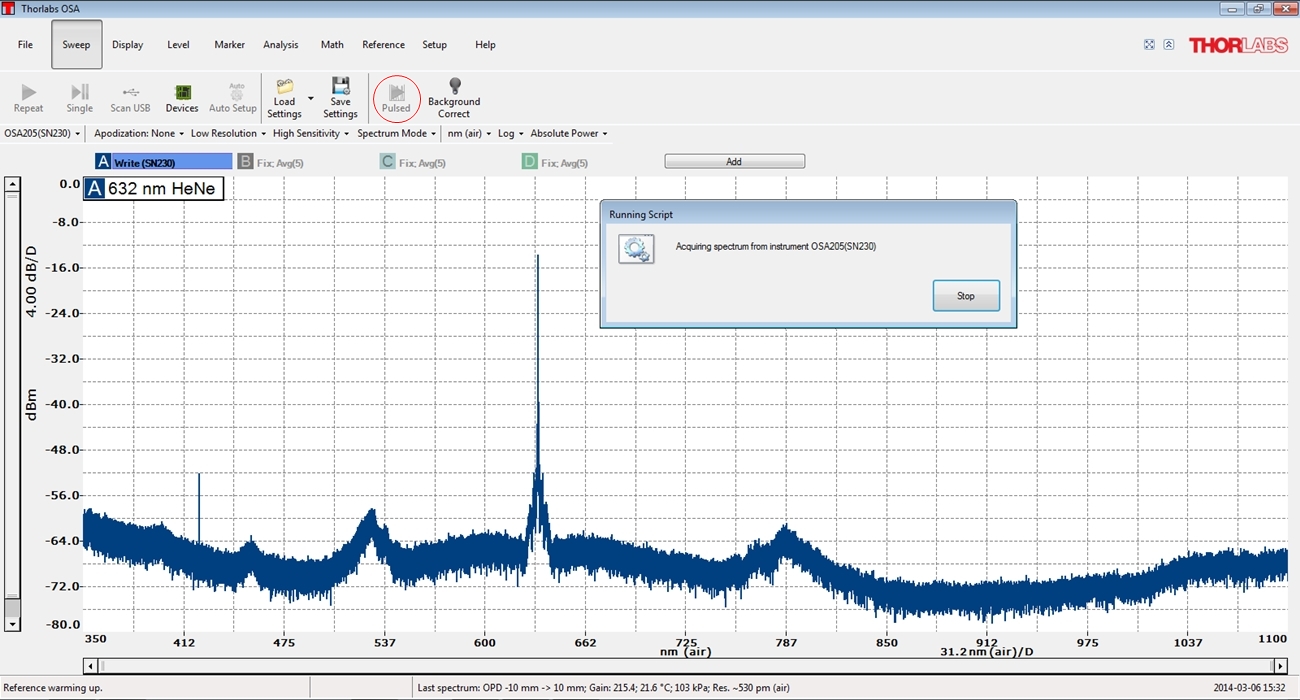

Figure 3: Screenshot of the OSA software in Pulsed
Mode; the icon is indicated with a red circle.
Figure 2: OSA in Pulsed Mode
Click to Enlarge

Figure 4: (Left) Measured spectra for a narrowband light source pulsed at 1 kHz with (from top to bottom) Low, Medium-Low, Medium-High, and High sensitivity settings (i.e. a decreasing OPD sample rate from top to bottom). (Right) Measured spectrum using the Pulsed Mode, i.e., a minimum hold combination of spectra similar to those shown in the bottom left plots.



Narrowband Light Source
A DFB laser diode emitting at 1550 nm (193.7 THz) was used as a narrowband light source and measured with an OSA203C in both CW and pulsed operation. The laser diode was modulated (using Thorlabs' ITC4001 controller) with repetition rates between fp = 20 Hz and 100 kHz. Five averaged spectra were captured for each light source setting; the CW spectra were acquired in high sensitivity mode, and the pulsed spectra were recorded in both high sensitivity and pulsed mode. It is important to note that the pulsed mode does not allow averaging. Instead the minimum hold function was used for 5 sets of spectra from the four different sensitivity settings.

Figure 5 shows the resultant spectra for the source in CW mode as well as four different pulse repetition rates between 100 Hz and 100 kHz. As the pulse rate increases, the spectral ghosts (as recorded in the high sensitivity mode) move further and further away from the true laser peak until nearly identical spectra are obtained at 100 kHz.

Figure 3: CW and Pulsed Measurements of Narrowband Source
Figure 5: Spectra from measurements of a 1550 nm (193.7 THz) pulsed narrowband source. Pulse repetition rates shown (left to right): 100 Hz, 1 kHz, 13 kHz, and 100 kHz. Black line: CW measurement; blue line: pulsed source measured with high sensitivity; red line: pulsed source measured using the pulsed mode. The lower plots are the same data set as the upper plots only on a shorter frequency scale.



Broadband Light Source
A gain chip was driven in amplified spontaneous emission (ASE) mode to create a broadband light source centered at 850 nm (352.9 THz) with a FWHM of 36.4 nm (15.2 THz). An OSA201C was used to measure the spectrum for CW and pulsed operation with pulse repetition rates from fp = 100 Hz to 100 kHz. The ASE diode was modulated (using Thorlabs' ITC4001 controller) with a 50% duty cycle square wave. A total of 10 averaged spectra were acquired using high sensitivity (CW and pulsed sources) and the pulsed mode (pulsed source). Because pulsed mode does not allow averaging, the minimum hold function was used to acquire five sets of the four different sensitivity settings.

In general, the spectral ghosts are less visible for the broadband peak compared to a narrowband peak. However, the noise floor is higher and the spectral ghosts are clearly seen for a repetition rate of 1 kHz and 13 kHz in Figure 6. Similar to the narrowband source, the spectral ghosts move farther and farther away from the true peak with increasing repetition rate. For a repetition rate of 100 kHz both the measurement using high sensitivity and pulsed mode agree well with the CW measurement. As seen, the shape of the peak is slightly different for the CW spectrum compared to the pulsed spectrum. This is not related to the behavior of the OSA but due to a true change in the peak during pulsed operation, e.g., a lower chip temperature.

Figure 6: Pulsed Broadband Source
Figure 6: Measured spectra from a pulsed broadband source with a center wavelength (frequency) of 850 nm (352.9 THz). The pulse repetition rates shown are 100 Hz, 1 kHz, 13 kHz, and 100 kHz. Top and bottom rows show the full spectrum and the ±50 THz range surrounding the peak, respectively. Black line: CW; blue line: pulsed source measured using high sensitivity; red line: Pulsed Mode.

It is extremely important to note that in general, one has to be careful when measuring broadband peaks at low repetition rates. Since most of the information in the interferogram is located about the zero burst, the peak can be completely missed if the zero burst coincides with no light falling on the detector as shown in Figure 7.

Figure 7: Alignment of the Zero Burst for Broadband Signals
Figure 7: Measured interferograms (left) and spectra (right) obtained when the zero burst resulting from a broadband
source coincides with a pulse (blue curves) and is missed if no light reaches the detector at OPD ~ 0 (red curves).

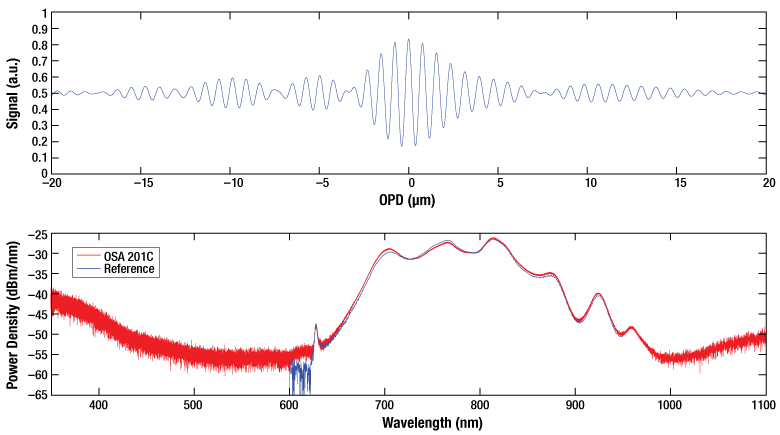

Figure 8: Femtosecond Pulsed Laser Spectrum
Click to Enlarge

Figure 8: (Top) Central portion of a captured interferogram from a broadband femtosecond laser. (Bottom) Measured spectrum captured using an OSA201 (red line) and a measured reference spectrum captured using a scanning grating-based OSA (blue line).

Femtosecond Pulsed Laser
We measured the spectrum of a broadband femtosecond laser using an OSA201C. This laser has a repetition rate of 85 MHz, a pulse width of 10 fs, and an average power of about 300 µW into the fiber. The OSA was set to Low Resolution, High Sensitivity, 5 spectral averages, and no apodization. Light output from the laser was collected with a fiber patch cable (SM600 fiber; 0.12 NA, 4.6 µm mode field diameter at 680 nm) connected to the OSA.

Figure 8 shows the interferogram collected during acquisition, which does not contain any empty slots. This was expected as the 85 MHz repetition rate of the laser is well beyond the 40 kHz bandwidth of the OSA's detectors. Furthermore, the spectrum measured by the OSA agrees very well with the reference spectrum captured using a grating-based OSA that is scanned slowly enough to provide adequate signal for each wavelength measured.

Item # Frequency Range Level Sensitivity
(Click for Graph)a
OSA207C 833 - 10 000 cm-1
(12.0 - 1.0 µm)
Absolute Power Graph
Absolute Power

Power Density Graph
Power Density
OSA205C 1786 - 10 000 cm-1
(5.6 - 1.0 µm)
OSA305
OSA203C 3846 - 10 000 cm-1
(2.6 - 1.0 µm)
OSA302 4000 - 40 000 cm-1
(2.5 µm - 250 nm)
  • Lower values of Level Sensitivity correspond to improved detection sensitivity. We therefore recommend selecting the OSA which provides the lowest level sensitivity for the analytes you intend to study.

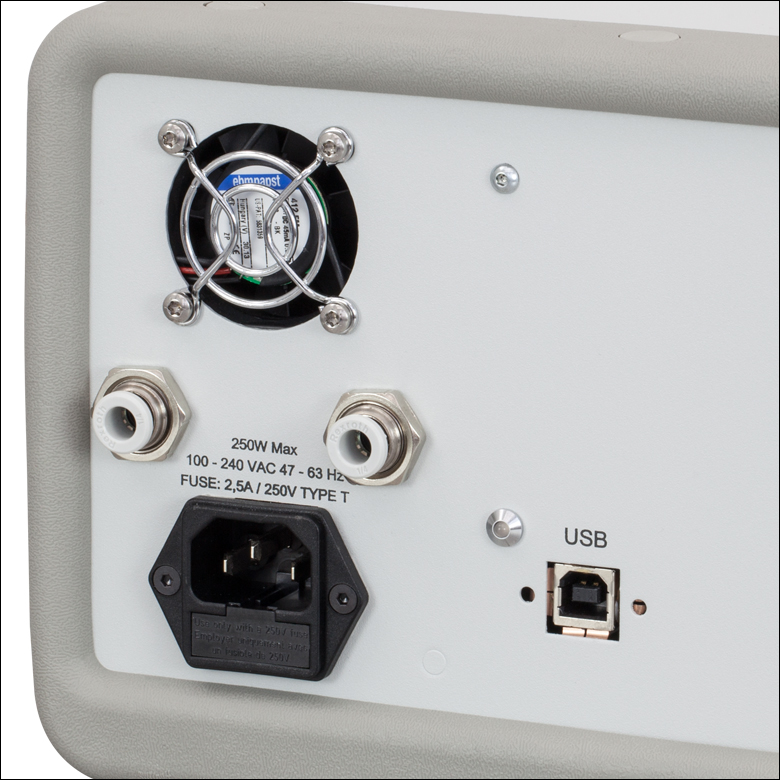

Hose Connections
Click to Enlarge

Rear-Mounted Hose Connections for Purging the Redstone® OSA30x Cavity
Hose Connections
Click to Enlarge

Hose Connections for Purging OSA20xC Cavity

Gas Detection and Identification Using an Optical Spectrum Analyzer

As shown in the table to the right, many of Thorlabs' Optical Spectrum Analyzers (OSAs) offer detection extending into the mid-infrared (MIR) region of the spectrum, where many gaseous species characteristically absorb. Moreover, the software included with all OSA models supports files from the HITRAN database, a spectroscopic reference standard. These files can be fit to measured traces to identify unknown gases. With the ability to fit multiple analytes simultaneously and built-in hose connections (compatible with Thorlabs' Pure Air Circulator Unit) for purging the interferometer's cavity of trace gases, these OSAs are ideal for use in home-built gas detection setups.



Experimental Setup
A sample detection setup is shown below. Broadband MIR light generated by a Stabilized Light Source is emitted from a zirconium fluoride fiber (1), collimated, then sent into a multipass cell (2) containing the gas analyte in a sample chamber. Each end of the chamber is sealed by an airtight, transparent window. Gold mirrors on each side of the chamber provide multiple reflections that increase the sensitivity of the measurement; the mirror closer to the light source has a center hole to allow the optical path to enter and exit the chamber. Light exiting the detection setup is collimated by a long-focal-length lens and reflected by a D-shaped mirror into the free-space port of the OSA203C (3). The temperature inside the chamber is elevated and held constant in order to prevent the gas's absorption lines from shifting during the measurement.

Gas Detection Setup
Click to Enlarge

A gas detection setup using the OSA203C. A multipass cell is constructed around the sample chamber (2) in order to provide high detection sensitivity for the gaseous species sealed inside.
Parts Used in Sample Setup
(Click Here for a Metric Item List)
Item # Qty. Description
Light Source 1
SLS202La 1 Stabilized Fiber-Coupled Light Source, 450 nm - 5.5 µm
(Not Shown)
FB2000-500 1 Ø1" Bandpass Filter, 2.0 µm CWL, 0.5 µm FWHM (Not Shown)
MZ21L1 1 ZrF4 Multimode Fiber Patch Cable, SMA905 Connectors
F028SMA-2000 1 SMA905 Fiber Collimator, AR Coated: 1.8 - 3.0 µm
POLARIS-K1b 1 Polaris® Ø1" Kinematic Mirror Mount
AD11NT 1 Unthreaded Adapter for Ø11 mm Cylindrical Components
Detection 3
OSA203C 1 Optical Spectrum Analyzer, 1.0 - 2.6 µm
TC200c 2 Temperature Controller
MB1218 1 12" x 18" Aluminum Breadboard
CF125C 3 Clamping Fork with Captive Screw
Other Optomechanics
RS2 6 Ø1" Pillar Post, Length = 2"
RS3 1 Ø1" Pillar Post, Length = 3"
RS4 2 Ø1" Pillar Post, Length = 4"
BA2F 9 Flexure Clamping Base
  • This item is no longer available for purchase. Stabilized light sources with similar performance are available here. Please contact Technical Support for assistance with your specific application.
  • This previous-generation item is not available for individual purchase. The POLARIS-K1E Ø1" Kinematic Mirror Mount is available as an alternative.
  • This previous-generation item is not available for individual purchase. The TC300B Heater and TEC Temperature Controller is available as an alternative.
Parts Used in Sample Setup (Continued)
(Click Here for a Metric Item List)
Item # Qty. Description
Beam Path Into and Out of Multipass Cell 2
LB4374 1 Uncoated, Ø1", f = 1000 mm Bi-Convex UV Fused Silica Lens
CP33 1 Post-Mountable, SM1-Threaded Cage Plate for Ø1" Optics
CM750-200-M01 2 Ø75 mm, f = 200 mm Protected Gold Concave Mirror
(One Mirror Contains a Center Hole, Similar
to Our Herriott Cell Mirrors)
KS3 2 Kinematic Mount for Ø3" Mirrors
VPCH512 2 Ø2.75" CF Flange with CaF2 Window, 180 nm - 8.0 µm
N/A 1 Sample Chamber
C1513 1 Kinematic V-Clamp Mount
PM4 2 Clamping Arm
(One Clamping Arm is Included with Each C1513 Mount)
P6 1 Ø1.5" Mounting Post, Length = 6"
PB2 1 Base for Ø1.5" Mounting Posts
PFD10-03-M01 1 1" Protected Gold D-Shaped Pickoff Mirror
KM100D 1 Kinematic Mount for 1" D-Shaped Pickoff Mirrors
MB624 1 6" x 24" Aluminum Breadboard



Assigning Peaks in an Unknown Spectrum
Once the experimental spectrum is obtained, the user chooses a gas or gas mixture that is believed to be present inside the sample chamber, as shown in the figure below to the left. There is no limit to how many species can be considered in the fit, but the fit is more likely to converge when fewer species are chosen. The OSA software ships with HITRAN line-by-line references for acetylene (C2H2), water vapor (H2O), and carbon dioxide (CO2), and can import additional references downloaded from the HITRAN database. Previously saved spectra in the OSA file format can also be used as references. See the References section of the ThorSpectra manual for details.

The user may optionally allow the software to shift the reference spectrum in wavelength in order to account for measurement effects related to the sample environment. In the case of gas mixtures (i.e., fits performed using more than one reference spectrum), the software scales the intensity of each reference as needed to reproduce the measured spectrum. As shown in the figure below to the right, the output of the fit operation is a graph comparing the measured spectrum, each scaled (and possibly also shifted) reference spectrum, and the sum of the scaled reference spectra.

Selecting Gas Species for a Fit
Click to Enlarge

In the Reference Fit Setup tab, checkboxes are used to indicate which gaseous species to consider in the fit. The absorption lines can be either "fixed" or "free"; the latter allows the software to shift the reference spectrum in wavelength. The measurement conditions for the HITRAN references are also displayed.
Fit Results
Click to Enlarge

In the Reference Fit Result tab, the fitted spectrum is displayed simultaneously with the measured spectrum. The fitted spectrum is the sum of the scaled reference spectra included in the fit. The scaled spectrum for each individual gaseous species is also shown.
Olle Rosenqvist
Olle Rosenqvist
OSA R&D Manager

Feedback?
Questions?
Need a Quote?

Contact Me

Custom OSA Options

  • Optical Input
    • FC/PC, FC/APC, or SMA905 Fiber Receptacles
    • Permanently Installed Optical Bandpass and Notch Filters Before Interferometer
  • Application-Optimized Detectors
    • High Sensitivity for Low-Level Signal Detection, Such as in Fluorescence or Raman Measurements
    • Wavelength Range and Noise Floor Chosen to Match a Specific Light Source
  • Custom Software Modules for Data Analysis

Thorlabs' in-stock OSA models offer a number of detection options for various experimental situations. We invite customers whose needs are not addressed by these models to tailor an OSA to a specific application by working with our engineering and manufacturing team.

In the past, we have built OSAs with user-specified optical inputs, such as FC/APC and SMA905 fiber receptacles, and we have incorporated optical bandpass and notch filters directly into the optical path to reduce light source noise. For customers who use these instruments for sample characterization, our software team has implemented user-designed data analysis modules within the standard OSA software suite.

We have also worked with our customers to choose detector elements targeted at specific light sources and analytes. The graphs below were obtained from custom-built OSAs that were designed for especially high detection sensitivity. Our engineers are well-versed in the tradeoffs between detection bandwidth, sensitivity, and linearity, and can make recommendations based upon the needs of the application and prior customers' experiences. By constraining the OSA's design for a particular use case, additional performance enhancements for that application can be realized.

If you would like to discuss a custom OSA, please contact us with your experimental requirements.

High-Sensitivity OSAs

High-Sensitivity Optical Spectrum Analyzer
Click to Enlarge

At typical humidities, water absorption peaks in the spectrum of Thorlabs' SLS202La light source drop well below the noise floor of the OSA205C. For MIR applications that require such peaks to be resolved, we have qualified two MCT (HgCdTe) detector elements which achieve significantly lower noise floors, in exchange for a narrower wavelength range and lower maximum input power.

  • This item is no longer available for purchase. Stabilized light sources with similar performance are available here. Please contact Technical Support for assistance with your specific application.

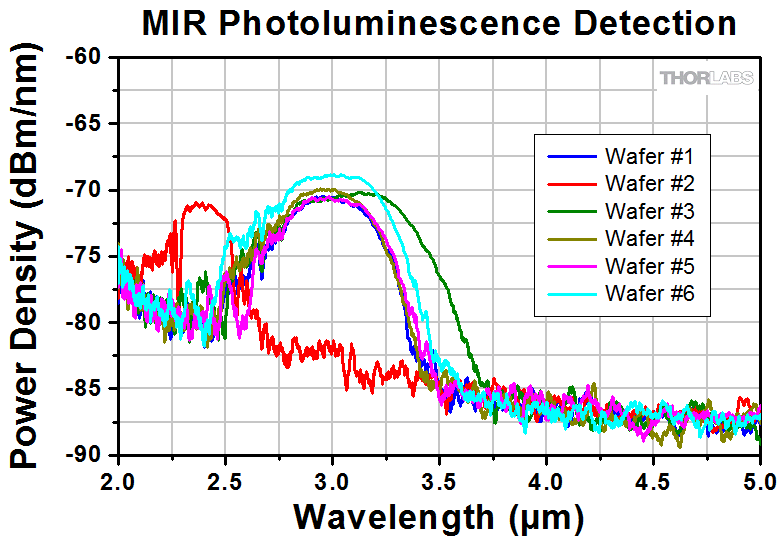

Detection of Mid-IR Fluorescence
Click to Enlarge

A user requested an OSA capable of detecting photoluminescence from wafers that emit in the 2 - 4 µm spectral range. We provided a custom-built OSA with a greatly reduced noise floor as compared to the OSA205C, which easily detected the predicted signal.


Posted Comments:
Justin Dane  (posted 2024-10-04 10:06:27.947)
Below it is noted that the OSA203 can be used with a pulsed source as long as the rep rate was in the MHz range. If they support using pulsed sources, for both the 203 series and the Redstone - what are the damage thresholds (pulse energy limits)? This does not appear captured in the specficiations.
srydberg  (posted 2024-10-11 07:43:23.0)
Thank you for contacting Thorlabs! The OSA20X can measure spectra at repetition rates down to 30 kHz without spectral ghosts. We don't have a pulsed damage threshold spec for the OSAs but maximum 10 mW average power is a guideline. We have contacted you directly to discuss this in more detail.
Hoyeon Lee  (posted 2024-09-25 22:51:04.957)
To test the product, I connected it to my laptop and ran it. Error code 77 was displayed, and a 'carriage resets' message was found in another corner. What symptom is this? Is there a solution?
srydberg  (posted 2024-10-03 03:18:43.0)
Hi, thank you for contacting Thorlabs! We have contacted you directly to troubleshoot this issue.
Justin Dane  (posted 2024-02-14 14:40:16.803)
We have controlled the OSA205C in the past using the DLLs provided with the 32-bit version of ThorSpectra. The Redstone OSA only comes with a 64-bit installer and 64-bit DLLs. Are there compiled versions of these DLLs available in 32-bit? Or is the Redstone simply not controllable from within a 32-bit application?
acanales  (posted 2024-02-16 05:24:15.0)
Hi Justin, thank you for reaching us. From the software version 3.00, only 64-bit is supported. You can contact Tech Support if you need further assistance.
Andrew Nelson  (posted 2024-02-12 10:56:44.64)
I saw the S/N Ratio for the Compact CCD spectrometer in its specs, but not for the OSA207C. Are they the same? or in other words, less than 2000:1? Also, I see the Noise floor graph for the OSA207C but there is no Noise equivalent power listed in the specs for the OSA207C.
srydberg  (posted 2024-02-14 04:51:56.0)
Hi, thank you for your question! We have contacted you directly to discuss your application.
Gongxue Hua  (posted 2023-12-20 14:19:28.097)
Your spectrum analyzer can save the intensity vs. wavelength in csv file. I don't think it would be so difficult for you to also save the intensity at wavelengths and time. For example, you could let users set the range of wavelength and the width of each channel in wavelength. Then in your csv file, each row will be a spectrum at one moment, and each column will be a wavelength (with certain width of frequency/wavelength, which can be set by users). Maybe you don't have that yet, but I think it will be really useful.
fnero  (posted 2023-12-21 07:22:22.0)
Hi Gongxue, thank you for your suggestion. Our software team will take this into consideration for future releases.
Ebru Bayrı  (posted 2023-07-03 19:36:46.9)
We use OSA207C SN00594. When we start the instrument and try to measure, it gives a timeout error while reading the interferogram. Device USB interface, motor, etc. restarting but the timeout error persists. Could you please inform how we can solve this problem?
srydberg  (posted 2023-07-04 03:58:55.0)
Thank you for contacting Thorlabs! We will contact you directly to try to solve this issue.
Benedict Graef  (posted 2023-06-19 15:18:04.033)
Hey I am currently concerned with the automation of a measurement procedure comprising among others an OSA203C using Python. I already encountered one example utilizing the .net 'ThorlabsOSAWrapper' provided with your software for storing measured spectra to disk. I am struggling in retrieving the actual intensity values of the acquired spectrum directly from 'spectrum_struct' via the '.GetSpectralData' method however. Reading single values via its '.Value[idx]' property works fine. I would be glad if you could provide me with some help or minimal working example!
mkarlsson  (posted 2023-06-22 04:13:53.0)
Hello, thank you for your feedback! We have reached out directly to you to provide you with a more suitable example. For general information: As per June 2023 we are currently developing a suite of Python examples based on the FTSLib.dll (rather than the .net 'ThorlabsOSAWrapper') which will be able to control both the OSA20X and the Redstone series; these examples are planned to be released during the early autumn 2023. Feel free to reach out to techsupport if you are in need of a working example already today.”
Lothar Reichertz  (posted 2023-03-31 02:32:49.087)
I need to control the OSA with LabVIEW. The LabVIEW driver you provide are the worst I have ever seen from any instrument manufacturer. Examples work only partially. Mostly crash with useless error messages. The examples are written by someone who did not understand the idea of LabVIEW and therefore unreadable and useless. There is no other documentation whatsoever on how to use the provided sub vis. I wasted several days trying to program a simple task (e.g. reading wavemeter) without success. I am an experienced LabVIEW programmer.
tberg  (posted 2023-05-24 07:19:12.0)
Thanks for contacting Thorlabs. I have reached out to you directly to discuss this matter.
Amante Joshua Jr. Dumalus  (posted 2022-07-31 10:45:46.66)
Hello, May we request a Zoom meeting for the OSA202C to get technical clarifications on the selected item.
ksosnowski  (posted 2022-08-05 03:07:49.0)
Thanks for reaching out to Thorlabs. General requests like this are better directed to techsupport@thorlabs.com. For these OSA units, we also have a direct contact form to the production team on the page above which you can fill out (in the green box). They can help evaluate whether the OSA202C would work well for your application and even setup a demo unit if needed. I have reached out directly to discuss your application in more specific detail.
Ghaith Makey  (posted 2022-05-05 22:30:58.983)
Hello, I am trying to use the codes in appNotes to take and save a single spectrum scan sing OSA203B. I tried C# and VB codes, and even though they run without error, they are not creating any output file. The scanned spectrum reading seems to be null. Can you help me to fix the problem? I need to create an exe file that scan and read spectrum, so I can run it from Matlab (I would be happy as well if you can suggest any other method to communicate OSA203B with Matlab).
ksosnowski  (posted 2022-05-23 12:28:39.0)
Thanks for reaching out to us, Ghaith. We have fixed this issue in a VS C# app. I am reaching out directly to discuss your application further.
Goksenin Komurcu  (posted 2021-01-13 07:39:35.287)
Hi, I'm graduate student at Istanbul University . I have few questions for your product OSA202c. 1) Is there any limitations on fiber diameter which have used?. (50 um or 100 um). 2) Can I collect the spectrum if I bring the fiber closer to the sample where the light is emitted (sample dimensions varying from 10um to 500 um) without using a collimator or lens 3) Can I collect a spectrum from a sample which is emitting light periodically with 50 ns duration by using OSA202C?
YLohia  (posted 2021-01-15 04:29:58.0)
Hello, thank you for contacting Thorlabs. 1) The OSAs are spec'd for optimal performance using silica fibers of core diameters ≤Ø50 µm Core and NA ≤ 0.22 (Fluoride Multimode Fiber Patch Cables can be used with ≤Ø100 µm Core and NA ≤ 0.26). We recommend using a single mode fiber whenever possible. 2) This depends on the divergence of your light source and your positioning capability (coupling efficiency). Please see the Level Sensitivity spec for the minimum amount of power per wavelength required. 3) Nanosecond pulses can be used, however, you do need to ensure that the duty cycle is relatively high. Low rep rate and short pulses are not a great combination for OSA measurements, especially for broadband sources where interferogram signal is located near the zero burst. Please see the "Pulsed Sources" tab on this page.
Vasilii Voropaev  (posted 2021-01-12 02:07:15.623)
Hello. Is the osa207c spectrometer polarization sensitive? What is used in the spectrometer as a beam splitter? Can a beam splitter transmit orthogonal polarizations with different ratios? I measure a spectrum with a width of about 100 nm, when the polarization of different parts of the spectrum changes, the intensity of these components on the spectrometer differs, what can this be related to?
YLohia  (posted 2021-01-15 03:41:40.0)
Hello, thank you for contacting Thorlabs. The OSA207C has a larger polarization dependence than our other OSA models due to the ZnSe beamsplitter used in this model. Based on our direct conversation and the data you have provided, this is the reason for the differences in your spectrum due to the polarization changes.
Arindam Banerjee  (posted 2020-12-24 03:43:56.66)
Hi, I would like to know if there is a provision for Auto calibration for this OSA, is it applicable or not applicable Can a LED spectrum be analyzed with this OSA. best regards
YLohia  (posted 2020-12-29 10:47:16.0)
Hello, thank you for contacting Thorlabs. The OSAs can be used to measure the spectral output of LEDs as long as the specified wavelength range of the specific OSA covers the spectral output of the LED. These FT-OSA instruments incorporate a stabilized HeNe reference laser with a vacuum wavelength of 632.991 nm. The use of a stabilized HeNe ensures long-term wavelength accuracy as the dynamics of the stabilized HeNe are well-known and controlled. The instrument is factory aligned so that the reference and unknown input beams experience the same optical path length change as the interferometer is scanned. The effect of any residual alignment error on wavelength measurements is less than 0.5 ppm; the input beam pointing accuracy is ensured by a high-precision ceramic receptacle and a robust interferometer cavity design. No optical fibers are used within the scanning interferometer. The wavelength of the reference laser in air is actively calculated for each measurement using the Edlén formula with temperature and pressure data collected by sensors internal to the instrument.
Austin S  (posted 2020-10-13 22:08:26.21)
Hello! Does the pulsed source mode work for rep rates as low as 10 Hz? Additionally, do you have a damage threshold estimate for nanosecond pulses? Thanks!
YLohia  (posted 2020-10-23 10:23:37.0)
Hello, thank you for contacting Thorlabs. While we don't have formal damage thresholds for the OSA203C, as a rule of thumb we expect it to be limited by the damage threshold of our -P01 mirrors to 3 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.000 mm). In your case, the damage threshold of the OSA does not matter matter because rep rate 10 Hz is way too low, especially when the duty cycle is that low. Low rep rate and short pulses is not a great combination for OSA measurements, especially for broadband sources where interferogram signal is located near the zero burst. This is explained under 'Pulsed Sources' tab on this page.
William Deschenes  (posted 2020-08-20 09:50:51.183)
Hello, I was wondering if you offered rentals for the OSAs. We are currently working on an application that woud require a OSA201C for a short duration (2-3 months). Thanks for your time and have a nice day, William Deschenes
YLohia  (posted 2020-08-20 02:24:26.0)
Hello William, thank you for contacting Thorlabs. Unfortunately, we currently do not have a rental program for our products. That being said, we have noted your request and will consider developing such a program in the future.
Jason Galvin  (posted 2020-07-17 17:36:41.193)
I'm designing a system which will have multiple pickoff locations for spectrum analysis and am looking at using the OSA201C for spectrum analysis. Do you have a suggestion for a 3 or 4 to one fiber switch that would work well with the OSA201C.
YLohia  (posted 2020-07-20 08:57:16.0)
Hello Jason, thank you for contacting Thorlabs. The recommendation will depend on the operating wavelength range of your various signals. For example, we do offer the OSW8104, which is suitable for the 1240 - 1610 nm wavelength range. If you do use this, you will need to use an FC/APC to FC/PC hybrid patch cable to connect to the OSA. I have contacted you directly to discuss your options in more detail.
user  (posted 2020-07-02 10:24:27.337)
Hello! I'm using the OSA201C and currently facing some troubles. I'm trying to measure the CRI of a light source, but can't seem to find the feature. Is it possible that this product cannot measure CRI?
wskopalik  (posted 2020-07-03 10:11:15.0)
This is a response from Wolfgang at Thorlabs. Thank you very much for your inquiry! Unfortunately, the OSA software is not calculating CRI values. The spectral data can however be saved in different file formats, like e.g. CSV, and can then be recalculated to CRI values in Excel for example.
Matthew Seo  (posted 2019-09-27 17:26:15.867)
Hello again, I have few questions for your product osa 201c. It's quite different with other spectrometers using grating and I have a question about it. Is it possible to get a spectrum of light which has a multiple frequencies? Since OSA records the interferogram as an autocorrelation waveform of unknown input, if the light is composed of multiple frequencies, I think the interferogram would look very chaotic(messy?), so, for me it looks pretty hard to get a spectrum from that light. Another question is, the reference laser HeNe laser is just used for asuring the optical path difference and the interferogram, right? Not interfering with the unknown input? Best regards.
nbayconich  (posted 2019-10-07 08:25:06.0)
Thank you for contacting Thorlabs. With our OSA systems, we take advantage of the Wiener-Khinchin Theorem, which explains the relationship between the Fourier Transform of the autocorrelation of a signal. In our case, the autocorrelation is equivalent to readily recovering the intensity (modulus squared of the electric field) but it varies as function of temporal frequency, which can be readily converted to wavelength. After the autocorrelation, the output has the form of a typical spectrometer measurement. The stabilized HeNe is used to control the acquisition of the interferogram of the input. It ultimately provides sampling intervals of known optical path distance (OPD), which become input for a phase locked loop, leading to fine sampling resolution.
Matthew Seo  (posted 2019-09-16 14:14:27.817)
Hi, I'm a graduate student of Seoul National University of South Korea. I have a question for your product. Can you explain me the difference between this OSA and just a spectrometer? For me it seems like OSA and spectrometer do the similar operation(even the wavelength range of OSA 201C and spectrometer ccs175 of your company doesn't differ that much) but their prices differs about 10 times. Best regards.
nbayconich  (posted 2019-09-17 10:43:16.0)
Thank you for contacting Thorlabs. Both the OSA and CCD spectrometers are intended to measure intensity vs. wavelength of optical sources however the mechanism used to measure the spectrum is very different between these two products as well as the full capabilities between the two. The optical spectrum analyzer uses a scanning Michelsson interferometer to create an interferogram which will then take the FFT of this interferogram to generate the measured optical spectrum. The CCD spectrometers use a diffraction grating to send light to a 1D line pixel array, depending on which pixel receives light the CCD spectrometer calculates the intensity at a particular pixel # to correspond with a respective wavelength. The resolution of the FFT OSA systems is considerably higher than the CCD compact spectrometers, the spectral resolution is specified to 7.5 GHz. In the wavelength range 350nm-1000nm, this corresponds to a resolution of 3pm-25pm. In wavelength meter mode, the wavelength precision and accuracy is specified in the parts per million range. For instance, if the wavelength being measured is 1 µm, the wavelength meter precision will be 200 fm. In comparison the CCD Spectrometer has a spectral resolution specified between <0.5nm and <2nm, depending on model. Another advantage with the OSA system is that if offers both a fiber port and a free space port, to maximize its usability.
viteo  (posted 2018-11-15 13:06:03.71)
Hello. It is me again ;(. Can you please share the exact algorithm how to get the wavelength? When I launch your OSA20X_example.vi it shows me the wavelength value from dataAcq_get_wavelengthMeter.vi, but when i try to recreate a plain single subvi that will get interferogram and wavelength it always returns me -1. Even if status is OK and correct interferogram appears on the plot. I don't get what am I missing. Facing this problem for more than a month and still no result. Thank you.
nbayconich  (posted 2018-11-15 09:40:38.0)
Thank you for contacting Thorlabs. We will reach out to you directly to help resolve this problem.
bluesky1126  (posted 2018-08-30 14:14:44.457)
I want to measure the spectrum of laser diode by OSA203C,the center wavelength is 1900nm.So the resolution is ? Another question,if the input power is above 20mW,OSA203C will be demaged?
llamb  (posted 2018-09-05 10:43:37.0)
Thank you for contacting Thorlabs. You can find the Resolution vs. Wavelength plots under the "Two Operating Modes" bullet in the Overview tab on this page, with a hyperlink for each plot. In Spectrometer mode with High Resolution, you will have about 100 picometer resolution at 1900 nm. In Wavelength Meter mode, you will have about 0.2 pm resolution at 1900 nm. We do not recommend a higher power input than 10 mW, as it should not be necessary to analyze the spectrum. If you want to go higher for your input power, we recommend using some kind of ND filter or attenuator before the OSA input. The OSA will most likely not be damaged if slightly greater than 20 mW of power is input, but this will depend on your beam characteristics as well. However, the interferogram will be saturated and the spectrum distorted as you approach this 20 mW value. This is the main limiting factor in the damage threshold value.
viteo  (posted 2018-07-30 11:16:43.57)
Greetings. The "wavelength meter" feature in your OSA software always shows some value, even on the first single acquire, even when OSA shows status "warmup" or "increasing gain". On the other hand in your LabVIEW (and hence C++) API it returns -1 on the first N acquisitions. I'm unable to define the condition when it starts to return actual wavelength. And I cant find any widened information in manual, programming reference or include files about "osa statuses". My question is: How can i determine is it ready to return me the wavelength, not just simply requesting new interferogram over and over and wait until it eventually became different from "-1".
nbayconich  (posted 2018-08-02 09:37:38.0)
Thank you for contacting Thorlabs. Specifications for wavelength meter mode such as accuracy and precision cannot be guaranteed during warmup, i.e. before the stabilized HeNe laser has locked to specified wavelength. Therefore no value is returned in for example LabView Environment. However, we have chosen to show wavelength values in the GUI during warmup as an approximate reference. I will reach out to you directly with an example labview .vi showing how to read out if the reference laser is stabilized or still warming up.
viteo  (posted 2018-06-12 13:01:25.273)
The dataProcess_power.vi from LabVIEW library does not return value. The VI calculates Spectrum Power value, writes it down to the private field and indicates it, but it is not connected to any output terminal. Please fix the library.
YLohia  (posted 2018-07-10 09:04:45.0)
Hello, thank you for bringing this issue to our attention. I will reach out to you directly with instructions on how to fix this now. This bug will be fixed in a pending release.
cooglebit  (posted 2018-03-28 10:39:13.273)
用于测试2-14微米的红外激光光谱,测试光源为连续或者高重频自由空间光束,请给报价单
YLohia  (posted 2018-03-30 05:02:23.0)
Hello, thank you for contacting Thorlabs. It looks like you want a quote for the OSA207C. I have forwarded your request to our sales team in the nearest geographical location to you.
user  (posted 2018-01-17 19:43:29.767)
What's the minimum linewidth that can be measured using this device? I see from the specs tab that the limit is about 0.1 nm in "spectrum analyzer mode". Would it be accurate to use the coherence length mode to measure narrow linewidths, and if so, what is the smallest that could be measured? Thanks
tfrisch  (posted 2018-01-26 03:08:20.0)
Hello, thank you for contacting Thorlabs. The resolution of the OSA is determined by the optical path length difference between the arms. This measures an interferogram, and the resolution comes out to 7.5GHz. That corresponds to about 25pm if the center wavelength is 1000nm. The coherence length is calculated from this interferogram, so it would not be able to yield a smaller resolution. If you need to measure smaller linewidths, I would recommend a Fabry-Perot Interferometer. We have units with resolution as low as 1MHz available. Please reach out to us at TechSupport@Thorlabs.com for more details.
raphael.stgelais  (posted 2017-09-06 14:08:52.183)
Quick comment: it would be super useful to allow for ac coupling of the detector with a lock-in in order to push down noise floors (e.g. step-scan options from Bruker). Liquid nitrogen cooling would also boost performance at long wavelengths and is not too annoying (I'll happily fill a bucket 1 or 2 times a day for 20 dB lower noise). Without thes options the long wavelenghts products are not very attractive compared to a Bruker vertex or a a Nicolet IS50R
tfrisch  (posted 2017-09-07 02:02:31.0)
Hello, thank you for contacting Thorlabs. I have posted your feedback in our internal engineering forum, and I will reach out to you directly to discuss your application as well.
adrien.mau  (posted 2017-07-20 14:06:22.52)
Greetings, I'm currently using Thorlabs OSA207C. I'm working with a low power source so for alignment procedure I would like to use a powerful source (~100mW, that i can follow with infrared card sensors), can I align this input source while the alignment beam is on without damaging the OSA ? As the input source is locked when the alignment beam is on I was wondering if there was some kind of shutter inside, protecting the device. Many thanks, Adrien
tfrisch  (posted 2017-07-26 01:58:41.0)
Hi Adrien, thank you for contacting Thorlabs. We list the max input power at 10mW and the Input Damage Threshold as 20mW, so it would be best to attenuate your alignment beam. There is not a shutter separating the output alignment HeNe from the beam path of the input. Please let us know if you have any further questions.
qqaaww1  (posted 2017-02-16 09:17:52.383)
I try to measure spectrum by OSA 202C. Device connected to PC. Software OSA 2.75 installed and communicates with device (I can view SN, status, etc.). But I can't get any data. Software writes 'Ref. low.' and 'Optimizing interferometer'. I try to use OSA 2.70 - same results. How to solve it?
tfrisch  (posted 2017-02-17 02:24:09.0)
Hello, thank you for contacting Thorlabs. I will reach out to you directly to troubleshoot these errors.
ngaber  (posted 2015-05-25 17:22:13.79)
I need to measure the spectrum of a TE signal. I am wondering if using your OSA with a PMF is possible. Is there any risk that any of the component inside may affect the SOP? Also I see that you provide a laptop with the OSA for the analysis; does the price indicated include that? And what if I don’t need the laptop and would like to have the software on a CD to be installed on our PC since we need further data processing by Matlab. Is that possible? And does that decreases the price? Thanks and advance, Best Regards,
jlow  (posted 2015-06-05 10:05:07.0)
Response from Jeremy at Thorlabs: You should be able to use a PMF with the OSA. We can offer the OSA without the laptop as a special. I will contact you directly about this.
crollins  (posted 2014-03-28 10:47:49.773)
I was wondering if it would be possible for both the OSA 201 and the OSA 205 to view and analyze non-coherent light sources? A lot of what I have seen here makes it sound like the equipment is only useful for lasers but I am looking to measure incandescent light sources. Would I need to create a set up with a fiberoptic cable to my light source? Would such a set up be possible because where my light source is probably isn't where I want my equipment to be so such a set up would be ideal?
besembeson  (posted 2014-04-03 06:32:36.0)
Response from Bweh E at Thorlabs: This is a high precision instrument so it will mostly be used with coherent sources such as lasers. When used as a wavelength meter the precision is about 1 part-per-million (for example the resolution is around 0.2pm when looking at 1um wavelength). However, it can also be used with incandescent sources. Since these are generally incoherent (or have extremely short coherence lengths), you will need some kind of spatial filter (and maybe a spectral filter too) for this to be analyzed by the OSA. You can use up to a 50 micron fiber as a filter but your emission will have to be coupled into this fiber so you see the challenge. I was wondering if our compact CCD spectrometers (see: http://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=3482) would not be more suitable for your application. I will follow up with you via email to discuss this further.
bug99  (posted 2014-01-20 11:17:12.4)
Dear Tim, could you, please, send me a trial file with any spectrum so I could put it into your software and see the program interface in full grace.
jlow  (posted 2014-01-27 01:37:27.0)
Response from Jeremy at Thorlabs: We will send this to you.
tcohen  (posted 2012-11-15 12:29:00.0)
Response from Tim at Thorlabs: The instrument is designed for measurements on CW light sources. The internal detectors in the OSA203 have a bandwidth of several 100kHz. Therefore, the rep rate of the laser will have to be in the MHz region for the OSA203 to work properly.
user  (posted 2012-11-14 06:00:23.22)
Can this OSA measure a laser beam working in pulse regime (10Hz - 10kHz) ?
tcohen  (posted 2012-11-07 21:30:00.0)
Response from Tim at Thorlabs: Thank you for contacting us. We could stretch the OSA203 wavelength range towards 900nm while keeping the upper at 2500nm. However, the sensitivity will be lower below 1000nm. A typical scan rate can be ~2Hz for low resolution and low sensitivity and ~0.11 Hz for high resolution and high sensitivity. We have plans to extend our offering to include a 600-1700nm version of our OSA soon. We have contacted you to discuss your application further.
hormuth  (posted 2012-10-30 04:13:16.43)
First: is it possible to extend the wavelength range of the OSA203 down to ~700nm while keeping the upper limit at 2500nm? Second: how long does one scan take with full resolution and with low resolution? We are interested in using this device for LED light analysis and for broadband filter measurements as well.
jlow  (posted 2012-08-22 14:37:00.0)
Response from Jeremy at Thorlabs: For the OSA203, there's no external hardware trigger input for this functionality. However, you could do software triggering by implementing the data acquisition routine in your own software. The routines are provided with the device interface library.
avle  (posted 2012-08-19 21:04:39.0)
for the osa203, is there an option for external trigger for the spectra capture?
tcohen  (posted 2012-04-03 09:28:00.0)
Response from Tim at Thorlabs: Single mode fibers or 50um fibers (NA .22 or less) are recommended. The specification for absolute power accuracy only applies for single mode fibers. You are correct; there is a broadband collimator behind the port. Also, please note that although the standard receptacle is FC/PC others can be made on request.
cbrideau  (posted 2012-03-30 17:59:48.0)
What size fiber (core) is recommended for the input? I assume there is a collimator just behind the port on the front of the box?
tcohen  (posted 2012-03-29 10:28:00.0)
Response from Tim at Thorlabs: Thank you for your interest in our OSA! We have reserved the model name OSA202 for this wavelength range and have plans for it in our future product line. For your immediate needs I have contacted our design engineers about a custom quote and I will contact you directly with details.
avle  (posted 2012-03-27 00:10:56.0)
Is OSA203 available with a detector range of 600-1700nm? Thanks!
Back to Top

Fourier Transform Optical Spectrum Analyzers, 7.5 GHz Resolution

This video describes the design principles, features, and manufacturing of the OSA20xC OSAs.
  • Five Models Optimized for Different Spectral Ranges
    • OSA201C: 350 - 1100 nm
    • OSA202C: 600 - 1700 nm
    • OSA203C: 1.0 - 2.6 µm (10 000 - 3846 cm-1)
    • OSA205C: 1.0 - 5.6 µm (10 000 - 1786 cm-1)
    • OSA207C: 1.0 - 12.0 µm (10 000 - 833 cm-1)
  • Two Optical Input Ports
    • FC/PC Fiber-Coupled Input
    • Free-Space Input with Four 4-40 Taps for 30 mm Cage System Compatibility
  • Built-In Hose Connections for Optional Purging
  • Includes Windows® Laptop and Items Shown in Shipping List Tab
  • Demo Units Available by Contacting Tech Support

Thorlabs' OSAs measure the optical power of both narrowband and broadband sources as a function of wavelength. The maximum spectral resolution of 7.5 GHz (0.25 cm-1) is set by the maximum optical path length difference of ±4 cm, as explained in the Design tab, while the high spectral accuracy of ±2 ppm (parts per million) is ensured by simultaneously measuring the interferogram of a stabilized 632.9918 nm HeNe laser. For sources with linewidth <10 GHz, the Wavelength Meter mode provides center wavelength measurements with 0.1 ppm resolution and ±1 ppm accuracy.

FC/PC Fiber Receptacle
Click to Enlarge

FC/PC Fiber Receptacle Behind Door (OSA202C Shown)
Free-Space Optical Input
Click to Enlarge

Free-Space Optical Input for Ø6 mm Beam Behind Door (OSA202C Shown)
Hose Connections
Click to Enlarge

Rear-Mounted Hose Connections for Purging on the OSA20xC Instruments
OSA207 Free-Space Input
Click for Details

View Imperial Product List
Item #QtyDescription
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
MPD029-M011Ø1/2" 90° Off-Axis Parabolic Mirror, Prot. Gold, RFL = 2"
CRM1PT1Precision Cage Rotation Mount with Micrometer Drive, Ø1" Optics, 8-32 Tap
SM05MP1Externally SM05-Threaded Adapter for Ø1/2" Off-Axis Parabolic Mirrors
SM1A6T1Adapter with External SM1 Threads and Internal SM05 Threads, 0.40" Long
SM05RR1SM05 Retaining Ring for Ø1/2" Lens Tubes and Mounts
SM1RR1SM1 Retaining Ring for Ø1" Lens Tubes and Mounts
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
View Metric Product List
Item #QtyDescription
OSA205C1Fourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
MPD029-M011Ø1/2" 90° Off-Axis Parabolic Mirror, Prot. Gold, RFL = 2"
CRM1PT/M1Precision Cage Rotation Mount with Micrometer Drive, Ø1" Optics, M4 Tap
SM05MP1Externally SM05-Threaded Adapter for Ø1/2" Off-Axis Parabolic Mirrors
SM1A6T1Adapter with External SM1 Threads and Internal SM05 Threads, 0.40" Long
SM05RR1SM05 Retaining Ring for Ø1/2" Lens Tubes and Mounts
SM1RR1SM1 Retaining Ring for Ø1" Lens Tubes and Mounts
ER4-P41Cage Assembly Rod, 4" Long, Ø6 mm, 4 Pack
Ø1/2" Off-Axis Parabolic Mirror in CRM1PT Rotation Mount in Front of Free-Space Input

Fiber-Coupled and Free-Space Inputs
All of our OSAs directly accept fiber-coupled or free-space optical inputs. The fiber-coupled input is compatible with single mode and multimode FC/PC patch cables. For multimode patch cables made from standard silica glass, cores up to Ø50 µm and NA up to 0.22 are recommended; for those made from fluoride glass, cores up to Ø100 µm and NA up to 0.26 are recommended. Single mode patch cables provide the highest contrast. OSAs with other fiber input receptacles are available by contacting Tech Support.

The free-space input aperture accepts collimated input beams up to a maximum beam size of Ø6 mm. To align the input light with respect to the OSA's internal interferometer, a red, Class 1 alignment beam, which is activated by a rotating switch, is emitted from the aperture. (See 2:47 in the video above for a demonstration.) The input beam should be made collinear to the alignment beam for the OSA to provide optimal measurement accuracy. Four 4-40 taps around the input aperture enable compatibility with our 30 mm cage system; use cage rods no shorter than 1.5" to prevent attached cage components from clashing with the door. For more information on free-space coupling, please see the Free-Space Coupling tab.

Hose Inlets for Optional Purging
To reduce the presence of water absorption lines in the measured spectrum, our OSAs offer two 1/4" inner diameter quick-connect hose connections on the back panel, through which the interferometer can be purged with dry air. Thorlabs' Pure Air Circulator Unit is ideal for this task. Purging the OSA is not generally necessary, since none of the optics are made from hygroscopic materials, but can be useful for applications such as gas detection and identification where the presence of trace gases in the housing may affect the measurement. An example setup that uses the OSA203C instrument is described in the Gas Spectroscopy tab.

Software
Each OSA20xC instrument includes a Windows® laptop with our OSA software suite pre-installed and a USB 2.0 cable. This software has a graphical user interface (GUI) that includes a variety of measurement and analysis tools; please see the Software tab for a detailed overview of the software capabilities. To easily interface with the OSAs, an extensive set of drivers are also available for LabVIEW®, C, C++, and C#.






Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
OSA201C Support Documentation
OSA201CFourier Transform Optical Spectrum Analyzer, 350 - 1100 nm
$30,767.19
Today
OSA202C Support Documentation
OSA202CFourier Transform Optical Spectrum Analyzer, 600 - 1700 nm
$30,767.19
Today
OSA203C Support Documentation
OSA203CFourier Transform Optical Spectrum Analyzer, 1.0 - 2.6 µm
$32,252.08
Today
OSA205C Support Documentation
OSA205CFourier Transform Optical Spectrum Analyzer, 1.0 - 5.6 µm
$34,924.91
Today
OSA207C Support Documentation
OSA207CFourier Transform Optical Spectrum Analyzer, 1.0 - 12.0 µm
$39,306.25
Today
Back to Top

Fourier Transform Optical Spectrum Analyzers, 1.9 GHz Resolution

Hose Connections
Click to Enlarge

Rear-Mounted Hose Connections for Purging and BNC Trigger Connections on the Redstone OSA30x
Redstone Calibration Laser
Click to Enlarge

The calibration laser can be connected directly to the FC/PC fiber input using the included hybrid patch cable.
FC/PC Fiber Receptacle
Click to Enlarge

FC/PC Fiber Receptacle Behind Door
Free-Space Optical Input
Click to Enlarge

60 mm Cage Components can be used to couple a free-space beam into the OSA30x.
Redstone Handle
Click to Enlarge

The Redstone OSA302 and OSA305 weigh 58.4 lbs (26.5 kg). Handles are included on the side panels for easy lifting.
  • Multi-Detector Configuration for Broad Operation Range
    • OSA302: 250 nm - 2.5 µm (40 000 - 4000 cm-1)
    • OSA305: 1.0 - 5.6 µm (10 000 - 1786 cm-1)
  • Four Resolution Settings and Three Sensitivity Levels
  • Front Panel Access to Frequency-Locked Laser for Wavelength Calibration
  • Two Optical Input Ports
    • FC/PC Fiber-Coupled Input
    • Free-Space Input with Four 4-40 Taps for 60 mm Cage System Compatibility
  • Trigger Input for External Synchronization
  • Built-In Hose Connections for Optional Purging
  • Includes Windows® Laptop and Items Shown in Shipping List Tab
  • Demo Units Available by Contacting Tech Support

Thorlabs' Redstone® OSA302 and OSA305 Optical Spectrum Analyzers (OSA) measure the optical power of both narrowband and broadband sources as a function of wavelength with higher resolution and a lower noise floor compared to the OSAs sold above. The maximum spectral resolution of 1.9 GHz (0.063 cm-1) is set by the maximum optical path length difference of 16 cm, as explained in the Design tab, while the high spectral accuracy reaching down to ±0.2 ppm (parts per million) is ensured by simultaneously measuring the interferogram of a frequency-locked 1532.8323 nm alignment laser. For sources with linewidths <10 GHz, the Wavelength Meter mode provides center wavelength measurements with 0.1 ppm resolution and ±0.5 ppm accuracy.

To meet the needs of your specific application, customization options are available for the Redstone OSAs; please contact Tech Support for assistance. Common specials for this device include alternative input receptacles, small adjustments to the wavelength range, extra test protocols, and shipping without a laptop.

Resolution and Sensitivity
These high-performance OSAs offer four resolution settings that can resolve spectral features 4.0, 1.0, 0.25, or 0.063 cm-1 apart. Three sensitivity levels are also available, which control the acquisition speed and available gain levels. For detailed specifications on the acquisition update frequency for each sensitivity and resolution setting, please see the Specs tab.

Calibration Laser
For the Redstone OSAs, the internal frequency-locked calibration laser is accessible through the FC/APC fiber output located above the power switch on the front panel. This can be used for wavelength calibration by connecting the front-panel output to the FC/PC fiber input using the included single mode patch cable. During calibration, the software compares the measured wavelength to the reference and performs a calibration if necessary.

Interferogram Averaging
An integrated internal broadband reference source allows the Redstone OSAs to accurately determine the location of zero path difference (ZPD) between the two optical branches. The ZPD can be used to average interferograms, which reduces the signal-to-noise ratio. The beam profile overlap between the two branches is optimized using piezoelectric actuators.

Fiber-Coupled and Free-Space Inputs
All of our OSAs directly accept fiber-coupled or free-space optical inputs. The fiber-coupled input is compatible with single mode and multimode FC/PC patch cables. For multimode patch cables made from standard silica glass, cores up to Ø50 µm and NAs up to 0.22 are recommended; for those made from fluoride glass, cores up to Ø100 µm and NAs up to 0.26 are recommended. Single mode patch cables provide the highest contrast. OSAs with other fiber input receptacles are available by contacting Tech Support.

The free-space input aperture accepts collimated input beams with a beam size of up to Ø10 mm, which improves light collection for weak signals as compared to the OSA20xC OSAs. To align the input light with respect to the OSA's internal interferometer, a red, Class 1 alignment beam, which is activated through the OSA software, is emitted from the aperture. The input beam should be made collinear to the alignment beam for the OSA to provide optimal measurement accuracy. For more details on free-space alignment, please see the application note here. Four 4-40 taps around the input aperture enable compatibility with our 60 mm cage system; use cage rods no shorter than 1.5" to prevent attached cage components from clashing with the door. For more information on free-space coupling, please see the Free-Space Coupling tab.

Hose Inlets for Optional Purging
To reduce the presence of water absorption lines in the measured spectrum, our OSAs offer two 1/4" inner diameter quick-connect hose connections on the back panel, through which the interferometer can be purged with dry air. Thorlabs' Pure Air Circulator Unit is ideal for this task. Purging the OSA is not generally necessary, since none of the optics are made from hygroscopic materials, but can be useful for applications such as gas detection and identification where the presence of trace gases in the housing may affect the measurement. An example setup that uses the OSA203C instrument is described in the Gas Spectroscopy tab.

Software
Each Redstone OSA includes a Windows® laptop with our OSA software suite pre-installed and a high-speed USB 3.0 cable. This software has a graphical user interface (GUI) that includes a variety of measurement and analysis tools; please see the Software tab for a detailed overview of the software capabilities. To easily interface with the OSAs, an extensive set of drivers are also available for LabVIEW®, C, C++, and C#.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
OSA302 Support Documentation
OSA302Redstone® Fourier Transform Optical Spectrum Analyzer, 1.9 GHz Resolution, 250 nm - 2.5 µm
$69,570.96
Lead Time
OSA305 Support Documentation
OSA305Redstone® Fourier Transform Optical Spectrum Analyzer, 1.9 GHz Resolution, 1.0 - 5.6 µm
$69,570.96
Lead Time
Last Edited: Jul 18, 2014 Author: Dan Daranciang
