High-Power UV Curing LED System
- Customizable Exposure Times and Intensities
- User Calibration for Reproducible Exposure
- 4 Wavelength Options Available
- 5 Operation Modes
365 nm UV Curing System
with Driver Unit and
Handheld Light Source
The Swiveling Mounted
Handheld LED Source
Includes a Removeable

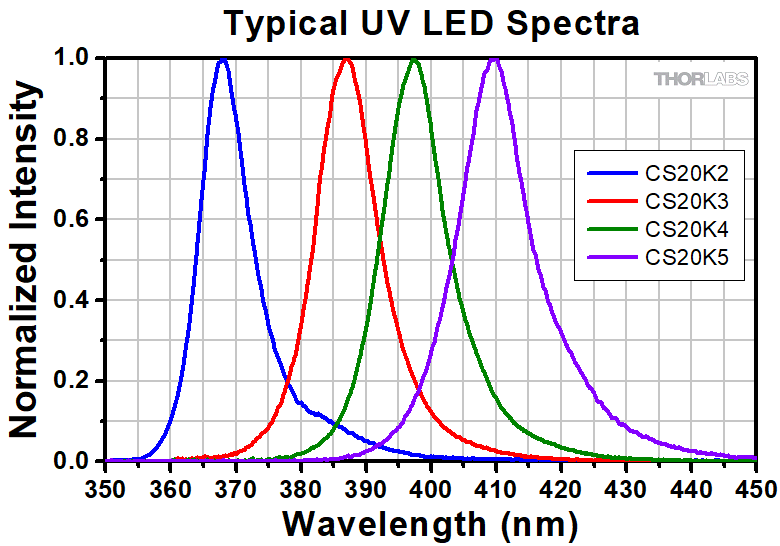

Typical Emission Spectra of the UV Curing LED Systems
- ≥12 W/cm² LED Power Density at Center Wavelength*
- 365 nm, 385 nm, 395 nm, and 405 nm Systems Available
- Options for Adjusting Beam Spot Size and Shape
- Ø32 mm Beam at 20 mm Distance Without Optics
- Ø9 mm Collimated Beam Using Included CS20A2 Collimation Adapter
- Ø1 mm Focused Beam Using CS20A3 Focus Adapter (Sold Separately Below)
- User Calibration with Included Power Density Detector
- Operation Modes: Timer, Continuous, Configuration, Slope, or Irradiance
- 10 Configurable Measurement Profiles
- Safety Glasses Included
- USB Port for PC Control
- Acoustic Time Signal
- Trigger Operation via Controller, Foot Switch, or Hand Trigger
Thorlabs' advanced UV Curing LED Systems are designed to cure adhesives that need to be exposed to reproducible high-intensity light at UV wavelengths. Complete systems are available with center wavelengths of 365 nm, 385 nm, 395 nm, and 405 nm. Five operation modes allow fine control of the duration and intensity of emission. Up to 10 different settings for intensity and exposure time can be stored in configuration profiles. The integrated power density detector enables calibration of the emission time based on the current power density of the LED.
Five Operation Modes
- Continuous Mode: The intensity of the emitted light can be continuously adjusted up to the user-set maximum current limit (by default, the absolute maximum of the chip). The intensity scale can be displayed as current in mA, % of maximum current, or the output irradiance (in mW/cm²).
- Timer Mode: This mode allows the user to limit the exposure time for a selected intensity.
- Slope Mode: This mode allows the user to gradually increase or decrease the intensity over a chosen time interval. Simply choose the initial and final intensities and the intensity will vary in a linear fashion during the chosen time period.
- Configuration Mode: 10 different user-defined timer mode profiles can can be stored.
- Irradiance Mode: Use this mode to recalibrate all settings or to measure the irradiance of the LED source.
The integrated power density detector enables calibration of the emission time based on the current power density of the LED source. An acoustic signal can also be activated to generate beeps at determined time intervals. The output of the curing system is SM05-threaded; optics can be easily interchanged to produce different beam spot sizes and shapes.
Compared to conventional arc-lamp UV systems, these LED systems offer many advantages, such as an intense, uniform UV radiation profile and a long lifetime of 10,000+ hours. It requires much less energy, needs no warm-up time, and exhibits low IR heat emission. The system has no moving parts (passive, fan-less cooling) and is maintenance free. Additionally, the source contains no mercury and generates no ozone during the curing process.

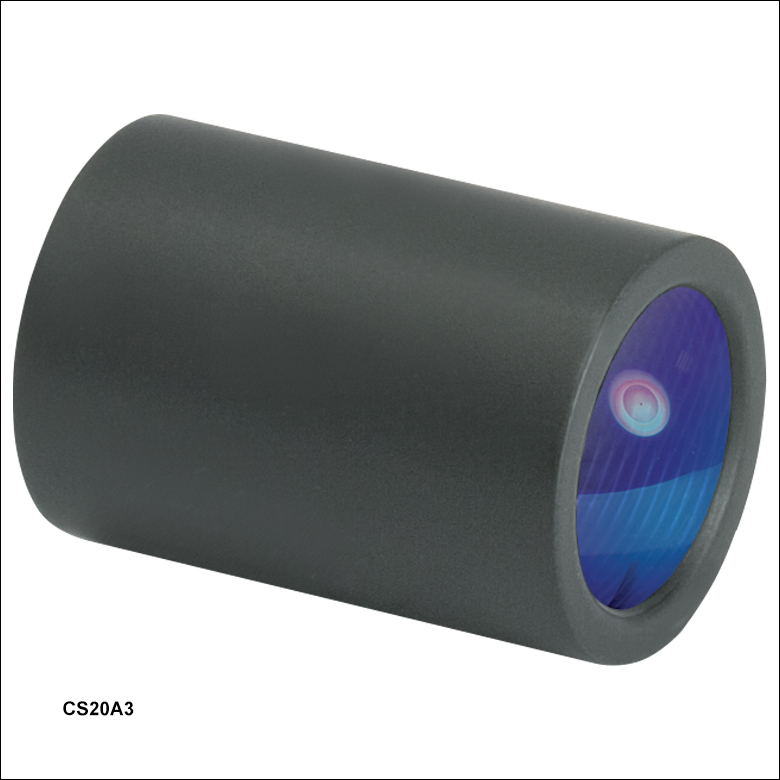

See below for optical accessories for the UV Curing LED Systems. The beam diameter can be changed to 9 mm or 1 mm with the CS20A2 Collimation Adapter or CS20A3 Focus Adapter, respectively. One CS20A2 Collimation Adapter is included with each UV curing LED system. While the LED system can be used without an optic, the output light will diverge to 32 mm diameter measured 20 mm from the output.

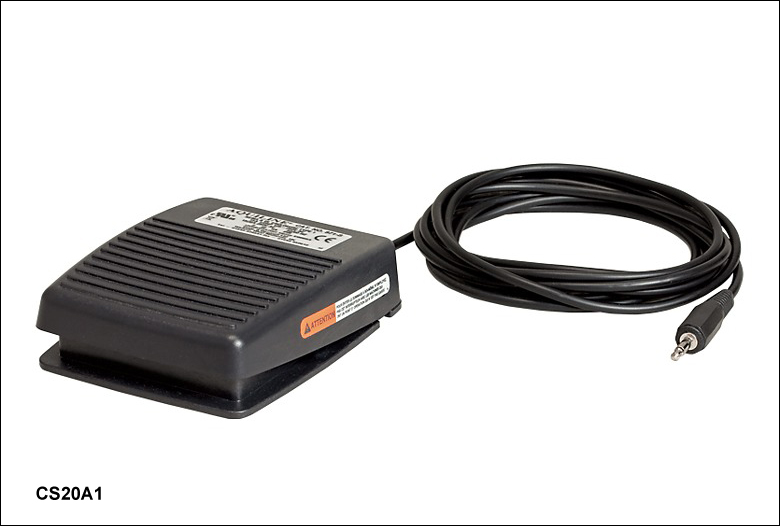

See below for electrical accessories for the UV Curing LED Systems. The CS20A1 Foot Switch is designed as an alternative means for turning the LED on and off without having to use the controller or software. The CAB-CS20 adapter cable allows the driver in any of our UV curing LED systems to be used to drive our mounted LEDs or fiber-coupled LEDs.
Safety glasses are recommended when using our UV Curing LED Systems. One pair is included with the purchase of a UV Curing LED system. In addition, Thorlabs offers several pairs of glasses that are appropriate for use with these systems. Please visit our Laser Safety Glasses page for detailed information about each of these items. Since the correct choice of laser safety eyewear depends upon many local factors that cannot be evaluated remotely, including the beam path, light source parameters, and lab environment, we recommend that you discuss your needs with your organization's laser safety officer to determine the best option.
*Calculated power density using CS20A3 Focus Adapter (sold separately below). The calculation is done using the minimum LED power. See the Specs tab for more information.
All specifications are valid at 23 ± 5 °C and 45 ± 15% relative humidity (non-condensing) unless otherwise noted.
|Continuous Mode||Power: 0 - 100%|
|Timer Mode||Power: 0 - 100%
Time: 1s - 2 h 46 min 39 s
|Config Mode||10 Configurations in Timer Mode|
|Slope Mode||Time: 1 s - 2 h 46 min 39 s
Start Power: 0 - 100%
Stop Power: 0 - 100%
|LED Chip||2.5 mm x 2.5 mm|
|Collimated using CS20A2b||9 mm|
|Focused using CS20A3c||1 mm|
|Divergent without Optics
(Distance: 20 mm)
|Operating Temperature Ranged||0 - 40 °C|
|Storage Temperature Range||-40 to 70 °C|
|Main Unit Dimensions
(W x H x D)
|157 mm x 80 mm x 158 mm
(6.2" x 3.2" x 6.2")
|Hand Held Unit Dimensions
(W x H x D)
|95 mm x 180 mm x 32 mm
(3.6" x 7.1" x 1.3")
|Warm Up Time for Rated Accuracy||<10 min|
|Wavelength||365 nm||385 nm||395 nm||405 nm|
|UV LED Power||880 mW (Min)
1290 mW (Typical)
|1240 mW (Min)
1780 mW (Typical)
|1130 mW (Min)
1630 mW (Typical)
|748 mW (Min)
1082 mW (Typical)
|Collimated using CS20A2a||178 mW/cm² (Min)||194 mW/cm² (Min)||185 mW/cm² (Min)||164 mW/cm² (Min)|
|Focused using CS20A3b||13 W/cm² (Min)||14 W/cm² (Min)||13 W/cm² (Min)||12 W/cm² (Min)|
|Divergent without Optics
(20 mm from LED Chip)
|56 mW/cm² (Min)||76 mW/cm² (Min)||72 mW/cm² (Min)||61 mW/cm² (Min)|
Driver Unit Adapted for Mounted LEDs
|Driver Unit Operating Specifications|
|Maximum Voltage||20 V|
|Maximum Current||2 A|
The CAB-CS20 adapter cable (sold separately below), allows the driver unit of Thorlabs UV curing systems to drive any Thorlabs mounted LED or fiber-coupled LED. This flexibility enables our UV curing systems to be adapted for use in more stable or space-constrained setups using our complete families of optomechanical components, fiber patch cables, and fiber optomechanics. We also offer a much broader wavelength selection from deep UV to NIR for both our mounted LEDs and our fiber-coupled LEDs, down to as low as 265 nm and 285 nm, respectively.
Using Driver Unit with Thorlabs Mounted LEDs

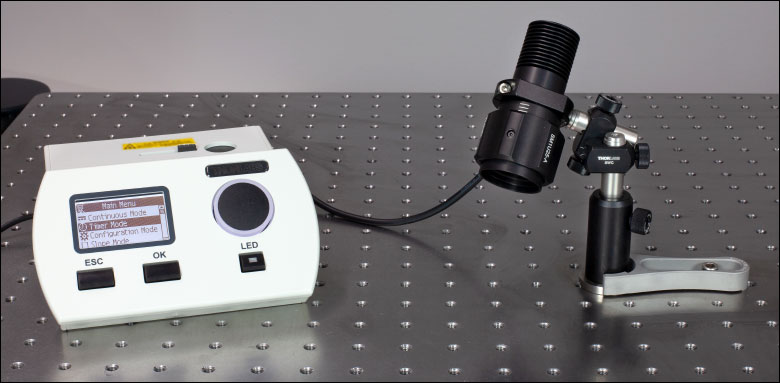

For applications that require high power and stability, any Thorlabs mounted LED can be connected using the CAB-CS20 adapter cable to the driver unit of the CS20K2, CS20K3, CS20K4, or CS20K5. The LED can be mounted using standard optomechanical components as shown in the example to the right (top). The parts list is given as an example and can easily be adapted for the space and stability constraints of any particular setup. Please contact Tech Support for help on selecting the appropriate items for a specific application.
Using Driver Unit with Thorlabs Fiber-Coupled LEDs

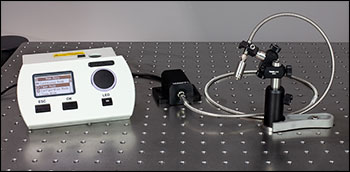

For curing applications with space constraints, a fiber-coupled LED can be connected using the CAB-CS20 adapter cable to the driver unit of the CS20K2, CS20K3, CS20K4, or CS20K5. The LED can be mounted using standard optomechanical components as shown in the example to the right (bottom). We also offer a wide range of fiber collimators to ensure the output is suitable for curing applications. The parts list is given as an example and can easily be adapted for the space and stability constraints of any particular setup. Please contact Tech Support for help on selecting the appropriate items for a specific application.
Software for High-Power UV Curing LED Systems
|Item #||Wavelength||Power||Irradiance (without Optics)b||Beam Diameter (without Optics)b||Risk Groupc|
|CS20K2||365 nm||880 mW (Min)||56 mW/cm2 (Min)||32 mm||RG2|
|CS20K3||385 nm||1240 mW (Min)||76 mW/cm2 (Min)|
|CS20K4||395 nm||1130 mW (Min)||72 mW/cm2 (Min)|
|CS20K5||405 nm||748 mW (Min)||61 mW/cm2 (Min)|
|Click on the Image to Enlarge|
|Description||Collimation Adapter||Focus Adapter|
|Beam Diameter of UV Curing System with Optic||9 mm||1 mm|
|Irradiance Output of UV Curing Systems with Optical Accessories|
|CS20K2||178 mW/cm2 (Min)||13 W/cm2 (Min)|
|CS20K3||194 mW/cm2 (Min)||14 W/cm2 (Min)|
|CS20K4||185 mW/cm2 (Min)||13 W/cm2 (Min)|
|CS20K5||164 mW/cm2 (Min)||12 W/cm2 (Min)|
|Click on the Image to Enlarge|
|Description||Foot Switch||Adapter Cable for Mounted and Fiber-Coupled LEDsa|
|Cable Length||2 m||250 mm ± 10 mm|
|Connector Type(s)||3.5 mm Phono Jack||7-Pin and 4-Pin (See Right Table)|
|CAB-CS20 Connector Pin-Out|
|Driver Unit Side Pin #||Description||LED Side Pin #|
