SM1-Compatible Fixed Mounts
Internal and External
These SM1-threaded fixed mounts allow optical components to be integrated into optomechanical setups. Thorlabs offers internally and externally threaded, quick-release, indexing, nested, 90° flip, and flexure stage mounts. All mounts except the flexure stage mount (item # HCS031), the lens tube filter mounts (item #'s SM1QU and SM1QP), and the Drop-In Cage Mount (item #DCP1) feature an 8-32 (M4) tapped hole for mounting on Ø1/2" posts. The flexure stage mount allows SM1-threaded components to be mounted to any stage using the 3 mm wide alignment groove. The internally and externally SM1-threaded lens tube filter mount allows mounted filters to be easily exchanged in a lens tube system without disassembly. The drop-in cage mount allows optics to be installed into assembled 30 mm cage systems.
This page features all of our SM1-Compatible Fixed Mounts; for a full selection of available fixed mounts, please visit our Fixed Optic Mounts guide.

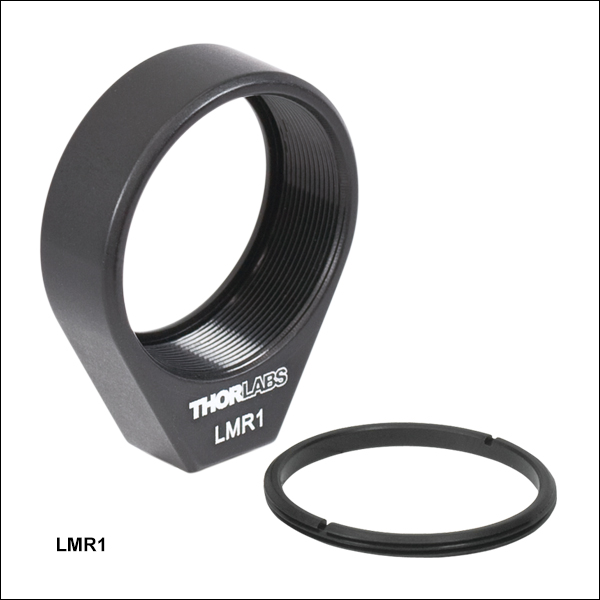

The LMR1(/M) Fixed Optic Mount is a convenient way to mount Ø1" optics on TR Series posts using the 8-32 (M4) tapped hole on the base of the mount. Each LMR1(/M) mount has an internally SM1-threaded (1.035"-40) hole equipped with a back-edge lip on which the optic rests. The SM1 retaining ring (SM1RR) included with each mount can be used to secure the optic in place by sandwiching the optic between itself and the back lip. As an alternative to the included SM1RR retaining ring, the SM1LTRR retaining ring for stress-free mounting can be purchased separately. This fixed optic mount is also used to hold other optical components with external SM1 threads.
The LMR1(/M) is available both individually and in 5 packs for ordering convenience. Each mount in the LMR1(/M)-P5 5 pack also includes its own SM1RR retaining ring.
This fixed lens mount features internal SM1 threading on one side and external SM1 threading on the other. The optic is secured in the mount with the included retaining ring and the mount has an 8-32 (M4) tapped hole for mounting to a Ø1/2" Post.
The internal threading is deep enough to hold unmounted optics up to 0.28" (7.1 mm) thick, while the external threading is just deep enough to allow for the mounting of lens tubes, irises, or other internally SM1-threaded components (see picture to the right). Although the functionality of this part can be duplicated by combining two other Thorlabs parts, a lens tube slip ring and a lens tube, this fixed mount offers a smaller package size.

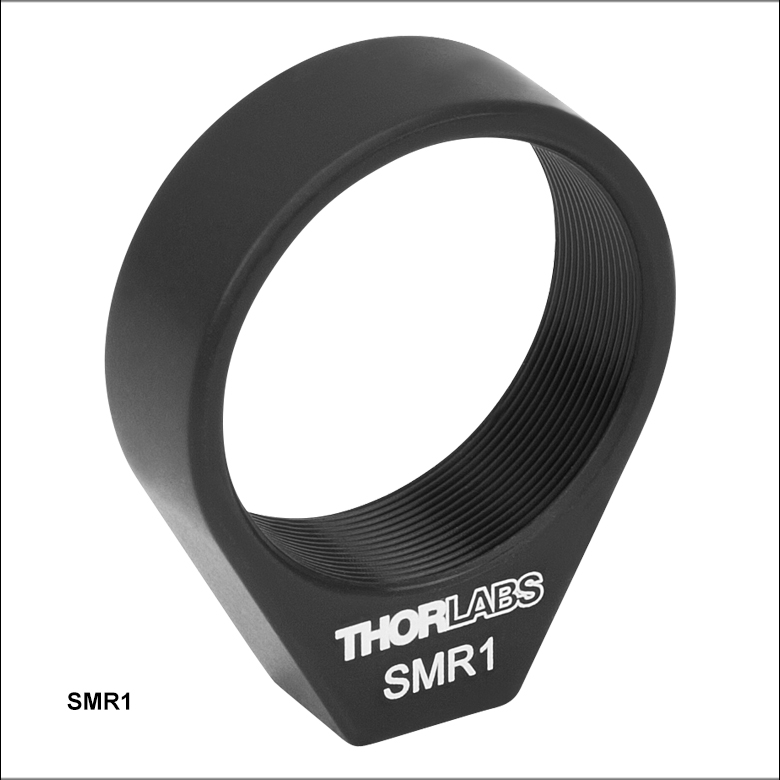

This SM1-threaded Lens Tube Post Mount features internal SM1 threading that extends the full length of the mount without any retaining lip. It is perfect for mounting lens tubes and other mounted optics, and can also be used to hold unmounted optics when used with two retaining rings (sold separately).
Please not that the SMR1(/M) does not include retaining rings, and two SM1RR retaining rings will be necessary to hold Ø1" optics with this mount.
The KB1P(/M) is an SM1-threaded lens mount with a magnetically coupled removable mounting carriage. This mount is designed for applications that require a Ø1" (Ø25.4 mm) optical element, such as a lens, to be periodically inserted and removed from an optical setup with a high degree of precision. The magnetically coupled mounting carriage eliminates the need to align the optic when it is reinserted into the setup. For stability, precision, and repeatability, the mounting carriage contacts the back plate at three points. Each point of contact is a ball bearing on the mounting carriage resting in the groove formed by two parallel steel pins. The coupling force is provided by pairs of rare earth magnets.

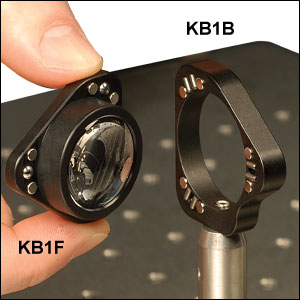

The mounting carriage and back plate can also be purchased separately as the KB1F(/M) and KB1B(/M), respectively. The KB1B(/M) features an 8-32 (M4) tapped hole for post mounting.
These nested lens mount sets are comprised of an inner optic carriage and an outer mounting ring (sold separately). This allows easy exchange of optics while maintaining optical alignment. The LM1-A inner carriage is radially laser engraved with graduation marks every 2° and labeled every 20°. The LM1-A carriage accepts Ø1" (25 mm) optics up to a thickness of 0.38" (9.6 mm) into its SM1 (1.035"-40) threaded bore. The mating LM1-B positionally locks the LM1-A with a top-located thumbscrew and is post mountable via a bottom 8-32 (M4) tapped hole. Each LM1-A includes one SM1RR retaining ring for fastening optics within the SM1-threaded (1.035"-40) bore.
Click to Enlarge
The NX1N(/M) Indexing Mount can hold an optic at any one of 16 positions, including 45° and 90°.
The NX1N(/M) Indexing Mount for Ø1" optics features 16 indexed positions every 22.5°, allowing the optic to be held at both 45° and 90°. This mount is ideal for redirecting a laser to multiple targets on an optical table, and its angular positions are engraved on the base plate for fast alignment. The top plate returns to any given position, indicated with the engraved witness line, with a high repeatability. During angular repeatability testing, we obtained a mean of 10.6 µrad, a minimum of 0.38 µrad, and a maximum of 140.50 µrad. For information about testing done on the repeatability of the NX1N and other kinematic bases, please see the Repeatability tab.
The included SM1 (1.035"-40) retaining ring (SM1RR) secures the optic against the front lip of the mount. This indexing mount can hold optics that are no greater than 7 mm (0.27") thick. Neodymium iron magnets couple the top and bottom plates, while stainless steel ball bearings and V-grooves provide the 16 indexed positions. Three 8-32 (M4) tapped mounting holes in the bottom plate allow the mount to be secured to a Ø1/2" post. A small through hole, located directly under the 90° engraving on the bottom plate, accepts a 5/64" (2.00 mm) balldriver to help provide enough torque when attaching the mount to the post.
Click to Enlarge

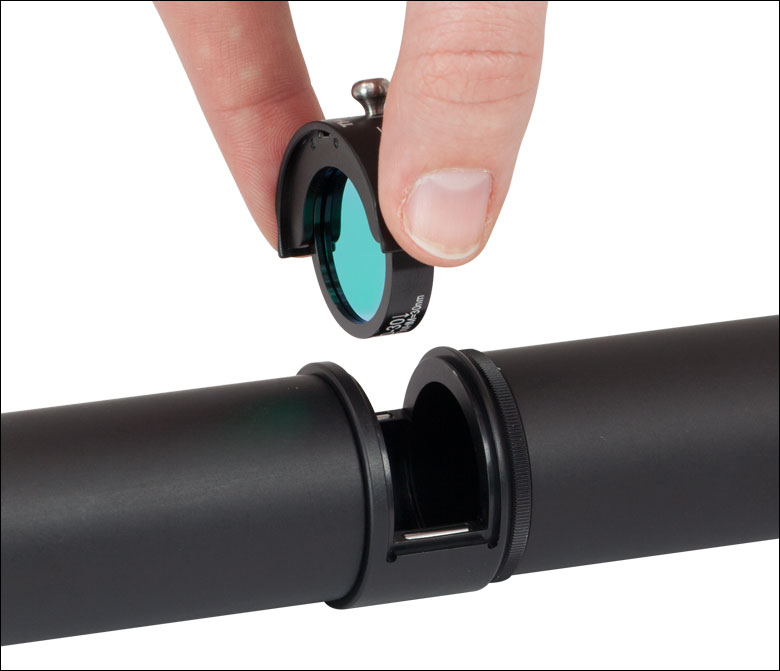

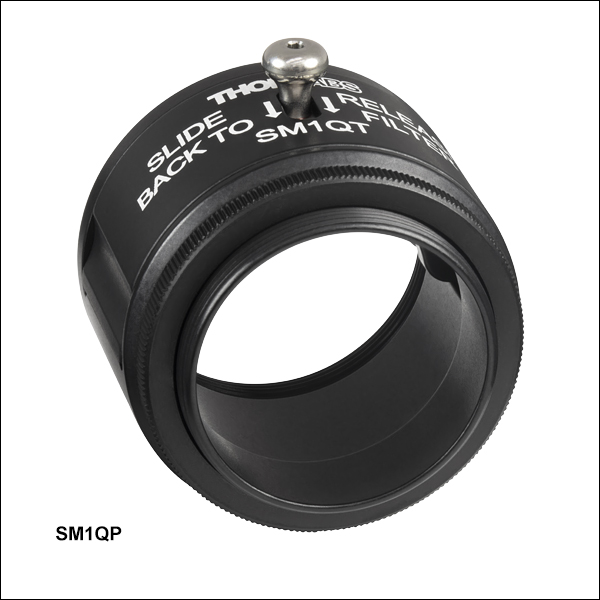

Internal SM1 threading on one end and external SM1 threading on the other makes the SM1QP filter mount ideal for swapping filters within a lens tube system without disassembly.
Click to Enlarge

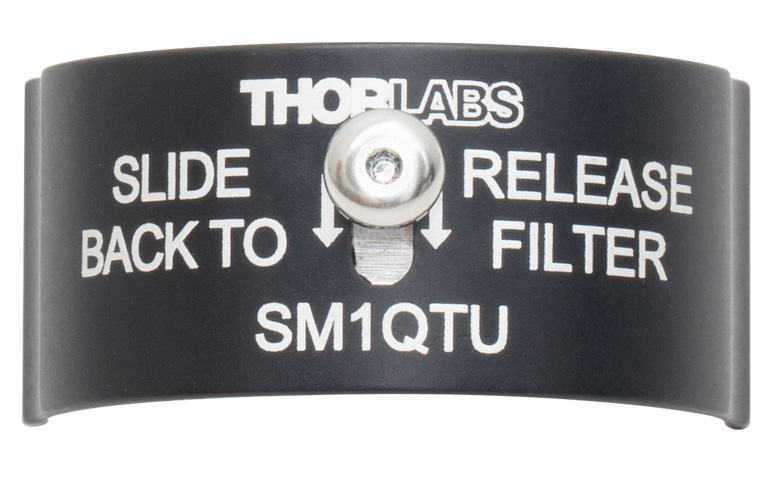

The Filter Carriages (SM1QTU shown above) are laser engraved to indicate how to install the filter.
Thorlabs' Fast-Change Lens Tube Filter Holders allow Ø1" and Ø25 mm filters to be quickly exchanged within an experimental setup without disassembling connected lens tubes. These holders are comprised of two pieces: a filter carriage and a slotted lens tube, which are magnetically coupled to each other, enabling fast insertion and removal.
To install a filter in the carriage, first separate the filter carriage from the slotted lens tube by gripping the recessed grooves on either side of the carriage and pulling gently. Slide the top-located stainless steel knob in the direction of the engraved arrows (as shown in the photo above). This opens the spring-loaded clamp located on the underside of the carriage. Insert the filter, pressing it firmly against the underside of the holder, and release the knob.
There are two preconfigured filter holder options: the SM1QU accepts an unmounted filter with a thickness ≤ 3.5 mm, while the SM1QP accepts a mounted filter with a thickness from 3.5 mm to 6.3 mm. The filter holders are 1.02" long with a 1.31" (33.3 mm) outer diameter and a Ø21 mm (Ø0.83") clear aperture. Please note that the clear aperture of the assembly may be further restricted by the filter.
Extra filter carriages are available separately. The SM1QTU carriage (included in the SM1QU) holds an unmounted filter with a thickness ≤ 3.5 mm, while the SM1QT carriage (included in the SM1QP) holds a mounted filter with a thickness from 3.5 mm to 6.3 mm.
The SM1QB extra slotted lens tube, included in both the SM1QU and SM1QP filter holders, is also available separately. The slotted lens tube can accept either filter carriage described above. It features internal SM1 (1.035"-40) threading on one side and external SM1 threading on the other, making it compatible with all of our SM1-threaded components. One included lock nut (item # SM1NT) allows the user to set the rotational orientation of the filter holder at any angle.
Click to Enlarge

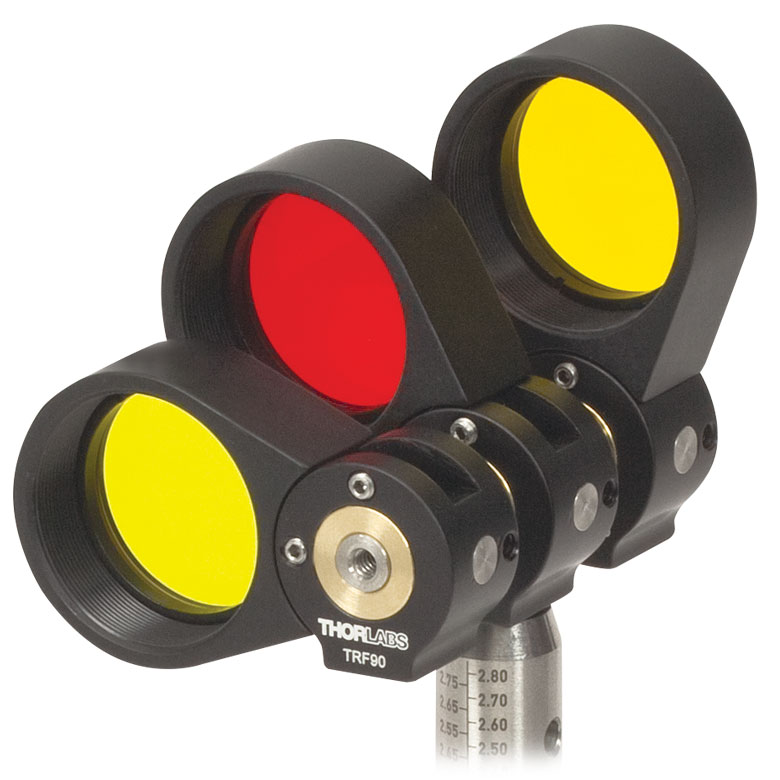

One ER Rod Stacking 3 Filter Mounts

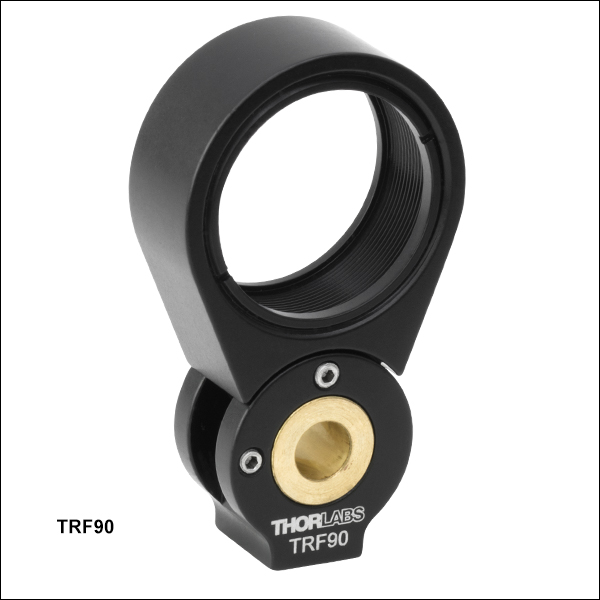

The TRF90 can be post mounted as an individual unit or ER-cage-rod-mounted for stacking filters in a series. Since the depth of the filter mount is 0.5" (13 mm), the minimum length of the ER rod needed when creating a stack of filters is the number of filter mounts being stacked times 0.5" (13 mm). A precision detent mechanism provides holding force at the 0° and 90° positions, while a nylon setscrew allows the mount to be locked.
Please note that the threaded hole used to attach the post to the filter mount goes all the way through to the rotation mechanism. Be sure that no more than 0.2" (5 mm) of the screw on top of the post is threaded into the filter mount in order to prevent the binding of the rotation mechanism.
Click to Enlarge

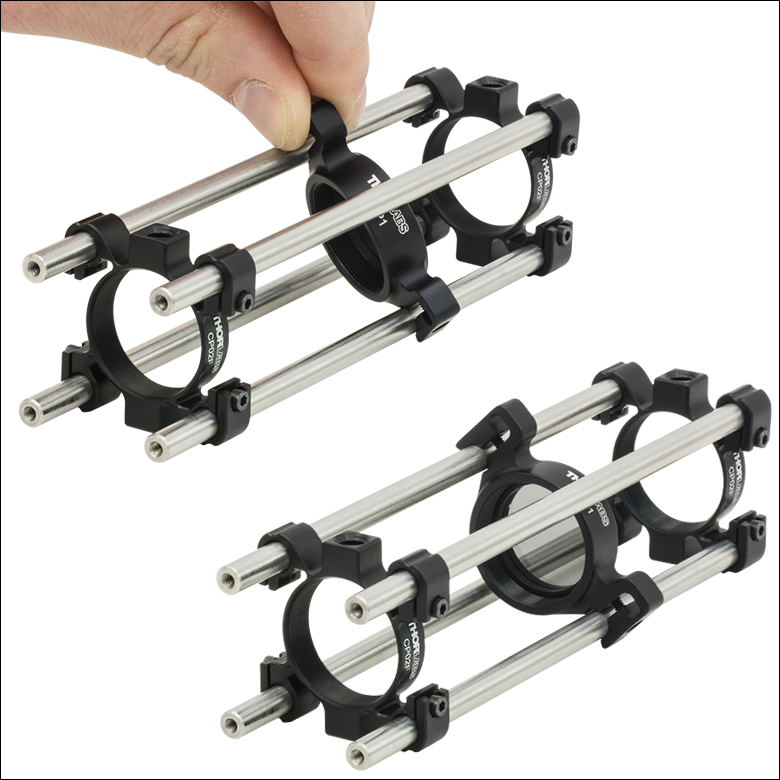

The DCP1 Cage Mount Snapping into an Existing 30 mm Cage Segment
(Shown Here with ND Filter and CP02F Flexure Plates)

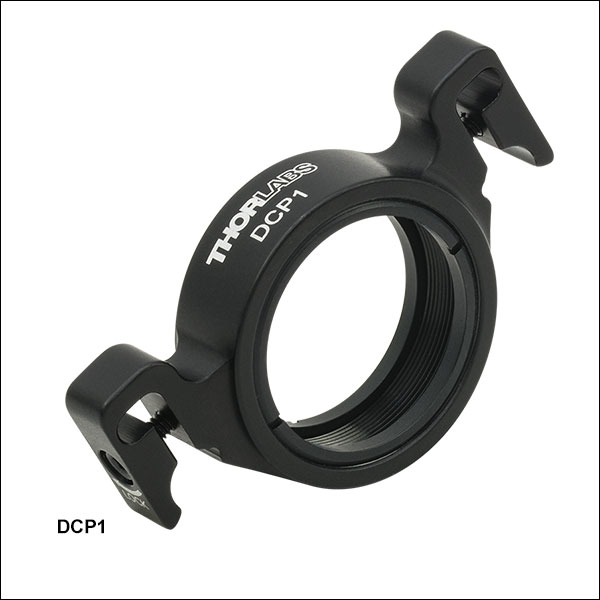

The DCP1 Drop-In Cage Mount allows Ø1" optics to be easily inserted into or removed from an assembled 30 mm cage structure. The cage mount features two flexure locks with cap screws that can be tightened using a 5/64" (2 mm) hex key or balldriver. The SM1-threaded (1.035"-40) bore can hold Ø1" optics up to 0.24" (6.1 mm) thick using the included two SM1RR retaining rings. Unlike our other quick-release cage mounts, the DCP1 can be used with optics mounted inside SM1L03 lens tubes. For example, all of our SM1-threaded ND filters can be used with this cage mount. Longer lens tubes will block the cage mount from fitting into the cage system.
The HCS031 mount integrates our extensive line of SM1-threaded (1.035"-40) components into our flexure stage systems. Due to the diameter of the SM1 threading, the optical axis of the HCS031 mount is 18.0 mm above the flexure stage.
Due to the higher optical axis, a 5.5 mm Height Adjustment Shim (AMA093) will be required for all mounts with an optical axis of 12.5 mm when used in conjunction with the HCS031.
