Combination Square and Level

Combination Square and Level can be Used to Measure the Level in One
Dimension and Draw Right Angles
Through Holes Provide Easy Marking Access

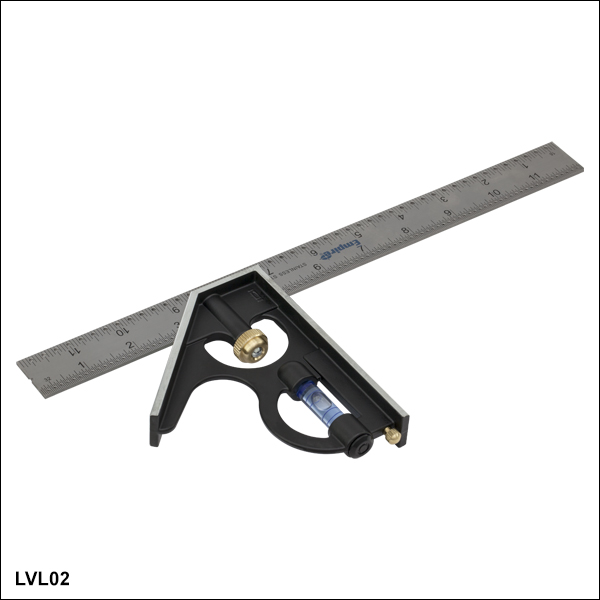

LVL02

Through Holes in the LVL02 Combination Square and Level Provide Easy Access for Measurement Marking

Related Items

Lab Supplies

Magnetic Rulers

Storage Cases

Identification Supplies

Cable Management Products

Electrical Lab Supplies

Fiber Crimp Tool

Please Wait

Overview
Feedback

Click to Enlarge

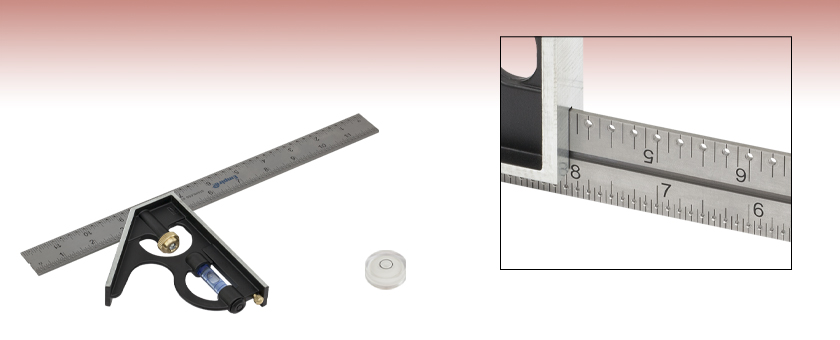

Figure 1.1 The holes in LVL02 can be used to measure the height of a beam larger than the hole. Click the photo to see an enlarged image with a zoom of the beam on the blade.

Features

Precision Machined Head and Bubble Level Ensure Squareness to 0.001°
12" Etched Stainless Steel Blade with 3 Different Inch Graduations: 8, 16, and 32 Marks per Inch
Through Holes Every 1/4" and 1/8" Provide Easy Marking Access
Heavy-Duty Machined Square Head
Self-Aligning Drawbolt
Hardened Scriber Included in Back of Head

The LVL02 Combination Square is a precision instrument with better sensitivity than similar instruments used in carpentry. Sensitivity is the measure of how large of a tilt is needed for the bubble to move, while accuracy is how close to true level the device measures. The stainless steel blade is marked with two scales on each side and is removable. One side is marked with 1/8" markings with 1/4" hole spacing and 1/16" markings with 1/8" hole spacing. On the other side, the ruler is marked with 1/16" markings with 1/4" hole spacing and 1/32" markings with 1/8" hole spacing. Also included with the combination square is a hardened scriber which is conveniently stored in the back of the head for ready access.

The holes in LVL02 can also be used to measure the height of a beam by aligning the square such that the beam passes through one of the holes. The height of the beam can be measured by determining which hole the beam passes through as shown in Figure 1.1.
