Products Home / Optical Tables, Breadboards, and Supports / Optical Table Workstations / Optical Table Workstation Accessories / Lighting for Optical Table WorkstationLighting for Optical Table Workstation
PSX501
Mini LED Light
PSY240
LED Light Strip
- LED Light Strips Mount to the Underside of the Overhead Shelf Unit for General Lab Lighting
- Mini LED Light Illuminates a Target Area
Please Wait
Features
- Light Strips:
- Attach to the Bottom of Our Overhead Shelves
- Ideal for Lighting the Entire Work Surface
- Mini Light:
- Attaches via a Clip or Magnet
- Ideal for Directing Light to a Specific Area
Thorlabs offers two options for general lab lighting. The PSY240, PSY240E, and TFA2 LED light strips can be mounted underneath our Overhead Shelves and are ideal for illuminating a large work area. The PSY240 and PSY240E are 850 mm (33.46") long, while the TFA2 is 1828.5 mm (71.99") long. They are each held in place by three spring clips. The PSY240E also comes with a 4.3 m extension cable for compatibility with our Laminar Flow Enclosures. The PSX501 is a compact, battery-operated LED light source with a flexible neck for easy positioning and illumination of the target area.
| Optical Table Workstation Accessories | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Shelving | Computer Accessories |
Lighting | Power Strips | Storage | 19" Rack Chassis |
Mounting Posts |
Lean Bars | Wrist Rest | Vibration Isolation |
| Posted Comments: | |
| No Comments Posted |
Zoom
| Item # | PSY240 | PSY240E | TFA2 |
|---|---|---|---|
| Brightness | 1530 Lumens | 3600 Lumens | |
| # of LEDs | 51 | 120 | |
| Powera | 15.3 W | 36 W | |
| Voltage | 12 VDC (Power Supply Included) | ||
| Dimensions | 850 mm x 17.4 mm x 8.2 mmb (33.46" x 0.69" x 0.32") |
1828.5 mm x 17.4 mm x 8.2 mm (71.99" x 0.69" x 0.32") |
|
- Length:
- PSY240 and PSY240E: 850.0 mm (33.46") Long
- TFA2: 1828.5 mm (71.99") Long
- ON/OFF Switch
- Sturdy Aluminum Base Resists Warping
- Frosted Plastic Cover Ensures Even Spread of Light
- Shipped with 3 Spring Clips, 3 M6 Screws, and a Power Supply
- The PSY240E Also Ships with 3 T-Nuts and a 4.3 m Extension Cord
- Includes Region-Specific Power Cord

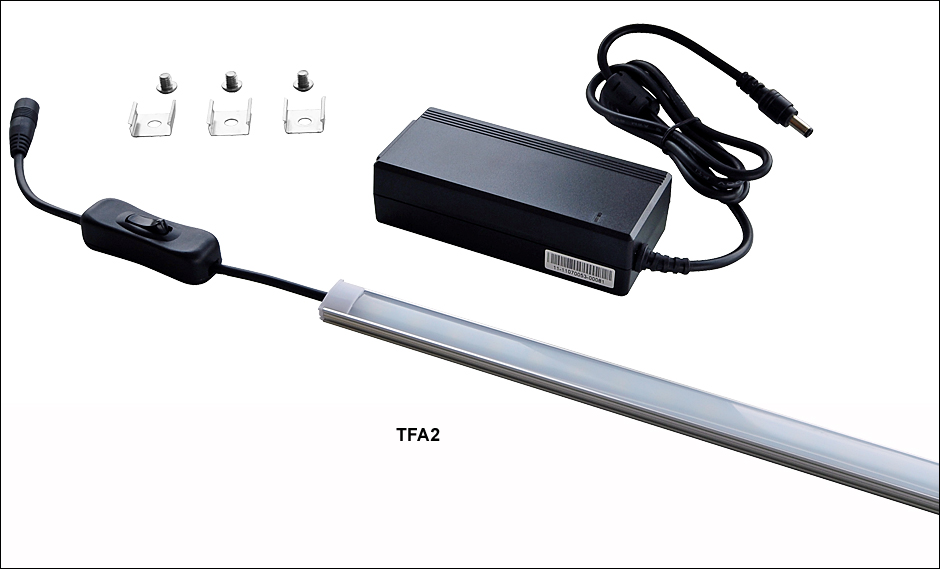

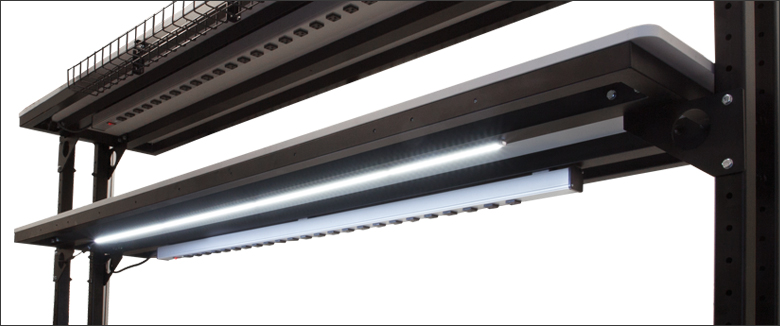

These rigid LED light strips are available in two lengths: 850 mm (33.46") or 1828.5 mm (71.99"). They are held in place by three spring clips that are easily fitted to the underside of our optical table frame overhead shelves.
The light strips can also be mounted over a bench for general lab use or to our free-standing overhead shelf. The PSY240E comes with three T-Nuts, and a 4.3 m extension cable for use with our Laminar Flow Enclosures. The three M6 screws shipped with the PSY240E are 6 mm long, making it our only light strip compatible with the Laminar Flow Enclosures.
Zoom
- Bright, Long-Lasting LED Lamp
- Lens Provides an Even Distribution of Light
- Can be Mounted with the Clamp or Magnetic Base
- Uses Three Standard AAA Batteries (Included)

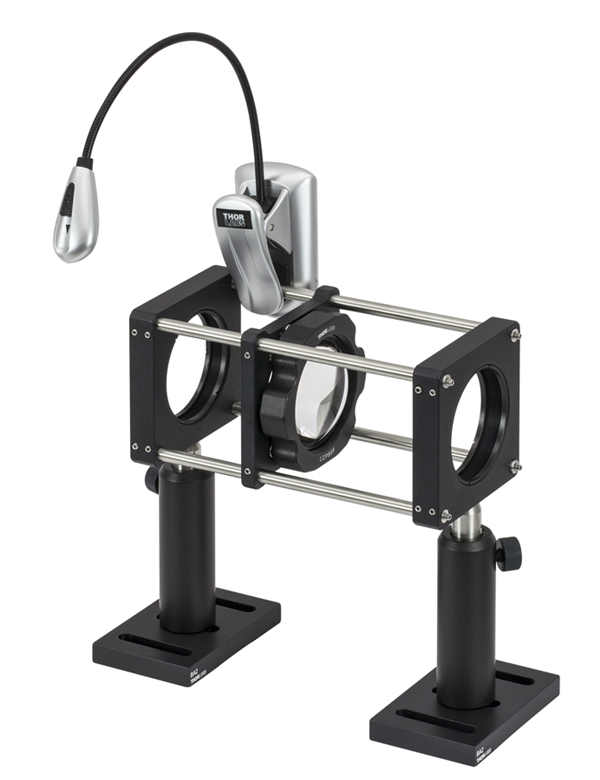

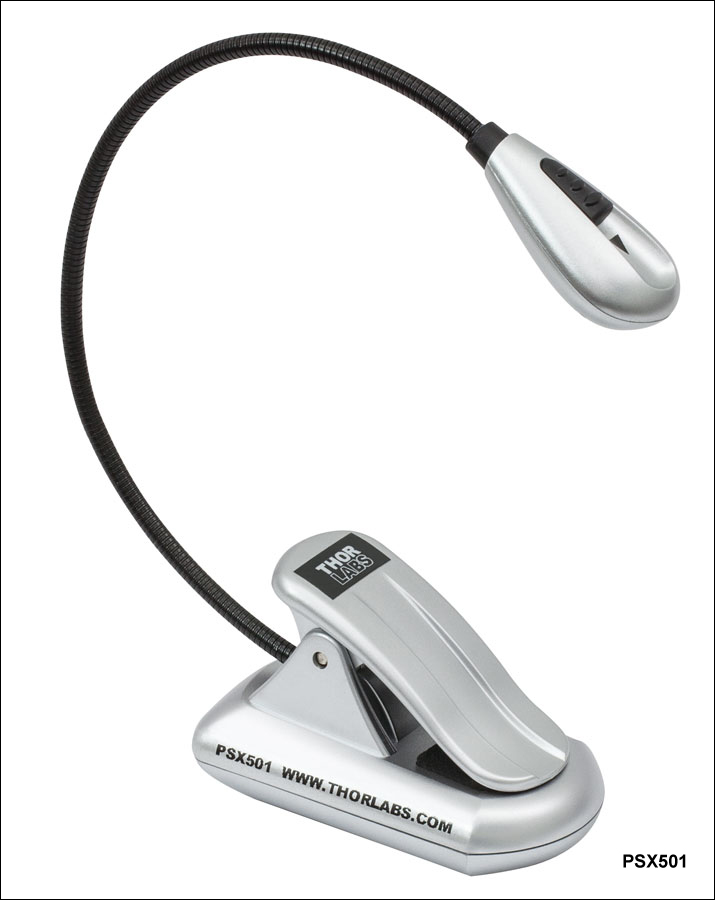

This compact, battery-operated unit allows direct lighting onto almost any surface. The unit can be attached to the work surface via the clip fastener or the magnetic base. A flexible neck allows the light to be directed easily onto the area of interest. This bright LED source provides as much light as three standard LEDs and the lens ensures an even distribution of light over the work area. The unit folds for easy storage and is powered by three AAA batteries (included).
