Post Mountable Kinematic V-Mounts


  • Provides Stable Mounting of Cylindrical Components
  • Two Models Offer Wide Holding Capacity Range
  • Post Mountable Via #8 (M4) Counterbore

PM3

(One included with each mount)

KM100V

V-Clamp Range: Ø0.08" (Ø2.0 mm) to Ø0.82" (Ø20.8 mm)

#8 (M4) Counterbore

PM4

(One included with each mount)

KM200V

V-Clamp Range: Ø0.29" (Ø7.4 mm) to Ø1.64" (Ø41.7 mm)

KM200V/M

Application Idea

Use to Hold Our Beam Expanders

Related Items


Please Wait

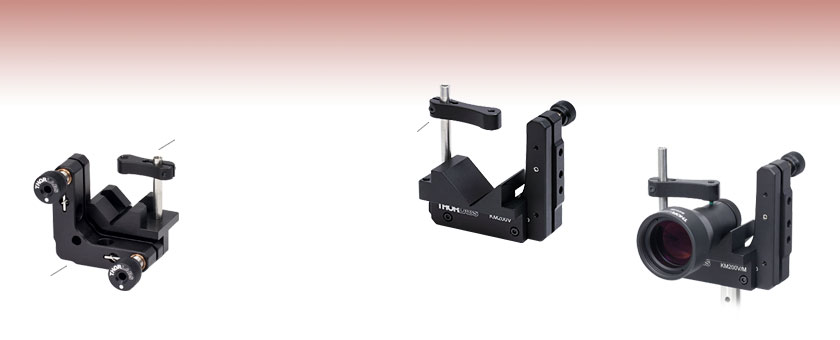

The KM100V and KM200V Kinematic V-Clamp Mounts provide ±4 degrees of precision tip and tilt adjustment for cylindrical objects. When post mounted, these kinematic V-clamps can achieve height adjustment by positionally changing the post within its mating post holder. The 1/4"-80 TPI (threads per inch) adjuster screws come complete with a knurled knob for easy adjustment. These knobs can be removed to expose a hex socket, a feature that minimizes the opportunity for unwanted movement of the device. The mounts are fabricated from black anodized aluminum and the clamping arm posts are fabricated from stainless steel. An optional accessory, the LN2580 bronze locking nut, is available to lock the adjusters once the desired position is reached.

Small Kinematic V-Clamp Mount, Ø0.08" (Ø2 mm) to Ø0.82" (Ø20.8 mm)

The KM100V Kinematic V-Block Mount is ideal where precision tip and tilt adjustment of cylindrical objects, such as a Fiber Collimation Package, is required. Clamping force is applied via a PM3 Clamping Arm (one included with each mount). The 1/4"-80 adjusters provide an adjustment per revolution of 8 mrad/rev.

Large Kinematic V-Clamp Mount, Ø0.29" (Ø7.4 mm) to Ø1.64" (Ø41.7 mm)

The KM200V Kinematic V-Block Mount is a larger version of our KM100V featured above, making it ideal where precision tip and tilt adjustment of larger cylindrical objects, such as a Laser Diode Module, is required. The larger frame of the KM200V, along with a series of heavy-duty springs, allow this kinematic mount to handle loads of up to 1 kg (2.2 lbs). Provisions are made for two PM4 Clamping Arms (one included with each mount). The 1/4"-80 adjusters provide an adjustment per revolution of 5 mrad/rev.

Extra clamping arms can be ordered separately. Click here for details.
