Pigtailed LEDs, Multimode Fiber


  • LEDs in the Visible or Near-IR Spectral Ranges
  • Pigtailed, Ø9 mm TO-Can Package
  • Ø400 µm or Ø1000 µm Core Multimode Fiber with SMA905 Connector
  • Custom LED Pigtails Available

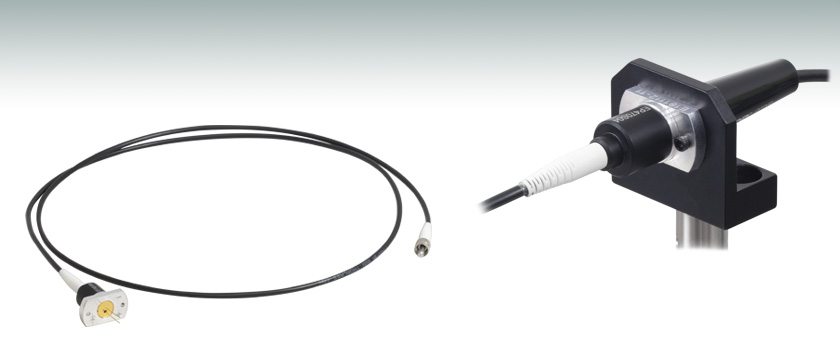

A fiber-pigtailed LED mounted to a PTLB1 bracket. The LED connector pins, clipped to 0.15" (3.8 mm), are inserted into an SR9F ESD protection / strain relief cable. The SR9F can then connect to a controller to drive the LED.

EP470S04

470 nm Pigtailed LED, Ø400 µm Multimode Fiber

Related Items


Please Wait

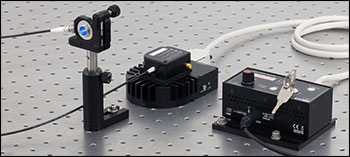

Mounted and Driven Pigtailed LED
Click to Enlarge

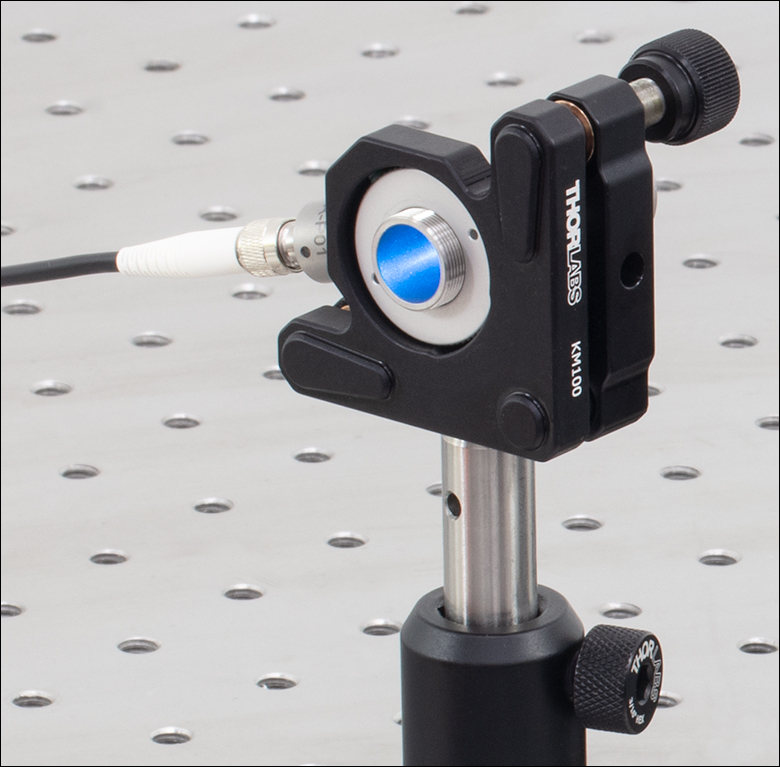

An EP470S04 pigtailed LED mounted in an LDM9LP diode mount held in a KM100 kinematic mount. The LED's output is collimated using an RC08SMA-P01 reflective collimator. Refer to the tables below for recommended driver and mount options.
Webpage Features
info icon Clicking this icon opens a window that contains specifications and mechanical drawings.
info icon Clicking this icon allows you to download our standard support documentation.

Pin Codes

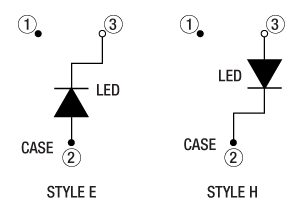

Pin E and H Configurations

Features

  • Pigtailed LEDs with 470 nm, 590 nm, 700 nm, or 810 nm Center Wavelength
  • Output Powers Ranging from 2 mW to 100 mW
  • SMA905 Connector
  • 1 m of Multimode Fiber with Ø400 µm or Ø1000 µm Core
  • Custom LED Pigtails Available by Contacting Tech Support

Thorlabs' light-emitting diodes (LEDs) are pigtailed with multimode (MM) fiber and are available at visible or NIR spectral ranges with center wavelengths from 470 nm to 810 nm. Based on Ø9 mm TO-packaged diodes, these LEDs feature either Ø400 µm core MM fiber (Item # suffix S04) or Ø1000 µm core MM fiber (Item # suffix S10). The fiber ends are terminated with an SMA905 connector.

Each LED is coupled to the multimode fiber using a butt-coupling technique. During this process, the fiber connector is positioned so that the end of the fiber will be as close as possible to the emitter, thereby minimizing losses at the fiber input and maximizing output power. Each LED undergoes a high-quality MM pigtail alignment process during manufacturing to ensure that the coupling efficiency is maximized.

Complete specifications, as well as spectrum and L-I-V plots, are provided by clicking on the blue info icons (info icon) in the tables. This information is also provided in the spec sheets, which can be accessed by clicking on the red docs icon (docs icon) next to the Item # below. Each unit is tested before shipment and includes a product-specific datasheet; click here for a sample.

LEDs are sensitive to electrostatic discharge (ESD). Please take the proper precautions when handling the device; see ESD protection accessories.

Mount and Driver Options
These LEDs are compatible with mounts and drivers that accept pigtail packages with Pin E or Pin H configurations. Compatible laser diode mounts can be found here, and we offer a wide variety of compatible laser diode current drivers. For the EP590Sxx, EP700Sxx, and EP810Sxx LEDs, we recommend the CLD1010LP, which is an all-in-one, combined mount and driver that serves as both a current and temperature controller. Our pigtailed LEDs can also be connected to the CAB-LEDD1 connection cable that is included with our LEDD1B LED current driver (sold separately); this option requires the bare wires on the CAB-LEDD1 cable to be soldered to the pins on the LED.

Fiber Care
We recommend cleaning the fiber connector of the pigtail package before each use if there is any chance that dust or other contaminants may have deposited on the surface. To view our fiber cleaning products, click here. The intensity at the center of the fiber tip can be very high and may burn the tip of the fiber if contaminants are present. While the connectors on these pigtailed LEDs are cleaned and capped before shipping, we cannot guarantee that they will remain free of contamination after they are removed from the package. We also recommend that the LED is turned off when cleaning the fiber or when connecting or disconnecting the device from other fibers.


Posted Comments:
richard logan  (posted 2019-12-15 17:12:40.253)
Is the output of the diode polarized? If the diode is damaged, how can it be removed from the pigtail?
YLohia  (posted 2019-12-16 11:22:14.0)
Thank you for contacting Thorlabs. The output from the fiber pigtail is not polarized. The LED chip cannot be removed from the pigtail. If the chip is damaged, unfortunately, the unit cannot be repaired. However, fiber/connector damage can be repaired in certain cases.
user  (posted 2019-04-17 07:41:50.587)
The title reads 1000 mA, but the specs inside the product box reads 500 mA with 750 mA maximum. So I bought a 1000 mA driver which now is of no use because I need a 500 mA driver. Please make sure you specify the correct values for the LED.
YLohia  (posted 2019-04-29 11:03:29.0)
Hello, thank you for contacting Thorlabs and my apologies for any issues caused by this. I had reached out to you directly at the time of this posting to gather more details. May I ask what driver you purchased? Most drivers should be able to supply variable current, which means that you should still be able to use the 1000mA driver. Also, would you be able to send us a picture of the part where a different max current (750mA) is specified on the spec sheet?
Robson Sampaio  (posted 2019-04-05 07:31:21.763)
Would it be possible to unmount the device and switch the LED?
YLohia  (posted 2019-04-05 09:19:31.0)
Hello, thank you for contacting Thorlabs. Unfortunately, this would not be possible as the package is sealed and the fiber is carefully aligned to maximize the coupling efficiency. However, we may be able to offer a custom solution if you require a different wavelength. Please email us at techsupport@thorlabs.com if you are interested in a custom solution with details about wavelength, fiber core size, minimum output power, and quantity.

This tab includes all LEDs sold by Thorlabs. Click on More [+] to view all available wavelengths for each type of LED pictured below.

Light Emitting Diode (LED) Selection Guide
Click Photo to Enlarge
(Representative; Not to Scale)
Type Unmounted LEDs Pigtailed LEDs LEDs in
SMT Packages
LED Arrays LED Ring Light Cage-Compatible
Diffuse Backlight LED
Light Emitting Diode (LED) Selection Guide
Click Photo to Enlarge
(Representative; Not to Scale)
Type PCB-
Mounted LEDs
Heatsink-
Mounted LEDs
Collimated LEDs for Microscopyb Fiber-
Coupled LEDs
c
High-Power LEDs for Microscopy Multi-Wavelength
LED Source Optionsd
  • Measured at 25 °C
  • These Collimated LEDs are compatible with the standard and epi-illumination ports on the following microscopes: Olympus BX/IX (Item # Suffix: -C1), Leica DMI (Item # Suffix: -C2), Zeiss Axioskop (Item # Suffix: -C4), and Nikon Eclipse (Bayonet Mount, Item # Suffix: -C5).
  • Typical power when used with MM Fiber with Ø400 µm core, 0.39 NA.
  • Our Multi-Wavelength LED Sources are available with select combinations of the LEDs at these wavelengths.
  • Typical power for LEDs with the Leica DMI collimation package (Item # Suffix: -C2).
  • Minimum power for the collimated output of these LEDs. The collimation lens is installed with each LED.
  • Typical power for LEDs with the Olympus BX and IX collimation package (Item # Suffix: -C1).
  • Typical power for LEDs with the Zeiss Axioskop collimation package (Item # Suffix: -C4).
  • Percentage of LED intensity that emits in the blue portion of the spectrum, from 400 nm to 525 nm.
Back to Top

Visible LEDs (470 nm to 700 nm Center Wavelength)

Item # Info Center
Wavelength (Typ.)
Output
Power (Min)a
DC Forward
Current (Max)a
Pin
Code
Package Fiber Compatible
Socket
Recommended
Mount
Recommended
Drivers
EP470S04 info 470 nm 18 mW
(at 500 mA)
1000 mA H Ø9 mm TO Can,
MM Pigtail, Ø400 µm Core
FP400ERT S8060 or
S8060-4
LDM9LP LDC210C,
ITC4001, or LEDD1Bc
EP470S10 info 100 mW
(at 500 mA)
Ø9 mm TO Can,
MM Pigtail, Ø1000 µm Core
FP1000ERT
EP590S04 info 590 nm 3.5 mW
(at 500 mA)
600 mA E Ø9 mm TO Can,
MM Pigtail, Ø400 µm Core
FP400ERT CLD1010LPb or LDM9LP
EP590S10 info 18 mW
(at 500 mA)
Ø9 mm TO Can,
MM Pigtail, Ø1000 µm Core
FP1000ERT
EP700S04 info 700 nm 2 mW
(at 500 mA)
600 mA E Ø9 mm TO Can,
MM Pigtail, Ø400 µm Core
FP400ERT
EP700S10 info 20 mW
(at 500 mA)
Ø9 mm TO Can,
MM Pigtail, Ø1000 µm Core
FP1000ERT
  • Do not exceed the maximum optical power or maximum drive current, whichever occurs first.
  • The CLD1010LP is a combined mount and driver.
  • The LEDD1B includes an CAB-LEDD1 connection cable, which has bare wires that may be soldered to the pins on the LED. A PTLB1 bracket, pictured in the image at the top of this webpage, can be used to secure the pigtailed LED to an optical table.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
EP470S04 Support Documentation
EP470S04470 nm, 18 mW (Min) Pigtailed LED, 1000 mA, Ø400 µm MM Fiber, SMA
$228.85
Today
EP470S10 Support Documentation
EP470S10470 nm, 100 mW (Min) Pigtailed LED, 1000 mA, Ø1000 µm MM Fiber, SMA
$276.02
Today
EP590S04 Support Documentation
EP590S04590 nm, 3.5 mW (Min) Pigtailed LED, 600 mA, Ø400 µm MM Fiber, SMA
$228.85
Today
EP590S10 Support Documentation
EP590S10590 nm, 18 mW (Min) Pigtailed LED, 600 mA, Ø1000 µm MM Fiber, SMA
$276.02
Today
EP700S04 Support Documentation
EP700S04700 nm, 2 mW (Min) Pigtailed LED, 600 mA, Ø400 µm MM Fiber, SMA
$228.85
Today
EP700S10 Support Documentation
EP700S10700 nm, 20 mW (Min) Pigtailed LED, 600 mA, Ø1000 µm MM Fiber, SMA
$276.02
Today
Back to Top

Near-IR LEDs (810 nm Center Wavelength)

Item # Info Center
Wavelength (Typ.)
Output
Power (Min)a
DC Forward
Current (Max)a
Pin
Code
Package Fiber Compatible
Socket
Recommended
Mount
Recommended
Drivers
EP810S04 info 810 nm 16 mW
(at 700 mA)
1000 mA E Ø9 mm TO Can,
MM Pigtail, Ø400 µm Core
FP400ERT S8060 or
S8060-4
CLD1010LPb or
LDM9LP
LDC210C,
ITC4001, or
LEDD1Bc
EP810S10 info 90 mW
(at 700 mA)
Ø9 mm TO Can,
MM Pigtail, Ø1000 µm Core
FP1000ERT
  • Do not exceed the maximum optical power or maximum drive current, whichever occurs first.
  • The CLD1010LP is a combined mount and driver.
  • The LEDD1B includes an CAB-LEDD1 connection cable, which has bare wires that may be soldered to the pins on the LED. A PTLB1 bracket, pictured in the image at the top of this webpage, can be used to secure the pigtailed LED to an optical table.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
EP810S04 Support Documentation
EP810S04810 nm, 16 mW (Min) Pigtailed LED, 1000 mA, Ø400 µm MM Fiber, SMA
$228.85
Today
EP810S10 Support Documentation
EP810S10810 nm, 90 mW (Min) Pigtailed LED, 1000 mA, Ø1000 µm MM Fiber, SMA
$276.02
Today
