Lens Specifications
Design Wavelength650 nmMagnificationInfinite
Numerical Aperture0.18Window Thickness
Clear Aperture5.10 mmLaser Window Material / Index
Effective Focal Length13.86 mmGlassD-ZK3
Working Distance12.11 mmSurface Quality40-20 Scratch-Dig(Entire Bulk Material)

354560-AAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)
C560TME-AAuto CAD PDFAuto CAD DXFSolidworkseDrawingStepZemax (ZAR)Zemax (ZMX)

Vd number60.71
CTE (10-6 / °C)7.6
Thermo optic coefficient (10-6 / °C) (Δn/ΔT)3.2

Surface
R(mm)
k
A4
Side 1
-
-
-
Side 2
8.09
-0.6789586
0.000023949836

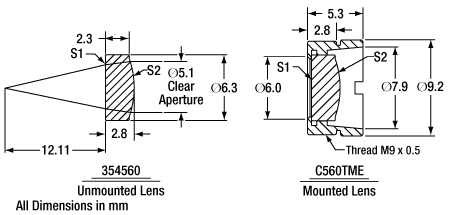

Side 1 and Side 2 are labeled as ASP1 and ASP2, respectively, on the drawings shown on the Specifications tab.
zSAG as a Function of YA44th Order Aspheric Coefficient
RRadius of CurvatureA66th Order Aspheric Coefficient
kConic ConstantA88th Order Aspheric Coefficient
A22nd Order Aspheric CoefficientAnnth Order Aspheric Coefficient
