Liquid Light Guides


  • Outstanding White Light Transmission
  • Ø3 and Ø5 mm Core Sizes Available from Stock
  • Operating Temperature Range: -5 to 35 °C

AD3LLG

Ø3 mm Liquid Light Guide
to SM1 Adapter

LLG3A1-A

Collimating Adapter

LLG0338-8

Liquid Light Guide

Application Idea

Liquid Light Guide Mounted to SLS402 Broadband Source Using SLSLLG-2 Adapter w/ Shutter

SLSLLG3

Liquid Light Guide Adapter for Broadband Light Sources

Related Items


Please Wait
LLG Closeup
Close-Up of Liquid Light Guide End

Features

  • Excellent Transmission from 340 to 800 nm
  • Numerical Aperture of 0.59
  • Half Angle of 36°
  • Suitable for Rugged Environments
  • Adapters Designed to Mate Ø3 mm or Ø5 mm Liquid Light Guides to SM1 Thread Standard Available Below
  • Microscope Collimation Adapters Available Below

Thorlabs' Liquid Light Guides (LLGs) offer outstanding transmission from 340 - 800 nm for white light illumination applications. For large core diameters, liquid light guides are a more efficient transmission solution than fiber bundles as they eliminate the packing fraction loss (dead space) that fiber bundles have. These light guides are recommended for use with tungsten halogen, xenon, or metal halide light sources and can be mounted to an optical breadboard by using one of our VH1 V-Mounts, a Ø1/2" (12.7 mm) post, and post holder. The Ø3 mm and Ø5 mm light guides can also be mounted to SM1-threaded (1.035"-40) components using the adapters sold below.

These liquid light guides are offered from stock in lengths of 4', 6', and 8' with a core diameter of either 3 or 5 mm, and their long-term temperature range is -5 to 35 °C. LLGs with custom lengths are also available as made-to-order items by contacting Technical Support.

Thorlabs also offers collimation adapters for the Ø3 mm and Ø5 mm liquid light guides, which are sold separately below. The SLSLLGx adapters are directly compatible with our Broadband Light Sources. Additionally, we offer a variety of adapters that allow the LLGs to be coupled to the illumination ports used by various microscope manufacturers.

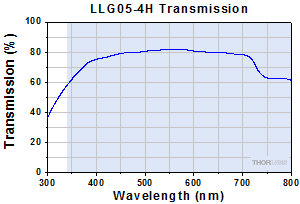

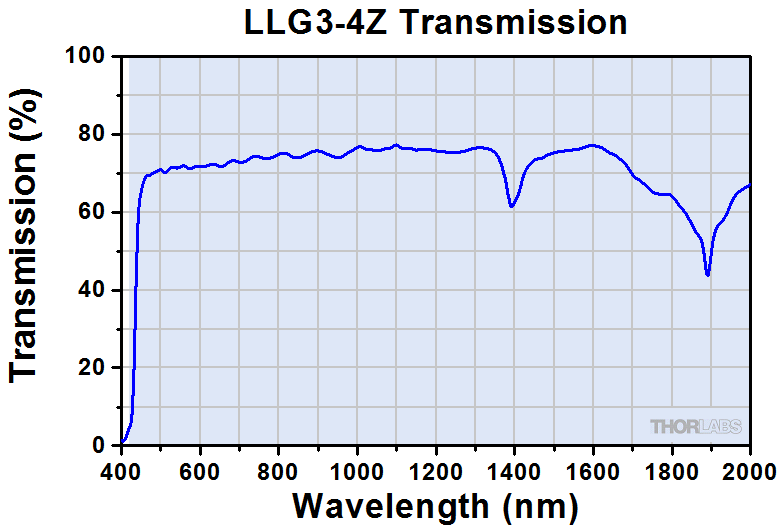

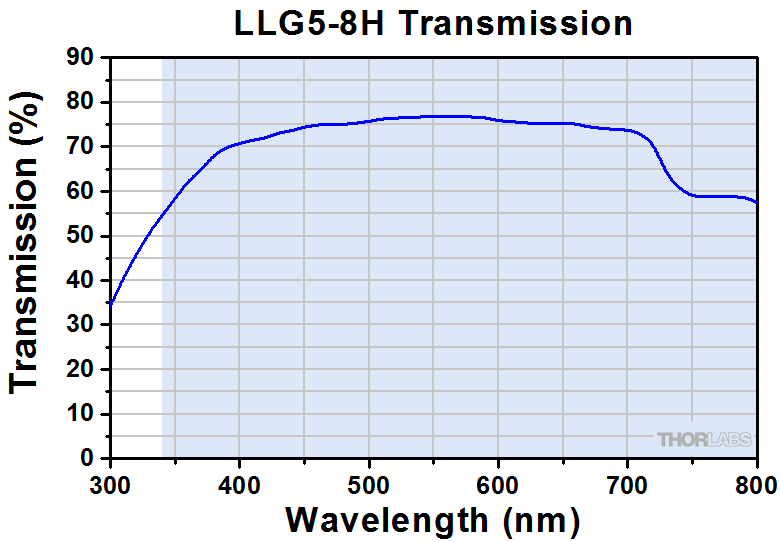

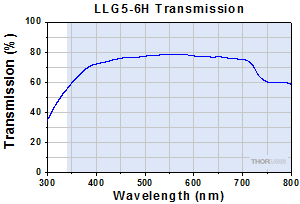

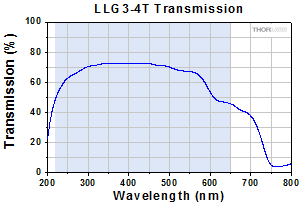

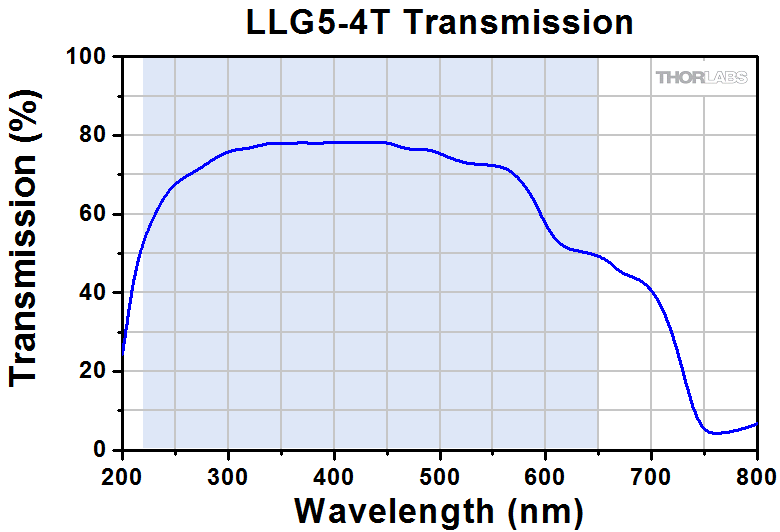

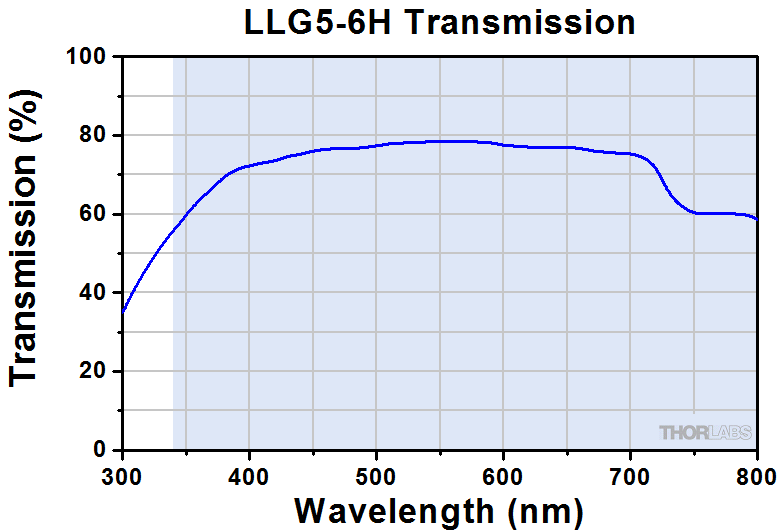

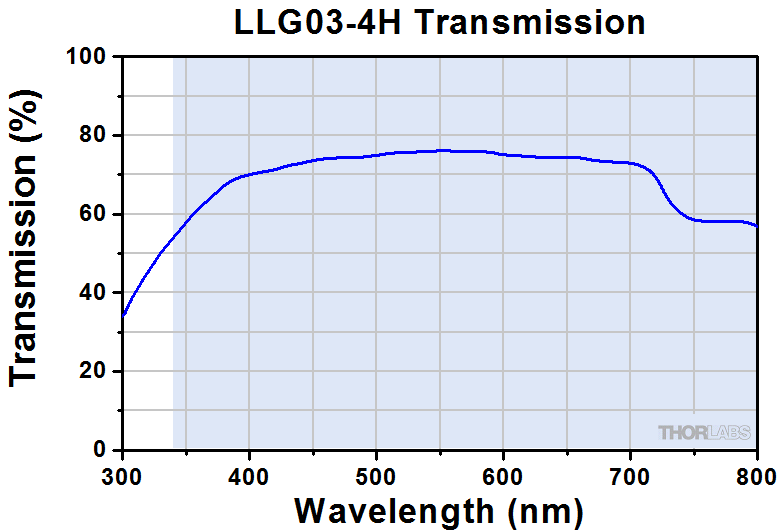

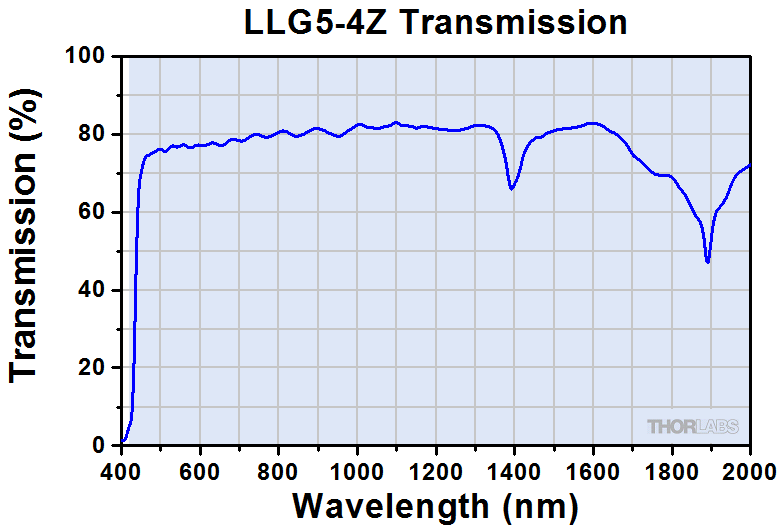

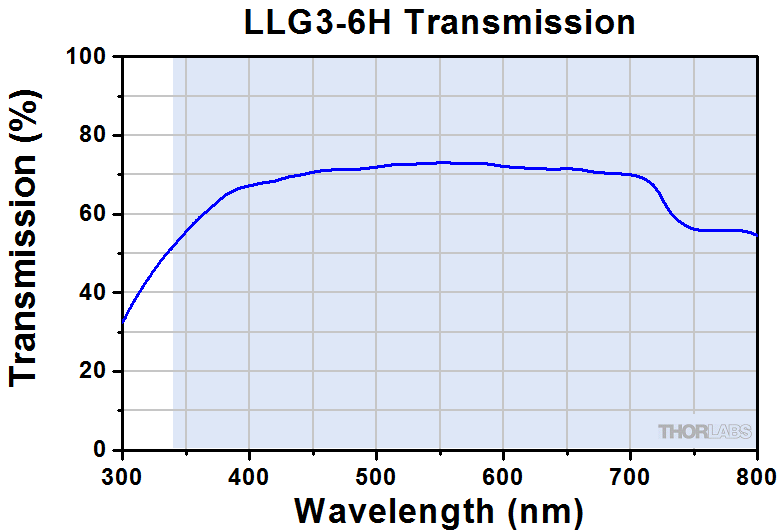

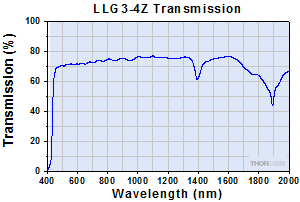

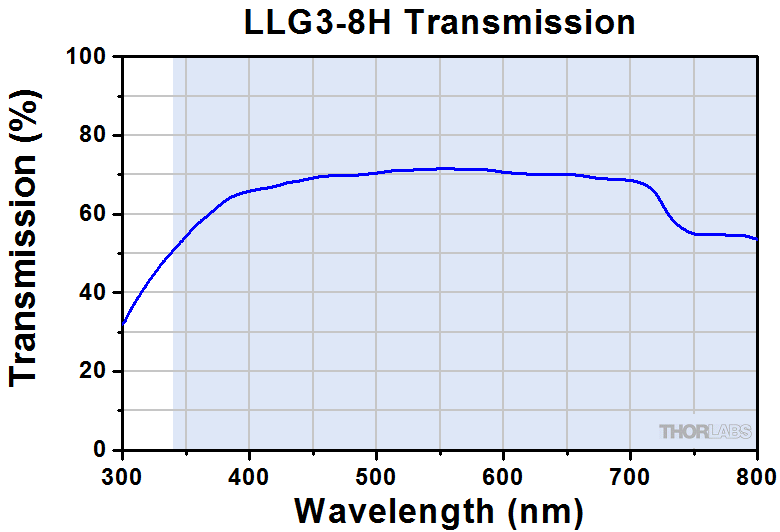

All transmission data presented here is typical. The maximum variation from lot to lot is ±5%. As a function of length, only minimal variations (<5%) are expected between our 4' (1.2 m), 6' (1.8 m), and 8' (2.4 m) long liquid light guides.

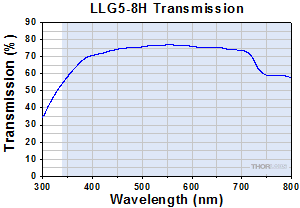

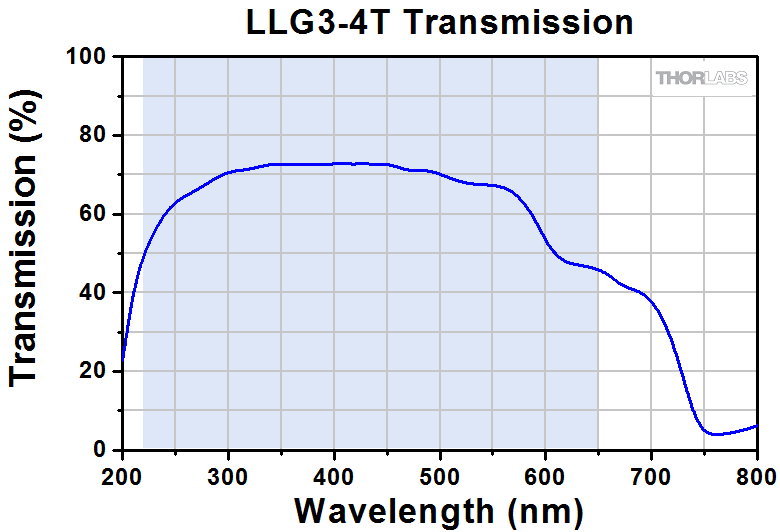

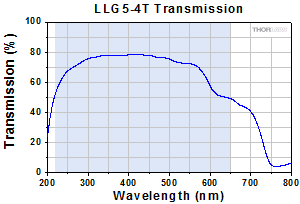

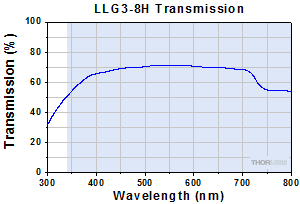

The shaded regions in the graphs below denote the spectral range over which we recommend using these liquid light guides.

Liquid Light Guide Dimensions

Active Core DiameterStandard End FittingsProtective SleeveMin. Bending Radius
d0d1l1d2l2d3
3 mm5 +0/-0.1 mm20 ± 0.1 mm9 ± 0.1 mm24 ± 0.1 mm7 ± 0.1 mm40 mm
5 mm7 +0/-0.1 mm20 ± 0.1 mm10 ± 0.1 mm24 ± 0.1 mm9.5 ± 0.1 mm60 mm

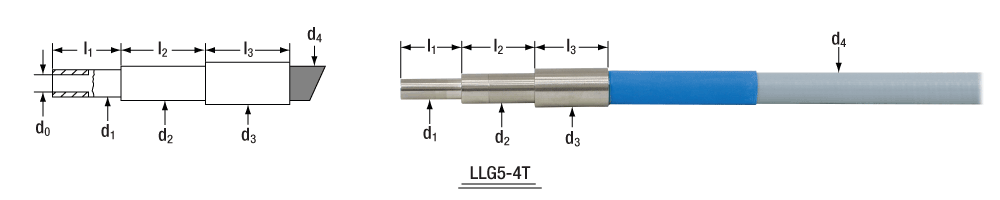

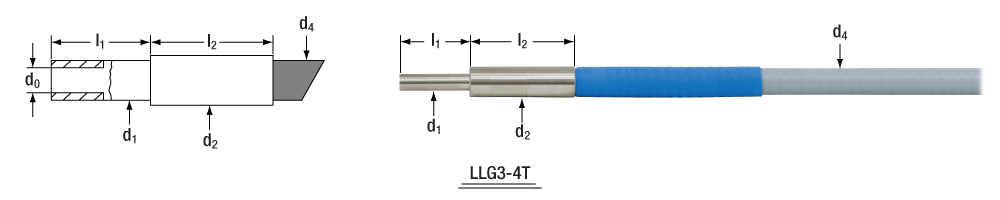

The drawing and photograph below illustrate the dimensions given in the table above. 180 ± 0° indicates the flatness tolerence between the metal and black material in the segment labled I2.

LLG Photo Schematic
LLG Drawing
Closeup of LLG Endface

Cleaning the Optical End Faces  of Liquid Light Guides

The optical end faces of these liquid light guides are made of fused silica, Teflon and either aluminum, chrome plated brass, or stainless steel. All of these materials are very resistant to all common cleaning solvents, making them easy to clean. Please note that when using solvents to clean the end faces, you cannot submerge the tip of the light guide in the solvent, or use a heavily soaked cleaning pad, as the solvent may get into the light guide, causing damage. If you find that debris from the light guide end cannot be removed by using a solvent, you can gently use a razor blade to clean the tip, making sure that you do not chip the edge of the fused silica glass window.


Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining  8000
Posted Comments:
Poster:bobkov
Posted Date:2014-09-17 15:21:35.837
Could you please provide me with the transmission spectrum of LS liquid light guide (within range 200-1000nm)? I would love to have it in some sort of ASCII data or other data formats rather than a graphic material. Many thanks in advance.
Poster:jlow
Posted Date:2014-09-19 01:04:32.0
Response from Jeremy at Thorlabs: We can provide the raw data for the graphs online. I will contact you directly about this and we will look into having that available to download from the website as well.
Poster:jcarreras77
Posted Date:2014-05-29 10:34:23.263
Hi there. We are fabricating a prototype for a commercial product and we would like to couple the light output of an LED spotlight into a LLG (visible range, total optical power of 7W). The spotlight is made of a 40 LED PCB of 4x4cm with a conic reflector that makes a 25º aperture beam with a 7.5 diameter glass at the end of the system. Can you please tell me what kind of aspherical lenses and coupling systems from Thorlabs should we use? Thank you!
Poster:besembeson
Posted Date:2014-05-29 04:31:33.0
A response from Bweh E at Thorlabs Newton-USA: Thanks for contacting Thorlabs. I will followup with you by email to clarify your source characteristics so that we can determine best optical components for coupling to the LLG.
Poster:bdada
Posted Date:2012-03-15 13:00:00.0
Response from Buki at Thorlabs: We would not recommend a laser source for use with the Liquid Light Guides. The only light sources for the LLG that we have tested are our HPLS243 and HPLS245 plasma light sources. In addition to our light sources, we also recommend tungsten halogen, xenon or metal halide light sources. Please contact TechSupport@thorlabs.com to discuss your application further so we can suggest alternative solutions.
Poster:
Posted Date:2012-03-07 11:59:32.0
Are LLGs suitable for delivery of 532nm pulsed laser sources? Jon
Poster:bdada
Posted Date:2012-01-25 16:42:00.0
Response from Buki at Thorlabs: Thank you for using our feedback forum. The only light sources for the LLG that we have tested are our HPLS243 and HPLS245 plasma light sources. In addition to our light sources, we also recommend tungsten halogen, xenon or metal halide light sources. For any light source, the main factors to consider are the wavelength range and possible overheating. Light below 400nm and above 750 - 800nm could damage the LLG and should be filtered out. If the temperature of the LLG stays above 35 degrees Celcius for a prolonged period, it could affect the transmisison properties. We have contacted you to provide additional information.
Poster:iftachn
Posted Date:2012-01-18 09:45:26.0
Would this light guide work well for a mercury lamp illuminator such as the Nikon Intensilight ?
Poster:bdada
Posted Date:2012-01-12 20:02:00.0
Response from Buki at Thorlabs: The liquid light guide is recommeded for use with tungsten halogen, xenon or metal halide light sources. If you are looking for a fiber coupled LED (MCWHL2), please consider MCWHF1 - Cold White (5600K) Fiber-Coupled High-Power LED, SMA, 1000 mA. The product link is below. You would need to purchase the fiber cable separately. Please contact TechSupport@thorlabs.com if you have any questions. http://thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=5206
Poster:
Posted Date:2012-01-12 14:21:25.0
Is it possible to use the liguid light guide with an LED (part # MCWHL2)? Tefo
Poster:jjurado
Posted Date:2011-07-25 10:02:00.0
Response from Javier at Thorlabs to ckonek: Thank you very much for contacting us. We currently do not sell collimators specifically designed for liquid light guides. However, we do offer a few components that you can use to put together your own collimation insert. For example, if you are interested in the 5 mm core diameter liquid light guides, you can use an AD8F adapter to mount the LLG into an SM1 lens tube like the SM1M20. In order to collect the output from the LLG, you can use a condenser lens like ACL2520. Keep in mind that the output from the lens will still be divergent, due to the large core size of the LLG. AD8F: http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=1746 SM1M20: http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=3307&pn=SM1M20#3387 ACL2520: http://www.thorlabs.com/NewGroupPage9.cfm?ObjectGroup_ID=3835
Poster:ckonek
Posted Date:2011-07-20 10:33:59.0
Im wondering if you sell collimators for your liquid light guide products. Chris
Poster:Thorlabs
Posted Date:2010-09-22 11:45:51.0
Response from Javier at Thorlabs to walter.clark: the main advantage of liquid light guides over fiber bundles is their large numerical aperture. Our liquid light guides have a numerical aperture of 72°, whereas most common fiber bundles have an NA around half of this value. Another advantage is that liquid light guides eliminate the packing fraction loss (dead space) that fiber bundles have.
Poster:walter.clark
Posted Date:2010-09-20 17:42:50.0
I dont understand why liquid is better than solid. Is it because it is more flexible? Then why not bundle more fibers? Walt

Ø3 mm Core Liquid Light Guides

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
LLG0338-4 Support Documentation
LLG0338-4Liquid Light Guide Ø3 mm Core, 4' (1.2 m) Length
$345.00
Today
LLG0338-6 Support Documentation
LLG0338-6Liquid Light Guide Ø3 mm Core, 6' (1.8 m) Length
$405.00
Today
LLG0338-8 Support Documentation
LLG0338-8Liquid Light Guide Ø3 mm Core, 8' (2.4 m) Length
$465.00
Today

Ø5 mm Core Liquid Light Guides

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
LLG0538-4 Support Documentation
LLG0538-4Liquid Light Guide Ø5 mm Core, 4' (1.2 m) Length
$445.00
Today
LLG0538-6 Support Documentation
LLG0538-6Liquid Light Guide Ø5 mm Core, 6' (1.8 m) Length
$525.00
Today
LLG0538-8 Support Documentation
LLG0538-8Liquid Light Guide Ø5 mm Core, 8' (2.4 m) Length
$595.00
Lead Time

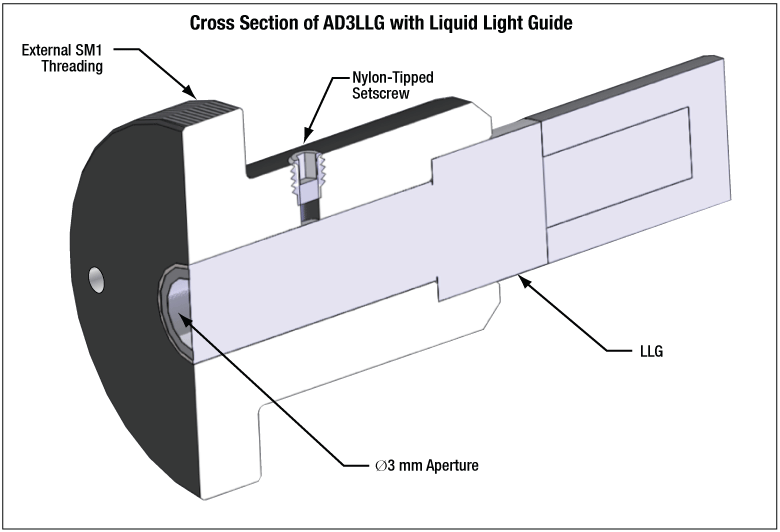

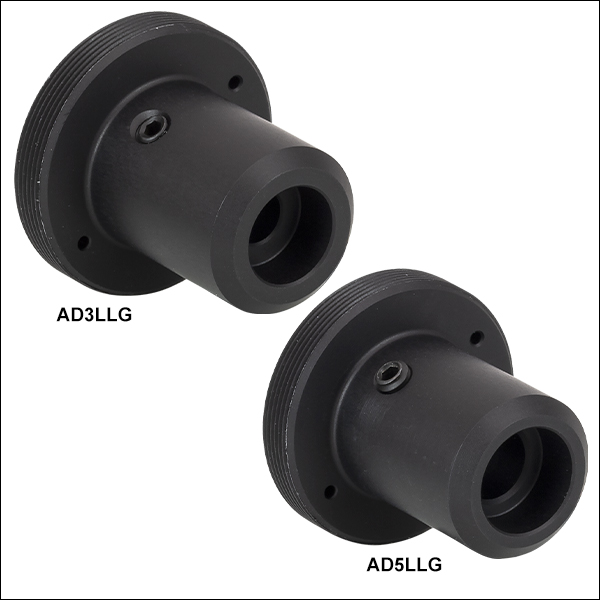

SM1 Adapter for the Liquid Light Guides

  • Designed to Mate Ø3 mm or Ø5 mm Liquid Light Guides to SM1 Standard
  • External SM1 (1.035"-40) Threading

These Liquid Light Guide Adapters allow the integration of our Ø3 mm and Ø5 mm liquid light guides into any of our selection of SM1-threaded (1.035"-40) components, such as fixed optic mounts, kinematic optic mounts, and lens tubes. The liquid light guide is secured with a nylon-tipped setscrew using a 5/64" hex key (found in the CCHK kit).

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
AD3LLG Support Documentation
AD3LLGCustomer Inspired!Ø3 mm LLG to SM1 Adapter
$31.50
Today
AD5LLG Support Documentation
AD5LLGCustomer Inspired!Ø5 mm LLG to SM1 Adapter
$31.50
Today

Liquid Light Guide Adapter for Broadband Light Sources

Liquid Light Guide in Stabilized Lamp
Click to Enlarge

The SLSLLG2, with a liquid light guide, attached to the SLS402 Light Source.
  • Couples the Output of the Broadband Light Sources into a Liquid Light Guide
  • Adapters Designed for 185 nm - 2.1 µm or 350 - 700 nm Wavelength Range
  • Compatible with Ø3 mm and Ø5 mm Core Liquid Light Guides
  • SLSLLG2 Includes Integrated Electronic Shutter with External Controller

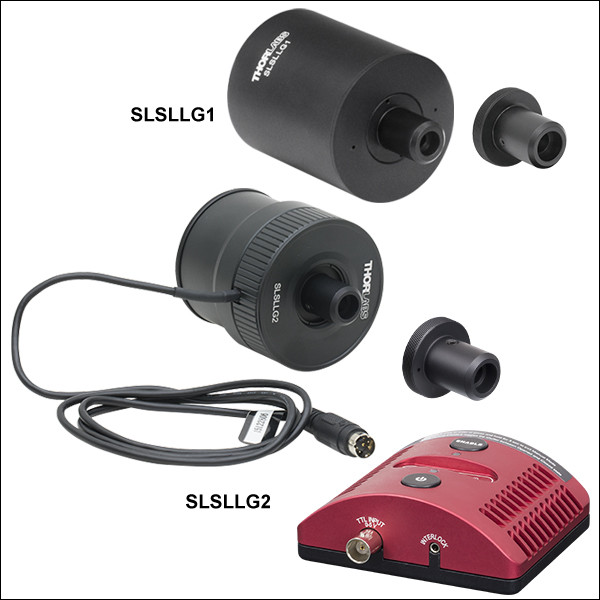

These Liquid Light Guide Adapters are designed to quickly and easily integrate with the Broadband Light Sources to couple the output into Ø3 mm or Ø5 mm core Liquid Light Guides. The adapters contain a collimating lens and are externally SM2 threaded (2.035"-40), allowing them to directly thread onto the collimation lens assembly without the need to remove or adjust either lens.

The SLSLLG1 is designed with an uncoated collimating lens, which provides a wide operating range from 185 nm - 2.1 µm. For superior performance from 350 nm - 700 nm, the SLSLLG2 and SLSLLG3 lenses use an AR-coated lens that provides improved coupling efficiency in this wavelength range. Additionally, the SLSLLG2 features an integrated diaphragm shutter and an external controller that can operate at continuous frequencies up to 10 Hz and burst frequencies up to 15 Hz. For more information on the integrated shutter, please refer to the manual.

All liquid light guide adapters come with the AD3LLG adapter preinstalled, making them compatible with Ø3 mm core liquid light guides out of the box. They are also shipped with the AD5LLG adapter, which can be swapped in by unthreading the AD3LLG and replacing it with the AD5LLG. This allows the adapters to connect with Ø5 mm core liquid light guides.

Item # SLSLLG1 SLSLLG2 SLSLLG3
Wavelength Range Uncoated: 185 nm - 2.1 µm AR Coated: 350 nm - 700 nm; Ravg < 0.5%
Integrated Electronic Shutter No Yesa No
Lens LA4464 ACL5040U-A
Lens Material UV Fused Silica B270 Optical Crown Glass
Coupling Efficiency SLS401 / SLS402 >30% (3 mm LLG); >35% (5 mm LLG) >30% (3 mm LLG); >40% (5 mm LLG)
SLS301 >15% (3 mm LLG); >25% (5 mm LLG) >20% (3 mm LLG); >30% (5 mm LLG)
  • The external controller included with the SLSLLG2 is the same as the one included with the SHB1. For additional information, please see the full presentation here.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
SLSLLG1 Support Documentation
SLSLLG1Liquid Light Guide Adapter for Broadband Light Sources, 185 nm - 2.1 µm
$350.00
Today
SLSLLG2 Support Documentation
SLSLLG2NEW!Liquid Light Guide Adapter with Shutter for Broadband Light Sources, 350 nm - 700 nm
$1,250.00
Today
SLSLLG3 Support Documentation
SLSLLG3NEW!Liquid Light Guide Adapter for Broadband Light Sources, 350 nm - 700 nm
$211.15
Today

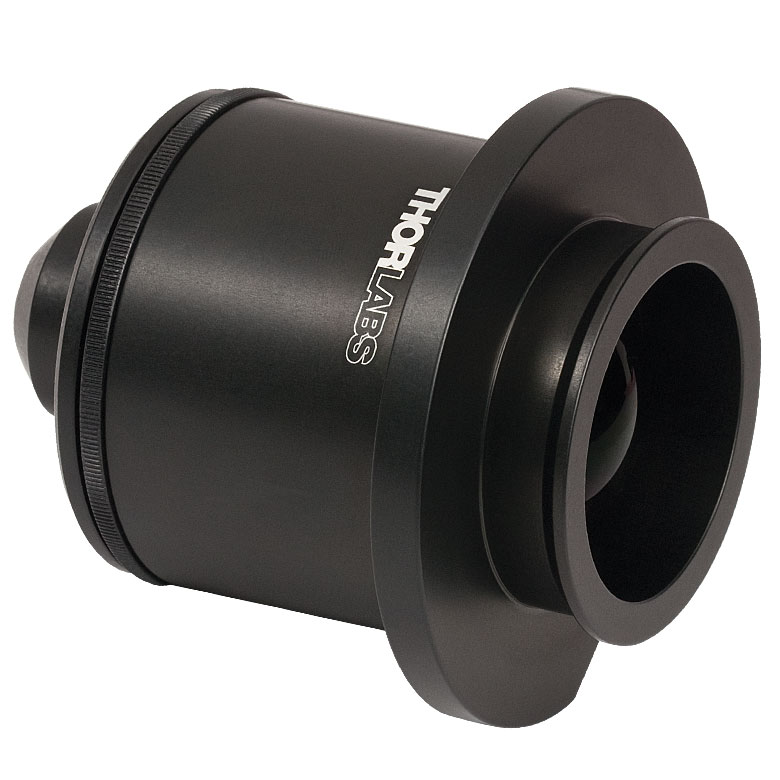

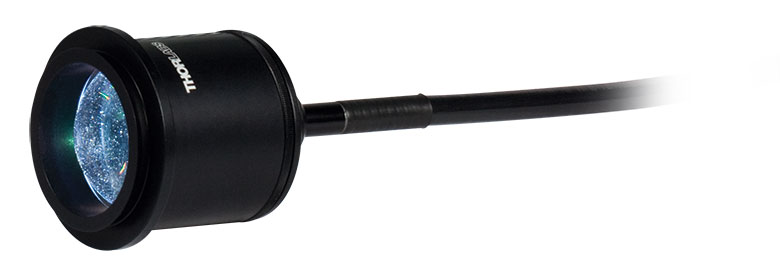

Collimating Microscope Adapters

Microscope Collimator Connected to an HPLS
Click to Enlarge

Output With Collimation Adapter
LLG Without a Collimator
Click to Enlarge

Output Without Collimation Adapter
Microscope Collimator Connected to an HPLS
Click to Enlarge
LLG3A4-A Adapter Used to Collimate Light from High Power Light Sources

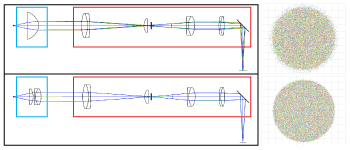

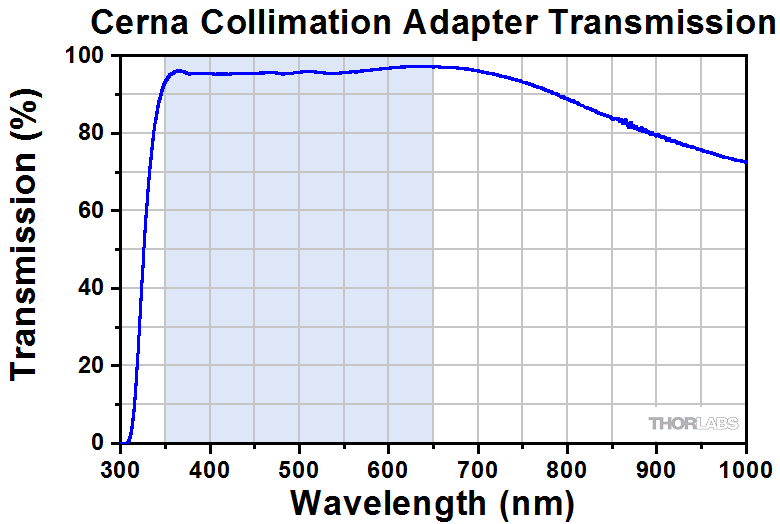

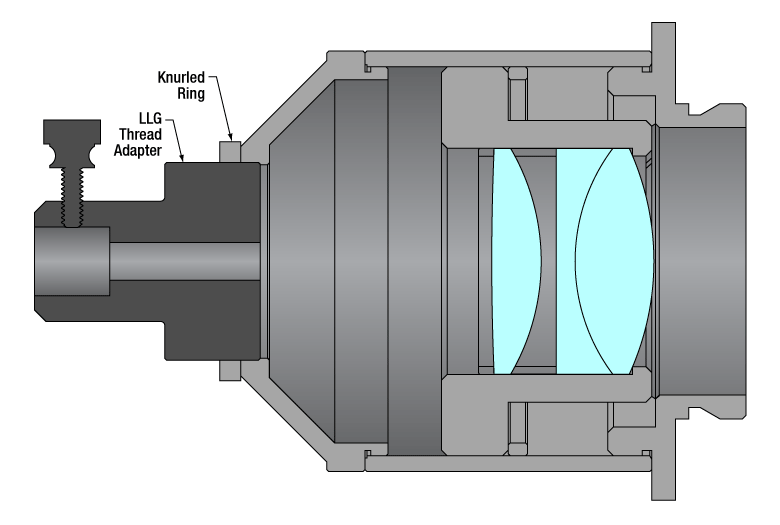

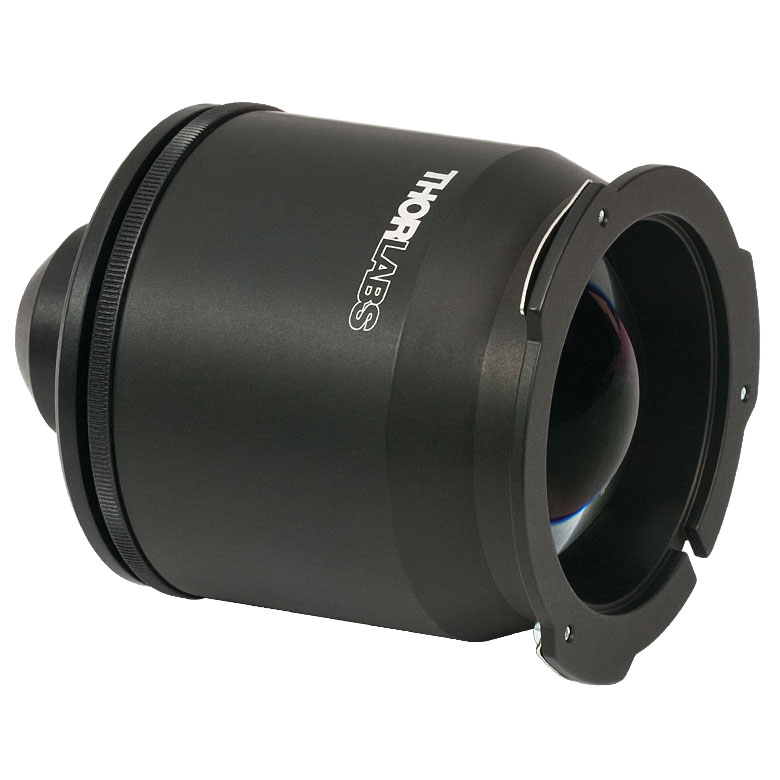

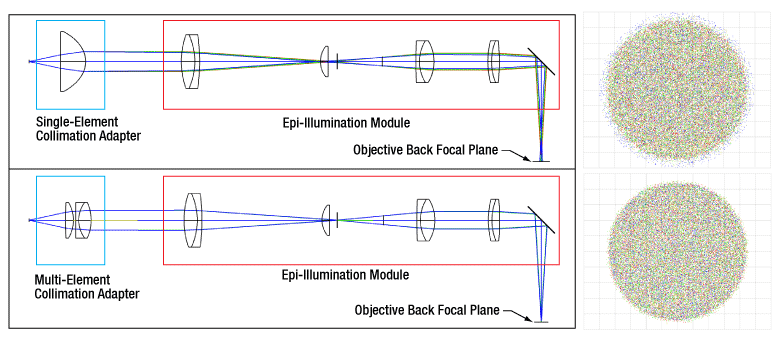

Thorlabs offers collimation adapters with AR-coated aspheric condenser lenses (EFL = 40 mm) for collimating the output from our Liquid Light Guides. Four different collimator housings are available; each is designed to mate to the illumination port on an Olympus IX/BX, Leica DMI, Nikon Eclipse, Zeiss Axioskop, or Nikon Eclipse Ti microscope.

These adapters quickly mount onto the end of either the Ø3 mm or Ø5 mm Liquid Light Guide (LLG). The LLG is secured via a setscrew into the back of the collimator. The addition of these adapters allows the user to incorporate our HPLS200 series lamps into a microscope illumination port.

Optic Specifications
Item # ACL5040-A
AR Coating 350 nm - 700 nm
Focal Length 40.00 mm ± 5%
NA 0.554
Magnification Infinite
Surface Quality 60-40 Scratch-Dig
Centration <30 arcmin
Compatible
Microscopes
Olympus BX & IX
Microscopes
Leica DMI
Microscopes
Zeiss Axioskop
Microscopes
Nikon Eclipse Ti
Microscopes
Item Photo
(Click to Enlarge)
Olympus BX & IX Microscope Adapter Leica DMI Microscope Adapter Zeiss Axioskop Microscope Adapter Nikon Eclipse Ti Microscope Adapter
Item # LLG3A1-A LLG5A1-A LLG3A2-A LLG5A2-A LLG3A4-A LLG5A4-A LLG3A5-A LLG5A5-A
LLG Diameter 3 mm 5 mm 3 mm 5 mm 3 mm 5 mm 3 mm 5 mm
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
LLG3A1-A Support Documentation
LLG3A1-AØ3 mm LLG Collimating Adapter, Olympus BX / IX, ARC: 350-700 nm
$309.00
Today
LLG5A1-A Support Documentation
LLG5A1-AØ5 mm LLG Collimating Adapter, Olympus BX / IX, ARC: 350-700 nm
$309.00
Today
LLG3A2-A Support Documentation
LLG3A2-AØ3 mm LLG Collimating Adapter, Leica DMI, ARC: 350-700 nm
$309.00
Today
LLG5A2-A Support Documentation
LLG5A2-AØ5 mm LLG Collimating Adapter, Leica DMI, ARC: 350-700 nm
$309.00
Today
LLG3A4-A Support Documentation
LLG3A4-AØ3 mm LLG Collimating Adapter, Zeiss Axioskop, ARC: 350-700 nm
$309.00
Today
LLG5A4-A Support Documentation
LLG5A4-AØ5 mm LLG Collimating Adapter, Zeiss Axioskop, ARC: 350-700 nm
$309.00
Today
LLG3A5-A Support Documentation
LLG3A5-AØ3 mm LLG Collimating Adapter, Nikon Eclipse Ti, ARC: 350-700 nm
$407.00
Today
LLG5A5-A Support Documentation
LLG5A5-AØ5 mm LLG Collimating Adapter, Nikon Eclipse Ti, ARC: 350-700 nm
$407.00
Today
