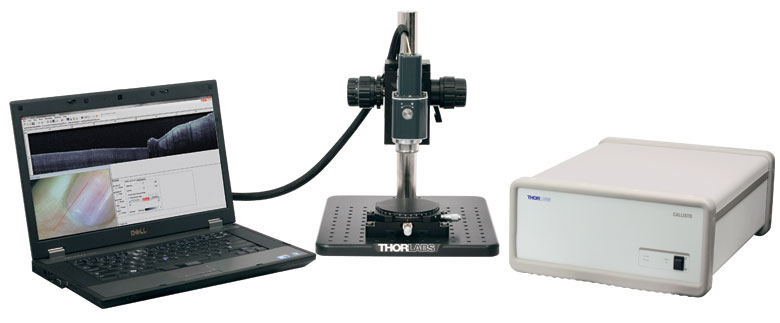

Callisto 930 nm OCT Imaging System

Callisto 930 nm OCT Imaging System

Please Wait

Let Thorlabs Help with Your Imaging Project!

Application Articles

We recognize that our customers have unique application requirements. For this reason, we stand ready to discuss how our OCT systems can be adapted to meet your needs. You can easily contact us directly at or via our online request form; an OCT representative will contact you shortly. We are happy to assist with purchasing or information requests:

  • Request a Quote: E-mail us with a list of parts or specifications you want.
  • Technical Consultation: Ask our engineers for help with configuring a system.
  • Sample Testing: Send us your sample and let our engineers determine the right OCT configuration for you.
  • Request a Demo: Demos are available for customers in the US and Europe through our Newton, NJ and Lübeck, Germany locations.
  • OEM and Custom Projects: Click here to learn about our OEM capabilities.
OCT Systems Comparison
Application Articles


  • Configurable OCT Systems Optimized for High-Sensitivity Imaging
    • 1.2 kHz A-Scan Rate and 107 dB Sensitivity
    • 7 µm Axial Resolution in Air with 1.7 mm Imaging Depth (930 nm Center Wavelength)
  • Includes Computer and ThorImage OCT Software Package (See the Software Tab)
  • Build-Your-Own and Preconfigured Systems Available
  • See the Brochures Tab for More Information on Thorlabs' OCT Systems

Choose Components to Build or Customize Your OCT System

  • One 930 nm, High-Sensitivity Base Unit (Required)
  • Rigid, Adjustable, and Handheld Scanners Available
  • Scan Lens Kits to Optimize Lateral Resolution and Focal Length for Your Application
  • Ring- and Immersion-Style Sample Z-Spacers for Air or Liquid Imaging Applications
  • Scanner Stand and Translation Stage Accessories
  • Contact Our OCT Team to Request a Quote and Discuss Building a System

Optical Coherence Tomography (OCT) is a noninvasive optical imaging technique that produces real-time, 2D cross-sectional and 3D volumetric images of a sample. This technique provides structural information about the sample based on light backscattered from different layers of material within that sample, producing images with micron-level resolution and millimeters of imaging depth. OCT imaging can be considered as an optical analog to ultrasound imaging that achieves higher resolution at the cost of decreased penetration depth. In addition to high resolution, the non-contact, noninvasive nature of OCT makes it well suited for imaging samples such as biological tissue, small animals, and industrial materials.

Thorlabs' Callisto Series of OCT Imaging Systems are designed for high sensitivity and are ideal for imaging static, in vitro samples. The 64-bit software pre-installed on the included computer displays and processes 2D and 3D OCT data in real time. Choose from a number of scanner options including a robust rigid scanner, adjustable scanner, and the portable handheld scanner. Optional accessories are available below to customize your OCT system to meet the requirements of your application. Additionally, Thorlabs offers a complete, preconfigured OCT system for 930 nm based on the components sold on this page.

The components below can also be used to upgrade your existing Thorlabs OCT system with additional features and are fully compatible out of the box with Thorlabs' OCT systems and accessories. While most systems are upgradable, we recommend contacting the OCT Team to determine the optimal solution for your system and intended application.

Click on the Image Below or in the Table to the Right for Details on Customization Options

Telesto Base UnitTelesto Base UnitOCT Sample StageOCT Stand
Callisto Customization Options
OCT Base Unit
(Computer Included)
Scanning System
Scan Lens Kit
Reference Length Adapter
(For Rigid Scanners Only)
Sample Z-Spacer
Adjustable Stand
Translation Stage

ThorImage OCT Software Index


OCT Scan Control Screen Shot
Click to Enlarge

The ThorImage OCT Window in Volume Rendering Mode

ThorImage OCT Software

  • Interactive Scan Position Control through Video Display (Draw and Scan)
  • Advanced Dataset Management
  • High-Speed Volume Rendering of 3D Data
  • Doppler and Speckle Variance Imaging
  • Versatile Scan and Acquisition Control

ThorImage OCT is high-performance data acquisition software that is included with all Thorlabs Spectral Domain OCT systems. This 64-bit Windows-based software package is capable of data acquisition, processing, scan control, and displaying OCT images. Additionally, NI LabVIEW and C-based Software Development Kits (SDKs) are available, which contain a complete set of libraries for measurement control, data acquisition and processing, as well as storage and display of OCT images. The SDKs provide the means for developing highly specialized OCT imaging software for every individual application.

OCT Scan Control Screen Shot
Click to Enlarge

Various acquisition parameters can be adjusted in ThorImage OCT.

Scan Control

ThorImage OCT provides numerous scan and acquisition controls. The camera integrated in the probe of our OCT system provides live video images in the application software. Defining the scan line for 2D imaging or the scan area for 3D imaging is accomplished through the easy-to-use "Draw and Scan" feature by clicking on the video image. The scan pattern can also be adjusted by specifying parameters in the controls of the software. Additionally, one can further set processing parameters, averaging parameters, and the speed and sensitivity of the device using device presets. By using a high-speed preset, video-like frame rates in 2D and fast volume rendering in 3D are possible, whereas high-sensitivity acquisition is enabled by choosing a preset with a lower acquisition speed.

High Speed OCT Software Draw and Scan
Click to Enlarge

The Sample Monitor can be used to define the scan pattern using the "Draw and Scan" feature.

ThorImage OCT Dataset Management Panel
Click to Enlarge

The Dataset Management Window of ThorImage OCT

Dataset Management

ThorImage OCT provides advanced dataset management capabilities, which allow opening several datasets simultaneously. Datasets are uniquely defined using an identifier consisting of study (or test series) name and an experiment number. Grouping of datasets is possible using the same study name. The "Captured Datasets" list shows an overview of all open datasets, including the study name, the acquisition mode, and preview pictures of the still video image and the OCT data.

Datasets can be exported in various image formats, such as PNG, BMP, JPEG, PDF, or TIFF. Formats suited for post-processing purposes, such as RAW/SRM, FITS, VTK, VFF, and 32-bit floating-point TIFF, are also supported.

The OCT file format native to ThorImage OCT allows OCT data, sample monitor data, and all relevant metadata to be stored in a single file. ThorImage OCT can also be installed and run on computers without an OCT system installed in order to view data.

Third Party Applications

If ImageJ is installed on the computer with ThorImage OCT installed, opening acquired OCT data in ImageJ is one mouse click away, as shown in the image below. This enables a flawless workflow when requiring the advanced image processing functionality provided by ImageJ. Clicking the Explorer button shown below will open the folder and select the file in Windows Explorer where the currently active dataset is stored.

ThorImage OCT Third Party Applications Panel
Export buttons are accessible in the Action Toolbar of ThorImage OCT.


Imaging Modes

Different OCT imaging modes can be selected using the mode selector. If the ThorImage OCT software finds a compatible system connected and switched on, all operational modes will be selectable. If no OCT device is present, only the data viewing mode for viewing and exporting OCT data will be available.

OCT Software 2D Mode
Click to Enlarge

The ThorImage OCT Window in 2D Mode

2D Mode

In the 2D imaging mode the probe beam scans in one direction, thus acquiring cross-sectional OCT images, which are then displayed in real time. Line averaging before or after the Fast Fourier Transform (FFT) is available as well as B-Scan averaging. Image display parameters, such as color mapping, can be controlled in this mode. We have also implemented an option for automatic calculation of the optimum contrast and brightness of the displayed OCT images.


3D Mode

In the 3D imaging mode, the OCT probe beam scans sequentially across the sample to collect a series of 2D cross-sectional images, which are then processed to build a 3D image.

In the ThorImage OCT software, 3D volume datasets can be viewed as orthogonal cross-sectional planes (see below) and volume renderings.

The Sectional View features cross-sectional images in all three orthogonal planes, independent of the orientation in which the data was acquired. The view can be rotated as well as zoomed in and out.

The Rendering View provides a volumetric rendering of the acquired volume dataset. This view enables quick 3D visualization of the sample being imaged. Planes of any orientation can be clipped to expose structures within the volume. The 3D image can be zoomed in and out as well as rotated. Furthermore, the coloring and dynamic range settings can be adjusted.

Utilizing the full potential of our high-performance software in combination with our high-speed OCT systems, we have included a Fast Volume Rendering mode in ThorImage OCT, which serves as a preview for high-resolution 3D acquisitions. In this mode, high-speed volume renderings can be displayed in real-time, providing rapid visualization of samples in three dimensions.

OCT 3D Imaging Screen Shot
Click to Enlarge

Rendering View
OCT 3D Imaging Screen Shot
Click to Enlarge

Sectional View


OCT Doppler Imaging Screen Shot
Click to Enlarge

Doppler dataset showing the velocity of a rotated plastic stick.

Doppler Mode

Doppler OCT imaging comes standard with all OCT systems. In the Doppler mode, phase shifts between adjacent A-scans are averaged to calculate the Doppler frequency shift induced by particle motion or flow. The number of lateral axial pixels can be modified to change velocity sensitivity and resolution during phase shift calculation. The Doppler images are displayed in the main window with a color map indicating forward- or backward-directed flow, relative to the OCT beam.


OCT Doppler Imaging Screen Shot
Click to Enlarge

Speckle variance measurement showing blood vessels of a hand.

Speckle Variance Mode

The speckle variance acquisition mode uses the variance of speckle noise to calculate angiographic images. It can be used to visualize three dimensional vessel trees without requiring significant blood flow and without requiring a specific acquisition speed window. The speckle variance data can be overlaid on top of intensity pictures providing morphological information. Different color maps can be used to display the multimodal pictures.


Externally-Triggered Acquisition

ThorImage OCT and the SDK APIs provide the ability to externally trigger the acquisition of A-Scans. This enables the user to synchronize measurements from different modalities (e.g. vibrometry and synchronized positioning) with an OCT measurement. Synchronization is greatly simplified with all current CameraLink-based Thorlabs OCT systems (a TTL level trigger signal source required). External triggering is available for all imaging modes and can be toggled in the settings dialog in ThorImage OCT.


OCT Doppler Imaging Screen Shot
Click to Enlarge

Probe Calibration Window in ThorImage OCT

Easy Probe Calibration

Changing to a different scan lens kit (sold below) will generally require a different probe configuration in order to adapt to changes in the optical parameters of the system. When an additional scan lens is purchased for your Thorlabs OCT scanner system, ThorImage OCT enables you to easily create a fitting configuration for your new scan lens by using the calibration sample shipped with the lens and an intuitive step-by-step calibration process (shown in the image to the right).


Video Showing Screencast of ThorImage OCT Rendering Capabilities

In this video, OCT images of a finger are acquired and manipulated in the 3D volume and cross section modes.

Optical Coherence Tomography Tutorial

Optical Coherence Tomography (OCT) is a noninvasive optical imaging modality that provides real-time, 1D depth, 2D cross-sectional, and 3D volumetric images with micron-level resolution and millimeters of imaging depth. OCT images consist of structural information from a sample based on light backscattered from different layers of material within the sample. It can provide real-time imaging and is capable of being enhanced using birefringence contrast or functional blood flow imaging with optional extensions to the technology.

Thorlabs has designed a broad range of OCT imaging systems that cover several wavelengths, imaging resolutions, and speeds, while having a compact footprint for easy portability. Also, to increase our ability to provide OCT imaging systems that meet each customer’s unique requirements, we have designed a highly modular technology that can be optimized for varying applications.

Application Examples

Art Conservation
Art Conservation
Drug Coatings
Drug Coatings
3D Profiling
3D Profiling
In Vivo
Small Animal
Small Animal
Tissue Birefringence
Tissue Birefringence
Mouse Lung
Mouse Lung
Retina Cone Cells
Retina Cone Cells

OCT is the optical analog of ultrasound, with the tradeoff being lower imaging depth for significantly higher resolution (see Figure 1). With up to 15 mm imaging range and better than 5 micrometers in axial resolution, OCT fills a niche between ultrasound and confocal microscopy.

In addition to high resolution and greater imaging depth, the non-contact, noninvasive advantage of OCT makes it well suited for imaging samples such as biological tissue, small animals, and materials. Recent advances in OCT have led to a new class of technologies called Fourier Domain OCT, which has enabled high-speed imaging at rates greater than 700,000 lines per second.1

Fourier Domain Optical Coherence Tomography (FD-OCT) is based on low-coherence interferometry, which utilizes the coherent properties of a light source to measure optical path length delays in a sample. In OCT, to obtain cross-sectional images with micron-level resolution, and interferometer is set up to measure optical path length differences between light reflected from the sample and reference arms.

There are two types of FD-OCT systems, each characterized by its light source and detection schemes: Spectral Domain OCT (SD-OCT) and Swept Source OCT (SS-OCT). In both types of systems, light is divided into sample and reference arms of an interferometer setup, as illustrated in Fig 2. SS-OCT uses coherent and narrowband light, whereas SD-OCT systems utilize broadband, low-coherence light sources. Back scattered light, attributed to variations in the index of refraction within a sample, is recoupled into the sample arm fiber and then combined with the light that has traveled a fixed optical path length along the reference arm. A resulting interferogram is measured through the detection arm of the interferometer.

The frequency of the interferogram measured by the sensor is related to depth locations of the reflectors in the sample. As a result, a depth reflectivity profile (A-scan) is produced by taking a Fourier transform of the detected interferogram. 2D cross-sectional images (B-scans) are produced by scanning the OCT sample beam across the sample. As the sample arm beam is scanned across the sample, a series of A-scans are collected to create the 2D image.

Similarly, when the OCT beam is scanned in a second direction, a series of 2D images are collected to produce a 3D volume data set. With FD-OCT, 2D images are collected on a time scale of milliseconds, and 3D images can be collected at rates now below 1 second.

Spectral Domain OCT vs. Swept Source OCT

Spectral Domain and Swept Source OCT systems are based on the same fundamental principle but incorporate different technical approaches for producing the OCT interferogram. SD-OCT systems have no moving parts and therefore have high mechanical stability and low phase noise. Availability of a broad range of line cameras has also enabled development of SD-OCT systems with varying imaging speeds and sensitivities.

SS-OCT systems utilize a frequency swept light source and photodetector to rapidly generate the same type of interferogram. Due to the rapid sweeping of the swept laser source, high peak powers at each discrete wavelength can be used to illuminate the sample to provide greater sensitivity with little risk of optical damage.

FD-OCT Signal Processing

In Fourier Domain OCT, the interferogram is detected as a function of optical frequency. With a fixed optical delay in the reference arm, light reflected from different sample depths produces interference patterns with the different frequency components. A Fourier transform is used to resolve different depth reflections, thereby generating a depth profile of the sample (A-scan).

1V.Jayaraman, J. Jiang, H.Li, P. Heim, G. Cole, B. Potsaid, J. Fujimoto, and A. Cable, "OCT Imaging up to 760 kHz Axial Scan Rate Using Single-Mode 1310 nm MEMs-Tunable VCSELs with 100 nm Tuning Range," CLEO 2011 - Laser Applications to Photonic Applications, paper PDPB2 (2011).

Brochure and Configuration Chart

The buttons below link to PDFs of printable materials and a graphical customization guide for our Callisto Series OCT Systems.

OCT Systems Brochure

Ganymede Series Configuration Options

Please Give Us Your Feedback
Email Feedback On
Contact Me:
Your email address will NOT be displayed.
Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.
Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:
Characters remaining  8000
Posted Comments:
Posted Date:2012-02-22 12:34:00.0
A response from Julien at Thorlabs: Thank you for your feedback! We will check immediately what the problem is with those links. concerning your original request, we will contact you directly to further discuss the details of your application.
Posted Date:2012-02-22 08:26:28.0
The request demo and contact us links for this page are not working. The lab I work in is interested in the Callisto SD-OCT and is interested in setting up a demo.
Posted Date:2011-12-02 12:24:00.0
A response from Julien at Thorlabs: Thank you for your feedback! the SD-OCT use an holographic grating based spectrometer. The camera used in the Ganymede and the Hyperion have 2048 Pixel whereas the cameras from the Callisto and the Telesto have 1024Pixel
Posted Date:2011-11-29 20:10:21.0
What kind of spectrometer is being used in the SD-OCT? is it reflective optics based / refractive optics based spectrometer? is the spectrometer build with 512 pixel CCD? thanks
Posted Date:2010-12-09 15:56:07.0
Response from Tor at Thorlabs to Jay: Thank you for your interest in our SD-OCT system. We include a LabVIEW and C-based software development kit with all of our 930-nm SD-OCT systems. Please do not hesitate to contact us if you have further inquiries.
Posted Date:2010-12-08 21:09:29.0
Hi, Do you have the LabVIEW and C-based Software Development Kits for the 110Khz system? Thanks Jay
Posted Date:2010-09-08 21:47:04.0
Response from Javier at Thorlabs to hs_kim: Thank you for your interest in our products. We will contact you directly with pricing and lead time information.
Posted Date:2010-09-08 12:29:40.0
I wish to know the price a SD-OCT system. Item: 930 nm Spectral Domain Optical Coherence Tomography (SD-OCT) Imaging Systems (full system, with probe and S/W) price : ? delivery time : ?
Posted Date:2010-09-08 12:29:35.0
I wish to know the price a SD-OCT system. Item: 930 nm Spectral Domain Optical Coherence Tomography (SD-OCT) Imaging Systems (full system, with probe and S/W) price : ? delivery time : ?

Thorlabs offers a wide variety of OCT Imaging Systems. To assist in narrowing down which OCT system(s) is best suited for your application, we have provided the guide below. We always encourage all customers to contact us to discuss specific imaging requirements.

Item # (Click for Link) CAL930V1-BUa GAN930V2-BUa GAN905HV2-BUa TEL1300V2-BUa TEL1300V3-BUa TEL1325LV2-BUa TEL1325LV3-BUa OCS1310V1b
Series Name Callisto Ganymede Telesto Vega
Type Spectral Domain OCT Swept Source OCT
Key Performance
High Resolution Very High
High Axial
Deep Imaging Long Imaging
Center Wavelength 930 nm 930 nm 900 nm 1300 nm 1325 nm 1300 nm
A-Scan Line Rate 1.2 kHz 5.5 kHz to 36 kHz 5.5 kHz to
76 kHz
10 kHz to
146 kHz
5.5 kHz to
76 kHz
10 kHz to
146 kHz
100 kHz
Imaging Depth(Air) 1.7 mm 2.9 mm 1.9 mm 3.5 mm 7.0 mm 12 mm
Imaging Depth(Water) 1.3 mm 2.2 mm 1.4 mm 2.6 mm 5.3 mm -
Depth Resolutionc (Air) 7.0 µm 6.0 µm 3.0 µm 5.5 µm 12 µm 16 µm
Depth Resolutionc (Water) 5.3 µm 4.5 µm 2.2 µm 4.2 µm 9.0 µm 12 µm
Sensitivity (Max)d 107 dB 101 dB
(at 5.5 kHz)
111 dB
(at 5.5 kHz)
109 dB
(at 10 kHz)
111 dB
(at 5.5 kHz)
109 dB
(at 10 kHz)
105 dB
  • These Item #s are OCT base units that can be customized using a wide selection of OCT scanners, lens kits, and optional accessories.
  • Please contact us at with inquiries about this system.
  • Depth resolution and actual imaging depth are dependent on the optical properties of the sample being imaged.
  • Typical Values Measured Using a Scanner with a Common Reference/Sample Path and 50% Path Split

OCT Base Unit - Required

Base Unit Specifications
Center Wavelength 930 nm
Imaging Depth Range 1.7 mm
Depth Resolution (Air/Water) 7.0 µm / 5.3 µm
A-Scan Line Rate 1.2 kHz
Sensitivitya 107 dB (at 1.2 kHz Scan Rate)
Maximum Pixels per A-Scan 512
Compatible Scanners OCTP-900, OCTP-900/M, OCTG-900, and OCTH-900
  • Typical Values Measured Using a Scanner with a Common Reference/Sample Path and 50% Path Split
Computer Specificationsa
Operating System Windows 7b, 64 Bit
Processor Dual Core, ≥2.5 GHz
Memory 4 GB
Hard Drive ≥250 GB
Data Acquisition USB
  • Computer Specifications Subject to Change
  • We are in the process of switching the pre-installed operating system; some computers may come with Windows 10 installed upon delivery. This will not affect the performance of the OCT software.
  • 930 nm High-Sensitivity Base Unit
  • 107 dB Sensitivity at 1.2 kHz A-Scan Rate
  • 1.7 mm Depth and 7 µm Axial Resolution

The imaging performance of any OCT system is largely dependent on the design and components incorporated into the base unit. All of Thorlabs’ OCT Base Units include an OCT engine, high-performance computer, pre-installed software, and a software development kit (SDK). For the Callisto OCT Base Unit, the engine is comprised of a superluminescent diode light source, scanning electronics, and a linear CCD array-based spectrometer for detection. The engine and detection components are integrated into a 420 mm x 320 mm x 149 mm (16.5" x 12.6" x 5.86") unit. For a fully operational system, one scanning option and a scan lens kit must be purchased along with a base unit (sold separately below).

Thorlabs' CAL930V1-BU Base Unit is optimized for high sensitivity (107 dB) at an A-Scan line rate of 1.2 kHz. Thus, the Callisto is ideal for imaging static, in vitro samples that require good contrast to distinguish features. The CAL930V1-BU offers up to 1.7 mm imaging depth with 7 µm of axial resolution.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CAL930V1-BU Support Documentation
CAL930V1-BUCallisto OCT Base Unit, 930 nm, 1.2 kHz
Lead Time

Scanning Systems - Choose One or More

Scanner Type Item # Compatible
Base Unit
Rigid Scannera OCTG-900 CAL930V1-BU
Adjustable Scanner OCTP-900(/M)
Handheld Scannerb OCTH-900
  • Scan an OCT Light Source Beam Across a Sample to Acquire 2D or 3D Images
  • Three Available Options
    • Rigid Scanner for High Stability and Ease-of-Use
    • Adjustable Scanners with Open Construction for Customization of Scan Path
    • Portable Handheld Probe for Applications Requiring High Mobility

Thorlabs’ OCT Scanning Systems are designed to scan the OCT light source beam across a sample for 2D cross-sectional and 3D volumetric imaging. OCT applications can vary widely, from live animal imaging to industrial materials analysis, with each requiring a different set of scanning parameters. We currently offer three scanning options for use with our Callisto base units: rigid scanners, adjustable scanners, and handheld probe.

Each scanner contains an OCT interferometer with a sample arm and a reference arm. The reference arm of the OCT interferometer is placed near the sample and housed within the scanning system itself to guarantee the phase stability of the sample arm relative to the reference arm. To account for different sample distances and reflectivities (e.g., while imaging through water), the reference arm path length, as well as the reference arm intensity, is adjustable. To minimize image distortion caused by dispersion, our OCT systems are designed to optically match the reference and sample arm lengths to the greatest extent possible. Dispersion effects from the sample (e.g., imaging through water or glass) can be compensated for using the included ThorImage OCT software. For customers interested in dual-path setups, any of these scanners can be configured without a beamsplitter; contact Tech Support for more information.

All scanners are equipped with an integrated camera that can obtain real-time en face video of the sample during OCT measurements when used with our ThorImage OCT software (see the Software tab for details). Illumination of the sample is provided by a ring of user-adjustable white light LEDs around the exit aperture of each scanner.

Hand-Held OCT Probe
Click to Enlarge
OCTH-900 Handheld Scanner with OCTH-AIR30 Sample Z-Spacer

Rigid Scanner
The OCTG-900 Rigid Scanner is ideal for imaging applications that require a stable, easy-to-operate setup. The entire design of the rigid scanner is contained within a rugged, light-tight housing that minimizes the risk of misalignment. The rigid scanner is equipped with a reference path length distance indicator for ease-of-use during reference adjustments. A knob located at the top of the rigid scanner allows for fine adjustments to the reference path length.

Adjustable Scanner
The OCTP-900(/M) Adjustable Scanner is designed with an open construction to enable easy customization of the optical beam path using Thorlabs' standard optomechanical components. This scanner features SM1 (1.035"-40) ports and 4-40 tapped holes at several locations that allow mounting of SM1-threaded or 30 mm cage-compatible components, respectively. The scan lens port is directly compatible with either M25 x 0.75 or SM1-threaded components, and can be converted to other thread standards, such as RMS (0.800"-36) via our selection of thread adapters. Additional scanning and non-scanning optical input/output ports are available for integration of a laser for fluorescence excitation or additional sample illumination.

Compact Handheld Scanner
The compact and lightweight OCTH-900 Handheld Scanner is specifically designed for applications requiring high mobility. Easy access buttons located directly on the scanner enable fingertip control of our ThorImage OCT Software. Users can program each button from a selection of imaging and acquisition software controls and the software uses visual and audio feedback for button presses. The OCTH-900 features a removable cover under the handle that provides access to the reference length and intensity settings. Compatible scan lens kits and sample z-spacers for the OCTH-900 are sold below; z-spacers help maintain the correct working distance when using the handheld scanner. Please note that due to the limitations of the internal MEMS scanner, the frame rate (i.e., B-Scan rate) is limited to 25 frames per second when using the handheld scanner.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
OCTP-900 Support Documentation
OCTP-900Customer Inspired!Adjustable OCT Scanner for 900 nm / 930 nm, Imperial
Lead Time
+1 Qty Docs Part Number - Universal Price Available / Ships
OCTG-900 Support Documentation
OCTG-900Rigid OCT Scanner for 900 nm / 930 nm
Lead Time
OCTH-900 Support Documentation
OCTH-900Handheld OCT Scanner for 900 nm / 930 nm
Lead Time
+1 Qty Docs Part Number - Metric Price Available / Ships
OCTP-900/M Support Documentation
OCTP-900/MCustomer Inspired!Adjustable OCT Scanner for 900 nm / 930 nm, Metric
Lead Time

Scan Lens Kit - Choose One or More

The cross-section image below of a banana was taken with the OCT-LK3-BB scan lens kit using a Callisto Series OCT system. Choose a scan lens kit that provides the right resolution and focal length for your application.

OCT-LK3-BB (36 mm Focal length)
High-Resolution OCT
Click to Enlarge

Magnification: 5X
Scan Region: 3 mm x 1.7 mm
Lateral Resolution: 8 µm
  • Telecentric Scan Lenses Provide a Flat Imaging Plane
  • Lens AR Coated for 800 - 1100 nm
  • Scan Lens Kits for Rigid / Adjustable Scanners Include
    • Telecentric Scan Lens
    • Illumination Tube
    • IR Card
    • Calibration Target
  • Compact Scan Lens Kits Designed for the OCTH-900 Handheld Probe with Integrated Scan Lens and Illumination Ring

Thorlabs’ Scan Lens Kits enable easy exchange of scan lenses in an OCT system, providing the flexibility to tailor imaging resolution or working distance for each application. Based on our line of OCT telecentric scan lenses, these lens kits minimize image distortion without extensive post-image processing and maximize coupling of the light scattered or emitted from the sample surface into the detection system. As seen in the table below, we offer scan lens kits compatible with the rigid (Item # OCTG-900) and adjustable (Item # OCTP-900) scanners, as well as two lens kits compatible with the handheld scanner (Item # OCTH-900).

Each kit includes a telecentric scan lens, illumination tube, IR card, and calibration target. The included illumination tube serves as a light guide that channels light from the LED illumination ring down to the sample area. The IR card and calibration target are provided for calibration of the scanning mirror and lens kit, ensuring the best image quality when swapping between scan lenses.

Click Image to Enlarge
Design Wavelength 900 nm / 930 nm 900 nm / 930 nm
Compatible Scanner OCTG-900 (Rigid) or OCTP-900 (Adjustable) OCTH-900 Handheld Scanner
Lateral Resolutiona 4 µm 8 µm 12 µm 9 µm 14 µm
Focal Length 18 mm 36 mm 54 mm 20 mm 30 mm
Working Distance 3.4 mmb 24.9 mmb 41.6 mmb 12 mm 22 mm
Field of View 6 mm x 6 mm 10 mm x 10 mm 16 mm x 16 mm Ø8 mm Ø10 mm
Lens Threading M25 x 0.75 M25 x 0.75 M25 x 0.75 M20 x 0.5 (For Z-Spacer)
M14 x 0.5 (For OCTH-900)
  • 1/eBeam Diameter at Focus
  • The working distance is limited due to the illumination tube, which can be removed.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
OCT-LK2-BB Support Documentation
OCT-LK2-BBOCT Scan Lens Kit, 18 mm FL, 900 nm / 930 nm
Lead Time
OCT-LK3-BB Support Documentation
OCT-LK3-BBOCT Scan Lens Kit, 36 mm FL, 900 nm / 930 nm
Lead Time
OCT-LK4-BB Support Documentation
OCT-LK4-BBOCT Scan Lens Kit, 54 mm FL, 900 nm / 930 nm
Lead Time
OCTH-LK20-BB Support Documentation
OCTH-LK20-BBOCT Scan Lens Kit for OCTH-900, 20 mm FL, 900 nm / 930 nm
Lead Time
OCTH-LK30-BB Support Documentation
OCTH-LK30-BBOCT Scan Lens Kit for OCTH-900, 30 mm FL, 900 nm / 930 nm
Lead Time

Reference Length Adapters - Required for Rigid Scanners

Item #a Compatible Scan Lens Kit
  • Multiple reference adapters can be purchased for rapid switching between scan lens kits.
  • Arm Adapters for Matching Reference Path Length to the Sample Path Length
  • Use Multiple Reference Adapters for Rapid Switching Between Scan Lens Kits
  • Must be Purchased with Rigid Scanner (Item # OCTG-900)

These adapters adjust the reference arm path length within the OCTG-900 Rigid Scanners to match the sample path length of the scan lens used. Choose from three options that are compatible with the scan lens kits sold above. Reference length adapters also enable the user to quickly swap between different scan lens kits without going through extensive adjustments during each switch. The table to the right provides a compatibility list to help select the appropriate reference adapters.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
OCT-RA2 Support Documentation
OCT-RA2Reference Arm Adapter for Rigid Scanner and OCT-LK2(-BB) Scan Lens Kit
Lead Time
OCT-RA3 Support Documentation
OCT-RA3Reference Arm Adapter for Rigid Scanner and OCT-LK3(-BB) Scan Lens Kit
Lead Time
OCT-RA4 Support Documentation
OCT-RA4Reference Arm Adapter for Rigid Scanner and OCT-LK4(-BB) Scan Lens Kit
Lead Time

Sample Z-Spacers - Optional

Click to Enlarge
Z-Spacers for the OCTG-900 and OCTP-900(/M) Scanners

Click to Enlarge
Z-Spacers for the OCTH-900 Handheld Scanner
  • Sample Z-Spacers Position Scanner at Optimal Working Distance From Sample
  • Ring (Air) and Immersion (Liquid) Z-Spacers Available
  • Two Z-Spacers Recommended for Use with OCTH-900 Handheld Scanner

Thorlabs offers both ring and immersion style sample Z-spacers that enable optimal positioning of a scanning system relative to the sample. The OCT-AIR3, OCT-IMM3, and OCT-IMM4 Z-Spacers feature knurled rings that allow the spacing distance to be adjusted and locked in place for increased stability. Several Z-spacer options are available; please see the table below for compatibility with our scanners and lens kits.

Additionally, we offer two ring-style Z-spacers that are designed specifically for the OCTH-900 Handheld Scanner; these spacers greatly assist in maintaining the correct sample working distance when using the handheld scanner. The spacing distance on the OCTH-AIR20 and OCTH-AIR30 Z-Spacers can be adjusted by rotating the spacer.

Our ring-style Z-spacers provide a distance guide between the scanner and sample. The sample is in contact with the ring-shaped tip of the spacer and should only be used when air is the scanning medium. In contrast, our immersion spacers are equipped with a glass plate that contacts the sample surface within the scanning area. Unlike the ring-style spacers, immersion spacers enable access to samples contained within a liquid environment while also providing sample stabilization. Better index matching and a tilted glass plate also help reduce strong back reflections from the sample surface and enhances the contrast of the image.

Item #a Type Adjustable Adjustment Range Lockable Compatible
Scan Lens Kit
OCT-AIR3 Ring (Air) Yes +3.5 mm / -1.0 mm Yes OCTG-900
OCT-IMM3 Immersion Yes +3.4 mm / -1.1 mm Yes
OCT-IMM4 Immersion Yes +1.0 mm / -17.0 mm Yes OCT-LK4-BB
OCTH-AIR20 Ring (Air) Yes ±4 mm No OCTH-900a OCTH-LK20-BB
OCTH-AIR30 Ring (Air) Yes ±2 mm No OCTH-LK30-BB
  • We recommend purchasing a sample Z-spacer if using the OCTH-900 handheld scanner.
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
OCT-AIR3 Support Documentation
OCT-AIR3Ring-Style Sample Z-Spacer for OCT-LK3(-BB) Scan Lens Kit
Lead Time
OCT-IMM3 Support Documentation
OCT-IMM3Immersion-Style Sample Z-Spacer for OCT-LK3(-BB) Scan Lens Kit
3-5 Days
OCT-IMM4 Support Documentation
OCT-IMM4Immersion-Style Sample Z-Spacer for OCT-LK4(-BB) Scan Lens Kit
Lead Time
OCTH-AIR20 Support Documentation
OCTH-AIR20Ring-Style Sample Z-Spacer for OCTH-LK20(-BB) Scan Lens Kit
Lead Time
OCTH-AIR30 Support Documentation
OCTH-AIR30Ring-Style Sample Z-Spacer for OCTH-LK30(-BB) Scan Lens Kit
Lead Time

Scanner Stand - Optional

Click for Details

The focus block can be rotated 45° to move the scanner head away from the sample.
  • Recommended Stand for Mounting Rigid or Adjustable Scanners
  • Focus Block with Coarse/Fine Z-Axis Travel on Ø1.5" Stainless Steel Post
  • 12" x 14" (300 mm x 350 mm) Aluminum Breadboard with 1/4"-20 (M6) Tapped Holes

For convenient mounting of our Rigid or Adjustable Scanners, we offer a scanner stand that is ideal for use in vibration-sensitive studies such as angiography. It consists of a post-mounted focus block with knobs that provide both coarse (40 mm/rev) and fine (225 µm/rev) z-axis travel. A rotation and height collar underneath the focus block allows it to rotate 45° in order to move the scanner head away from the sample to make adjustments.

The focus block attaches to a 12" x 14" (300 mm x 350 mm) aluminum breadboard via the included Ø1.5" post. The aluminum breadboard has side grips and rubber feet for easy lifting and transportation. There is an array of 1/4"-20 (M6) tapped holes for mounting optomechanics. Four extra 1/4"-20 (M6) tapped holes allow the mounting of the OCT-XYR1 Translation Stage (sold below) to the OCT-STAND and the OCT-XYR1/M Translation Stage to the OCT-STAND/M directly underneath the scan lens. A 1/4"-20 (M6) counterbore is also provided for securing the Ø1.5" post.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
OCT-STAND Support Documentation
OCT-STANDStand for Rigid and Adjustable OCT Scanning Systems, 1/4"-20 Tapped Holes
+1 Qty Docs Part Number - Metric Price Available / Ships
OCT-STAND/M Support Documentation
OCT-STAND/MStand for Rigid and Adjustable OCT Scanning Systems, M6 Tapped Holes

Translation Stage - Optional

Click to Enlarge
The cover plate is removable for access to tapped holes and the SM1-threaded central hole.
Horizontal Load Capacity (Max) 10 lbs (4.5 kg)
Mounting Platform Dimensions Ø4.18" (Ø106 mm)
Stage Height 1.65" (41.8 mm)
Linear Translation Range 1/2" (13 mm)
Travel per Revolution 0.025" (0.5 mm)
Graduation 0.001" (10 µm) per Division
  • Optional Translation Stage with 0.5" (13 mm) of XY Travel and 360° Rotation
  • Includes Cover Plate for Sample Mounting
  • Can Mount Optomechanics by Removing Cover Plate

Precise translation and rotation are often required for optimal positioning of a sample before and during OCT imaging. The OCT-XYR1(/M) is an XY linear translation stage with a rotating platform and solid plate for sample mounting and easy cleaning. The OCT-XYR1 or OCT-XYR1/M stage can be secured to the OCT-STAND or OCT-STAND/M, respectively, using the 1/4" (M6) counterbores at the corners. The top plate is removable for access to 4-40, 8-32 (M4), and 1/4"-20 (M6) tapped holes and an SM1-threaded (1.035"-40) central hole for mounting optomechanical components. The XYR1A Solid Sample Plate can be purchased separately as a direct replacement for the top plate.

The X and Y micrometers offer 1/2" (13 mm) of travel with graduations every 0.001" (10 µm). The stage's rotation and translation can be freely changed without compromising the stability of attached components. An engraved angular scale along the outer edge of the stage's rotating platform allows the user to set the angular orientation of the stage, which can then be fixed using the 5/64" (2 mm) hex locking setscrew. Locking the rotation of the stage does not prevent XY translation using the actuators.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available / Ships
OCT-XYR1 Support Documentation
OCT-XYR1XY Stage with Solid Top Plate, 1/2" Travel, 360° Rotation, Imperial Taps
+1 Qty Docs Part Number - Metric Price Available / Ships
OCT-XYR1/M Support Documentation
OCT-XYR1/MXY Stage with Solid Top Plate, 13 mm Travel, 360° Rotation, Metric Taps

Callisto Series Preconfigured System

Base Unit CAL930V1-BU
Center Wavelength 930 nm
Scanning System OCTG-900 (Rigid Scanner)
Scan Lens Kit OCT-LK3-BB
Reference Length Adapter OCT-RA3
Accessories OCT-STAND and OCT-XYR1
  • Complete OCT System Configuration (See Table to the Right)
  • Fully Customizable Using Other Callisto Series Components

This Callisto Series OCT System Configuration is built using the base unit, scanning systems, lenses, and accessories sold on this page. The CALLISTO configuration features a center wavelength of 930 nm and is designed for high-sensitivity imaging applications. An OCTG-900 Rigid Scanner and compatible reference length adapter are included.

The CALLISTO system configuration is fully compatible with all Callisto Series OCT components. For information about these systems or to inquire about custom configurations, please contact and an OCT representative will get back to you shortly.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available / Ships
CALLISTO Support Documentation
CALLISTOHigh-Sensitivity 930 nm Spectral Domain OCT Imaging System
Lead Time
Log In  |   My Account  |   Contact Us  |   Careers  |   Privacy Policy  |   Home  |   FAQ  |   Site Index
Regional Websites:East Coast US | Europe | Asia | China | Japan
Copyright 1999-2017 Thorlabs, Inc.
Sales: 1-973-300-3000
Technical Support: 1-973-300-3000

High Quality Thorlabs Logo 1000px:Save this Image
