• Adapter Mounts Directly to Our
• NanoMax & MicroBlock Flexure Stages
• RollerBlock Stages
• Any Stage with 1/4"-20 (M6) Taps on 2" Centers
• Dimensions: 101.6 mm x 68.6 mm x 12.7 mm (4" x 2.7" x 0.5")

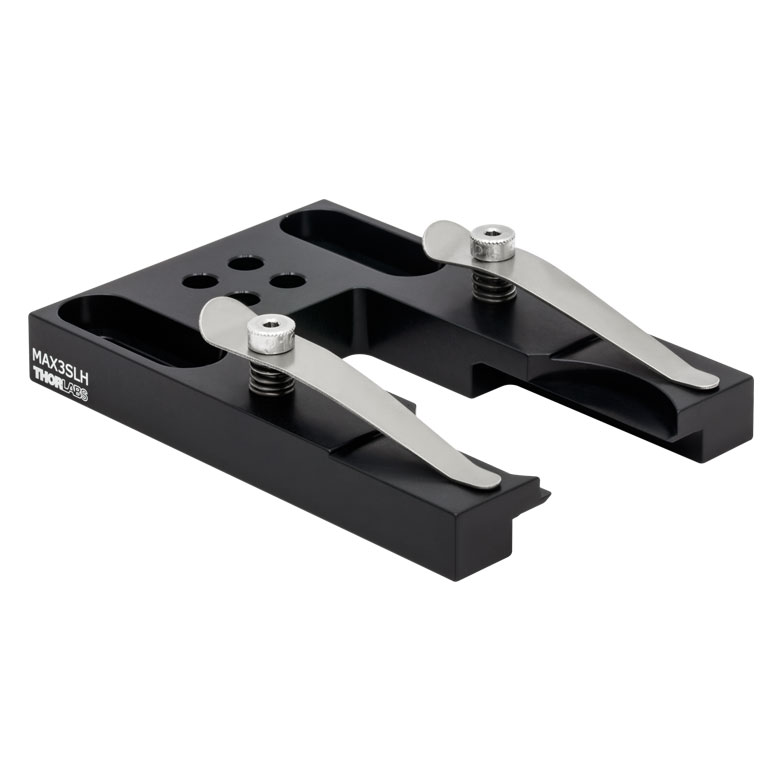

The MAX3SLH Microscopy Slide Holder offers your motion control stages the ability to mount petri dishes and glass slides for integration into personalized microscopy setups such as optical tweezers. Two sets of mounting holes allow versatility. One set of four #6 (M3) counterbores is compatible with our 3-axis MAX Series stages. A set of 1/4" (M6) slots with 2" separation is designed for mounting to most other translation stages, including those with both 2" imperial and 25 mm metric hole patterns. The spring clips are also rotatable to accommodate easy swapping of petri dishes and glass slides.
