Features

• Attaches Directly to 66 mm Rails and Provides ±45° of Rotation
• 5.00" (127 mm) Long Rail Allows Translation of Mounted Objects with Respect to Center of Rotation
• Easy-to-Read Laser-Engraved Scale with 1° Resolution

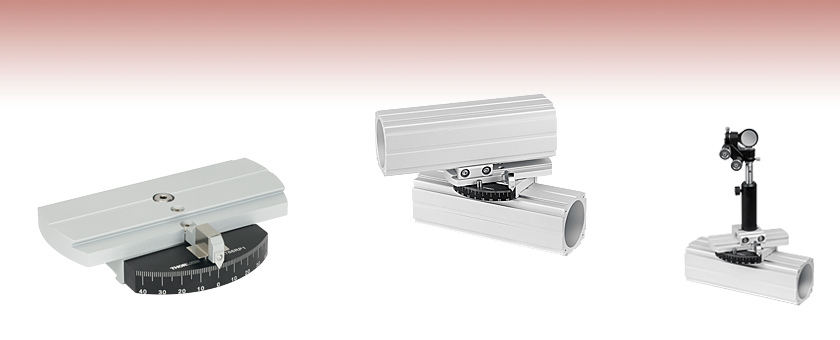

The XT66RP1 Rotation Slide Platform provides a 5" (127 mm) long mounting surface that can be rotated by up to ±45° from the axis defined by the base rail. It clamps to a 66 mm rail using two rear-mounted locking screws. The laser-engraved scale features 1° graduations and allows mounted optomechanics to be precisely and repeatably rotated.

Thorlabs offers an extensive selection of accessories for 66 mm rails, including clamps and angle brackets, breadboard mounts, mounting platforms, rail carriages, rail platform positioners, rotation slide platforms, rail joiners, and lens tube adapters. Together with size adapters that incorporate 34 mm and 95 mm rails into an XT66 setup, these tools provide a complete family of rigid, versatile building blocks suited for virtually any optomechanical setup.

XT66 66 mm Optical Rail Accessories
Rails	Clamps and Angle Brackets	Mounting Platforms	Rail Platform Positioners	Rail Carriage	Breadboard Mounting	Rotation Slide Platform	Cage System Mounts	Lens Tube Adapter	Rail Joiner	Size Adapters
