Polarization Sensitive OCT Module


  • Real-Time Imaging of Birefringence Within
    Biological and Industrial Samples
  • Add-On for 1300 nm SS-OCT

PSOCT-1300

PSOCT-1300 (top module)

Shown with OCS1300SS
Swept Source Imaging System

Related Items

Laser Safety 3R

Features

  • Add-on Module for 1300 nm SS-OCT System
  • Contrast Based on Birefringence of Material
  • Ideal for Imaging Biological and Industrial Materials
  • Real-Time Display of Phase Retardation Images

Polarization-Sensitive Optical Coherence Tomography (PS-OCT) is a cross-sectional birefringence imaging tool used to study a wide range of biological and industrial materials. An extension of OCT, PS-OCT is based on measuring the polarization properties of light collected from birefringent samples.

A material exhibits birefringence when it decomposes light into two polarization states with an optical delay being imposed on one state. This optical phenomena only occurs if the material is anisotropic. Materials that exhibit birefringence include tissues such as tendons, muscles, teeth, bones, blood vessels, and skin. In samples such as these, PS-OCT provides additional contrast compared to conventional OCT structural images. The real-time, high-resolution imaging capability of PS-OCT makes it well suited for studying glaucoma and other eye diseases, dental diseases, burn depths in the skin, and vascular imaging to guide plaque excision.

Birefringence is also created in isotropic materials that have undergone a deformation such that the isotropy is lost in one direction (i.e., stress-induced birefringence). In such cases, PS-OCT is very useful for nondestructive detection of stress birefringence in industrial materials such as plastics, thin films, semiconductors, and liquid crystals.

Thorlabs has developed a real-time, fiber-based swept source PS-OCT imaging system that provides simultaneous cross-sectional imaging of the intensity and phase retardation of light backscattered from birefringent samples. This system utilizes a standard Thorlabs 1300 nm SS-OCT Imaging System (OCS1300SS) with the PS-OCT add-on module. The modularity of the Thorlabs OCT system enables incorporation of PS-OCT imaging capability at any time. Thorlabs' software package enables easy display of OCT structural or PS-OCT birefringence images.

OCT Oxtail Images
The figures above show OCT structural (a) and PS-OCT phase retardation (b) images of an oxtail sample.The strong birefringence seen in the phase retardation image indicates that highly organized structures such as collagen fibrils exist in the tissue layers. For other application ideas, please see the Applications tab above.

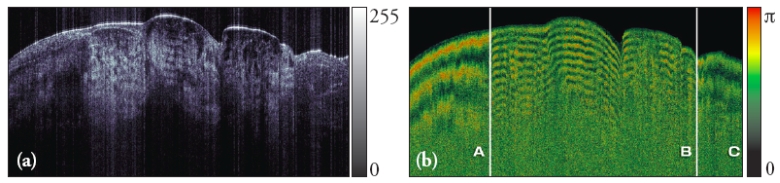

Imaging of a human fingernail bed, a chicken muscle, and a plastic component are shown below. The birefringence of the human fingernail bed and chicken muscle is due to intrinsic ordering of specific areas of biological tissue, while that of the component is induced by residual strain resulting from the manufacturing process. Note the significantly improved contrast in the phase retardation images (b) compared to the intensity-only images (a) typical of conventional OCT systems.

PS-OCT Images
Left: Fingernail, Center: Chicken Muscle, Right: Plastic Components

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
PSOCT-1300 Support Documentation PSOCT-1300 : Polarization Sensitive OCT Module

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
Poster: tor
Posted Date: 2010-12-09 16:02:02.0
Response from Tor at Thorlabs to Jay: The PSOCT-1300 module is only compatible with the OCS1300SS system. We are happy to contact you directly to discuss details about your application and any questions you may have.
Poster: jwang3
Posted Date: 2010-12-08 17:55:01.0
Hi, can this PSOCT-1300 be used with 840nm SD-OCT or 1310nm time domain OCT? Please email me at jwang3@med.miami.edu Thanks Jay
Click on any phrase below to search our site using our new Search Engine:
OCT   Optical Coherence Tomography   Polarization Sensitive OCT
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
PSOCT-1300 Support Documentation
PSOCT-1300 Polarization Sensitive OCT Module
$20,000.00
