Features

Adapter Mounts Directly to Our
- NanoMax & MicroBlock Flexure Stages
- RollerBlock Stages
- Any Stage with 1/4"-20 (M6) Taps on 2" Centers
Dimensions: 101.6 mm x 68.6 mm x 12.7 mm (4" x 2.7" x 0.5")

The MAX3SLH Microscopy Slide Holder offers your motion control stages the ability to mount petri dishes and glass slides for integration into personalized microscopy setups such as optical tweezers. Two sets of mounting holes allow versatility. One set of four #6 (M3) counterbores is compatible with our 3-axis MAX Series stages. A set of 1/4" (M6) slots with 2" separation is designed for mounting to most other translation stages, including those with both 2" imperial and 25 mm metric hole patterns. The spring clips are also rotatable to accommodate easy swapping of petri dishes and glass slides.

Please Give Us Your Feedback

Email		Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.

Please type the following key into the field to submit this form:

Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.

Would this product be useful to you? Little Use 1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000

Posted Comments:

Poster: ben_mangum

Posted Date: 2013-05-15 16:51:51.62

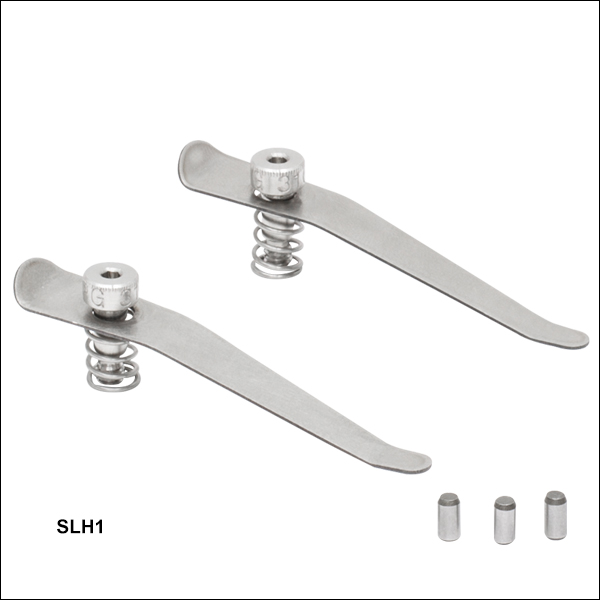

It would be great if you could offer extra spring clips separately. Also, adapters allowing mounting of various sizes of coverslips would be great too.

Poster: tcohen

Posted Date: 2013-05-16 16:27:00.0

Response from Tim at Thorlabs: Thank you for sharing your idea. We’ll look into adapters and we can certainly provide the extra spring clips separately if desired. I will contact you directly to provide these.
