Manual Fiber Polarization Controllers


Related Items





Manual Fiber Polarization Controllers

Features

  • Polarization Control over Full Poincare Sphere
  • Operates over Full Fiber Bandwidth
  • Very Easy to Operate
  • Compatible with Ø900 µm Jacketed Fibers

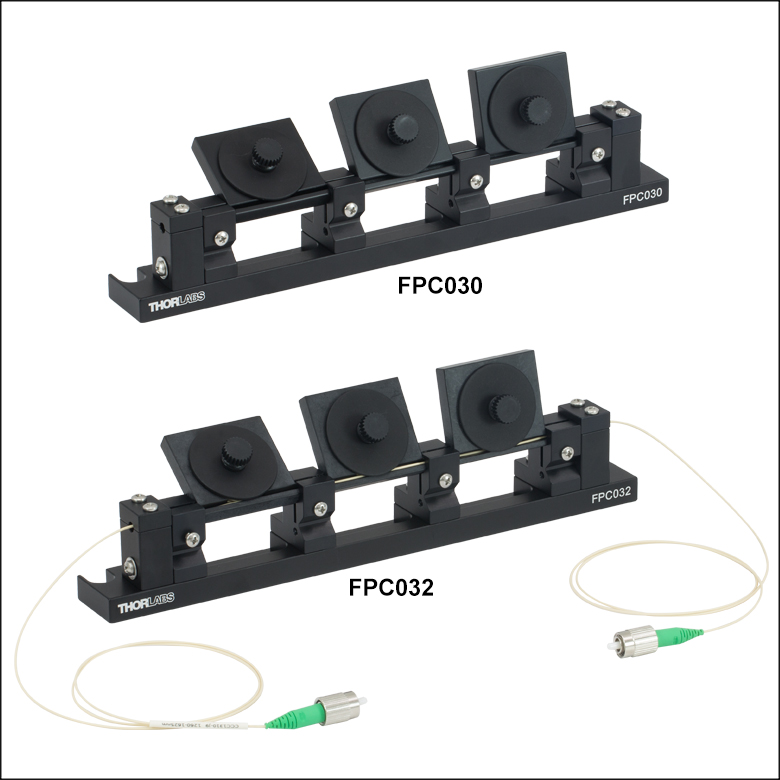

If your application includes single mode fiber and requires linearly polarized light, the FPC Series Polarization Controllers can be easily implemented to convert elliptically polarized light in a single mode fiber into another state of polarization, including linearly polarized light. This polarization conversion is achieved by loading the paddles with a prescribed number of fiber loops to create a fixed waveplate, and adjusting their positions to control the output polarization state.

These polarization controllers utilize stress-induced birefringence to create three independent fractional, fixed wave plates to alter the polarization of the transmitted light in the single mode fiber by looping the fiber around three independent spools. Each spool, in essence, represents a wave plate. See the Operation tab for more details.

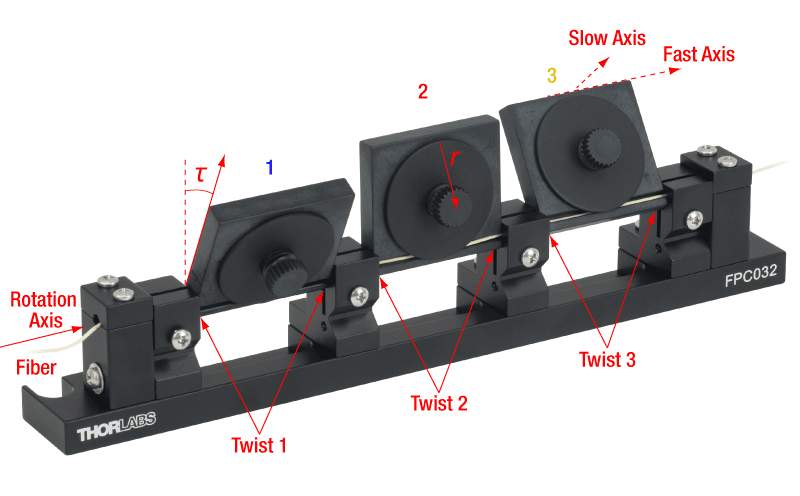

The amount of birefringence induced in the fiber is a function of the fiber cladding diameter, the spool diameter (fixed), the number of fiber loops per spool, and the wavelength of the light. The fast axis of the fiber, which is in the plane of the spool, is adjusted with respect to the transmitted polarization vector by manually rotating the paddles. The FPC031, FPC032, FPC561, and FPC562 fiber polarization controllers come preloaded with fiber. All of our controllers are compatible with Ø900 µm jacketed fibers, however, the ends of the controller are capable of clamping onto Ø3 mm protective tubing.

NOTE: The FPC030 and FPC020 work well with all of our single mode fibers. For fibers with higher bend loss (e.g., Corning’s SMF-28e+), use model FPC560.
Thorlabs also offers a drop-in, clamping polarization controller, the PLC-900.

Item #FPC030FPC031FPC032FPC560FPC561FPC562FPC020
Number of Paddles32
Loop Diameter1.06" (27 mm)2.2" (56 mm) 0.71" (18 mm)
Paddle Rotation ±117.5°±286°
Foot Print (L x W)8.5" x 1.0"
(215.9 mm x 25.4 mm)

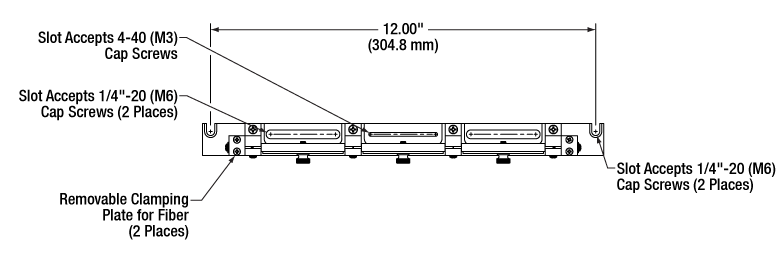

12.5" x 1.0"
(317.5 mm x 25.4 mm)
3.06" x 0.5"
(77.72 mm x 12.70 mm)
Fiber-CCC1310-J9-SMF-28-J9-
Connectors-FC/PCFC/APC-FC/PCFC/APC-
Bend Loss-≤0.1 dB≤0.1 dB-≤0.1 dB≤0.1 dB-

These manual polarization controllers utilize stress-induced birefringence to create three independent fractional wave plates to alter the polarization in single mode fiber that is looped around three independent spools (two for the FPC020) to create the independent fractional wave plates (fiber retarders). The amount of birefringence induced in the fiber is a function of the fiber cladding diameter, the spool diameter (fixed), the number of fiber loops per spool, and the wavelength of the light. (NOTE: the desired birefringence is induced by the loop in the fiber, not by the twisting of the fiber paddles). The fast axis of the fiber, which is in the plane of the spool, is adjusted with respect to the transmitted polarization vector by manually rotating the paddles.

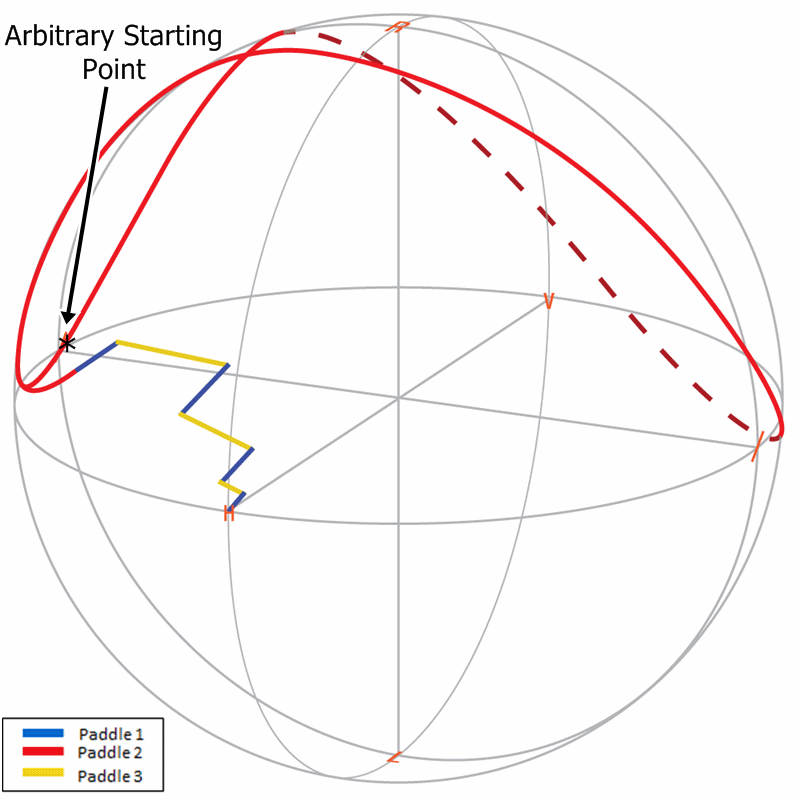

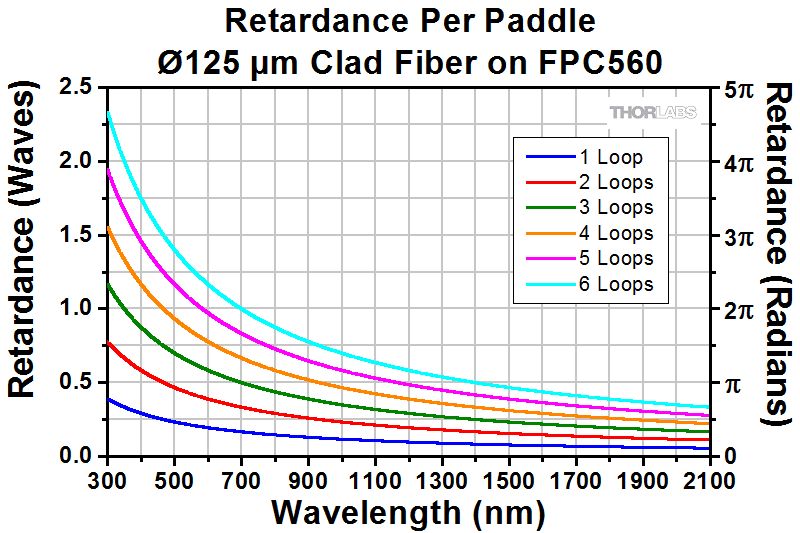

To transform an arbitrary input polarization state into an arbitrary output polarization state, a combination of three paddles (a quarter-wave plate, a half-wave plate, and a quarter-wave plate) or two paddles (quarter-wave plate and a quarter-wave plate) is used. For three paddle controllers, the first quarter-wave plate would transform the input polarization state into a linear polarization state. The half wave plate would rotate the linear polarization state, and the last quarter wave plate would transform the linear state into an arbitrary polarization state. Therefore, adjusting each of the three paddles (fiber retarders) allows complete control of the output polarization state, over a broad range of wavelengths (500 – 1600 nm). Using FPC030 as an example, a plot of retardation per paddle versus wavelength is shown in Figure A for a fiber with a cladding diameter of 125 μm. The retardation, in radians, is plotted for 1, 2, and 3 loops per paddle. For fiber with a cladding diameter of 80 μm, the retardation per paddle versus wavelength is shown in Figure B.

Fiber Loops in Polarization Controller

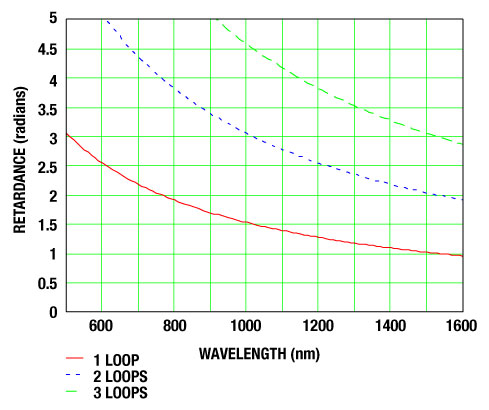

FIGURE A: Retardation vs. Wavelength for 1, 2, and 3 Fiber Loops Per Paddle for the FPC030 Polarization Controller. The Fiber Cladding Diameter is 125 μm.

Retardiation in Polarization Controller

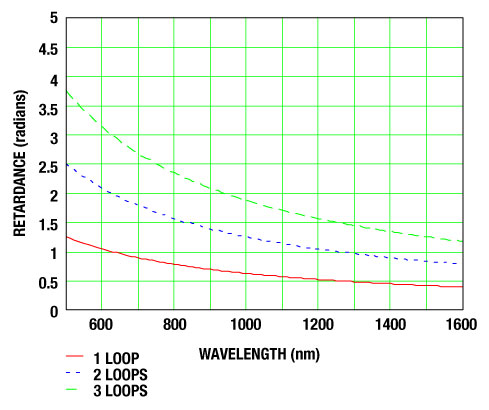

FIGURE B: Retardation vs. Wavelength for 1, 2, and 3 Fiber Loops Per Paddle for the FPC030 Polarization Controller. The Fiber Cladding Diameter is 80 μm.

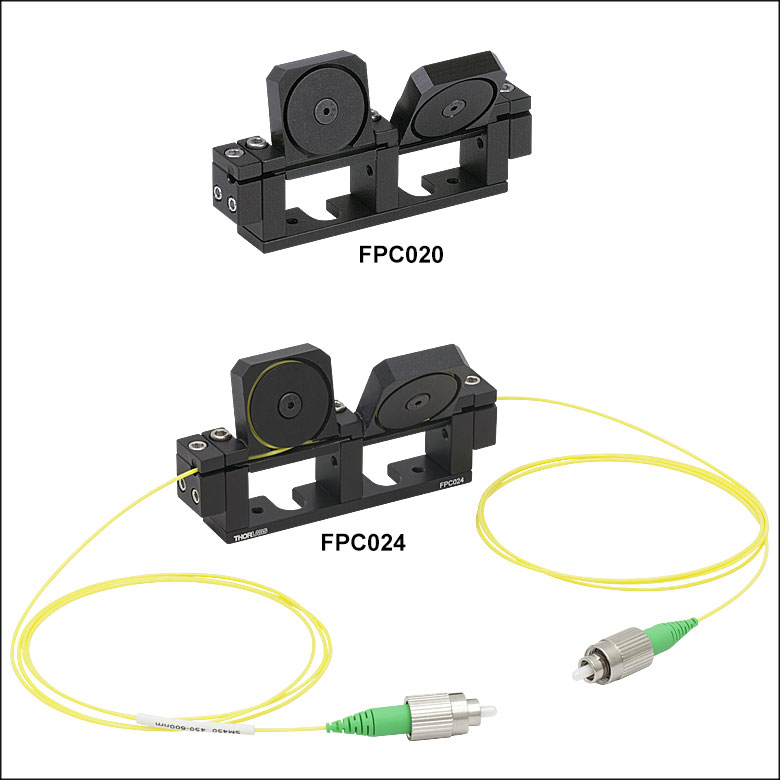

The Miniature Polarization Controller utilizes stress-induced birefringence to effectively create two (2) independent fractional wave-plates which alter the polarization state in a fiber. Single mode fiber is looped into two (2) independent spools to create the independent fractional wave-plates (fiber retarders). The amount of birefringence induced in the fiber is a function of the fiber cladding diameter, the spool diameter (fixed), the number of fiber loops per spool, and the wavelength of the light. (NOTE: the desired birefringence is induced by the loop in the fiber, not by the twisting of the fiber paddles). The fast axis of the fiber, which is in the plane of the spool, is adjusted with respect to the transmitted polarization vector by manually rotating the paddles to twist the fiber.

The FPC020 can transform an arbitrary input polarization state into an arbitrary output polarization state by rotating the two paddles (two quarter-wave plates). This would allow complete control of the output polarization state over a broad range of wavelengths (480 to 1380 nm).

The retardation per paddle is a function of loop number, cladding diameter of the fiber if the loop diameter is fixed. The retardation, in radians, is plotted for 1, 2, 3, and 4 loops per paddle for a fiber with a cladding diameter of 125 μm (Figure C).

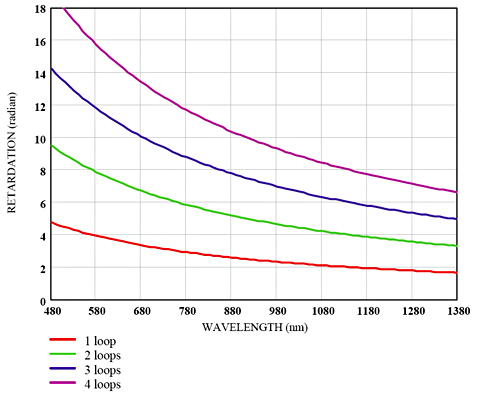

FPC020 Retardance Chart

FIGURE C: Retardation vs Wavelength with Ø125 μm Cladding SMF

Loading Tag Cloud Loading...

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use   1 2 3 4Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
Poster: tcohen
Posted Date: 2012-03-09 10:57:00.0
Response from Tim at Thorlabs: Thank you for your feedback on the FPC020. The SMF28e will have approximately .8 dB loss each loop. Three loops are needed for each paddle so the total loss would be around 4.8 dB. Low bend loss fiber, such as CCC1310-J9 is recommended for use with the FPC020 at longer wavelengths such as 1550nm. At this wavelength, the loss for this fiber would be approximately 1 dB.
Poster: FrankJosephMcDermott
Posted Date: 2012-03-08 18:31:07.0
Is there any specific reason the FPC020 Retardation vs. Wavelength spec doesn't extend to 1550 nm? I would like to use it with SMF28e. Is it not recommended to use this device at 1550 nm?
Poster: bdada
Posted Date: 2012-02-24 14:47:00.0
Response from Buki at Thorlabs: The retardance is a result of stress induced birefringence caused by looping the fiber. The retardance per loop is dependent on both the overall diameter of the loops and the cladding diameter of the fiber. For the small paddle controller(FPC032) with a typical 125um fiber used at 1500nm, a single loop is equivalent to about a 1 radian of retardance. Charts with values for other wavelengths and for 80um fiber are printed in the manual: http://www.thorlabs.com/Thorcat/0400/0482-D01.pdf A full wave is 2pi radians, about 6.28. A half waveplate would have a retardance of 3.14 radians and a quarter waveplate 1.57 radians. Although you won't get exactly a quarter-half-quarter retardance values for the three paddles at 1550nm, getting reasonably close is sufficient to have complete control over the output polarization as you adjust the paddles. Please try one loop on the first paddle, three on the second, and one loop on the third paddle. Please contact TechSupport@thorlabs.com if you have any questions.
Poster:
Posted Date: 2012-02-06 14:58:03.0
Hi, I'm using an FPC032 with a ~1500nm laser. From the manual, it looks like three loops should function as a half-wave plate. Is this correct? How would I create an effective quarter-wave plate?
Poster:
Posted Date: 2011-11-30 09:55:10.0
A response from Tyler at Thorlabs: It is possible when the fiber was loaded into the FPC560 that the fiber was pulled too tight against the groove. This can be a significant source of loss. We will contact you to troublshoot the situation.
Poster: thavamaran.kanesan
Posted Date: 2011-11-29 21:10:29.0
Hi there, I have started using FPC560 for the first time. I understand that the polarization through FPC not right will result in power loss. I face about 7 dB power loss. My operating wavelength is 1550 nm with connecting fibre clading is 125 um. I rotated approximately to 1.4 radians with 1,3 and 6 rotation per plate. The maximum power I can achieve is 1.5 dBm and my actual power is 8.4 dBm. There will be infinite rotation pattern, how can I achieve what I want? A bit more guidance would be deeply appreciated!
Poster: Thorlabs
Posted Date: 2010-11-29 15:28:24.0
Response from Javier at Thorlabs to dboriska: It is recommended to use 0.9 mm diameter jacketing with the fiber polarization controllers. This makes it easier for the fiber to be fitted onto each paddle and clamped at each end of the controller.
Poster: dboriska
Posted Date: 2010-11-28 13:53:53.0
What is the recommended diameter of protecting tube of the fiber ? Can I use each of the tubing 0.9 mm and 3 mm?
Poster: Adam
Posted Date: 2010-05-07 09:05:38.0
A response from Adam at Thorlabs to makarov: We generally would not recommend using only 1 loop since one loop is typically not sensitive enough to achieve the correct polarization. To achieve close to quarter wave at 1550nm, we would suggest using 3 loops. I will contact you directly to find our more information about your application.
Poster: makarov
Posted Date: 2010-05-06 16:10:27.0
With miniature FPC020 polarization controller, what is the recommended number of loops for 1550 nm wavelength in 125 um cladding fiber? Extrapolating the supplied chart, it looks like one loop will make a quarter-wave plate, will it?
Poster: klee
Posted Date: 2009-11-18 17:23:37.0
A response from Ken at Thorlabs to kshraga: You will not be able to use the clearance slot to mount it on a metric breadboard. However, you can use table clamps, for example the CL5, to hold it down.
Poster: kshraga
Posted Date: 2009-11-15 11:20:09.0

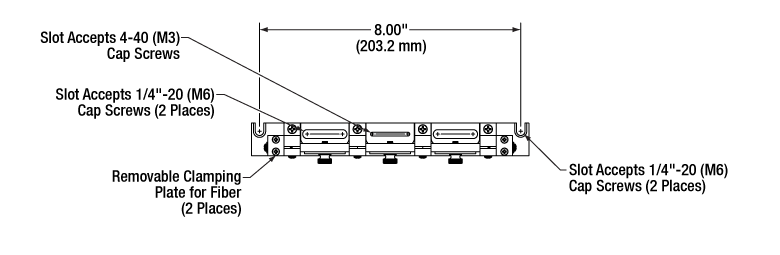

Dear Sir or Madam, According to the drawing the gap between the mounting holes is 8", making the polarization control mountable on imperial breadboard. Since we have metric breadboards, I would appreciate it if you could advise whether it is mountable. Thanks in advance, Shraga Kraus
Poster: klee
Posted Date: 2009-11-09 17:47:05.0
A response from Ken at Thorlabs to nick: Our paddle-type polarization controllers are designed for single mode fiber only, not for multimode fiber. It cannot do either A) or B) for a larger core fiber.
Poster: nick
Posted Date: 2009-11-06 10:32:16.0
Hello, I would like to either (A) ensure the output of the fiber is depolarized, or (B) that the output is linearly polarized with an angle I can control, for a multi-mode optical fiber. Can this device accomplish either goal for a larger core fiber? Thank you
Poster: Tyler
Posted Date: 2009-01-27 14:40:49.0
A response from Tyler at Thorlabs to femtor: The FC/APC connector on the patch cord is not intended to mate with an FC/PC connector on the polarization controller. However, the polarization controller can be ordered with alternative connectors as a custom order. A member of our technical support department should have already contacted you about this matter. If you have any further questions, please ask.
Poster: femtor
Posted Date: 2009-01-12 03:00:17.0
Dear Sir: I wonder if the fiber paddle polarization controller series can be used with the PM FC/APC Patch Cable (Panda Style) such as P5-1550PM-FC-2. Thanks!
Click on any phrase below to search our site using our new Search Engine:
2   apc   birefrengence   cable   clear   ClearCurve   coil   coiled   connector   connectorized   control   controller   cord   curve   ears   fc   fc/apc   fc/pc   fiber   fiberoptic   fibre   fibreoptic   fixed   fractional   independent   induced   in-fiber   inline   in-line   laser   mickey   mm   mode   multi   multimode   nm   optic   optical   paddle   patch   pc   pdl   per   pm   pmd   poincare   polarization   polarizers   single   sm   SMF-28e   SMF-28e+   sop   sphere   state   stress   type   wavelength   wire
3 Paddle Polarization Controllers
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
FPC030 Support Documentation FPC030 Fiber Polarization Controller w/ Small Paddles, No Fiber $190.00
3-5 Days
FPC031 Support Documentation FPC031 Fiber Polarization Controller w/ Small Paddles, ClearCurve Fiber, FC/PC Connectors $232.40
3-5 Days
FPC032 Support Documentation FPC032 Fiber Polarization Controller w/ Small Paddles, ClearCurve Fiber, FC/APC Connectors $252.40
3-5 Days
FPC560 Support Documentation FPC560 Fiber Polarization Controller w/ Large Paddles, No Fiber $211.20
Lead Time
FPC561 Support Documentation FPC561 Fiber Polarization Controller w/ Large Paddles, SMF-28e+, FC/PC Connectors $253.60
3-5 Days
FPC562 Support Documentation FPC562 Fiber Polarization Controller w/ Large Paddles, SMF-28e+, FC/APC Connectors $273.60
3-5 Days
Add To Cart
Miniature 2 Paddle Polarization Controllers
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
FPC020 Support Documentation FPC020 Miniature Polarization Controller $184.00
Today
Add To Cart
