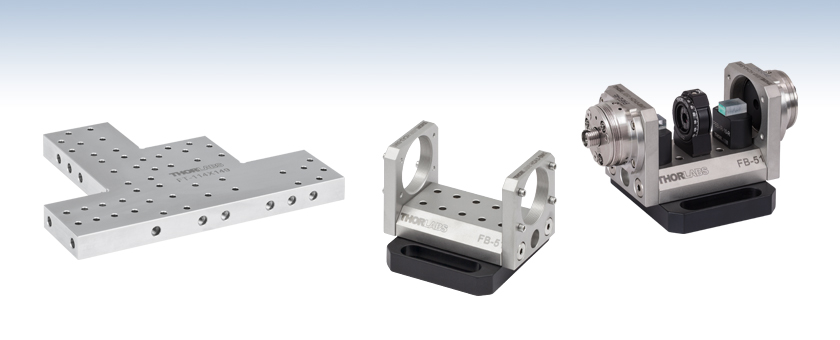

FiberBenches


  • Building Blocks for Fiber-to-Fiber Coupling Systems
  • Single-Axis and Multi-Axis FiberBenches Available
  • Stable Platform for Easy Alignment

FT-114X149

FB-51W

Variable Optical
Attenuator Application

Related Items

Download a FiberBench Assembly File

Ever since Thorlabs acquired the versatile FiberBench product line from Optics For Research (OFR) in 2007, we have been fine tuning the overall design to offer more long-term stability and excellent coupling efficiency. These FiberBenches form the foundation of a nearly infinite array of miniature fiber optic systems that customers have been building for the last decade. When used with the FiberPort Collimators/Couplers, a complete optical circuit can be constructed.

The all-stainless steel construction offers the stability required when building fiber optic systems. Thorlabs offers Single-Axis and Multi-Axis FiberBenches, both of which are featured below. For basic systems that require only one input and one output path, the Single-Axis FiberBenches are ideal; for more complex systems that require multiple inputs and outputs, we recommend the use of the Multi-Axis FiberBenches.

One of the main advantages of building FiberBench systems is that all the components are aligneWd along common beam paths (14.3 mm above the deck) that are parallel to the base. Thus, they simplify setups that would normally require extensive alignment procedures. The equally sized and uniformly spaced mounting holes on the FiberBenches are designed to hold a wide array of FiberBench accessories. Except for some mounts that would go on the side of the FiberBenches, all the accessories have dowel pins that can be easily inserted into the FiberBenches. For more information or custom requests, please contact Tech Support.

FiberBench System
Click to Enlarge

Multi-Axis FiberBench with FiberPorts in Three of the Four Available Locations, Along with Some Common FiberBench Components

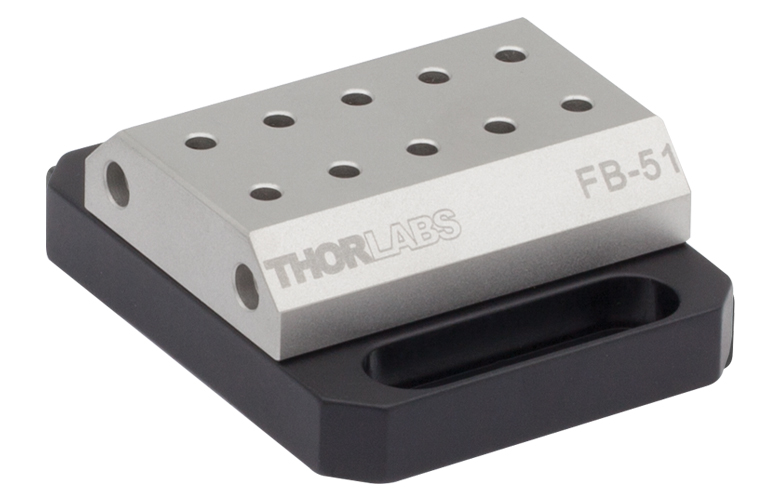

Single-Axis FiberBenches
  • Ideal for Systems that Require One Input Port and One Output Port
  • 3, 5, or 7 Component Mounting Positions Available
  • 2-56 Locking Setscrews Along One Side
  • Common Applications: Polarization Splitter, Polarization Controller, Variable Optical Attenuator
Multi-Axis FiberBenches
  • Ideal for Systems that Require Multiple Input Ports and Multiple Output Ports
  • 12 - 24 Component Mounting Positions Available
  • FT-51X60 and FT-51X76 Have 2-56 Locking Setscrews Along One Side
  • Common Applications: Mach-Zehnder Interferometer, Wavelength Combiner, Bench Pump Amplifier, Polarimeter

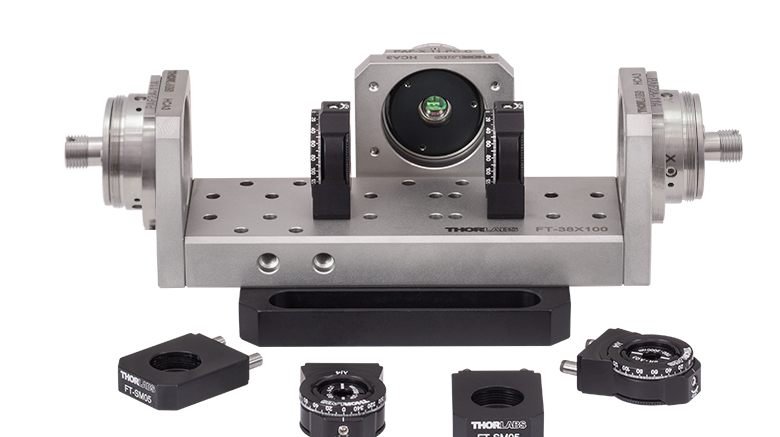

FiberBench Accessories
FiberPorts Optic Mounts Alignment Tools Polarizers
Beamsplitter Modules Mirror Modules Rotating Wave Plates FiberBenches

Multi-Axis FiberBenches: Optical Beam Diagrams

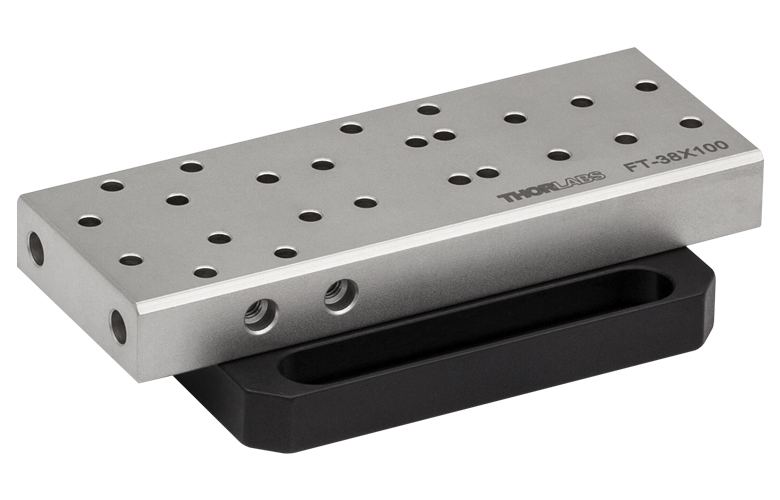

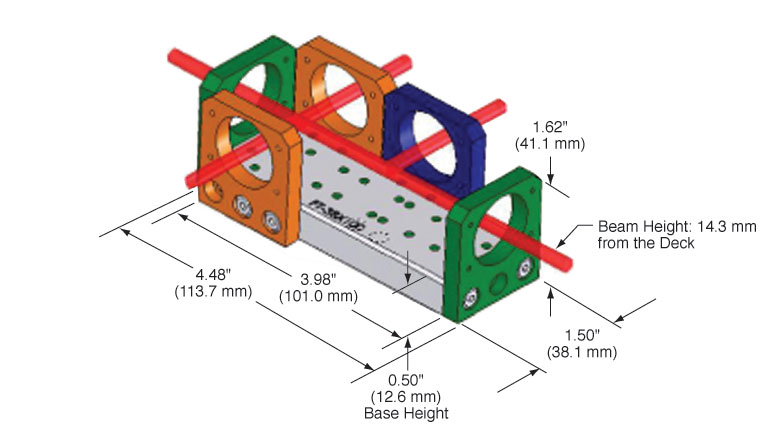

Multi Axis FiberBench, 38 x 100 mm, 5-Port
FT-38X100, 5-Port
Click for Details
Multi Axis FiberBench, 38 x 135 mm, 5-Port
FT-38X135, 5-Port
Click for Details

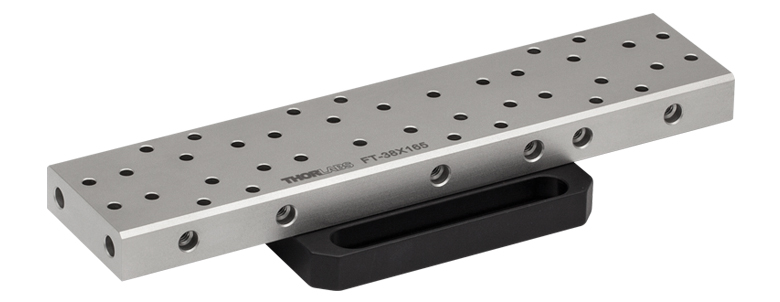

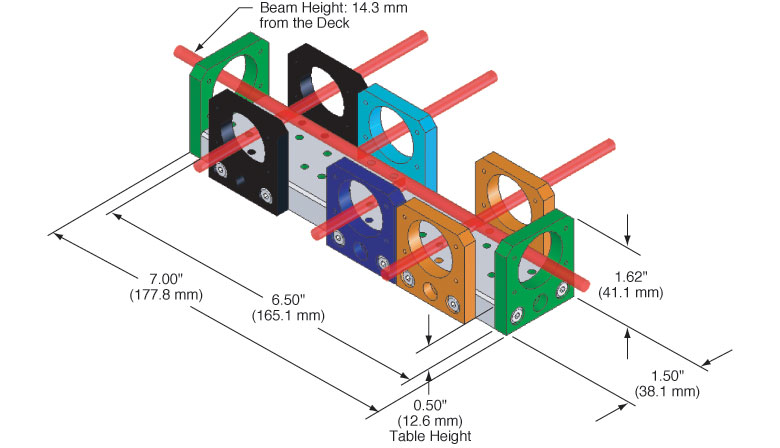

Multi Axis FiberBench, 38 x 165 mm, 8-Port
FT-38X165, 8-Port
Click for Details
Multi Axis FiberBench, 38 x 229 mm, 8-Port
FT-38X229, 8-Port
Click for Details

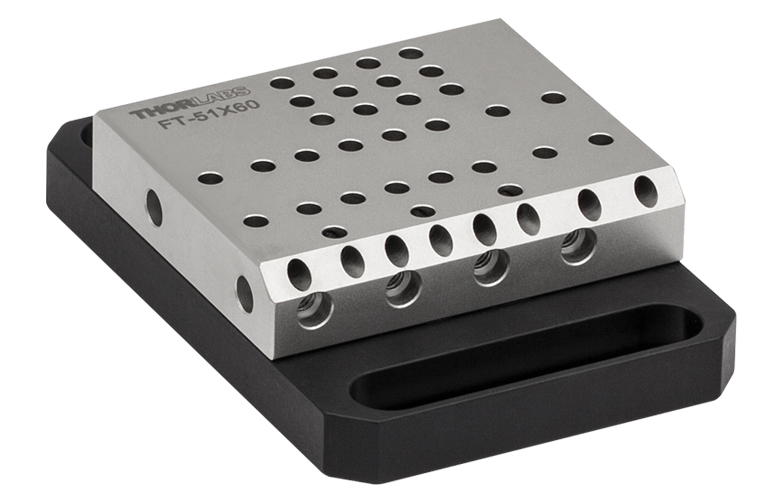

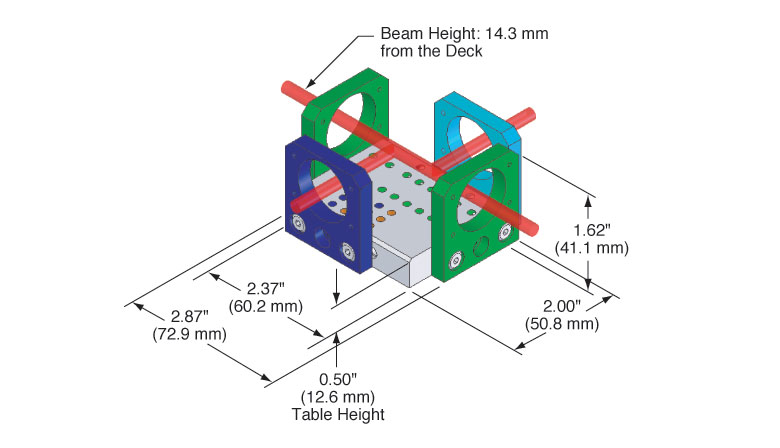

Multi Axis FiberBench, 51 x 60 mm, 4-Port
FT-51X60, 4-Port
Click for Details

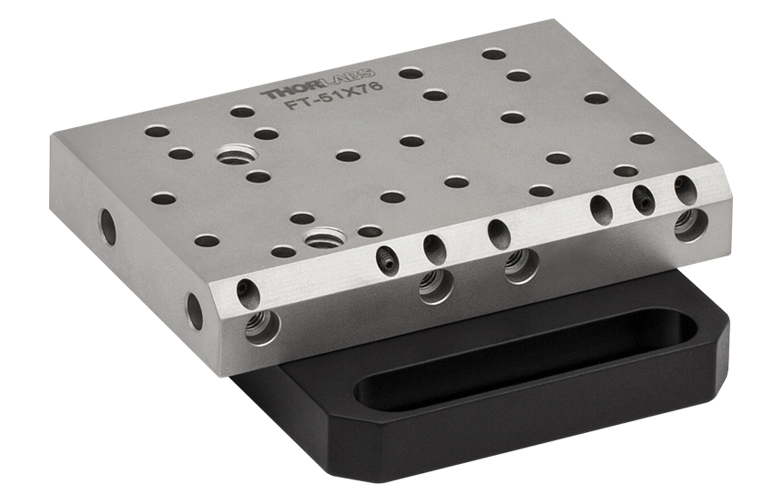

Multi Axis FiberBench, 51 x 76 mm, 6-Port
FT-51X76, 6-Port
Click for Details
Multi Axis FiberBench, 102 x 102 mm, 8-Port
FT-100X100, 8-Port
Click for Details
Multi Axis FiberBench, 114 x 149 mm, 10-Port
FT-114X149, 10-Port
Click for Details

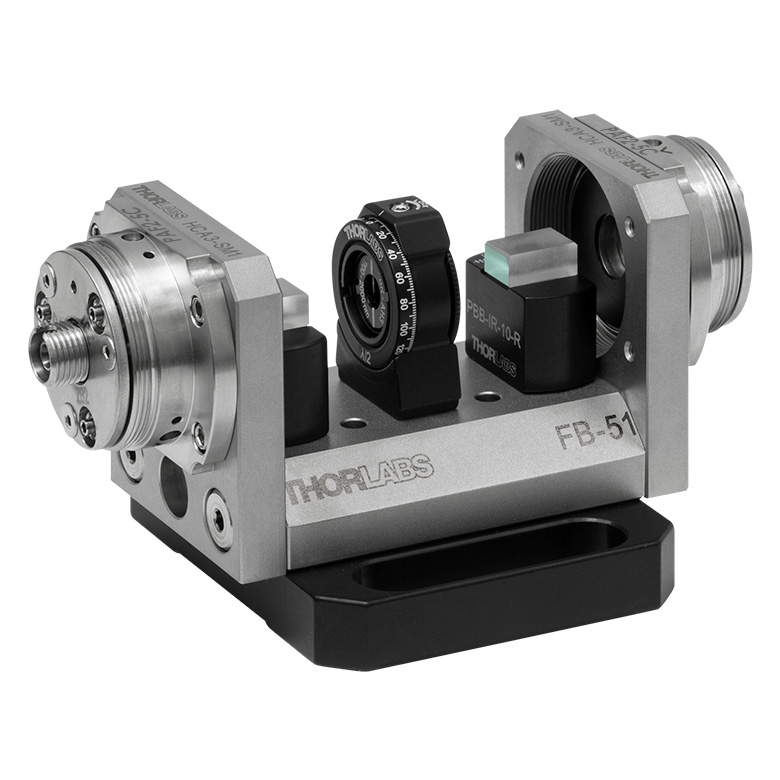

Variable Optical Attenuator Application

A continuously variable attenuator can be assembled using the FiberBench components listed in the table below. The FiberPort collimates the beam from a SM or PM fiber, and the collimated beam then goes through a calcite beam displacerwhere it is split into its respective horizontal (P) and vertical (S) components. The orientation of the wave plate controls how much energy is in the beam. It can be rotated to give the desired attenuation - zero, partial, or full. The signal then enters a reversed calcite beam displacer where it will be recombined or further separated. The only energy that will couple back into the output fiber is the signal on the central axis. The central beam will then be focused into the output fiber by the output PAF FiberPort.

Item #QtyDescription
PBB-IR-10-L 1 Calcite Beam Displacer (Left-Handed)
PBB-IR-10-R 1 Calcite Beam Displacer (Right-Handed)
PAF-X-2-C 2 Fiber Collimator/Coupler
FB-51W 1 FiberBench
RABH-1600 1 Rotating Half-Wave Plate
P1-830A-FC-2 (or similar cable) 2 SM or PM Fiber Patchcord Required
Zero Attenuation
Click to Enlarge

The RABH wave plate is rotated so that there is only one output beam; this also means that the input and output polarizations are the same.
Partial Attenuation
Click to Enlarge

The RABH wave plate is rotated so that there are three output beams. The RABH orientation will control how much energy is in each beam. The only energy that will couple into the fiber is the energy in the central beam. The attenuation range is 1 to 40 dB with any value in between.
Full Attenuation
Click to Enlarge

The RABH wave plate is rotated so that there are two output beams, which will be displaced to the left and to the right of the center. In this position, there will be minimal coupling efficiency, resulting in a maximum attenuation of 40 dB.

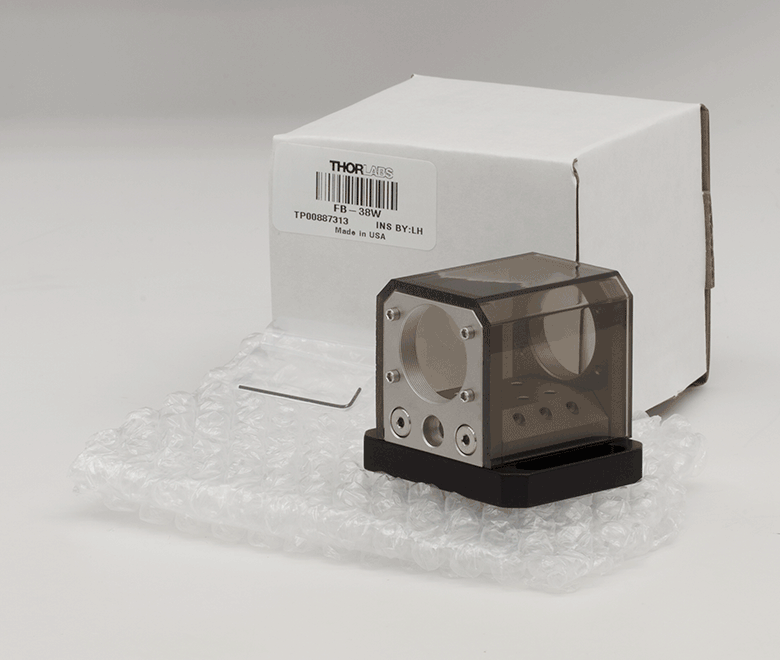

FB-38W SmartPack Packaging
Click to Enlarge

FB-38W Packaging

Smart Pack

Item #% Weight
Reduction
CO2-Equivalent
Reductiona
FB-38W 55.61% 2.18 kg
FB-51W 46.44% 2.56 kg
FB-76W 21.19% 1.31 kg
FT-51X60 25.55% 0.96 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part NumberProduct Description

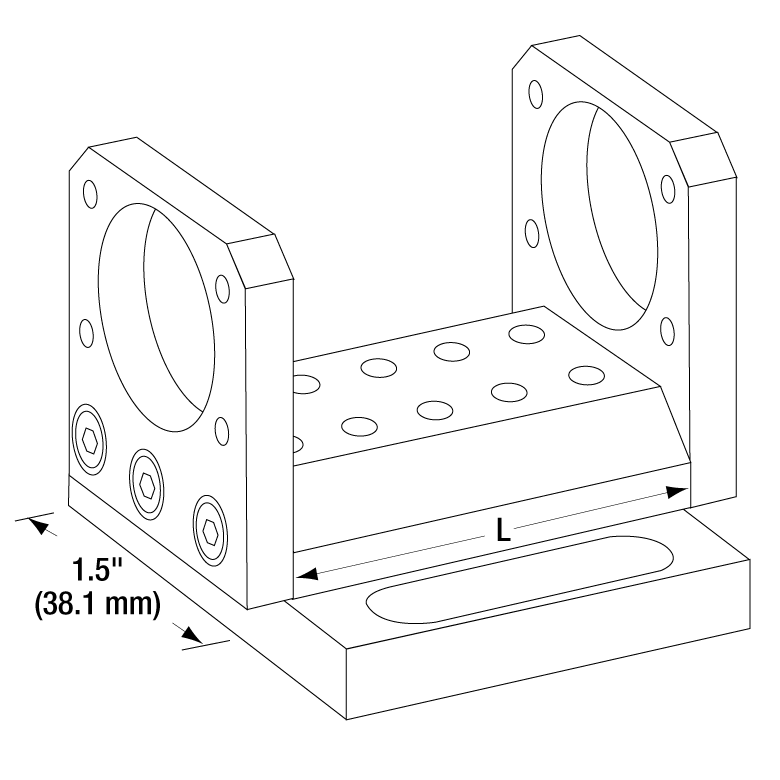

FB-38 Support Documentation FB-38:Single-Axis FiberBench, L = 38 mm, 3 Positions
FB-38W Support Documentation FB-38W:Single-Axis FiberBench with Wall Plates and Dust Cover , L = 38 mm, 3 Positions

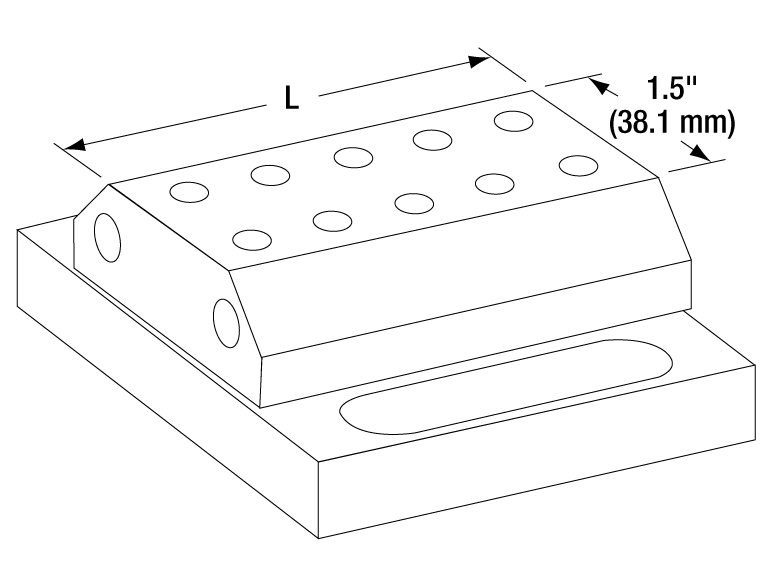

FB-51 Support Documentation FB-51:Single-Axis FiberBench, L = 51 mm, 5 Positions
FB-51W Support Documentation FB-51W:Single-Axis FiberBench with Wall Plates and Dust Cover, L = 51 mm, 5 Positions

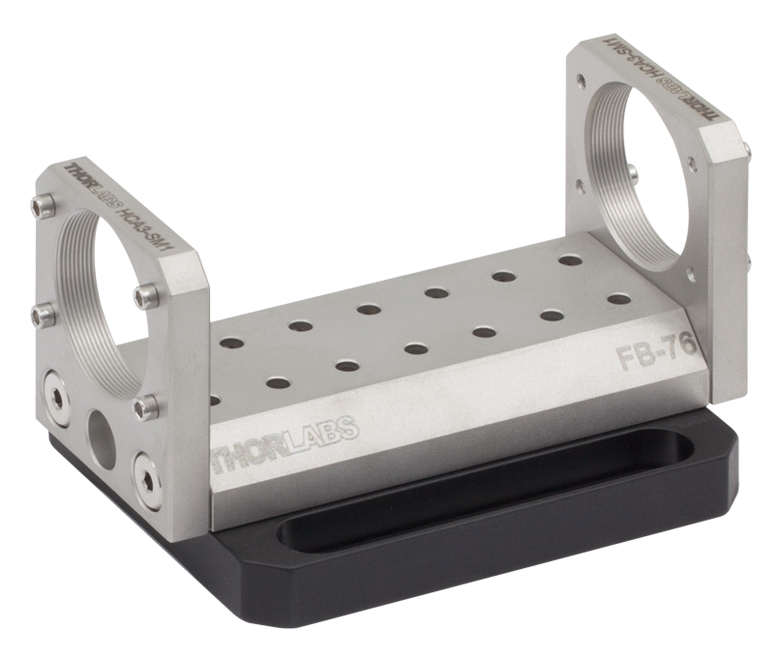

FB-76 Support Documentation FB-76:Single-Axis FiberBench, L = 76 mm, 7 Positions
FB-76W Support Documentation FB-76W:Single-Axis FiberBench with Wall Plates and Dust Cover, L = 76 mm, 7 Positions
FT-100X100 Support Documentation FT-100X100:Multi-Axis FiberBench, 4" x 4" (101.6 mm x 101.6 mm), 8 Ports, 24 Positions
FT-114X149 Support Documentation FT-114X149:Multi-Axis FiberBench, 114 mm x 149 mm, 10 Ports, 24 Positions
FT-38X100 Support Documentation FT-38X100:Multi-Axis FiberBench, 38 mm x 100 mm, 5 Ports, 12 Positions
Part NumberProduct Description
FT-38X135 Support Documentation FT-38X135:Multi-Axis FiberBench, 38 mm x 135 mm, 5 Ports, 14 Positions
FT-38X165 Support Documentation FT-38X165:Multi-Axis FiberBench, 38 mm x 165mm, 8 Ports, 19 Positions
FT-38X229 Support Documentation FT-38X229:Multi-Axis FiberBench, 38 mm x 229 mm, 8 Ports, 21 Positions
FT-51X60 Support Documentation FT-51X60:Multi-Axis FiberBench, 51 mm x 60 mm, 4 Ports, 16 Positions
FT-51X76 Support Documentation FT-51X76:Multi-Axis FiberBench, 51 mm x 76 mm, 6 Ports, 12 Positions
HCA3 Support Documentation HCA3:FiberBench Wall Plate, FiberPort Compatible
HCA3-SM05 Support Documentation HCA3-SM05:FiberBench Wall Plate, 16 mm Cage System Compatible, Internally SM05-Threaded
HCA3-SM1 Support Documentation HCA3-SM1:FiberBench Wall Plate, FiberPort Compatible, Internally SM1-Threaded

Please Give Us Your Feedback

Email Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Hereif you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?   Little Use  1234Very Useful

Enter Comments Below:

Characters remaining8000
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
100x100  114x149  1x2 splitter  1x6 splitter  38x135  38x165  38x229  51x60  51x76  anti  antireflection  apc  ar  axis  based  bench  bench pump amplifier  breadboard  coated  collimate  collimator  connector  connectorized  corner  coupler  Coupling  custom  dowel  fc  fc/apc  fc/pc  fiber  fiber-based  Fiberbench  fiberoptic  fiberport  fibertable  fibre  fibreoptic  free  freespace  ft 100x100  ft 114x149  ft 38x229  ft 51x60  ft 51x76  ft100x100  ft114x149  ft38x135  ft38x165  ft38x229  ft51x60  ft51x76  injection locking or as a beam tap  laser  launch  lens  lense  mach zehnder  mach zehnder interferometer  mack zender  mini  miniature  mm  mode  modular  mount  multi  multiaxis  multi-axis  multimode  multi-mode  nm  optic  optical  optics  opto  optomech  paf  Pair  pc  pins  plate  platform  pm  port  prototype  prototyping  QKD  QKD application  rapid  reflection  single  singleaxis  single-axis  sm  sm05  sm1  sma  small  space  table  thread  wall  wavelength
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
FB-38 Support Documentation
FB-38Single-Axis FiberBench, L = 38 mm, 3 Positions
$119.65
Today
FB-51 Support Documentation
FB-51Single-Axis FiberBench, L = 51 mm, 5 Positions
$130.05
Today
FB-76 Support Documentation
FB-76Single-Axis FiberBench, L = 76 mm, 7 Positions
$160.00
Today

Single-Axis FiberBenches with Wall Plates

*Dust Cover Included but Not Shown

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
FB-38W Support Documentation
FB-38WSingle-Axis FiberBench with Wall Plates and Dust Cover , L = 38 mm, 3 Positions
$213.28
Today
FB-51W Support Documentation
FB-51WSingle-Axis FiberBench with Wall Plates and Dust Cover, L = 51 mm, 5 Positions
$223.69
Today
FB-76W Support Documentation
FB-76WSingle-Axis FiberBench with Wall Plates and Dust Cover, L = 76 mm, 7 Positions
$245.00
Today

Multi-Axis FiberBenches

Multi Axis FiberBench, 38 x 100 mm, 5
FT-38X100
5 Ports
12 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 38 x 135 mm, 5
FT-38X135
5 Ports
14 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 38 x 165 mm
FT-38X165
8 Ports
19 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 38 x 229 mm
FT-38X229
8 Ports
21 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 51 x 60 mm
FT-51X60
4 Ports
16 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 51 x 76 mm
FT-51X76
6 Ports
12 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 102 x 102 mm
FT-100X100
8 Ports
24 Mounting Positions
Click to Enlarge
Multi Axis FiberBench, 114 x 149 mm
FT-114X149
10 Ports
24 Mounting Positions
Click to Enlarge

Please See the Additional Info Tab for Optical Beam Diagrams

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
FT-38X100 Support Documentation
FT-38X100Multi-Axis FiberBench, 38 mm x 100 mm, 5 Ports, 12 Positions
$198.90
Today
FT-38X135 Support Documentation
FT-38X135Multi-Axis FiberBench, 38 mm x 135 mm, 5 Ports, 14 Positions
$244.80
Today
FT-38X165 Support Documentation
FT-38X165Multi-Axis FiberBench, 38 mm x 165mm, 8 Ports, 19 Positions
$280.50
Today
FT-38X229 Support Documentation
FT-38X229Multi-Axis FiberBench, 38 mm x 229 mm, 8 Ports, 21 Positions
$331.50
Today
FT-51X60 Support Documentation
FT-51X60Multi-Axis FiberBench, 51 mm x 60 mm, 4 Ports, 16 Positions
$209.10
Today
FT-51X76 Support Documentation
FT-51X76Multi-Axis FiberBench, 51 mm x 76 mm, 6 Ports, 12 Positions
$255.00
Today
FT-100X100 Support Documentation
FT-100X100Multi-Axis FiberBench, 4" x 4" (101.6 mm x 101.6 mm), 8 Ports, 24 Positions
$306.00
Today
FT-114X149 Support Documentation
FT-114X149Multi-Axis FiberBench, 114 mm x 149 mm, 10 Ports, 24 Positions
$357.00
Today

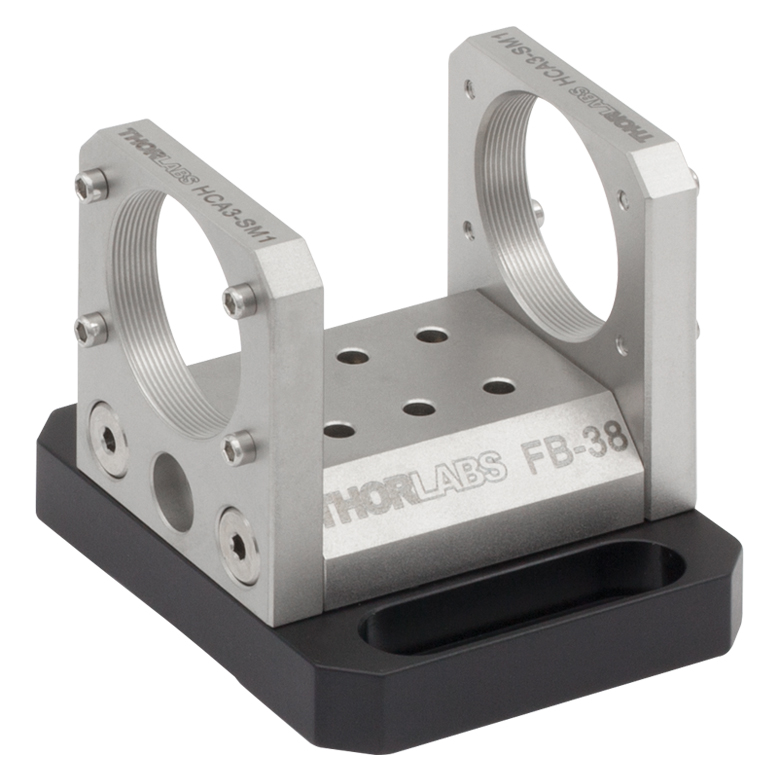

FiberBench Wall Plates


Click to Enlarge

FiberBench with HCA3 Wall Plates
and FiberPort

Click to Enlarge

FiberBench with FiberPort,
HCA3-SM05 Wall Plate,
16 mm Cage System, and Ø1/2" Lens Tube

These wall plates can be attached to the sides of a FiberBench using the two included 8-32 mounting screws. The HCA3 and HCA3-SM1 are used to mount FiberPorts to FiberBenches using the four included 2-56 screws (see photo to the right). The HCA3-SM05 features four 4-40 taps and is internally SM05 (0.535"-40) threaded for compatibility with our 16 mm Cage System and Ø1/2" Lens Tubes, respectively (see photo to ther right). The HCA3-SM1 is internally SM1 (1.035"-40) threaded for compatibility with our Ø1" Lens Tubes and other SM1-threaded devices such as Thorlabs' Photodetectors. Each wall plate includes screws for mounting to our FiberBenches and the SM-threaded wall plates each include one retaining ring.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
HCA3 Support Documentation
HCA3Customer Inspired!FiberBench Wall Plate, FiberPort Compatible
$53.04
Today
HCA3-SM05 Support Documentation
HCA3-SM05FiberBench Wall Plate, 16 mm Cage System Compatible, Internally SM05-Threaded
$59.16
Today
HCA3-SM1 Support Documentation
HCA3-SM1FiberBench Wall Plate, FiberPort Compatible, Internally SM1-Threaded
$59.16
Today
