Fiber Optic Termination Tools

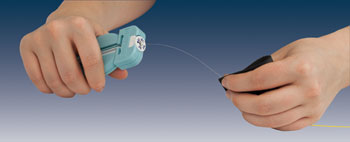

T12S16 Stripping Tool shown with BFG1 Fiber Gripper
Features- Foolproof, No-Nick Design
- Fast, Reliable Fiber Stripping
- Self-Aligning Blade Set Assures Concentric Scoring of Buffer or Coating
- Color-Coded Blades
- Blades are Long-Lasting and Swappable
These fiber buffer stripping tools provide a quick, easy, and reliable way to remove the buffer from an optical fiber in preparation for connectorization. A fiber guide and matched blades ensure that the optical fiber is correctly positioned and stripped each time. The blades are color coded to allow for fast identification of the proper fiber stripping tool. All fiber stripping tools include the BFG1 bare fiber gripper. Fiber Gripper
The BFG1 bare fiber gripper is an ideal aid when removing buffer from an optical fiber. The textured rubber material of this gripper provides a secure hold without damaging the fiber. This method of gripping is recommended over wrapping or clamping the loose end of the fiber, techniques which can create microfractures in the fiber.
|
| Tool Selection |
|---|
Step 1: Note your cladding and coating diameters along with their respective ± tolerances.
Step 2: Look down the second column of the table below for your fiber size.
Step 3: With your fiber size identified in the chart below, scan across to the corresponding 'Cladding Range' and 'Coating Range' columns. Ensure that your fiber dimensions ± tolerances fall within the range listed. If they do, then refer to the corresponding Item # to place your order. If the maximum fiber dimensions fall outside the range shown, go to the next larger tool. | | Item # | Typical Fiber
Cladding/Coating | Cladding Range | Coating Range* |
|---|
| T04S10 | 80 µm / 170 µm | 65 - 80 µm | 150 - 250 µm | | T06S13 | 125 µm / 250 µm | 125 - 135 µm | 250 - 343 µm | | T06S16 | 125 µm / 400 µm | 125 - 135 µm | 343 - 407 µm | | T08S13 | 125 µm / 250 µm | 125 - 175 µm | 250 - 343 µm | | T08S40 | 125 µm / 900 µm | 125 - 175 µm | 889 - 1016 µm | | T10S13 | 200 µm / 300 µm | 180 - 230 µm | 250 - 343 µm | | T12S16 | 230 µm / 400 µm | 235 - 280 µm | 343 - 407 µm | | T12S18 | 230 µm / 430 µm | 235 - 280 µm | 407 - 457 µm | | T12S21 | 230 µm / 500 µm | 235 - 280 µm | 457 - 533 µm | | T12S25 | 230 µm / 600 µm | 235 - 280 µm | 533 - 635 µm | | T14S21** | 285 µm / 500 µm | 285 - 330 µm | 457 - 533 µm | | T16S31 | 325 µm / 650 µm | 335 - 380 µm | 635 - 787 µm | | T18S31 | 400 µm / 730 µm | 385 - 430 µm | 635 - 787 µm | | T21S31 | 425 µm / 730 µm | 435 - 500 µm | 635 - 787 µm | | T23S31 | 500 µm / 730 µm | 505 - 550 µm | 635 - 787 µm | | T23S46 | 500 µm / 1000 µm | 505 - 550 µm | 1016 - 1168 µm | | T28S46 | 630 µm / 1040 µm | 605 - 680 µm | 1016 - 1168 µm | | M37S46 | 830 µm / 1040 µm | 835 - 900 µm | 1016 - 1168 µm | | M37S63 | 830 µm / 1400 µm | 835 - 900 µm | 1397 - 1600 µm | | M44S63 | 1035 µm / 1400 µm | 905 - 1050 µm | 1397 - 1600 µm | | M44S67 | 1035 µm / 1600 µm | 905 - 1050 µm | 1600 - 1702 µm | | M54S76 | 1240 µm / 1650 µm | 1055 - 1350 µm | 1778 - 1930 µm | | M63S86 | 1550 µm / 2000 µm | 1390 - 1600 µm | 2057-2184 µm |
*Coating refers to the jacket, buffer, or coating that is being removed.
**T14S21 is the only strip tool compatible with BFL48-200 and BFH48-200 fiber.
|
Loading...
|
Fiber Connector Crimp Tool
This fiber connector crimp tool can be used for crimping SMA, FC, SC, and ST connectors. The crimp tool featured here has hex crimp sizes of: 0.128", 0.151", 0.178", 0.197", and 0.215". Connectors with Ø3 mm or greater tubing require the crimp tool. The Ø900 μm tubing or smaller does not need to be crimped.
|
Loading...
|
Kevlar Cutting Shears
The T865 cutting shears have carbon steel serrated blades that are specifically designed to cut through Kevlar fibers. The serrated blade keeps the Kevlar fibers from sliding along the blades as the shears are being closed, which allows the Kevlar fibers to be cut easily. It is important to only use the T865 cutting shears for cutting Kevlar, any other material, including the silica fiber itself, can potentially damage to the precision edge of the blades and make them less effective in cutting Kevlar. These shears also feature padded handles that have a return sping. Adjustable Fiber Buffer and Jacket Stripping Tool
The AFS900 stripping tool is a versatile tool capable of stripping both the fiber jacket (furcation tubing) and fiber buffer. The blades have a V-groove slot to precisely hold the fiber in the proper position as the stripping tool is closed. The AFS900 has an adjustable blade stop that can be used to ensure that the optical fiber is not cut when stripping the jacket or buffer. This tool is often used when stripping Ø900 µm fiber jacket (tight or loose) or a Ø250 µm buffer off of a Ø125 µm clad fiber. Because of the delicate nature of fiber, we recommend that when the AFS900 is used to strip fiber buffer that the stop be properly set and then to dedicate the tool for that purpose. Also available (see above) are fiber buffer stripping tools with blades that are dedicated for use with specific fiber cladding and buffer diameters. Stripping Tool for Ø3 mm and Ø3.8 mm Furcation Tubing
The FTS3 will provide precise cuts through Ø3 mm and Ø3.8 mm furcation tubing. Simply set the depth of the dual cutting blades before placing the cutting tool around the fiber. Then spin the tool around the fiber several times. This results in two precise cuts through the tubing. The furcation tubing between the two cuts can then be removed by using the blade at the end of the FTS3 to make a precise cut through the tubing along the length of the fiber. Each FTS3 also comes with a blade that has a rounded tip. Long cuts along the length of the fiber can be made through the furcation tubing by swapping the blade at the end of the FTS3 with the rounded blade. Simply place the fiber in the end V-grove, press the blade through the furcation tubing, and then draw the fiber through the tool. Replacement blades (FTS3B) are available for the FTS3 stripping tool. Each FTS3B contains three straight blades plus the round tipped blade. Three-Hole Fiber Stripping Tool
The FTS4 fiber stripping tool performs all common fiber stripping functions. The first hole, indicated by the 1 in the photo to the right, strips the Ø1.6 - 3 mm fiber jacket down to the Ø600 - 900 µm buffer coating. The second hole strips the Ø600 - 900 µm buffer coating down to the Ø250 µm coating. The third hole is used to strip the Ø250 µm cable down to the glass fiber without nicks or scratches. The handle is made of TPR (Thermoplastic Rubber) and the tool is 6" long from the tip of the blade to the end of the handle. This fiber stripper is preset at the factory and cannot be adjusted or calibrated. The stripping tool should be periodically checked for proper operation, and can be cleaned with a fine plastic bristled brush to remove debris from the openings. The openings can also be cleaned with dry compressed air CA3. Fiber Gripper
The BFG1 bare fiber gripper is an ideal aid when removing buffer from an optical fiber. The textured rubber material of this gripper provides a secure hold without damaging the fiber. This method of gripping is recommended over wrapping or clamping the loose end of the fiber, techniques which can create microfractures in the fiber.
|
Loading...
|
Features- Safe Solution for Disposing of Cleaved Fiber Ends
- One Circular and One Rectangular Covered Hole in Lid
- Dimensions (L x W x H): 2.75" x 2.75" x 6" (6.99 cm x 6.99 cm x 15.24 cm)
- Disposable: Do Not Reuse
The FTDU offers a safe solution for disposal of cleaved fiber ends, epoxy and syringes, and other sharp objects. This high-density polyethylene (HDPE) bottle features a translucent lid with one circular and one rectangular hole in it (see the photo to the right). Both of these holes have individual covers that snap closed to keep the contents inside the unit. Tabs on the side of the lid hold the covers open for hands-free use. The two hole covers are connected by a plastic tab. Cut, or pull, the covers apart to use the holes separately. To use, insert sharps into one of the holes in the lid. Do not remove the lid itself from the unit. Use the "Contents" space on the label to clearly indicate what is inside. To protect agianst spills, keep the holes covered when not inserting sharps. When it is full, securely cover both holes in the lid by inserting the tab on the cover into the slot in the lid and dispose of the canister according to the contents. Do not fill the sharps container past the indicated "Full" line on the label. Do not reuse this unit; it is a one-time-use container only.
|
Loading...
|
Additional Fiber Termination and Connectorization
|
