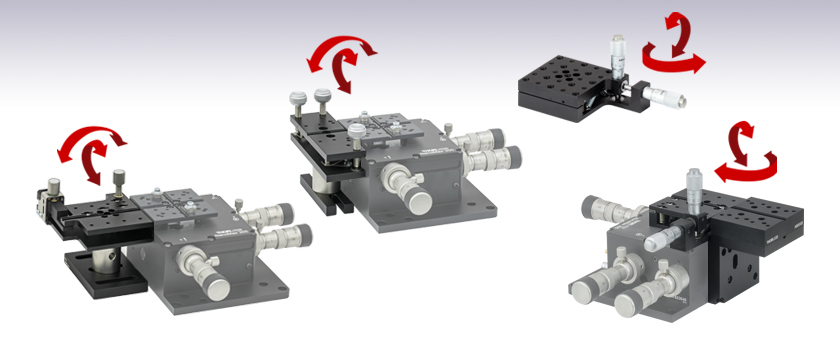

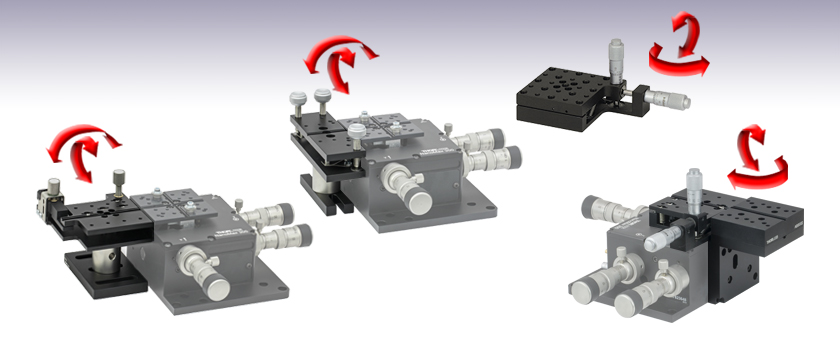

Flexure Stage Accessories: Yaw, Pitch, Roll, & Translation


Related Items

Compact 5-Axis Platform

5 Axis Mount with Flexure Stage
Click to Enlarge

PY005 with PY005A2 Pedestal Base and MMP1 Top Plate Used with a 3-Axis Flexure Stage for Fiber Coupling

Features

  • Compact Platform with Five Degrees of Freedom
  • 100 TPI Adjusters
  • ±5° Yaw Adjustment, ±3.5° Pitch Adjustment, 0.12" (3 mm) Linear Translation (X, Y, and Z)
  • 2.46" (62.5 mm) Deck Height When Used with the MMP1(/M) Top Plate and PY005A2(/M) Pedestal Mounting Adapter
  • Compatible with Our 3-Axis Flexure Stages

The PY005(/M) stage provides five axes of adjustment in an ultra-compact package. It has five 100 TPI actuators which can adjust the pitch, yaw, and X, Y, and Z positions of the stage's top plate. Two actuators together control yaw and Y axes, two actuators together control pitch and Z axes, and a single actuator controls the X translation. The actuators have a 5/64" (2 mm) hex for adjustments with a hex key or our HKTS-5/64 hex key thumbscrews.

The PY005A2(/M) pedestal adapter and MMP1(/M) top plate allow the PY005(/M) to be used with our line of 3-axis flexure stages, as shown to the right. When both mounting adapters are used together, the MMP1(/M) plate is positioned with a deck height of 2.46" (62.5 mm) with the Z-axis translation of the PY005(/M) at the middle of its travel range.

The flexible mounting options of the PY005(/M) 5-axis positioner allows a variety of other components to be attached. Click here for more details.

PY005(/M) Specifications
Travel Ranges
X, Y, and Z0.12" (3.0 mm)
Yaw±5°
Pitch±3.5°
Resolution
X146.5 µm/rev
Y254.0 µm/rev
Z146.5 µm/rev
Yaw6.25 mrad/rev
Pitch2.90 mrad/rev
Maximum Load
Platform Mounted Horizontally0.5 lb (0.23 kg)
General Specifications
Dimensions2.36" x 2.15" x 1.08"a
(59.9 mm x 54.7 mm x 27.3 mma)
Actuators5 x 100 TPI
Top Plate
Mounting Holes
PY005
PY005/M
  • Height is a nominal value.
Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
MMP1 Support Documentation MMP1 : Replacement Mounting Plate for Flexure Stages
MMP1/M Support Documentation MMP1/M : Replacement Mounting Plate for Flexure Stages, Metric
PY005 Support Documentation PY005 : Compact Five-Axis Platform
Part Number Product Description
PY005/M Support Documentation PY005/M : Compact Five-Axis Platform, Metric
PY005A2 Support Documentation PY005A2 : Pedestal Mounting Adapter for PY005 5-Axis Platform
PY005A2/M Support Documentation PY005A2/M : Pedestal Mounting Adapter for PY005/M 5-Axis Platform, Metric

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
No Comments Posted
No tags entered
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
PY005 Support Documentation
PY005 Compact Five-Axis Platform
$379.00
3-5 Days
PY005A2 Support Documentation
PY005A2 Pedestal Mounting Adapter for PY005 5-Axis Platform
$50.00
Today
MMP1 Support Documentation
MMP1 Replacement Mounting Plate for Flexure Stages
$69.36
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
PY005/M Support Documentation
PY005/M Compact Five-Axis Platform, Metric
$379.00
Today
PY005A2/M Support Documentation
PY005A2/M Pedestal Mounting Adapter for PY005/M 5-Axis Platform, Metric
$50.00
Today
MMP1/M Support Documentation
MMP1/M Replacement Mounting Plate for Flexure Stages, Metric
$69.36
Lead Time

Roll and Pitch Tilt Platform

SpecificationValue
Travel Range+4°/-8° per Axis
Resolution10 arcsec
Tilt Platform Thickness24 mm
AMA027

Features

  • Roll & Pitch Platform
  • Height can be Varied by ±4 mm
  • Adds Two Additional Degrees of Freedom to a 3-Axis Flexure Stage System

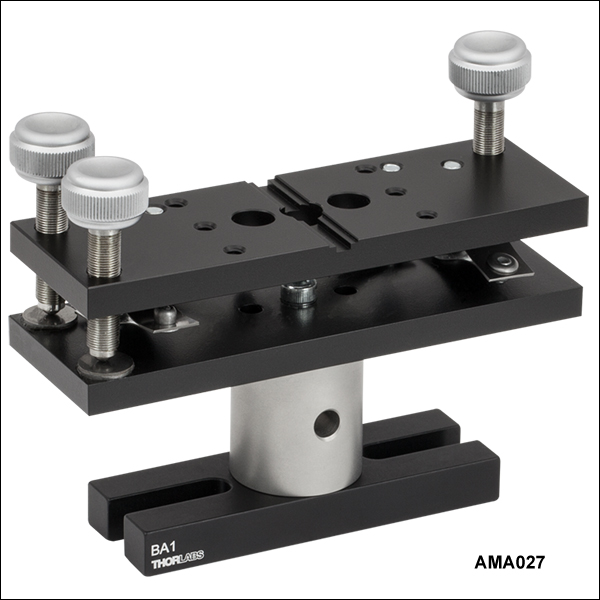

The AMA027 is intended to allow an angled optical component to be positioned in front of one of our 3-Axis flexure stages. This add-on stage provides pitch and roll adjustment using the two labeled thumbscrews indicated in the photograph. Both the roll and pitch adjustment provide -8º/+4° of range and use of all three adjusters allows for the adjustment of the overall height of the platform. The amount of height adjustment ranges from -1 mm to +4 mm around the nominal height of 62.5 mm for the entire assembly.

Although it was designed for use with our family of three axis flexure stages; RollerBlock™, MicroBlock™ and NanoMax300™, this same Roll and Pitch device is also available for use with our 4, 5, and 6-Axis stages by substituting the Ø1" post included with the platform for a longer one.

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
AMA027 Support Documentation AMA027 : Adjustable Height, Pitch and Roll Platform
AMA027/M Support Documentation AMA027/M : Adjustable Height, Pitch and Roll Platform

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
2 axis platform   flexure accessory   Pitch   pitch & roll   pitch and roll   pitch roll   pitch roll platform   Roll
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
AMA027 Support Documentation
AMA027 Adjustable Height, Pitch and Roll Platform
$290.80
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
AMA027/M Support Documentation
AMA027/M Adjustable Height, Pitch and Roll Platform
$290.80
Today

Pitch and Roll Platform, Thumbscrew Drives

SpecificationValue
Travel Range±4 Degrees/Axis
Resolution10 arcsec
Tilt Platform Thickness19 mm
Tilt Platform Weight
(No Post)
0.37 lbs

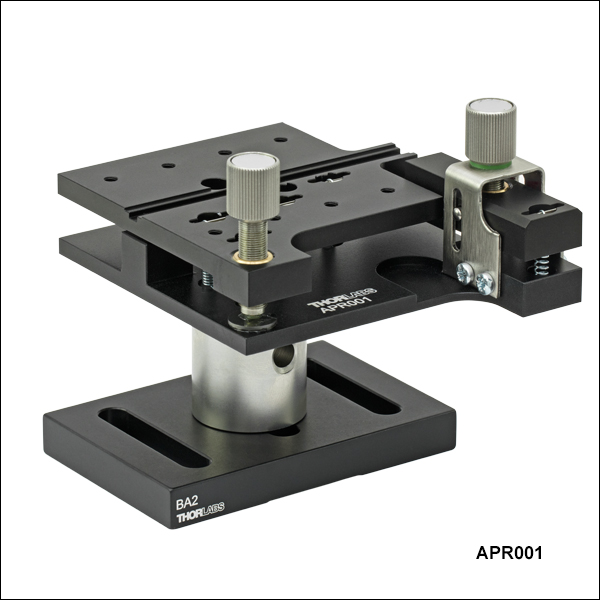

The APR001 provides pitch and roll adjustment about the optical axis. It was designed for use with our NanoMax, MicroBlock, and RollerBlock families of 3-Axis Stages and provides a cost efficient upgrade to 5-axis positioning. The thumbscrew drives allow adjustment up to ±4° per axis with an accuracy of 10 arcsec.

Typical applications include angled pigtails and placement of components requiring only moderate resolution and manual adjustment on the angular axes. All standard Nanopositioning accessories may be fitted to the platform by means of the keyway interface.

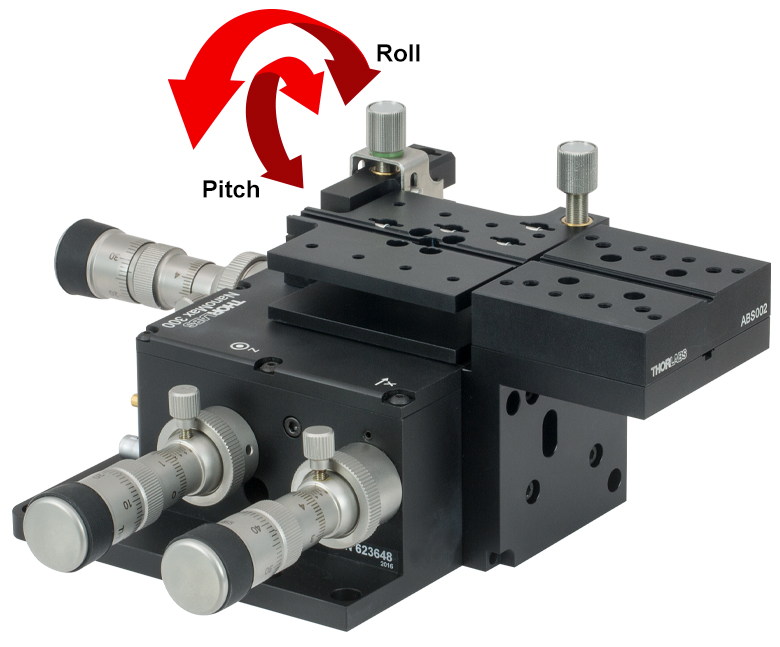

2-Axis Platform

The APR001 comprises a pitch and roll platform together with a mounting post. The post is mounted directly to an optical table such that the top surface of the platform is at the proper beam height when placed in front of the Stage.

Mating components can then be attached to the platform and adjusted in roll & pitch.

The mounting post included produces an optical height of 75 mm (62.6 mm post plus 12.5 mm accessory height). The photo to the right shows the APR001 mounted in front of our NanoMax 3-axis flexure stage.


2-Axis Platform

Alternatively, the pitch and roll platform can be removed from the post, and fixed directly to the stage, in place of the standard top plate. This allows components mounted on the stage to be adjusted in roll and pitch and raises the optical axis height by 15 mm, from 75 mm to 90 mm.

An angle bracket and spacer block kit is available separately (see below), which raises mating components to the same height. The photo to the left shows the APR001 fitted to a NanoMax stage, with the ABS002 Angle Bracket fitted to the side face.

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
ABS002 Support Documentation ABS002 : Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
ABS002/M Support Documentation ABS002/M : Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
APR001 Support Documentation APR001 : Pitch and Roll Tilt Platform with Thumbscrew Drives
APR001/M Support Documentation APR001/M : Pitch and Roll Tilt Platform with Thumbscrew Drives (Metric)

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
2 axis platform   adapter plate   angle bracket   flexure accessory   height adapter plate   NanoMax 600 Basic   Pitch   pitch & roll   pitch and roll   pitch roll   pitch roll platform   Roll   spacer block
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
APR001 Support Documentation
APR001 Pitch and Roll Tilt Platform with Thumbscrew Drives
$521.00
Today
ABS002 Support Documentation
ABS002 Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
$124.50
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
APR001/M Support Documentation
APR001/M Pitch and Roll Tilt Platform with Thumbscrew Drives (Metric)
$521.00
Today
ABS002/M Support Documentation
ABS002/M Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
$124.50
Today

Pitch and Yaw Platform, Thumbscrew Drives

SpecificationValue
Travel Range±4° per Axis
Resolution10 arcsec
Tilt Platform Thickness19 mm
Tilt Platform Weight
(No Post)
0.38 lbs

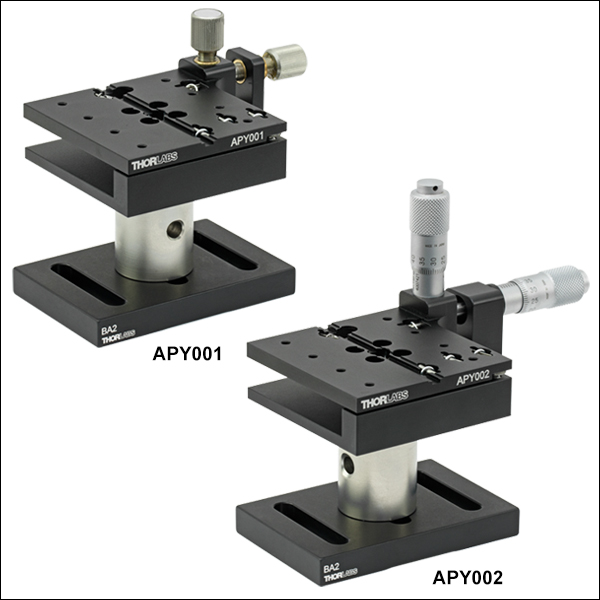

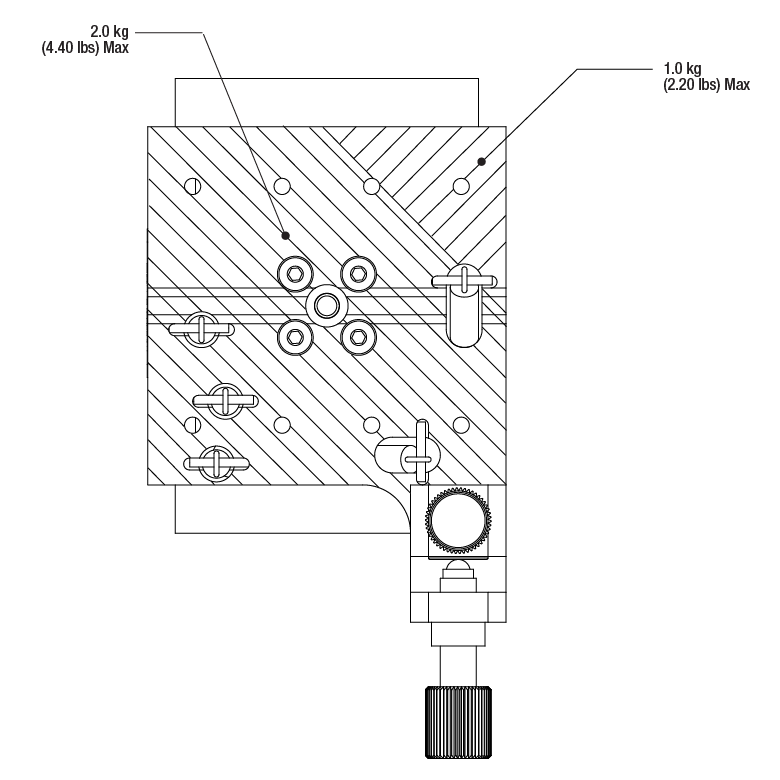

The APY001 provides pitch and yaw adjustment about the optical axis. It was designed for use with our NanoMax, MicroBlock, and RollerBlock families of 3-Axis Stages and provides a cost efficient upgrade to 5-axis positioning. The thumbscrew drives allow adjustment up to ±4° per axis with an accuracy of 10 arcsec.

Typical applications include angled pigtails and placement of components requiring only moderate resolution and manual adjustment on the angular axes. All standard Nanopositioning accessories may be fitted to the platform by means of the keyway interface.

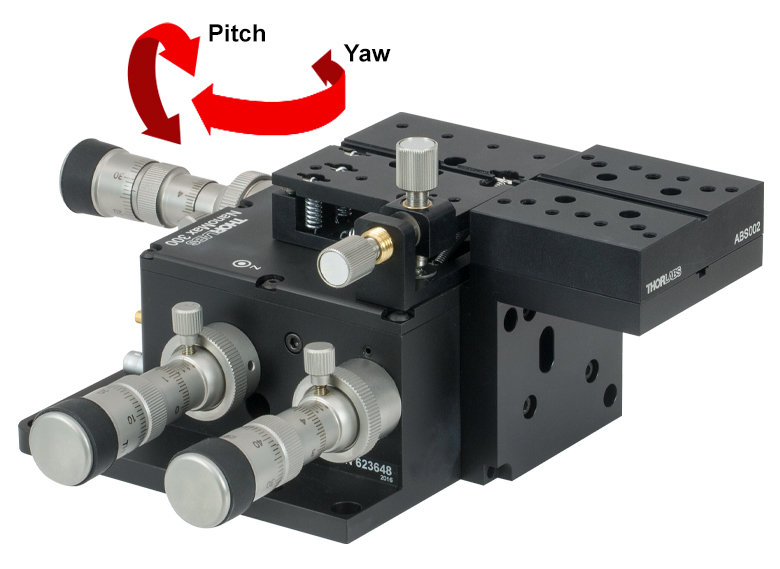

Pitch Yaw Platform

The APY001 comprises a pitch and yaw platform together with a mounting post. The post is mounted directly to an optical table such that the top surface is at the proper beam height when placed in front of the Stage.

Mating components can then be attached to the platform and adjusted in pitch and yaw.

The mounting post included produces an optical height of 75mm (62.6 mm post plus 12.5 mm accessory height). The photo to the right shows the APY001 mounted in front of our Microblock 3-axis flexure stage.


Pitch Yaw Platform

Alternatively, the pitch and yaw platform can be removed from the post, and fixed directly to the stage, in place of the standard top plate. This allows components mounted on the stage to be adjusted in pitch and yaw, and raises the optical axis height by 15 mm, from 75 mm to 90 mm.

An angle bracket and spacer block kit is available separately (see below), which raises mating components to the same height. The photo to the left shows the APY001 mounted to a NanoMax stage, with the ABS002 Angle Bracket fitted to the side face.

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
ABS002 Support Documentation ABS002 : Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
ABS002/M Support Documentation ABS002/M : Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
APY001 Support Documentation APY001 : Pitch and Yaw Tilt Platform with Thumbscrew Drives
APY001/M Support Documentation APY001/M : Pitch and Yaw Tilt Platform with Thumbscrew Drives (M)

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
2 axis platform   flexure accessory   Pitch   pitch & yaw   pitch and yaw   pitch roll platform   pitch yaw   Yaw
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
APY001 Support Documentation
APY001 Pitch and Yaw Tilt Platform with Thumbscrew Drives
$245.50
Today
ABS002 Support Documentation
ABS002 Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
$124.50
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
APY001/M Support Documentation
APY001/M Pitch and Yaw Tilt Platform with Thumbscrew Drives (M)
$245.50
Today
ABS002/M Support Documentation
ABS002/M Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
$124.50
Today

Pitch and Yaw Platform, Micrometer Drives

SpecificationValue
Travel Range±4° per Axis
Resolution10 arcsec
Pitch Movement1° = 0.86 mma
Yaw Movement1° = 0.91 mma
Tilt Platform Thickness19 mm
Tilt Platform Weight
(No Post)
0.38 lbs
  • As measured on the micrometer

The APY002 provides pitch and yaw adjustment about the optical axis. It was designed for use with our NanoMax, MicroBlock, and RollerBlock families of 3-Axis Stages and provides a cost efficient upgrade to 5-axis positioning. The micrometer drives offer precise control: 1° of pitch rotation relates to 0.86 mm micrometer movement (1 mm = 1.16°) while 1° of yaw rotation relates to 0.91 mm of micrometer movement (1 mm = 1.1°).

Typical applications include angled pigtails and placement of components requiring only moderate resolution and manual adjustment on the angular axes. All standard Nanopositioning accessories may be fitted to the platform by means of the keyway interface.


Pitch Yaw Platform

The APY002 comprises a pitch and yaw platform together with a mounting post.The post is mounted directly to an optical table such that the top surface is at the proper beam height when placed in front of the Stage.

Mating components can then be attached to the platform and adjusted in pitch and yaw.

The mounting post included produces an optical height of 75 mm (62.6 mm post plus 12.5 mm accessory height). The photo to the right shows the APY002 mounted in front of our Microblock 3-axis flexure stage.


Pitch Yaw Platform

Alternatively, the pitch and yaw platform can be removed from the post, and fixed directly to the stage, in place of the standard top plate. This allows components mounted on the stage to be adjusted in pitch and yaw, and raises the optical axis height by 15 mm, from 75 mm to 90 mm.

An angle bracket and spacer block kit is available separately (see below), which raises mating components to the same height. The photo to the right shows the APY002 mounted to a NanoMax stage, with the ABS002 Angle Bracket fitted to the side face.

Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
ABS002 Support Documentation ABS002 : Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
ABS002/M Support Documentation ABS002/M : Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
APY002 Support Documentation APY002 : Pitch & Yaw Tilt Platform with Micrometer Drives
APY002/M Support Documentation APY002/M : Pitch and Yaw Tilt Platform with Micrometer Drives (M)

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
No Comments Posted
Click on any phrase below to search our site using our new Search Engine:
2 axis platform   flexure accessory   Pitch   pitch & yaw   pitch and yaw   pitch roll platform   pitch yaw   Yaw
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
APY002 Support Documentation
APY002 Pitch & Yaw Tilt Platform with Micrometer Drives
$536.20
Today
ABS002 Support Documentation
ABS002 Large Angle Bracket and Spacer Block 77.5 Deck Height, (90mm Optical Height)
$124.50
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
APY002/M Support Documentation
APY002/M Pitch and Yaw Tilt Platform with Micrometer Drives (M)
$536.20
Today
ABS002/M Support Documentation
ABS002/M Large Angle Bracket and Spacer Block for 77.5 Deck Height, (90mm Optical Height)
$124.50
Today

Pitch and Yaw Accessory Platform

Micrometer Pitch Yaw Platform
Click to Enlarge

PY003 Platform Shown on a Ø1.5" Post and BA2 Base

Features

  • ±4° Total Tilt per Axis
  • 10 arcsec Resolution
  • Precision Micrometer Head Actuators
  • Adds Two Additional Degrees of Freedom to a 3-Axis Flexure Stage System

The PY003(/M) Tilt Platform provides ±4° of micrometer adjustment of both pitch and yaw. It is designed to offer a compact pitch- and yaw-adjustable mounting platform with both 1/4"-20 (M6) and 8-32 (M4) threaded mounting holes.

When used with a post assembly, this pitch and yaw platform can be mounted to an optical table such that the top surface is at the proper beam height for your application. For use with the Thorlabs NanoMax, MicroBlock, or RollerBlock three-axis stages, the post and base from the AMA029A post assembly provides a deck height of 62.5 mm. Other post assembly heights are also available.

Note. If your application requires a grooved top plate, for use with our extensive range of nanopositioning accessories (fiber holders, fiber chucks, fiber rotators, microscope objective holders etc.), please see the APY001 and APY002 detailed above.

Item #PY003
Degrees of Freedom2, Pitch and Yaw
Travel Range±4°
Minor GraduationsOne Per 57.6 arcsec.(Every 0.001" as Marked on the Micrometer)
Major GraduationsOne Per 24 arcmin (Every 0.025" as Marked on the Micrometer)
PY003 SmartPack Packaging
Click to Enlarge

PY003 Packaging

Smart Pack

Item #% Weight
Reduction
CO2-Equivalent
Reductiona
PY00321.64%6.56 kg
PY003/M21.64%6.13 kg

Smart Pack

  • Reduce Weight of Packaging Materials
  • Increase Usage of Recyclable Packing Materials
  • Improve Packing Integrity
  • Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at waste minimization while still maintaining adequate protection for our products. By eliminating any unnecessary packaging, implementing packaging design changes, and utilizing eco-friendly packaging materials for our customers when possible, this initiative seeks to improve the environmental impact of our product packaging. Products listed above are now shipped in re-engineered packaging that minimizes the weight and the use of non-recyclable materials.b As we move through our product line, we will indicate re-engineered packages with our Smart Pack logo.

  • Travel-based emissions reduction calculations are estimated based on the total weight reduction of packaging materials used for all of 2013’s product sales, traveling 1,000 miles on an airplane, to provide general understanding of the impact of packaging material reduction. Calculations were made using the EPA’s shipping emissions values for different modes of transport.
  • Some Smart Pack products may show a negative weight reduction percentage as the substitution of greener packaging materials, such as the Greenwrap, at times slightly increases the weight of the product packaging.
Click the Support Documentation icon document icon or Part Number below to view the available support documentation
Part Number Product Description
PY003 Support Documentation PY003 : Pitch and Yaw Accessory Tilt Platform w/ Micrometers
PY003/M Support Documentation PY003/M : Pitch and Yaw Accessory Tilt Platform w/ Micrometers

Please Give Us Your Feedback

Email   Feedback On
(Optional)
Contact Me:
Your email address will NOT be displayed.


Please type the following key into the field to submit this form:
Click Here if you can not read the security code.
This code is to prevent automated spamming of our site
Thank you for your understanding.


Would this product be useful to you?       Little Use    1 2 3 4 Very Useful

Enter Comments Below:

Characters remaining 8000
Posted Comments:
Poster: bdada
Posted Date: 2011-04-13 15:58:00.0
Response from Buki at Thorlabs to Harald: We have contacted you directly to determine the specific platform model for which you need load capacity. We are also working to add this information to our website. Please contact TechSupport@thorlabs.com if you have further questions.
Poster: harald.hovland
Posted Date: 2011-04-13 17:28:48.0

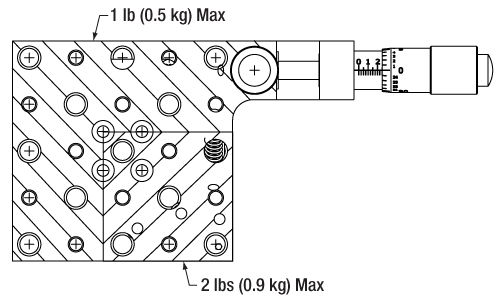

What weight load can this platform support. I am looking for a pan-tilt unit to accurately adjust a vertically mounted camera. The camera, with brackets, weighs ~1lb
Click on any phrase below to search our site using our new Search Engine:
2 axis platform   flexure accessory   optical mount   pitch roll platform   tilt platform
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal/Imperial Price Available / Ships
PY003 Support Documentation
PY003 Pitch and Yaw Accessory Tilt Platform w/ Micrometers
$197.40
Today
+1 Qty Docs Part Number - Metric Price Available / Ships
PY003/M Support Documentation
PY003/M Pitch and Yaw Accessory Tilt Platform w/ Micrometers
$197.40
Today
Log In   |   My Account  |   Contact Us  |   Privacy Policy  |   Home  |   Site Index
Regional Websites: East Coast US US | Europe | Asia | China | Japan
Copyright 1999-2014 Thorlabs, Inc.
Sales: 1-973-579-7227
Technical Support: 1-973-300-3000


High Quality Thorlabs Logo 1000px: Save this Image
